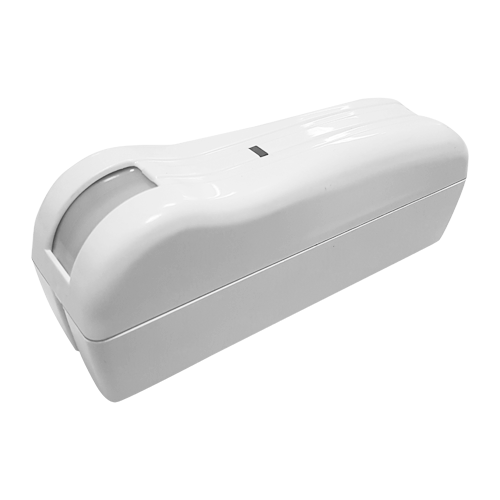

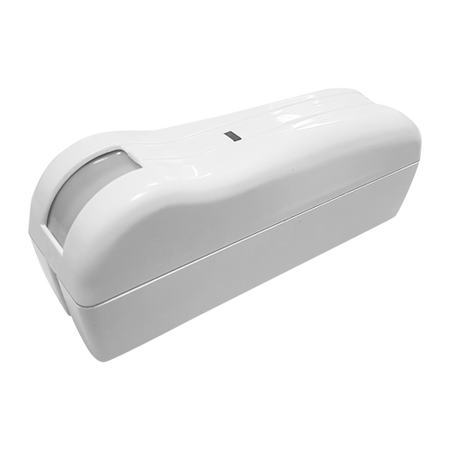

Sopras curtain-type PIR and microwave detector
Regular price
€117,60
Final price
Regular price
-8%
€128,00
Sale price
€117,60
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
PIR Detector - Microwave and curtain-type PIR - Integrated Ajax transmitter - Detection range 10 m - Anti-masking technology - Open space range 1200 m
📋 SPECIFICATIONS:
• Technology: Dual technology: dual PIR and microwave with anti-masking
• Detection range: 10 m / H: 7.5º V: 48º / Installation 2.1 m
• Frequency: 868 MHz Jeweller (Ajax transmitter included)
• Transmission distance: ≤ 1200 m in open space
• Masking: Available
• Sensitivity: Adjustable for PIR and microwave. 3 levels
• Anti-tamper: Available
• LED indication: Alarm
• DIP switch configuration: PIR sensitivity, Microwave sensitivity, Anti-masking, Battery saving mode and LED
• Wired outputs: Alarm and tamper
• Power supply: 1 x ER17505 3.6 V battery
• Consumption: Minimum consumption (standby): 50uA / Maximum: 15 mA)
• Operating temp.: -20 ºC ~ 70 ºC
• Protection rating: IP54
• Accessories: "L" bracket and visor included
• Dimensions: 140 (H) x 43 (W) x 60 (D) mm
📦 INCLUDED:
• Outdoor PIR detector• Bracket and visor• Instruction manual• Mounting hardware
| Technology | Dual technology: dual PIR and microwave with anti-masking |
|---|---|
| Detection range | 10 m / H: 7.5º V: 48º / Installation 2.1 m |
| Frequency | 868 MHz Jeweller (Ajax transmitter included) |
| Transmission distance | ≤ 1200 m in open space |
| Masking | Available |
| Sensitivity | Adjustable for PIR and microwave. 3 levels |
| Anti-tamper | Available |
| LED indication | Alarm |
| DIP switch configuration | PIR sensitivity, microwave sensitivity, anti-masking, battery saving mode and LED |
| Wired outputs | Alarm and tamper |
| Power supply | 1 ER17505 3.6 V battery |
| Consumption | Minimum consumption (standby): 50uA / Maximum: 15 mA |
| Operating temp. | -20 ºC ~ 70 ºC |
| Protection rating | IP54 |
| Accessories | "L" bracket and hood included |
| Dimensions | 140 (H) x 43 (W) x 60 (D) mm |
