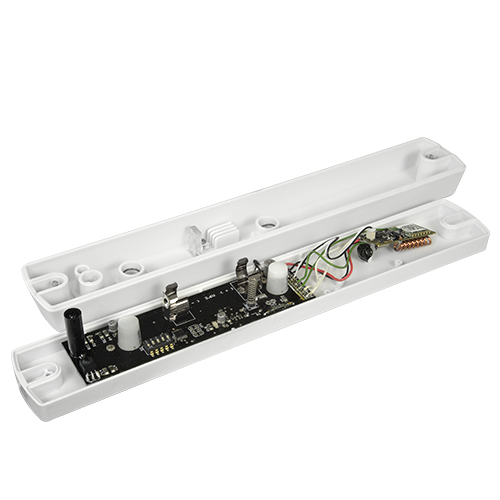

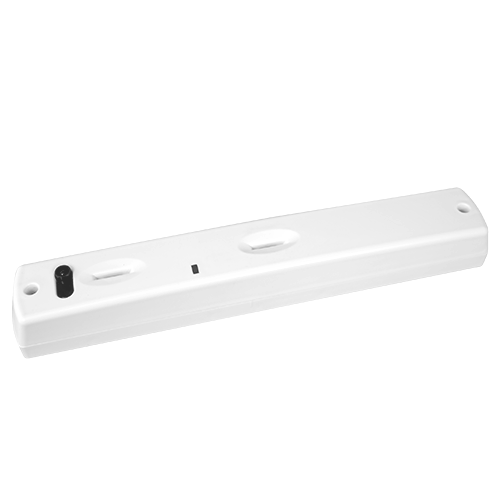

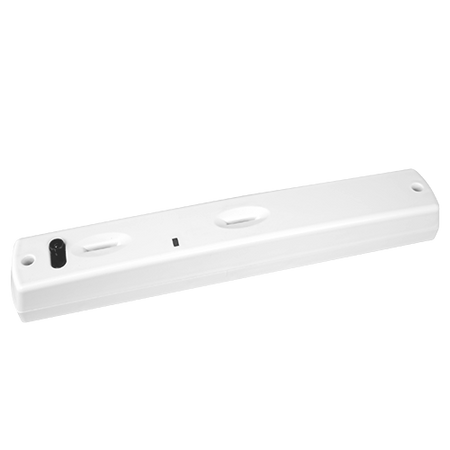

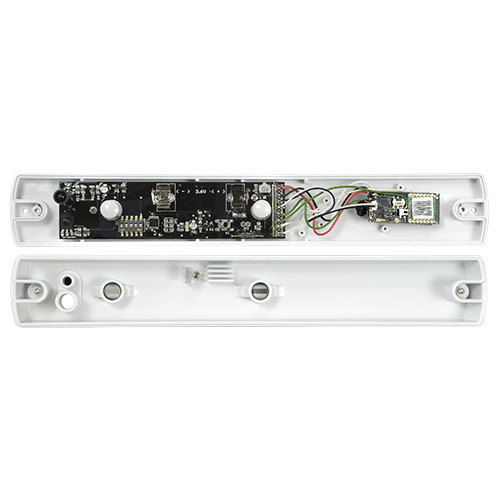

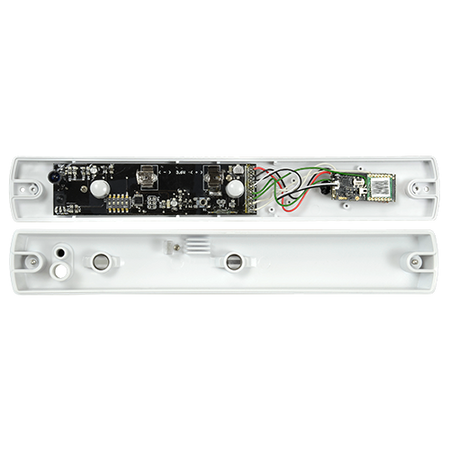

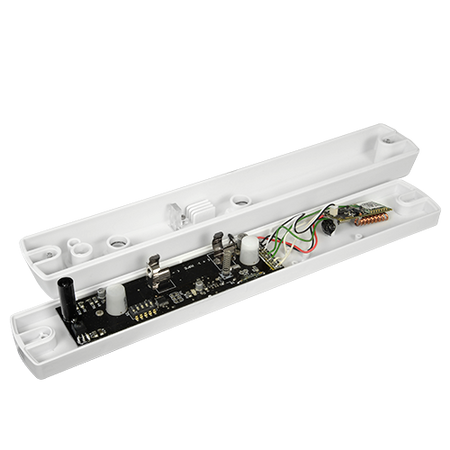

Integrated Ajax transmitter PIR detector Sopras - Microwave and dual PIR curtain - W

SKU: SOP-2IRDT-W
(0)
In stock
Usually shipped within 24 hours
€131,43 Final price
-9% €144,00 €131,43 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

PIR Detector - Integrated Ajax transmitter - Microwave and dual curtain PIR - Detection range 3 m - Anti-masking technology - 1200 m open space distance

📋 SPECIFICATIONS:
• Technology: Microwave and dual curtain PIR with Anti-masking
• Microwave: 24 GHz / Adjustable
• PIR lens: 2 zones
• Detection range: 3 m / 35º
• Frequency: 868 MHz Jeweller with Ajax transmitter included
• Transmission distance: ≤ 1200 m in open space
• Masking: Available
• Anti-tamper: Available
• LED indication: Alarm
• DIP switch configuration: Anti-masking, AND/OR function, pulse counter (1 or 2), Microwave and LED
• Wired outputs: Alarm, tamper and transmitter power supply
• Power supply: 1 x ER14505 3.6 V battery
• Consumption: Minimum consumption (standby): 30 uA / Maximum: 20 mA
• Operating temp.: -20 ºC ~ 50 ºC
• Protection degree: IP54
• Dimensions: 295 (H) x 37 (W) x 32 (D) mm
• Weight: 150 g

📦 INCLUDED:
• PIR detector• Instruction manual• Mounting material
Technology Microwave and dual curtain-type PIR with antimasking
Microwave 24 GHz / Adjustable
PIR lens 2 zones
Detection range 3 m / 35º
Frequency 868 MHz Jeweller with Ajax transmitter included
Transmission distance ≤ 1200 m in open space
Masking Available
Anti-tamper Available
LED indication Alarm
DIP switch configuration Antimasking, AND/OR function, pulse counter (1 or 2), Microwave and LEDs
Wired outputs Alarm, tamper and transmitter power supply
Power supply 1 x ER14505 3.6 V battery
Consumption Minimum consumption (standby): 30 uA / Maximum: 20 mA
Operating temp. -20 ºC ~ 50 ºC
Protection degree IP54
Dimensions 295 (H) x 37 (W) x 32 (D) mm
Weight 150 g
