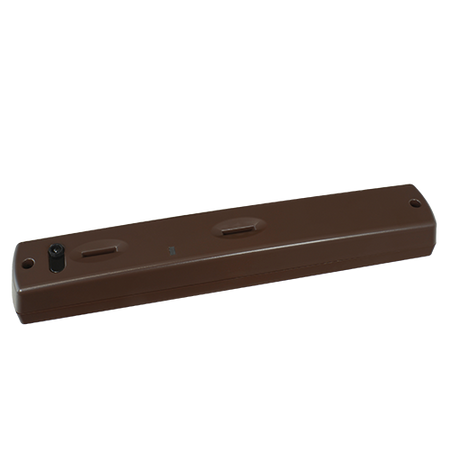

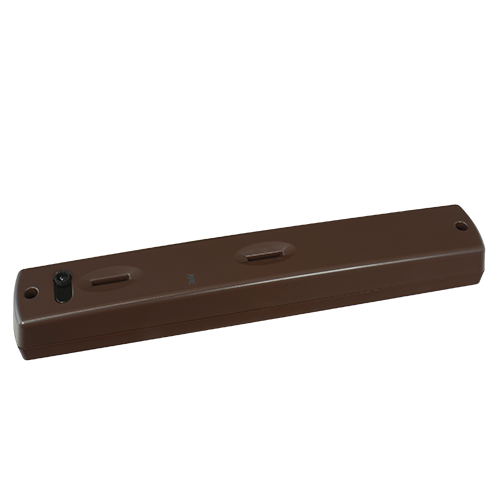

Ajax transmitter integrated PIR detector Sopras - Dual curtain-type PIR - BR
Ajax transmitter integrated PIR detector Sopras - Dual curtain-type PIR - BR
Regular price
€83,01
Final price
Regular price
-8%
€90,00
Sale price
€83,01
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
PIR detector - Integrated Ajax transmitter - Dual curtain PIR - Detection range 3 m - Anti-masking technology - Open space distance 1200 m
📋 SPECIFICATIONS:
• Technology: Dual curtain PIR with Anti-masking
• PIR lens: 2 zones
• Detection range: 3 m / 35º
• Frequency: 868 MHz Jeweller with included Ajax transmitter
• Transmission distance: ≤ 1200 m in open space
• Masking: Available
• Anti-tamper: Available
• LED indication: Alarm
• DIP switch configuration: Anti-masking, AND/OR function, pulse counter (1 or 2) and LED
• Wired outputs: Alarm, tamper and transmitter power supply
• Power supply: 1 x ER14505 3.6 V battery
• Consumption: Minimum consumption (standby): 29 uA / Maximum: 0.9 mA
• Operating temp.: -20 ºC ~ 50 ºC
• Protection rating: IP54
• Dimensions: 295 (H) x 37 (W) x 32 (D) mm
• Weight: 150 g
📦 INCLUDED:
• PIR detector• Instruction manual• Mounting material
| Technology | Dual PIR curtain type with Anti-masking |
|---|---|
| PIR lens | 2 zones |
| Detection range | 3 m / 35º |
| Frequency | 868 MHz Jeweller with Ajax transmitter included |
| Transmission distance | ≤ 1200 m in open space |
| Masking | Available |
| Anti-tamper | Available |
| LED indication | Alarm |
| DIP switch configuration | Anti-masking, AND/OR function, pulse counter (1 or 2) and LED |
| Wired outputs | Alarm, tamper and transmitter power supply |
| Power supply | 1 x ER14505 3.6 V battery |
| Consumption | Minimum consumption (standby): 29 µA / Maximum: 0.9 mA |
| Operating temp. | -20 ºC ~ 50 ºC |
| Protection rating | IP54 |
| Dimensions | 295 (H) x 37 (W) x 32 (D) mm |
| Weight | 150 g |
