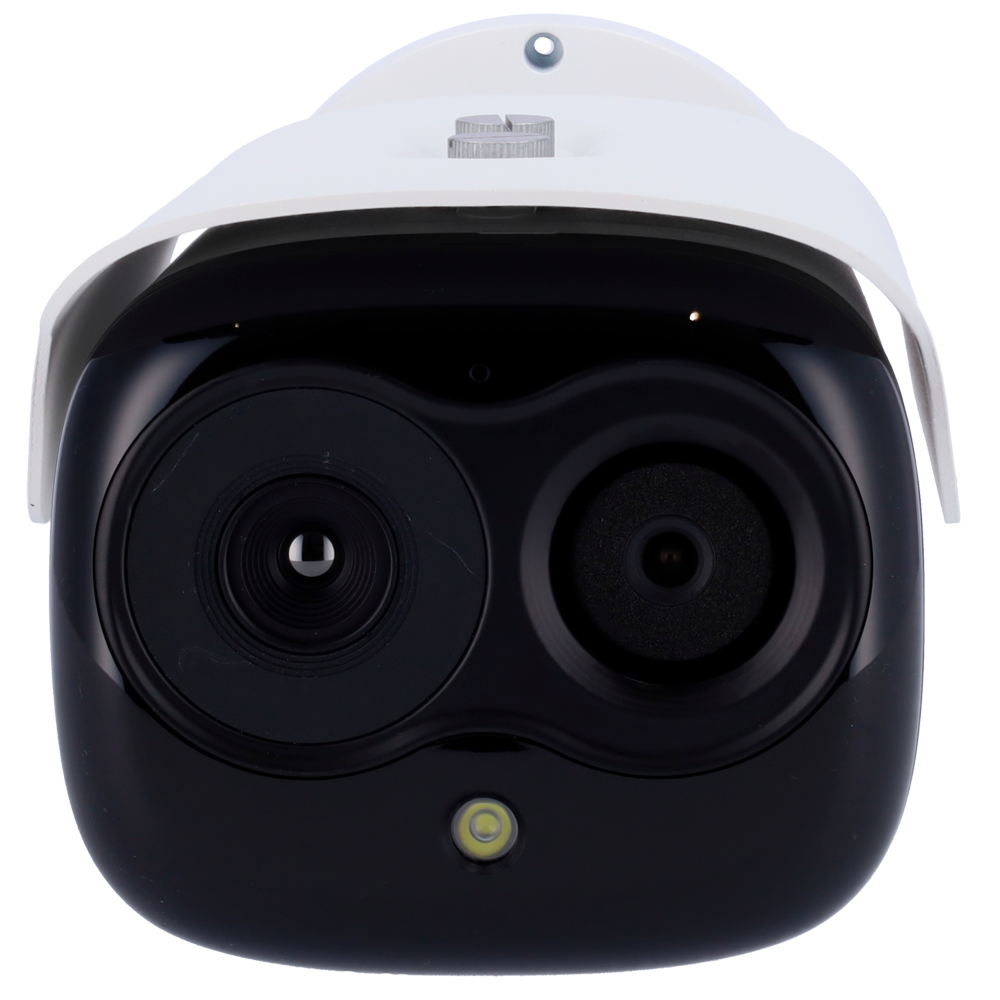

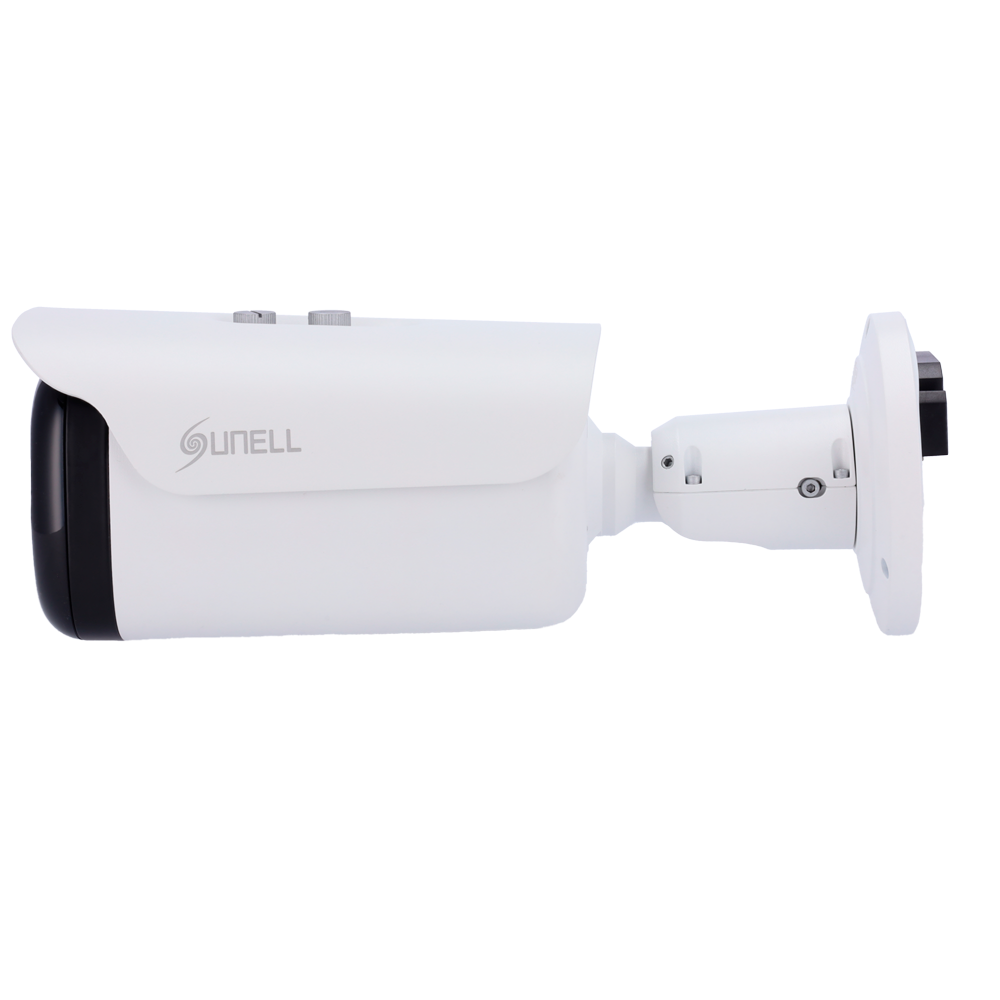

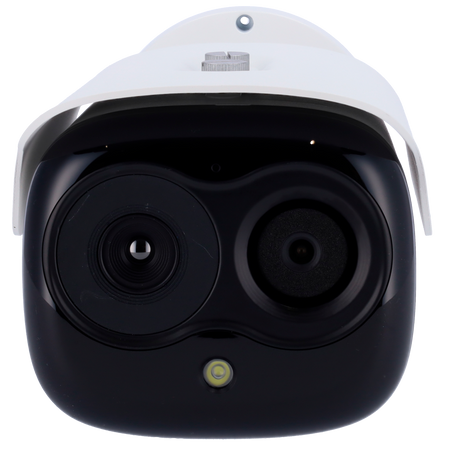

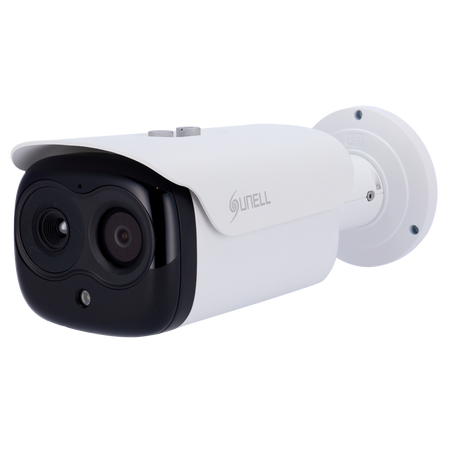

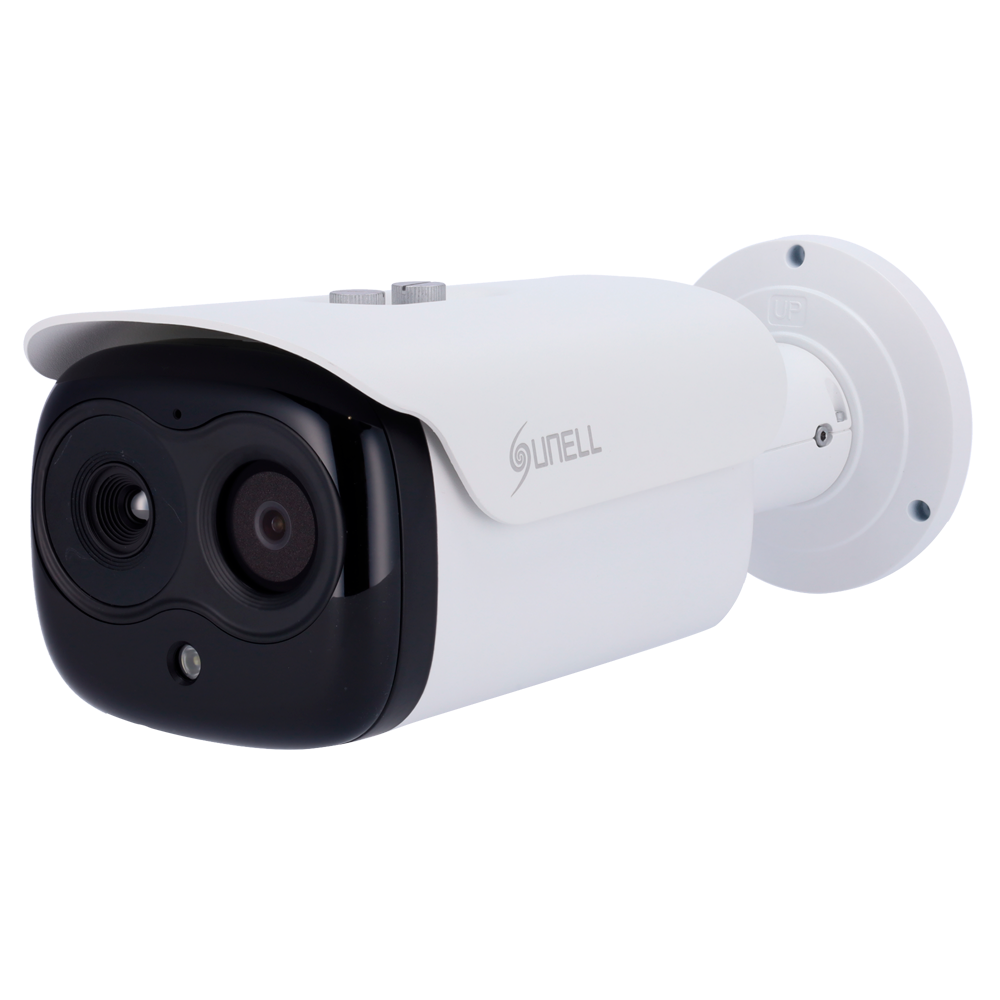

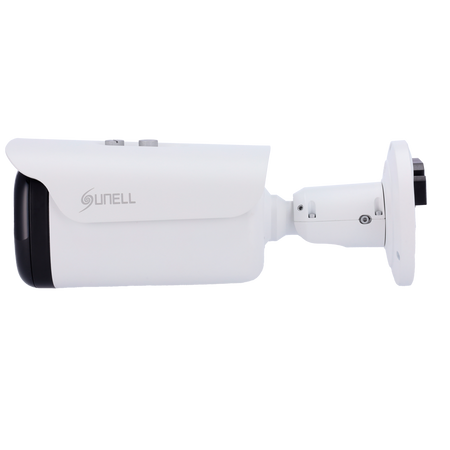

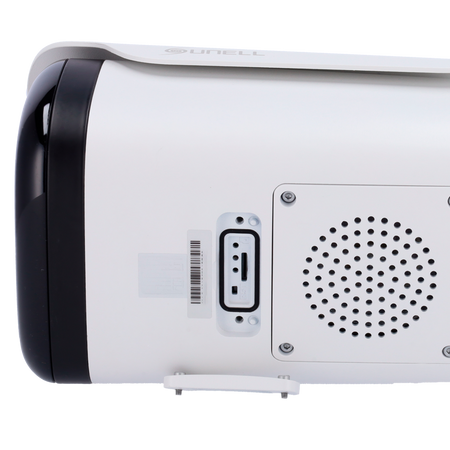

Sunell TPC6457DLT Series IP Thermal Camera - 640x512 12μm VOx FPA Thermal Sensor | 25mm Lens
Sunell TPC6457DLT Series IP Thermal Camera - 640x512 12μm VOx FPA Thermal Sensor | 25mm Lens
Regular price
€3.281,15
Final price
Regular price
-29%
€4.648,36
Sale price
€3.281,15
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Sunell TPC6457DLT series IP thermal camera - VOx FPA 640x512 12μm thermal sensor | 25mm lens - 1/1.8" CMOS visible sensor | 4Mp | 10-30mm lens - Thermal sensitivity ≤40mK - Temperature measurement range -20~150ºC/±2ºC or ±2% - IP66 protection - NEMA 4X
📋 SPECIFICATIONS:
• Brand: Sunell
• Range: TPC6457DLT
• Thermal sensor: Uncooled VOx FPA
• Thermal sensor resolution: 640 x 512
• Pixel pitch: 12μm
• Thermal lens: 25mm
• Thermal sensitivity: ≤40mK
• Thermal measurement range: -20~150ºC / ±2ºC or ±2%
• Spectral range: LWIR 8~14μm
• Thermal field of view: 17° (H) x 14° (V)
• Visible sensor: 1/1.8" CMOS
• Visible sensor resolution: 2688 x 1520 (4Mpx)
• Visible lens: 10-30mm
• Visible field of view: 43.4° - 15.5° (H), 23.8° - 8.8° (V)
• Infrared illuminator: 100m max.
• White light illuminator: Strobe light
• Bi-spectrum vision parameters: Fusion
• Main Stream frame rate: Thermal: 1280×1024, 1280×1720, 640×512 @25/30fps; Visible: 2688×1520, 1920×1080, 1280×720 @25/30fps
• Sub Stream Rate: Thermal: D1, CIF @25/30fps; Visible: D1, 640×360, CIF @25/30fps
• Compression: H.265 / H.264
• DRI: Person: 1040m (D), 260m (R), 130m (I); vehicle: 3194m (D), 799m (R), 399m (I)
• Smart analysis ranges: Person: 145m; vehicle: 280m; Temperature measurement (1x1m object): 417m; Temperature measurement (0.2x0.2m object): 83m; Fire detection (1x1m object): 1042m; Fire detection (0.2x0.2m object): 208m
• VCA: Temperature measurement, person and vehicle classification
• Intelligent analysis: Intrusion, line crossing, loitering, wrong way, area entry, area exit (all support accurate person/vehicle detection), people counting
• Advanced intelligent analysis: Smoking, smoke, flame, fire detection
• Temperature rules: Full window, point, line, and area (up to 20 rules simultaneously)
• Alarms: 2 inputs / 2 relays
• Audio: 1 input / 1 output
• Built-in microphone: Supported
• Built-in speaker: Supported, alarm sound transmission up to 150m (woodland environment)

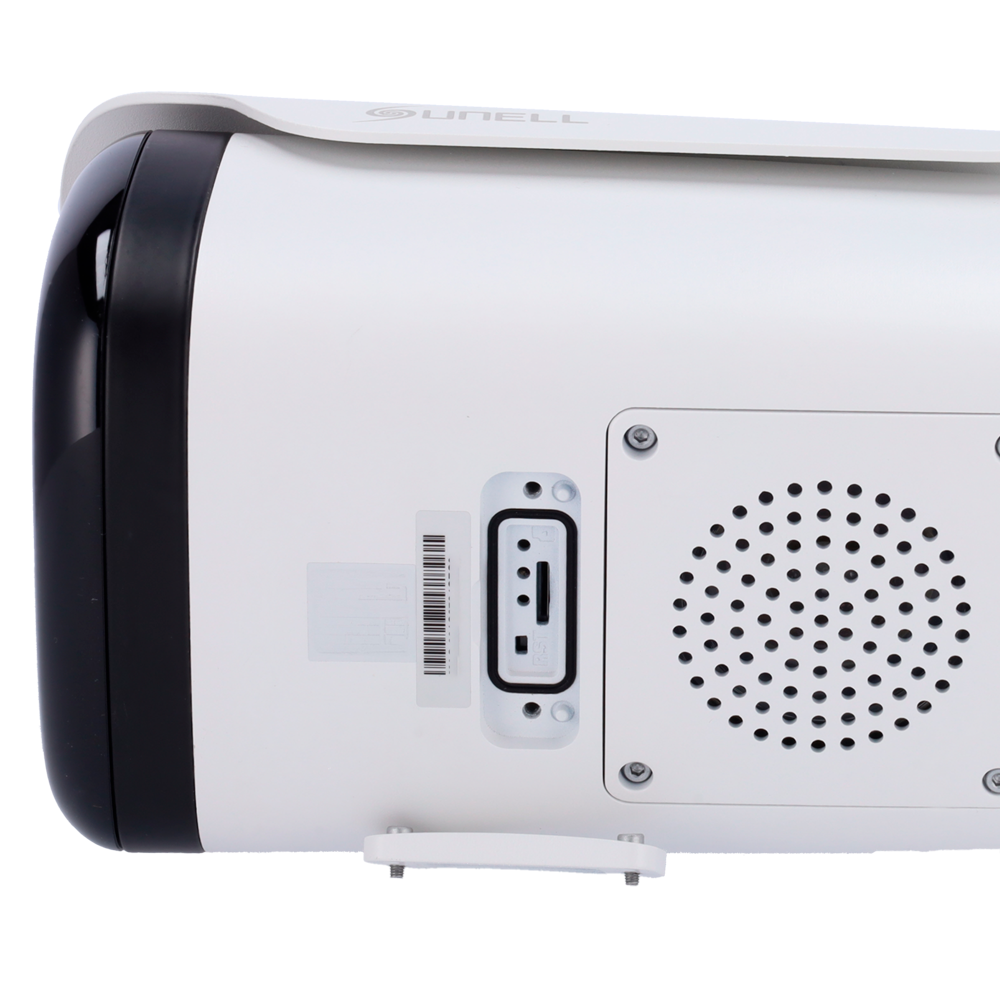

• Internal memory: SD card slot up to 256 GB
• Network interface: Ethernet 10/100 BaseT
• Communication: RS-485
• Remote access: Web browser, PC software VMS (SunView)
• Interoperability: ONVIF, API, SDK
• Power supply: DC 12V, 8W max.; PoE IEEE802.3af
• Operating temp: -40ºC~+60ºC, <90% RH
• Protection rating: Waterproof IP66; NEMA 4X
• Certifications: CE-EMC (EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014, EN 61000-6-3:2007+A1:2011+AC:2012, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019)); FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014)
• Dimensions: 327.4mm ×140.04mm × 120.72mm
• Weight: 2.0kg with 50mm lens
📦 INCLUDED:
• Sunell TPC6457DLT series dual IP thermal camera• Installation material• User instructions
| Series | TPC6457DLT |
|---|---|
| Thermal sensor | Uncooled VOx FPA |
| Thermal sensor resolution | 640 x 512 |
| Pixel pitch | 12μm |
| Thermal lens | 25mm |
| Thermal sensitivity | ≤40mK |
| Thermal measurement range | -20~150ºC / ±2ºC or ±2% |
| Spectral range | LWIR 8~14μm |
| Thermal field of view | 17° (H) x 14° (V) |
| Visible sensor | 1/1.8" CMOS |
| Visible sensor resolution | 2688 x 1520 (4Mpx) |
| Visible lens | 10-30mm |
| Visible field of view | 43.4° - 15.5° (H), 23.8° - 8.8° (V) |
| Infrared illuminator | 100m max. |
| White light illuminator | Strobe light |
| Bi-spectrum vision parameters | Fusion |
| Main Stream frame rate | Thermal: 1280×1024, 1280×1720, 640×512 @25/30fps Visible: 2688×1520, 1920×1080, 1280×720 @25/30fps |
| Sub Stream Rate | Thermal: D1, CIF @25/30fps Visible: D1, 640×360, CIF @25/30fps |
| Compression | H.265 / H.264 |
| DRI | Human: 1040m (D), 260m (R), 130m (I) vehicle: 3194m (D), 799m (R), 399m (I) |
| Smart analysis ranges | Human: 145m vehicle: 280m Temperature measurement (1x1m object): 417m Temperature measurement (0.2x0.2m object): 83m Fire detection (1x1m object): 1042m Fire detection (0.2x0.2m object): 208m |
| VCA | Temperature measurement, human and vehicle classification |
| Smart analysis | Intrusion, line crossing, loitering, wrong way, entering area, exiting area (all support accurate human/vehicle detection), people counting |
| Advanced smart analysis | Detects smokers, smoke, flames, fires |
| Temperature rules | Full window, point, line, and area (up to 20 rules simultaneously) |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Built-in microphone | Supported |
| Built-in speaker | Supported, alarm sound transmission up to 150m (wooded environment) |
| Internal memory | SD card slot up to 256 GB |
| Network interface | Ethernet 10/100 BaseT |
| Communication | RS-485 |
| Remote access | Web browser, PC VMS software (SunView) |
| Interoperability | ONVIF, API, SDK |
| Power supply | DC 12V, 8W max. PoE IEEE802.3af |
| Operating temp. | -40ºC~+60ºC, <90% RH |
| Protection rating | Waterproof IP66 NEMA 4X |
| Certifications | CE-EMC (EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014, EN 61000-6-3:2007+A1:2011+AC:2012, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019)) FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014) |
| Dimensions | 327.4mm ×140.04mm × 120.72mm |
| Weight | 2.0kg with 50mm lens |
