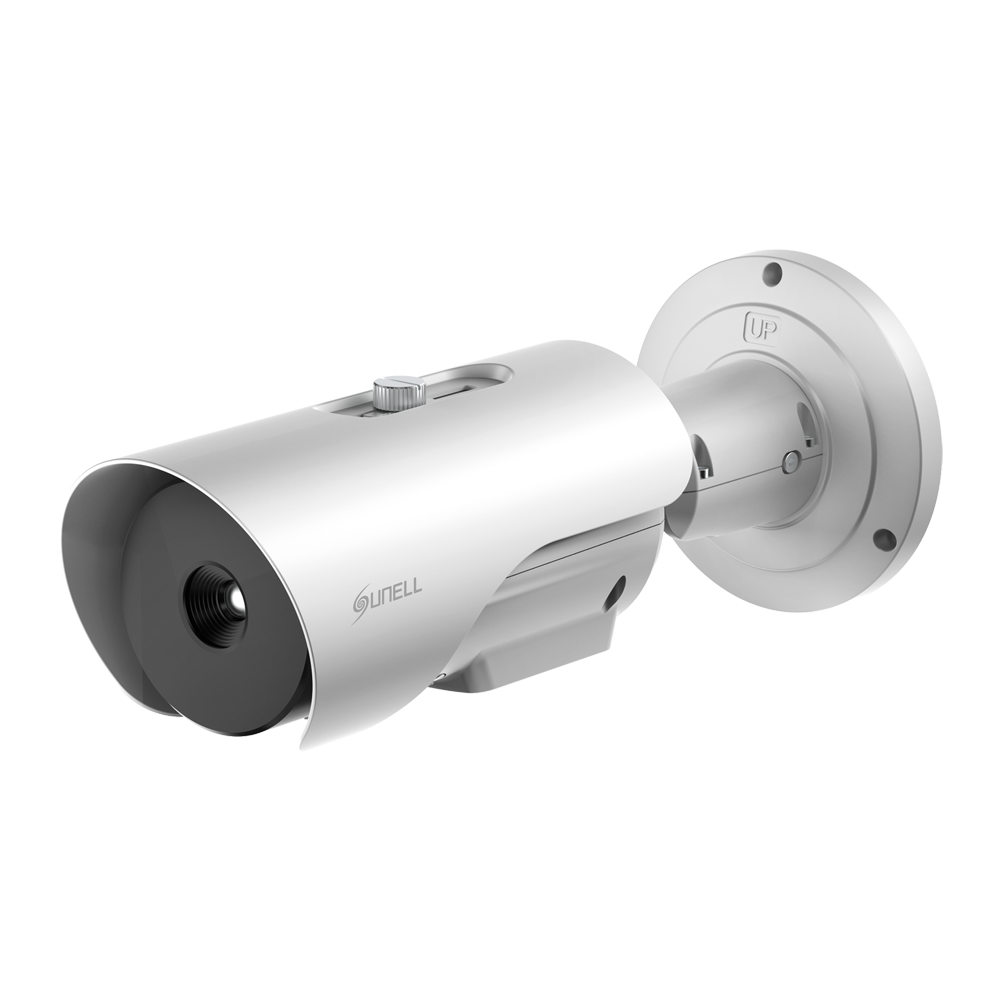

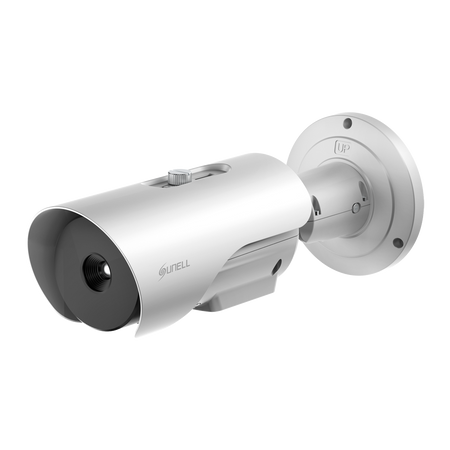

VOx 640x512 thermal sensor 50mm lens NETD ≤20mK Sunell

VOx 640x512 thermal sensor, 50mm lens, NETD ≤20mK - Precise detection of people, vehicles, and fire - Intelligent analysis for intrusions and suspicious movements - Temperature measurement from -20°C to 550°C - Aluminum alloy housing IP66 IK10 NDAA NEMA4X - Connection box included

📋 SPECIFICATIONS:
• Sensor: Vanadium Oxide (VOx) uncooled FPA
• Maximum sensor resolution: 640 × 512 pixels
• Pixel pitch: 12µm
• Spectral range: LWIR 8 to 14µm
• Thermal sensitivity (NETD): ≤20mK
• Lens type: Fixed lens
• Focal length: 50mm
• Maximum aperture: F1.0
• Field of view: H: 8°, V: 7°
• Focus control: Focus-free
• Multi-target AI: Support for human and vehicle detection
• Intelligent video analysis (VCA): Intrusion, intelligent motion detection, single/double line crossing, loitering, wrong direction, area entry/exit
• Additional detection functions: People counting; Smoking detection; Fire spot detection
• Main stream: 1280×720, D1, 384×288
• Sub stream: D1, 384x288, CIF
• Frame rate: Up to 25 fps
• Bitrate control: CBR / VBR
• Bandwidth: Main stream: 100 Kbps to 8 Mbps; Sub stream: 100 kbps to 6 Mbps
• Smart Codec: Supported
• Audio compression: G.711 A-law, G.711 μ-law, RAW_PCM
• Audio bitrate: 64 Kbps (G.711), 128 Kbps (RAW_PCM)
• Image settings: Brightness, contrast, sharpness
• Scene mode: Mirror
• Pseudo-color adjustments: Up to 17 color palettes (White-hot / Black-hot / Rainbow / Iron red / HSV / Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose-Bengal)
• FFC control: Auto / Manual
• Noise reduction: 2D / 3D DNR
• On-Screen Display (OSD): Up to 8 options
• Privacy Mask: 4 areas
• Temperature measurement range: -20°C to +150°C or 0°C to +550°C
• Measurement accuracy: ±2°C / ±2%
• Temperature detection: 3 rule types: point, line, area; up to 20 rules in total, including 1 full-screen and 19 rules (point, line, area)
• Temperature alarm: Temperature difference alarm, temperature threshold alarm, sudden temperature rise alarm
• Temperature display: Display in the bottom left corner with indication of maximum, minimum, or average temperature at the cursor position
• Response time: ≤ 30ms
• Alarm events: IVS, motion detection, alarm input, network alarm, hard disk alarm, abnormal audio detection
• Event actions: Alarm recording, alarm output, FTP upload, SMTP email, audio alarm
• Network protocols: IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, 802.1x, SNMP, Multicast
• API: ONVIF Profile S/T/G/M, SDK, CGI
• Maximum simultaneous streams: 10 channels
• User levels: 32 users, 3 user levels: administrator, operator, media user
• Web browser: Microsoft IE11, Google Chrome, Mozilla Firefox, Microsoft Edge
• OS firmware protection: Encrypted and signed firmware
• User authentication: Digest authentication to prevent brute force attacks
• Network authentication: IEEE 802.1X (EAP-TLS)
• Secure communication: HTTPS, WSS (WebSocket Secure), SRTP
• Access control: IP filtering, automatic disconnection
• Data protection: Encrypted credentials
• Audit: Access, system, and event log management
• Supply chain security: SBOM
• Hardware security: Built-in Secure Element with FIPS 140-3 Level 3 certification
• Network interface: 1 × Ethernet (10/100 Base-T), RJ-45 connector
• Integrated audio: Built-in microphone and speaker
• Audio interfaces: 1 input channel, 1 output channel
• Alarm interfaces: 2 inputs and 2 relay outputs
• Control interface: 1 RS-485 channel
• Analog video output: Support for CVBS output
• Local storage: Built-in SD card slot (up to 1TB)
• Reset button: Supported
• Languages: English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean; Default: English
• Power supply: 12 VDC / 24 VAC / PoE (802.3af)
• Power consumption: Maximum 4.5W
• Operating temperature: -40°C to +60°C
• Operating humidity: ≤95 % RH (non-condensing)
• Protection certifications: IP66, IK10, NEMA 4X
• Certifications: CE-EMC; EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4; FCC 47 CFR Part 15 Subpart B
• Legal compliance: NDAA and TAA
• Body material: Aluminum alloy
• Dimensions: φ120.5mm × 352.6mm
• Net weight: 1.7 kg (9mm lens)
• Detection; (human: 1.8 x 0.5m): 2,083m
• Detection; (vehicle: 4 x 1.5m): 6,389m
• Recognition (human: 1.8 x 0.5m): 521m
• Recognition; (vehicle: 4 x 1.5m): 1,597m
• Identification; (human: 1.8 x 0.5m): 260m
• Identification; (vehicle: 4 x 1.5m): 799m
• Note:; Distances calculated based on Johnson's Criterion.: Detection: The object must be covered by more than 1.5 pixels.; Recognition: The object must be covered by more than 6 pixels.; Identification: The object must be covered by more than 12 pixels.
• VCA detection; (human: 1.8 x 0.5m): 480m
• Temperature measurement; (1 x 1m): 833m
• Temperature measurement; (0.2 x 0.2m): 167m
• Fire detection; (1 x 1m): 2,083m
• Fire detection; (0.2 x 0.2m): 417m
• Note: These values are for reference only. The actual detection distance may vary based on weather conditions, object size, and installation environment.

📦 INCLUDED:
• 1x SN-TPC6407KT-F50 thermal camera
• 1x Connection box
• 1x Screw kit and mounting accessories
• 1x Installation guide and user manual
