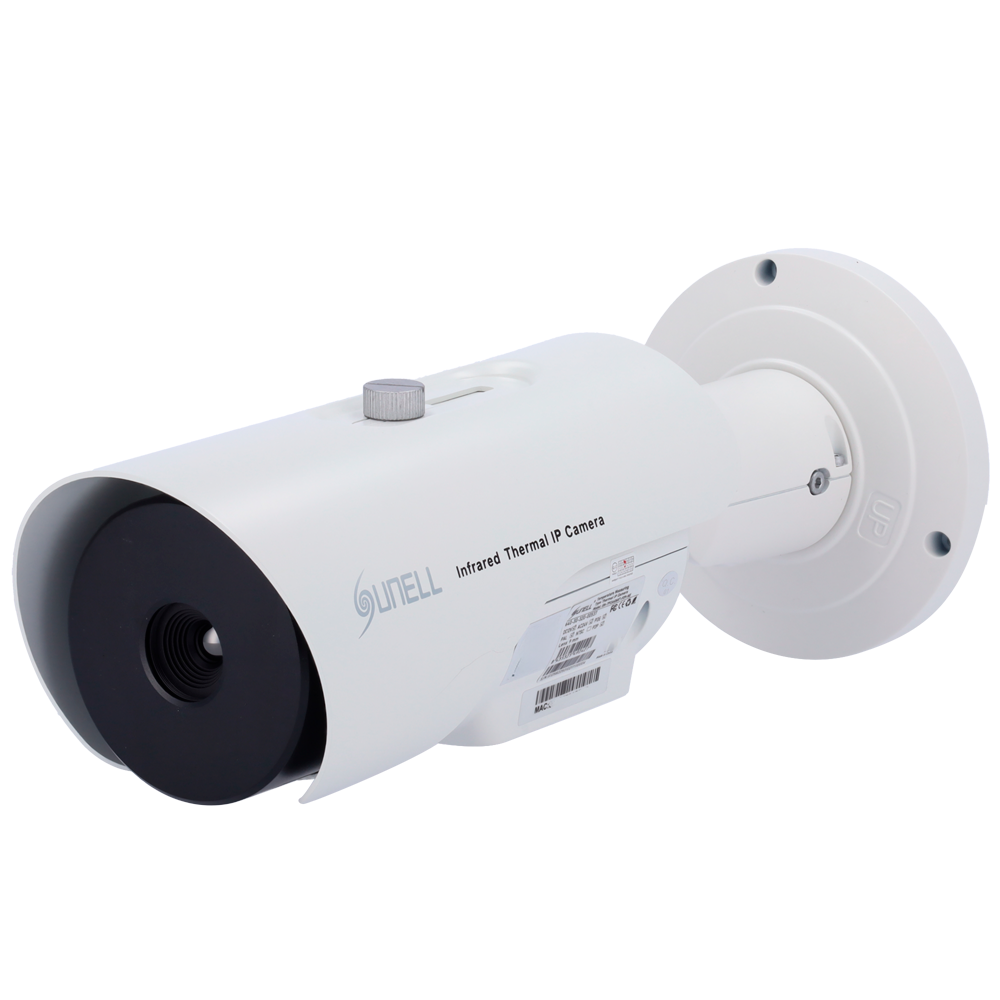

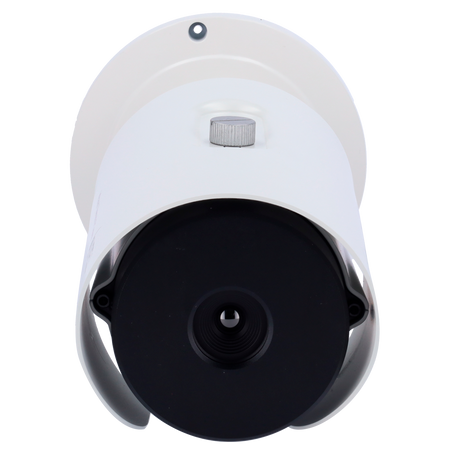

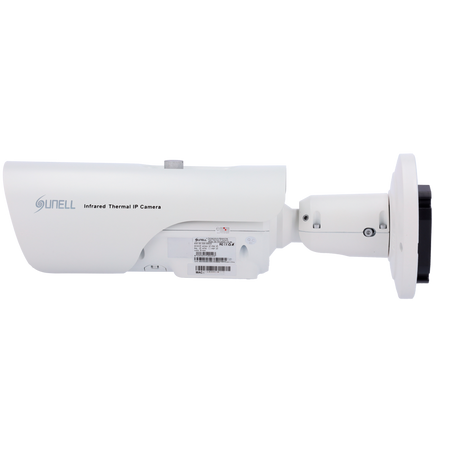

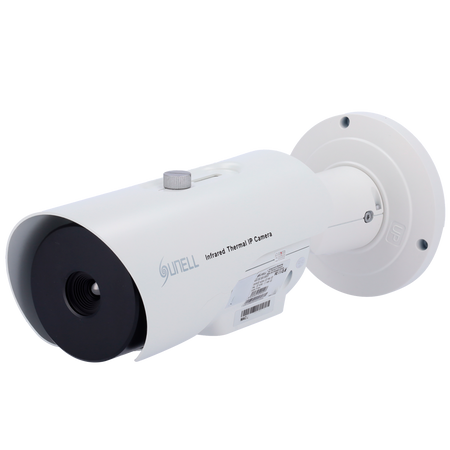

Sunell IP Thermal Camera - 640x512/12µm VOx | 35mm lens
Sunell IP Thermal Camera - 640x512/12µm VOx | 35mm lens
Regular price
€3.573,99
Final price
Regular price
-35%
€5.502,00
Sale price
€3.573,99
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Sunell IP Thermal Camera - 640x512/12µm VOx | 35mm lens - Thermal sensitivity ≤40mK - Accuracy ±2ºC / ±2% - Temperature, person, and vehicle detection - NDAA certified - NEMA 4X
📋 SPECIFICATIONS:
• Brand: Sunell
• Thermal sensor: 640x512/12µm VOx
• Main Stream frame rate: 1280x1024, 1280x720, 640x512 (25fps)
• Sub Stream frame rate: 640x512, CIF (25fps)
• Compression: H.265 / H.264
• Pixel size: 12µm
• Lens: 35 mm
• Viewing angle: 12º x 10º
• Focus: Free focus
• Thermal sensitivity: ≤40mK
• Spectral range: 8~14µm
• Palettes: Up to 17 modes (white hot, black hot, red hot, rainbow, etc.)
• Intelligent functions: Temperature detection, person and vehicle detection, ship detection
• Detectable temperature range: -20ºC to 150ºC (-4ºF to 302ºF)
• Temperature accuracy: ±2ºC / ±2%
• Temperature measurement: Supports 3 types of rules (point, area, and line)
• VCA range: Fire detection: 0m; Person recognition: 0m; Vehicle recognition: 0m
• Audio: 1 input / 1 output
• Alarm: 2 inputs / 2 relay outputs

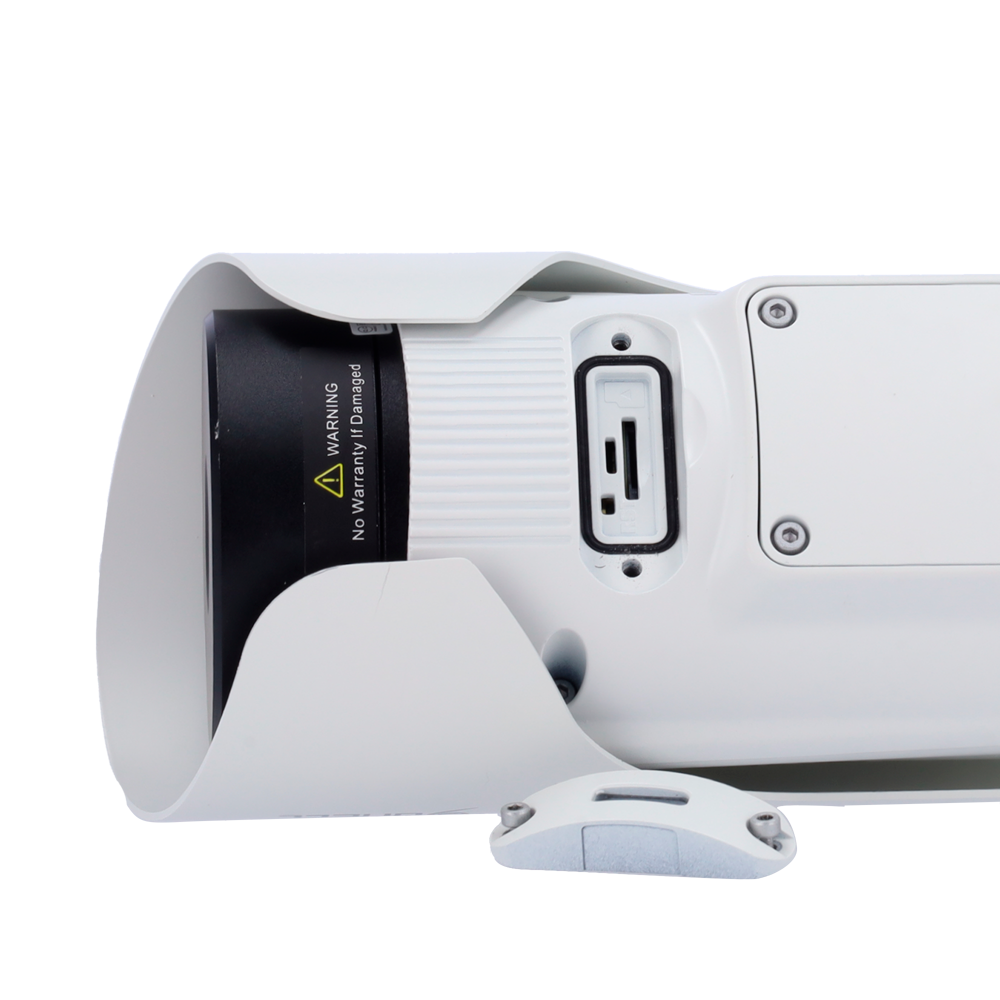

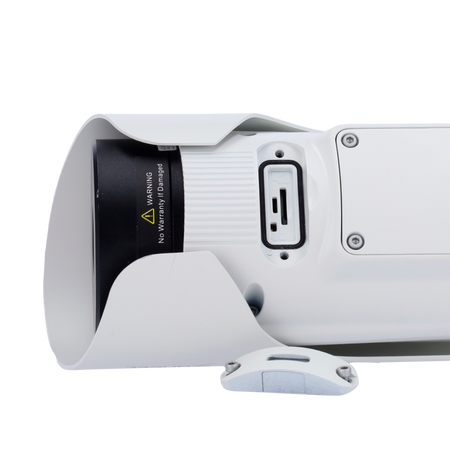

• Internal memory: Micro SD card up to 256GB (not included)
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface, CMS (SunView), Smartphone, and NVR
• Interoperability: ONVIF & Private Protocol
• Power supply: 12VDC / 5W, PoE IEEE802.3af
• Operating temp.: -40ºC ~ +60ºC
• Protection rating: IP66; NEMA 4X
• Material: Metal
• Dimensions: 387.6mm x 120.5mm (Ø)
• Weight: 1850g
• Certificates: NDAA / CE / FCC
📦 INCLUDED:

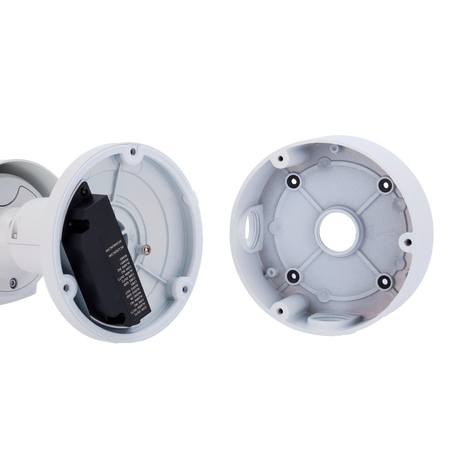

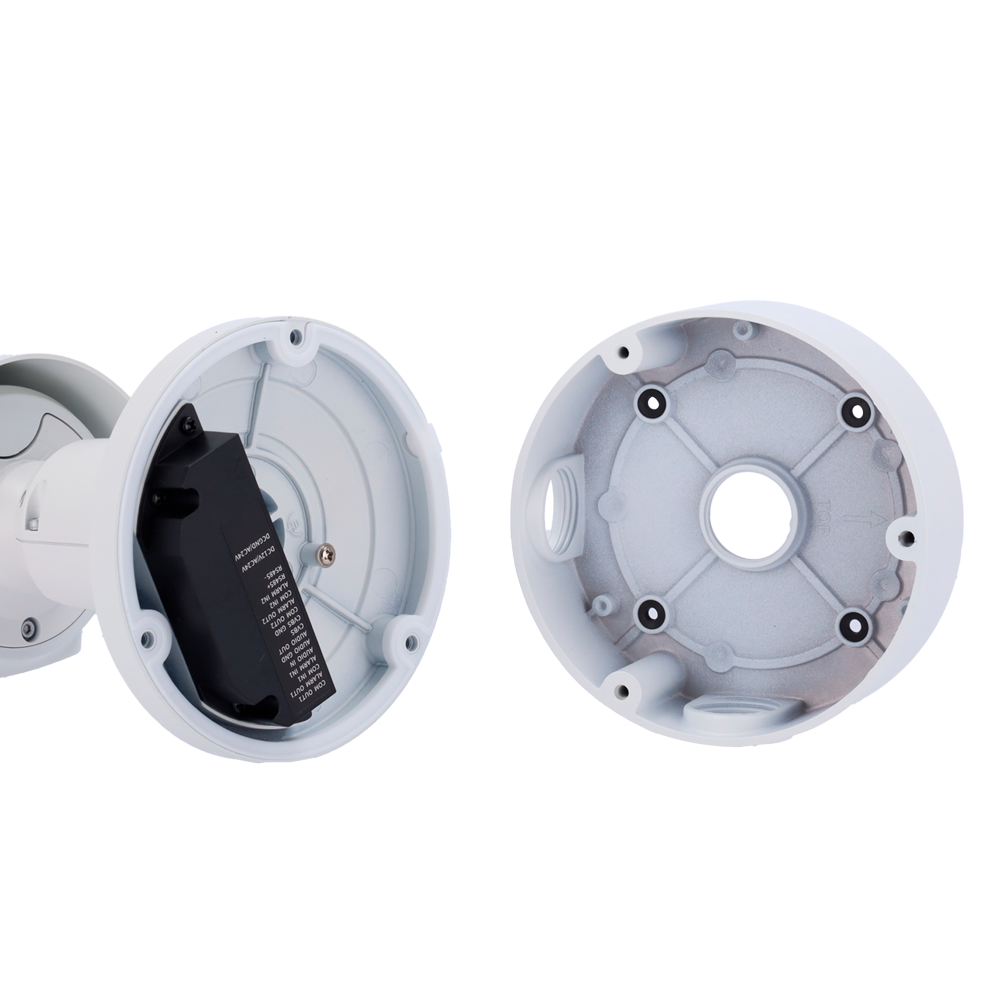

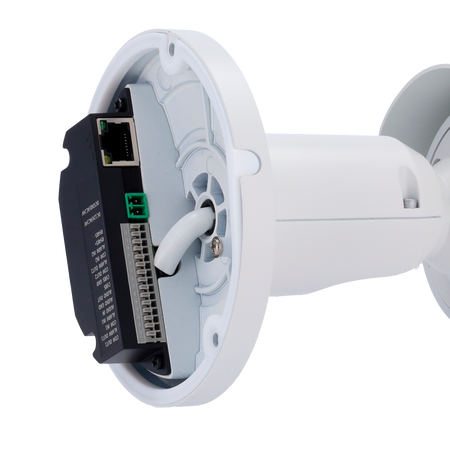

• Sunell IP thermal camera• Installation material• User instructions• Junction box
| Thermal sensor | 640x512/12µm VOx |
|---|---|
| Main Stream frame rate | 1280x1024, 1280x720, 640x512 (25fps) |
| Sub Stream frame rate | 640x512, CIF (25fps) |
| Compression | H.265 / H.264 |
| Pixel pitch | 12µm |
| Lens | 35 mm |
| Field of view | 12º x 10º |
| Focus | Free focus |
| Thermal sensitivity | ≤40mK |
| Spectral range | 8~14µm |
| Palettes | Up to 17 modes (white hot, black hot, red hot, rainbow, etc.) |
| Intelligent functions | Temperature detection, human and vehicle detection, vessel detection |
| Temperature detection range | -20ºC to 150ºC (-4ºF to 302ºF) |
| Temperature accuracy | ±2ºC / ±2% |
| Temperature measurement | Supports 3 rule types (point, area, and line) |
| VCA range | Fire detection: 0m Human detection: 0m Vehicle detection: 0m |
| Audio | 1 input / 1 output |
| Alarm | 2 inputs / 2 relay outputs |
| Internal memory | Micro SD card up to 256GB (not included) |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF & Private Protocol |
| Power supply | 12VDC / 5W, PoE IEEE802.3af |
| Operating temp. | -40ºC ~ +60ºC |
| Protection rating | IP66 NEMA 4X |
| Material | Metal |
| Dimensions | 387.6mm x 120.5mm (Ø) |
| Weight | 1850g |
| Certificates | NDAA / CE / FCC |
