SN-TPC4203KT/F50-BOX
SN-TPC4203KT/F50-BOX

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

SUNELL

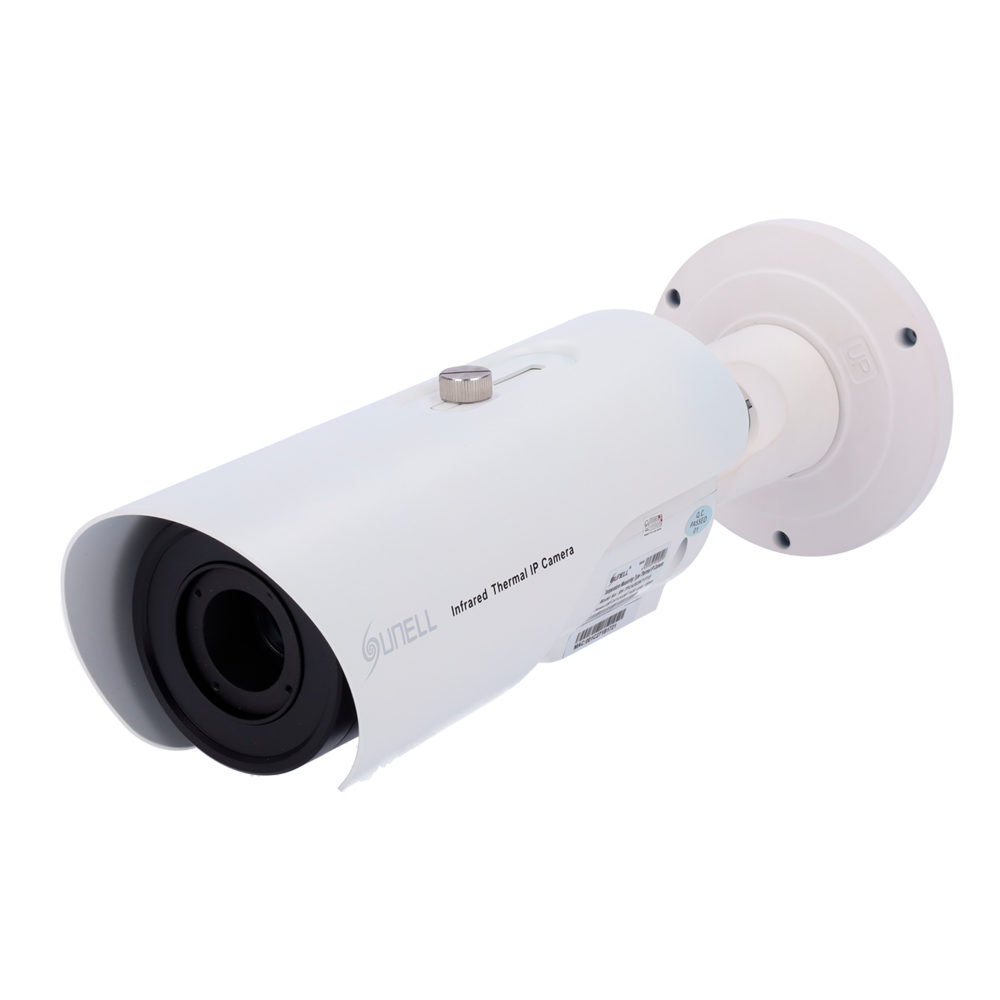

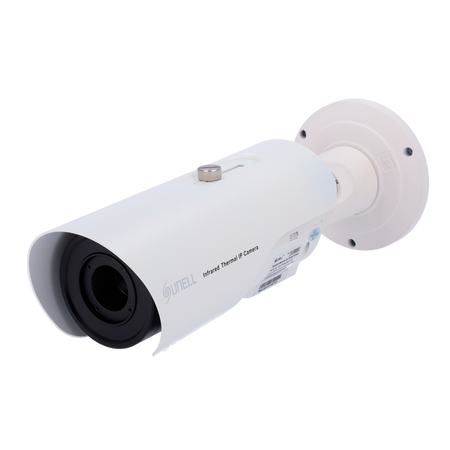

Sunell IP Thermal Camera - 400x300 VOx | 50mm Lens

SKU: SN-TPC4203KT/F50-BOX
(0)
In stock
Usually shipped within 24 hours
€4.381,02 Final price
-29% €6.160,90 €4.381,02 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Sunell IP Thermal Camera - 400x300 VOx | 50mm Lens - Thermal sensitivity ≤40mK - Accuracy ±2ºC - Temperature, Person and Vehicle Detection - NDAA

📋 SPECIFICATIONS:
• Brand: Sunell
• Thermal sensor: 400x300 VOx
• Main Stream frame rate: D1 (25fps)
• Sub Stream frame rate: CIF (25fps)
• Compression: H.265 / H.264 / MJPEG
• Pixel size: 17µm
• Lens: 50 mm
• Field of view: 8º x 6º
• Focus: Manual
• Thermal sensitivity: ≤40mK
• Spectral range: 8~14µm
• Palettes: Up to 17 modes (Red, Black, Rainbow, etc.)
• Intelligent functions: Temperature detection and alarm, Person detection and Vehicle detection
• Detectable temperature range: -40ºC to 150ºC (-4ºF to 302ºF)
• Temperature accuracy: ±2ºC / ±2%
• Temperature measurement: Supports 3 rule types (Point, Area, and Line)
• VCA range: Fire recognition: 490 m; Person recognition: 200 m; Vehicle recognition: 450 m
• Audio: 1 In / 1 Out line level 600 ohm
• Alarm: 2 In / 2 Out
• Internal storage: Micro SD card up to 128GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface, CMS (SunView), Smartphone and NVR
• Interoperability: ONVIF & Private Protocol
• Power supply: 12VDC / 5W, PoE IEEE802.3af
• Operating temp.: -40º C ~ +60º C
• Protection rating: Waterproof IP66
• Material: Metal
• Dimensions: 388 mm (D) x 110 (Ø) mm
• Weight: 1800 g
• Certificates: NDAA / CE / FCC

📦 INCLUDED:
• Sunell IP thermal camera• Installation material• User instructions• Junction box
Thermal sensor 400x300 VOx
Main Stream frame rate D1 (25fps)
Sub Stream frame rate CIF (25fps)
Compression H.265 / H.264 / MJPEG
Pixel size 17µm
Lens 50 mm
Angle of view 8º x 6º
Focus Manual
Thermal sensitivity ≤40mK
Spectral range 8~14µm
Palettes Up to 17 modes (Red, Black, Rainbow, etc.)
Smart functions Temperature detection and alarm, Human and Vehicle detection
Detectable temperature range -40ºC to 150ºC (-4ºF to 302ºF)
Temperature accuracy ±2ºC / ±2%
Temperature measurement Supports 3 types of rules (Point, Area, and Line)
VCA range Fire detection: 490 m, Human detection: 200 m, Vehicle detection: 450 m
Audio 1 In / 1 Out line level 600 ohm
Alarm 2 In / 2 Out
Internal memory Micro SD card up to 128GB
Network interface Ethernet 10/100M BaseT
Remote access WEB interface, CMS (SunView), Smartphone and NVR
Interoperability ONVIF & Private Protocol
Power supply 12VDC / 5W, PoE IEEE802.3af
Operating temp. -40ºC ~ +60ºC
Protection rating Waterproof IP66
Material Metal
Dimensions 388 mm (D) x 110 (Ø) mm
Weight 1800 g
Certificates NDAA / CE / FCC
