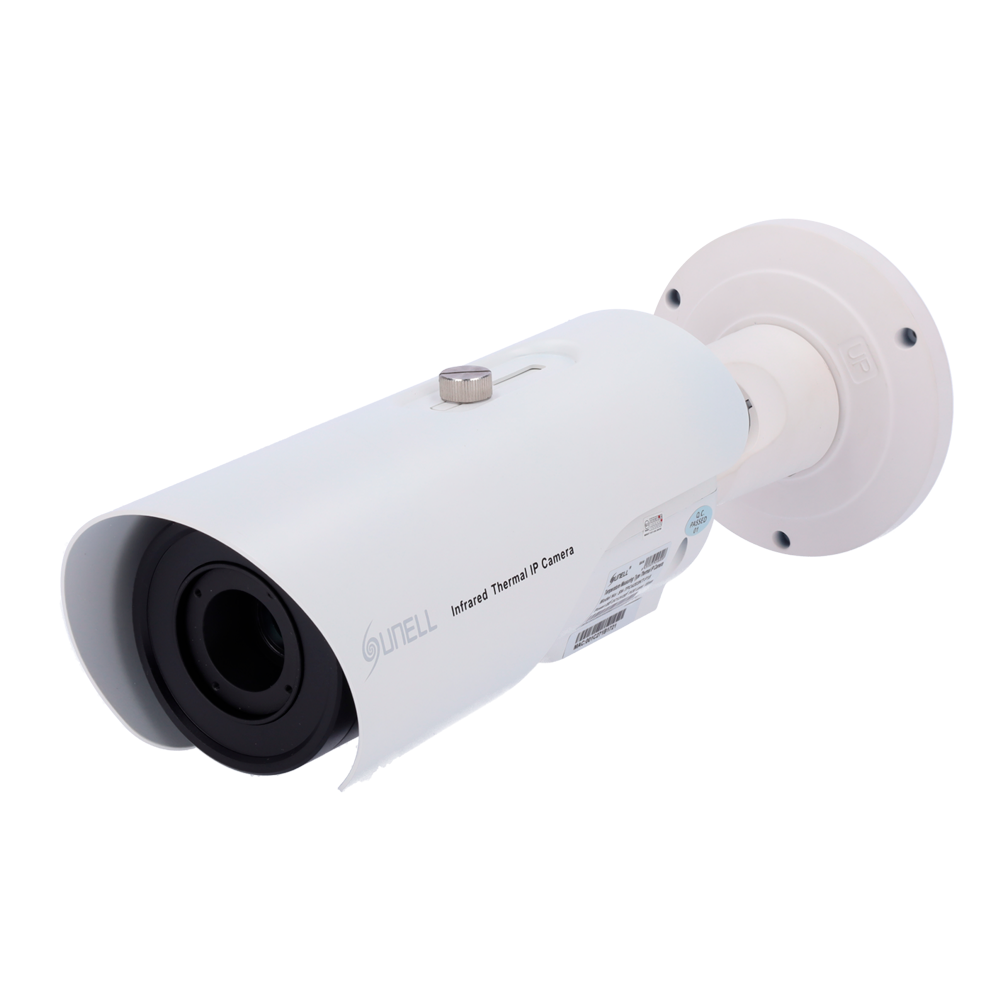

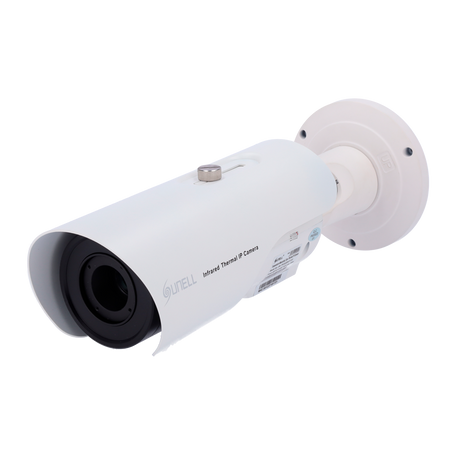

Sunell IP thermal camera - 400x300 VOx | 8mm lens
Sunell IP thermal camera - 400x300 VOx | 8mm lens
Regular price
€2.421,09
Final price
Regular price
-35%
€3.749,76
Sale price
€2.421,09
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Sunell IP Thermal Camera - 400x300 VOx | 8mm Lens - Thermal sensitivity ≤40mK - Accuracy ±2ºC - Temperature, Person and Vehicle Detection - NDAA
📋 SPECIFICATIONS:
• Brand: Sunell
• Thermal sensor: 400x300 VOx
• Main Stream frame rate: D1 (25fps)
• Sub Stream frame rate: CIF (25fps)
• Compression: H.265 / H.264 / MJPEG
• Pixel size: 17µm
• Lens: 8 mm
• Field of view: 46º x 35º
• Focus: Manual
• Thermal sensitivity: ≤40mK
• Spectral range: 8~14µm
• Palettes: Up to 17 modes (Red, Black, Rainbow, etc.)
• Intelligent functions: Temperature detection and alarm, Person Detection and Vehicle Detection
• Detectable temperature range: -40ºC to 150ºC (-4ºF to 302ºF)
• Temperature accuracy: ± 2ºC / ±2%
• Temperature measurement: Supports 3 types of rules (Point, Area and Line)
• VCA Range: Fire detection: 78 m; Person recognition: 25 m; Vehicle recognition: 100 m
• Audio: 1 In / 1 Out line level 600 ohm
• Alarm: 2 In / 2 Out
• Internal storage: Micro SD card up to 128GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface, CMS (SunView), Smartphone and NVR
• Interoperability: ONVIF & Private Protocol
• Power supply: 12VDC / 5W, PoE IEEE802.3af
• Operating temp.: -40ºC ~ +60ºC
• Protection rating: Waterproof IP66
• Material: Metal
• Dimensions: 388 mm (D) x 110 (Ø) mm
• Weight: 1800 g
• Certificates: NDAA / CE / FCC
📦 INCLUDED:
• Sunell IP thermal camera• Installation material• User instructions• Junction box
| Thermal sensor | 400x300 VOx |
|---|---|
| Main Stream frame rate | D1 (25fps) |
| Sub Stream frame rate | CIF (25fps) |
| Compression | H.265 / H.264 / MJPEG |
| Pixel size | 17µm |
| Lens | 8 mm |
| Field of view | 46º x 35º |
| Focus | Manual |
| Thermal sensitivity | ≤40mK |
| Spectral range | 8~14µm |
| Palettes | Up to 17 modes (Red, Black, Rainbow, etc.) |
| Intelligent functions | Temperature detection and alarm, Person detection, and Vehicle detection |
| Detectable temperature range | -40ºC to 150ºC (-4ºF to 302ºF) |
| Temperature accuracy | ± 2ºC / ±2% |
| Temperature measurement | Supports 3 rule types (Point, Area, and Line) |
| VCA range | Fire detection: 78 m, Person detection: 25 m, Vehicle detection: 100 m |
| Audio | 1 In / 1 Out line level 600 ohm |
| Alarm | 2 In / 2 Out |
| Internal memory | Micro SD card up to 128GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF & Private Protocol |
| Power supply | 12VDC / 5W, PoE IEEE802.3af |
| Operating temp. | -40ºC ~ +60ºC |
| Protection rating | Waterproof IP66 |
| Material | Metal |
| Dimensions | 388 mm (D) x 110 (Ø) mm |
| Weight | 1800 g |
| Certifications | NDAA / CE / FCC |
