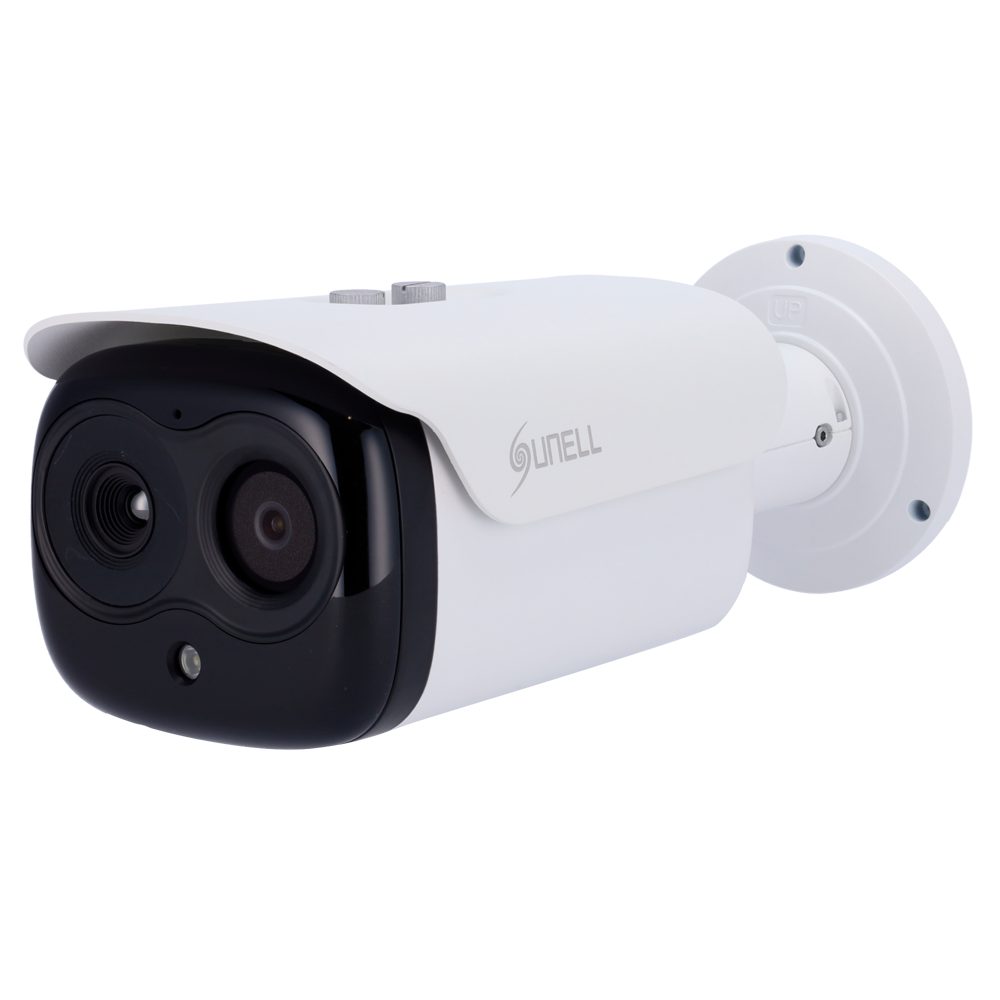

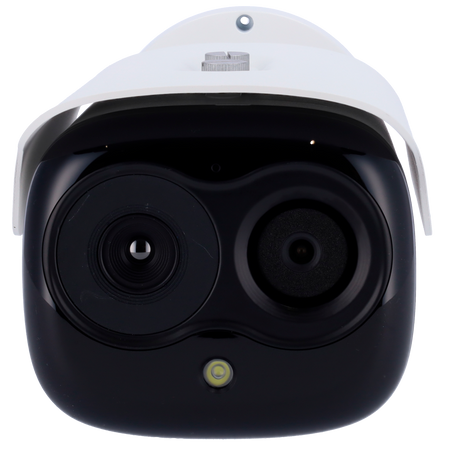

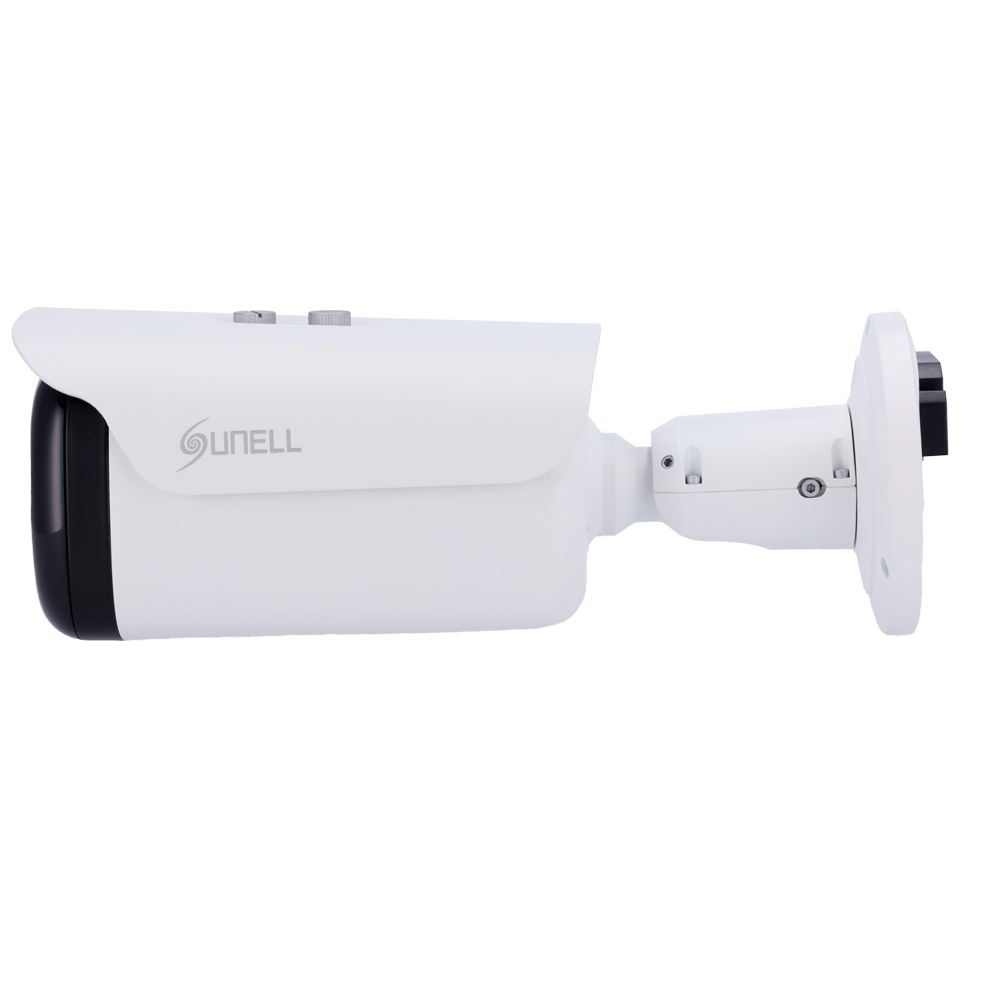

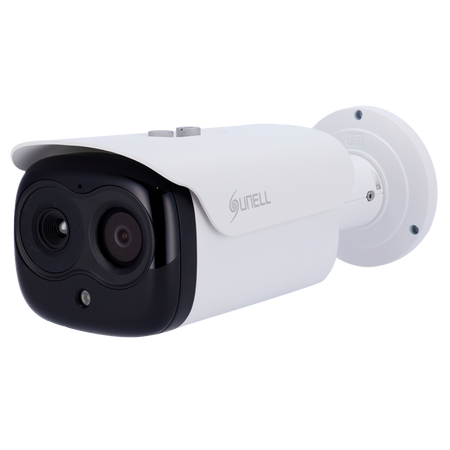

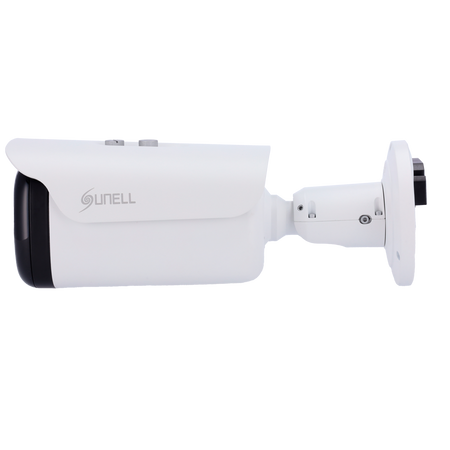

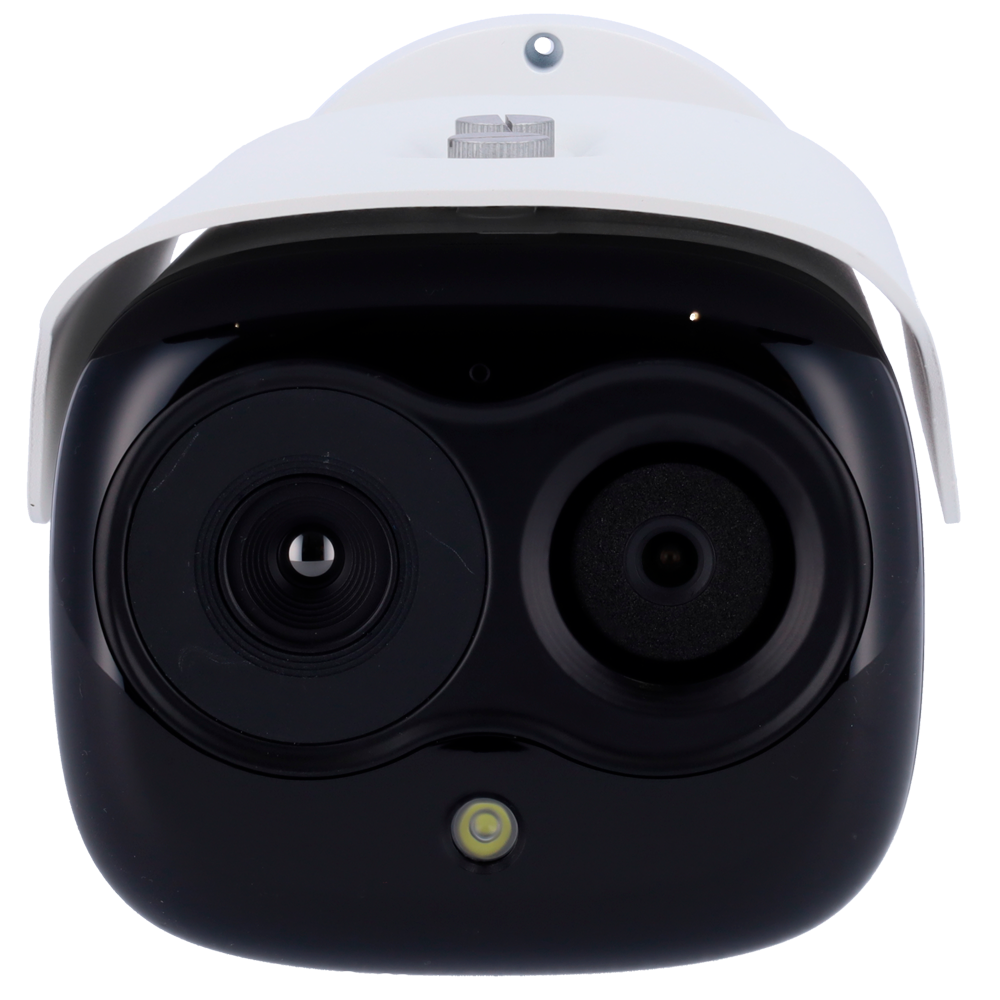

Sunell TPC4157DLT Series IP Thermal Camera - VOx FPA 384x288 12μm Thermal Sensor | 25mm Lens
Sunell TPC4157DLT Series IP Thermal Camera - VOx FPA 384x288 12μm Thermal Sensor | 25mm Lens
Regular price
€2.652,16
Final price
Regular price
-38%
€4.306,00
Sale price
€2.652,16
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Sunell TPC4157DLT series IP thermal camera - VOx FPA 384x288 12μm thermal sensor | 25mm lens - 1/1.8" CMOS visible sensor | 4Mpx 10~30mm lens - Temperature measurement range -20~150ºC/±2ºC or ±2% - IP66 protection - NEMA 4X - NDAA and TAA compliant
📋 SPECIFICATIONS:
• Brand: Sunell
• Series: TPC4157DLT
• Thermal sensor: Uncooled VOx FPA
• Thermal sensor resolution: 384 x 288
• Pixel pitch: 12μm
• Thermal lens: 25mm
• Thermal sensitivity: ≤40mK
• Thermal measurement range: -20~150ºC / ±2ºC or ±2%
• Spectral range: LWIR 8~14μm
• Thermal field of view: 14° (H) x 11° (V)
• Visible sensor: 1/1.8" CMOS
• Visible sensor resolution: 2688 x 1520 (4Mpx)
• Visible lens: 10~30mm
• Visible field of view: 43.4°~15.5° (H) x 23.8°~8.8° (V)
• Infrared illuminator: 100m maximum
• White light illuminator: Strobe light
• Bi-spectrum vision parameters: Fusion
• Main Stream frame rate: Thermal: 1280×1720, 704 x 576, 384 x 288 @25fps; Visible: 2688×1520, 1920×1080, 1280×720 @25/30fps
• Sub Stream Rate: Thermal: D1, 384 x 288, 352 x 240 @25fps; Visible: D1, 640×360, CIF @25/30fps
• Compression: H.265 / H.264
• Thermal DRI: Person: 735m (D), 184m (R), 92m (I); Vehicle: 2255m (D), 564m (R), 282m (I)
• Smart Analysis Thermal Ranges: Person: 243m; Vehicle: 300m; Temperature Measurement (1x1m object): 294m; Temperature Measurement (0.2x0.2m object): 59m; Fire Detection (1x1m object): 735m; Fire Detection (0.2x0.2m object): 147m
• IVS: Temperature measurement, human and vehicle classification
• Intelligent analysis: Intrusion, line crossing, double line crossing, loitering, wrong direction, area entrance, area exit, smart motion detection (all support accurate human/vehicle detection), people counting
• Advanced intelligent analysis: Detects smokers, smoke, flames, fire
• Temperature rules: Full window, point, line, and area (up to 20 rules simultaneously)
• Alarms: 2 inputs / 2 relays
• Audio: 1 input / 1 output
• Built-in microphone: Supported
• Built-in speaker: Supported, alarm sound transmission up to 150m (forested environment)

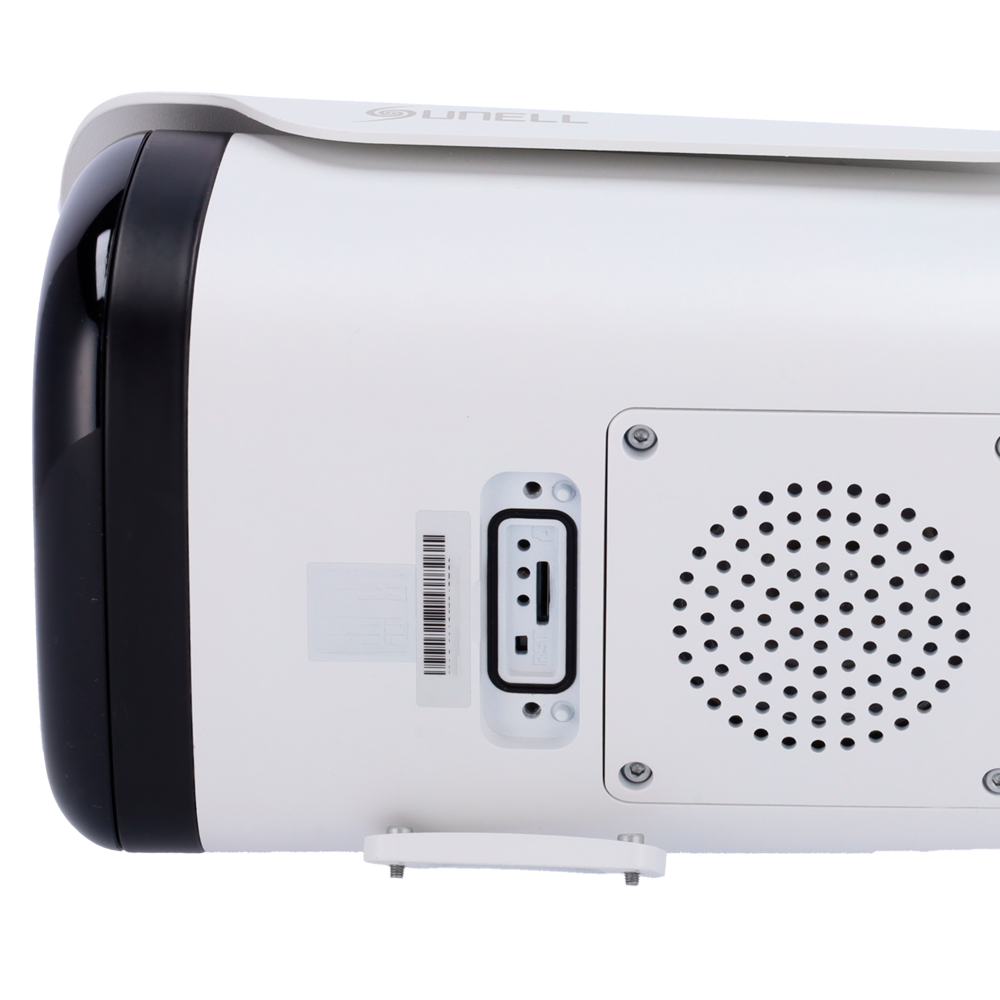

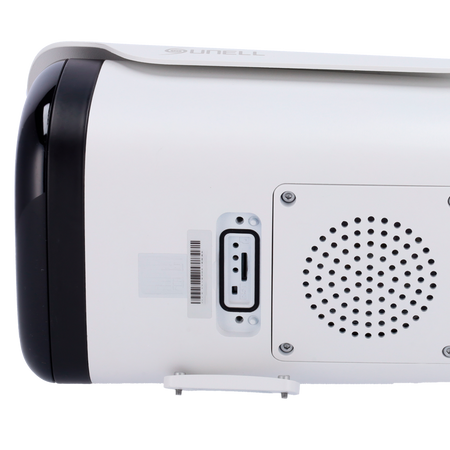

• Internal memory: SD card slot up to 1TB
• Reset button: Supported
• Network interface: 1 x RJ45 10/100 BaseT Ethernet port, self-adaptive
• Serial transmission: RS-485
• Remote access: Web browser, VMS PC software (SunView)
• Interoperability: ONVIF (Profile S/T/G/M), CGI, SDK
• Power supply: 12VDC / 24VAC / PoE+ (802.3at)
• Consumption: max. 25W
• Operating temp: -40ºC~+60ºC, < 90% RH
• Protection rating: Waterproof IP66; NEMA 4X
• Certifications: CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4; FCC 47 CFR Part 15 Subpart B
• Dimensions: 327.4mm × 140.04mm × 12.89mm
• Weight: 2.0kg with 50mm lens
📦 INCLUDED:

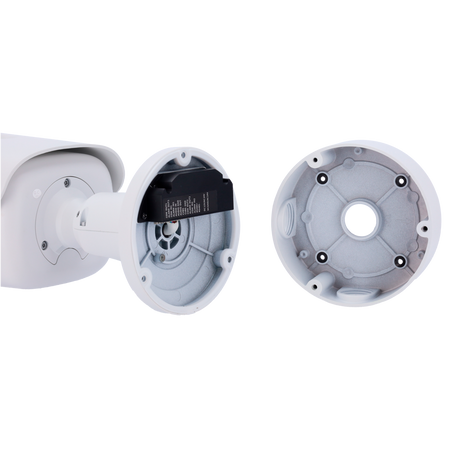

• Sunell TPC4157DLT series dual-lens IP thermal camera• Installation material• User instructions
| Range | TPC4157DLT |
|---|---|
| Thermal sensor | Uncooled VOx FPA |
| Thermal sensor resolution | 384 x 288 |
| Pixel pitch | 12μm |
| Thermal lens | 25mm |
| Thermal sensitivity | ≤40mK |
| Thermal measurement range | -20~150ºC / ±2ºC or ±2% |
| Spectral range | LWIR 8~14μm |
| Thermal field of view | 14° (H) x 11° (V) |
| Visible sensor | 1/1.8" CMOS |
| Visible sensor resolution | 2688 x 1520 (4Mpx) |
| Visible lens | 10~30mm |
| Visible field of view | 43.4°~15.5° (H) x 23.8°~8.8° (V) |
| Infrared illuminator | 100m maximum |
| White light illuminator | Strobe light |
| Bi-spectrum vision parameters | Fusion |
| Main Stream frame rate | Thermal: 1280×1720, 704 x 576, 384 x 288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25/30fps |
| Sub Stream Rate | Thermal: D1, 384 x 288, 352 x 240 @25fps Visible: D1, 640×360, CIF @25/30fps |
| Compression | H.265 / H.264 |
| DRI Thermal | Human: 735m (D), 184m (R), 92m (I) Vehicle: 2255m (D), 564m (R), 282m (I) |
| Thermal Smart Analysis ranges | Human: 243m Vehicle: 300m Temperature measurement (1x1m object): 294m Temperature measurement (0.2x0.2m object): 59m Fire detection (1x1m object): 735m Fire detection (0.2x0.2m object): 147m |
| IVS | Temperature measurement, human and vehicle classification |
| Smart analysis | Intrusion, line crossing, double line crossing, loitering, wrong direction, area entry, area exit, smart motion detection (all support precise detection of people/vehicles), people counting |
| Advanced smart analysis | Detects smokers, smoke, flames, fires |
| Temperature rules | Full window, point, line and area (up to 20 rules simultaneously) |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Built-in microphone | Supported |
| Built-in speaker | Supported, alarm sound transmission up to 150m (forested environment) |
| Internal memory | SD card slot up to 1TB |
| Reset button | Supported |
| Network interface | 1 x RJ45 10/100 BaseT Ethernet port, self-adaptive |
| Serial transmission | RS-485 |
| Remote access | Web browser, PC software VMS (SunView) |
| Interoperability | ONVIF (Profile S/T/G/M), CGI, SDK |
| Power supply | 12VDC / 24VAC / PoE+ (802.3at) |
| Consumption | max. 25W |
| Operating temp. | -40ºC~+60ºC, < 90% RH |
| Protection rating | Waterproof IP66 NEMA 4X |
| Certifications | CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
| Dimensions | 327.4mm × 140.04mm × 12.89mm |
| Weight | 2.0kg with 50mm lens |
