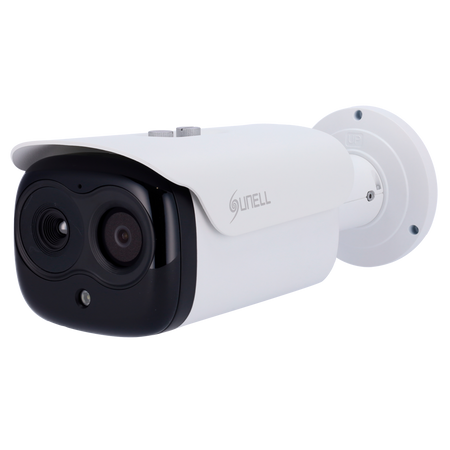

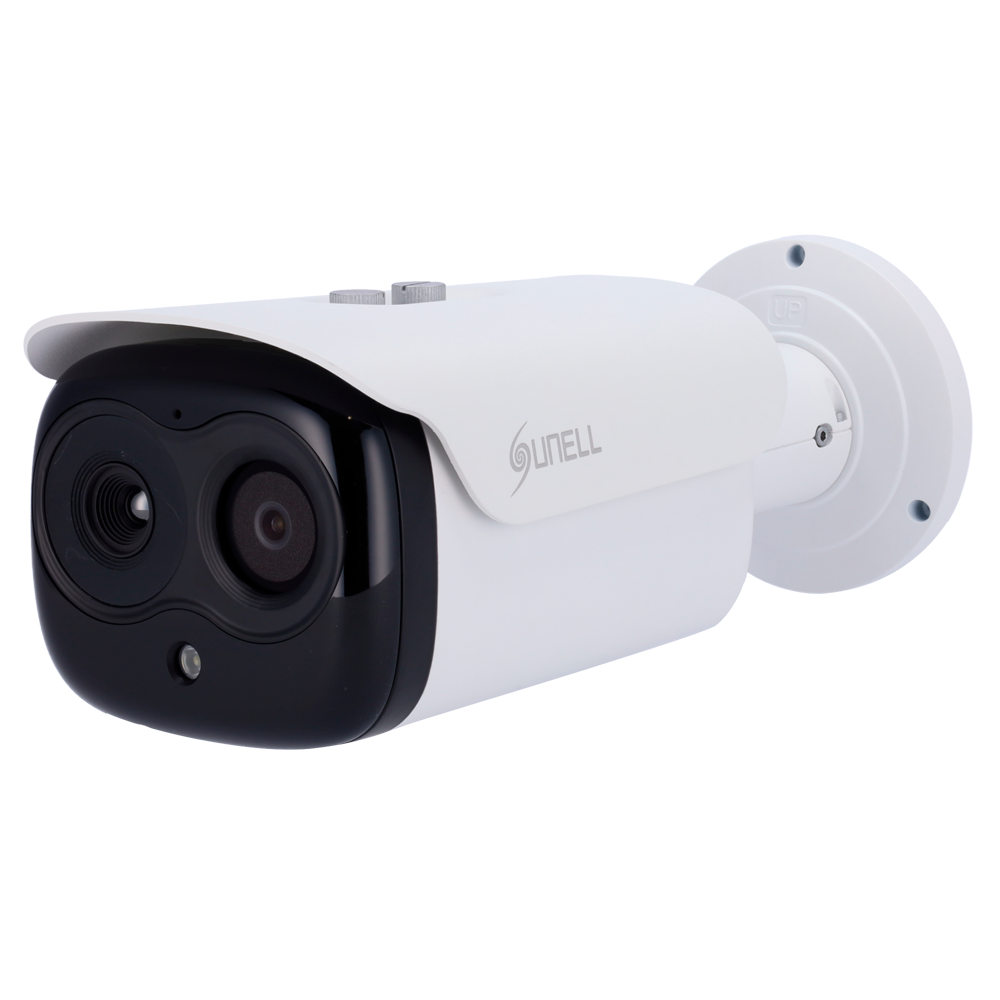

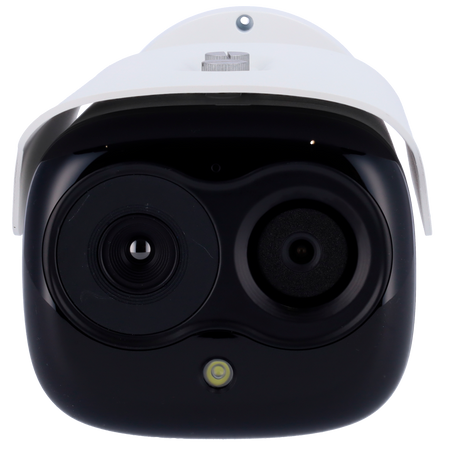

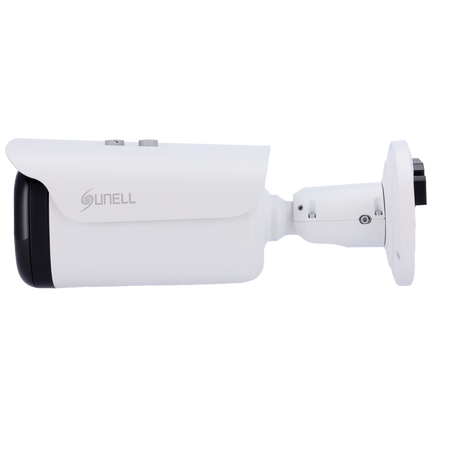

Sunell TPC4157DLT series IP thermal camera - 384x288 12μm VOx FPA thermal sensor | 15mm lens
Sunell TPC4157DLT series IP thermal camera - 384x288 12μm VOx FPA thermal sensor | 15mm lens
Regular price
€2.394,91
Final price
Regular price
-38%
€3.862,00
Sale price
€2.394,91
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

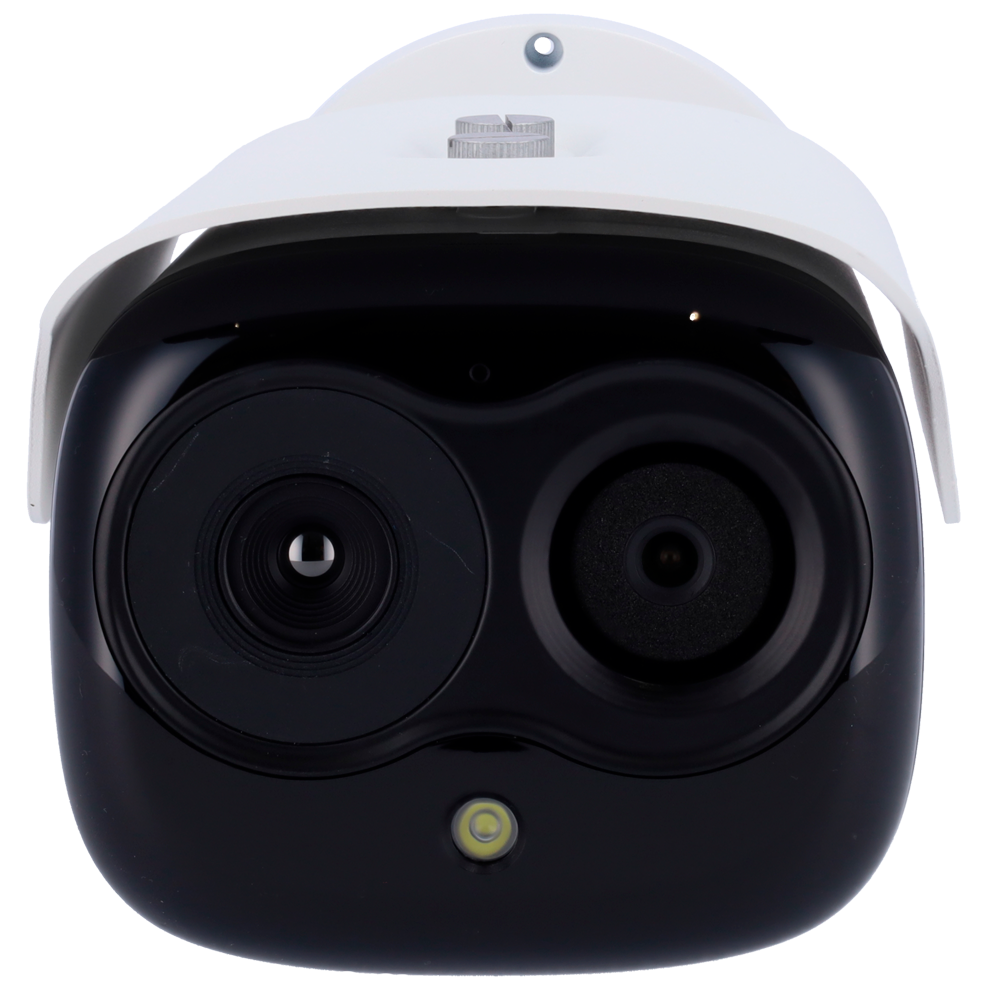

Sunell TPC4157DLT series IP thermal camera - VOx FPA 384x288 12μm thermal sensor | 15mm lens - 1/1.8" CMOS visible sensor | 4Mpx | 6mm lens - Temperature measurement range -20~150ºC/±2ºC or ±2% - IP66 protection - NEMA 4X - NDAA and TAA compliant
📋 SPECIFICATIONS:
• Brand: Sunell
• Range: TPC4157DLT
• Thermal sensor: Uncooled VOx FPA
• Thermal sensor resolution: 384 x 288
• Pixel pitch: 12μm
• Thermal lens: 15mm
• Thermal sensitivity: ≤40mK
• Thermal measurement range: -20~150ºC / ±2ºC or ±2%
• Spectral range: LWIR 8~14μm
• Thermal field of view: 28° (H) x 21° (V)
• Visible sensor: 1/1.8" CMOS
• Visible sensor resolution: 2688 x 1520 (4Mpx)
• Visible lens: 6mm
• Visible field of view: 55° (H) x 30° (V)
• Infrared illuminator: 80m max.
• White light illuminator: Strobe light
• Bi-spectrum vision parameters: Fusion
• Main Stream frame rate: Thermal: 1280×1720, 704 x 576, 384 x 288 @25fps; Visible: 2688×1520, 1920×1080, 1280×720 @25/30fps
• Sub Stream Rate: Thermal: D1, 384 x 288, 352 x 240 @25fps; Visible: D1, 640×360, CIF @25/30fps
• Compression: H.265 / H.264
• DRI: Human: 441m (D), 110m (R), 55m (I); Vehicle: 1353m (D), 338m (R), 169m (I)
• Thermal Smart Analysis ranges: Human: 86m; Vehicle: 180m; Temperature measurement (1x1m object): 176m; Temperature measurement (0.2x0.2m object): 35m; Fire detection (1x1m object): 441m; Fire detection (0.2x0.2m object): 88m
• IVS: Temperature measurement, human and vehicle classification
• Intelligent analysis: Intrusion, line crossing, double line crossing, loitering, wrong direction, enter area, leave area, smart motion detection (all support accurate human/vehicle detection), people counting
• Advanced intelligent analysis: Detects smokers, smoke, flames, fires
• Temperature rules: Full window, point, line, and area (up to 20 rules simultaneously)
• Alarms: 2 inputs / 2 relays
• Audio: 1 input / 1 output
• Built-in microphone: Supported
• Built-in speaker: Supported, alarm sound transmission up to 150m (woodland environment)

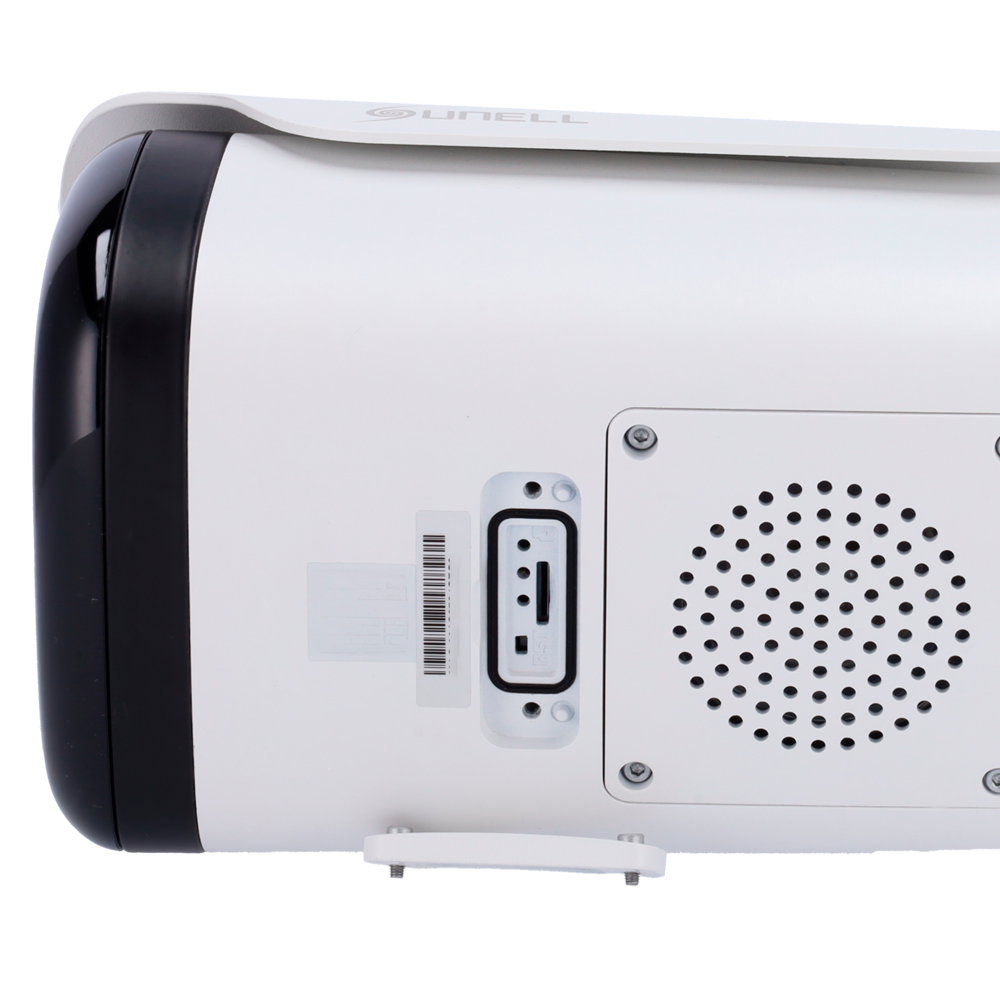

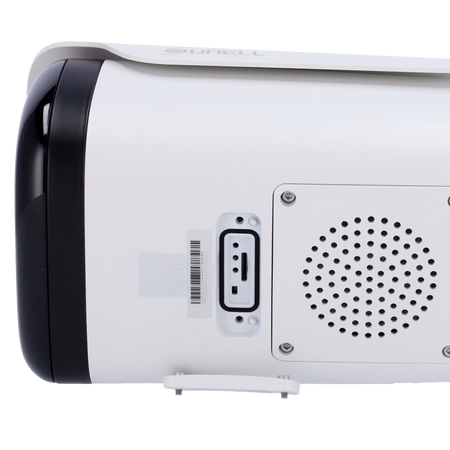

• Internal storage: SD card slot up to 1TB
• Reset button: Supported
• Network interface: 1 x 10/100 BaseT Ethernet port, auto-adaptive
• Serial transmission: RS-485
• Remote access: Web browser, VMS PC software (SunView)
• Interoperability: ONVIF (Profile S/T/G/M), CGI, SDK
• Power supply: 12VDC / 24VAC / PoE+ (802.3at)
• Consumption: max. 25W
• Operating temp: -40ºC~+60ºC, < 90% RH
• Protection rating: Waterproof IP66; NEMA 4X
• Certifications: CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4; FCC 47 CFR Part 15 Subpart B
• Dimensions: 327.4mm ×140.04mm × 12.89mm
• Weight: 2.0kg with 50mm lens
📦 INCLUDED:
• Sunell TPC4157DLT series dual-lens IP thermal camera• Installation material• User instructions
| Series | TPC4157DLT |
|---|---|
| Thermal sensor | Uncooled VOx FPA |
| Thermal sensor resolution | 384 x 288 |
| Pixel pitch | 12μm |
| Thermal lens | 15mm |
| Thermal sensitivity | ≤40mK |
| Thermal measurement range | -20~150ºC / ±2ºC or ±2% |
| Spectral range | LWIR 8~14μm |
| Thermal field of view | 28° (H) x 21° (V) |
| Visible sensor | 1/1.8" CMOS |
| Visible sensor resolution | 2688 x 1520 (4Mpx) |
| Visible lens | 6mm |
| Visible field of view | 55° (H) x 30° (V) |
| Infrared illuminator | 80m maximum |
| White light illuminator | Strobe light |
| Bi-spectrum vision parameters | Fusion |
| Main Stream frame rate | Thermal: 1280×1720, 704 x 576, 384 x 288 @25fps Visible: 2688×1520, 1920×1080, 1280×720 @25/30fps |
| Sub Stream Rate | Thermal: D1, 384 x 288, 352 x 240 @25fps Visible: D1, 640×360, CIF @25/30fps |
| Compression | H.265 / H.264 |
| DRI | Person: 441m (D), 110m (R), 55m (I) vehicle: 1353m (D), 338m (R), 169m (I) |
| Smart Analysis Thermal ranges | Person: 86m vehicle: 180m Temperature measurement (1x1m object): 176m Temperature measurement (0.2x0.2m object): 35m Fire detection (1x1m object): 441m Fire detection (0.2x0.2m object): 88m |
| IVS | Temperature measurement, person and vehicle classification |
| Intelligent analysis | Intrusion, line crossing, double line crossing, loitering, wrong direction, enter area, exit area, smart motion detection (all support accurate detection of people/vehicles), people counting |
| Advanced intelligent analysis | Detects smokers, smoke, flames, fires |
| Temperature rules | Full window, point, line and area (up to 20 rules simultaneously) |
| Alarms | 2 inputs / 2 relays |
| Audio | 1 input / 1 output |
| Built-in microphone | Supported |
| Built-in speaker | Supported, alarm sound transmission up to 150m (wooded environment) |
| Internal memory | SD card slot up to 1TB |
| Reset button | Supported |
| Network interface | 1 x RJ45 10/100 BaseT Ethernet port, auto-adaptive |
| Serial transmission | RS-485 |
| Remote access | Web Browser, PC VMS Software (SunView) |
| Interoperability | ONVIF (profile S/T/G/M), CGI, SDK |
| Power supply | 12VDC / 24VAC / PoE+ (802.3at) |
| Power consumption | max. 25W |
| Operating temp | -40ºC~+60ºC, < 90% RH |
| Protection rating | Waterproof IP66 NEMA 4X |
| Certifications | CE-EMC - EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4 FCC 47 CFR Part 15 Subpart B |
| Dimensions | 327.4mm × 140.04mm × 12.89mm |
| Weight | 2.0Kg with 50mm lens |
