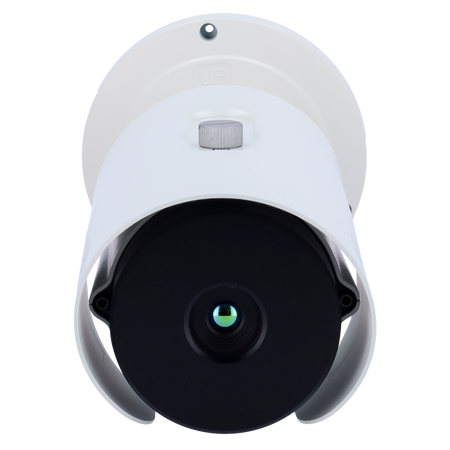

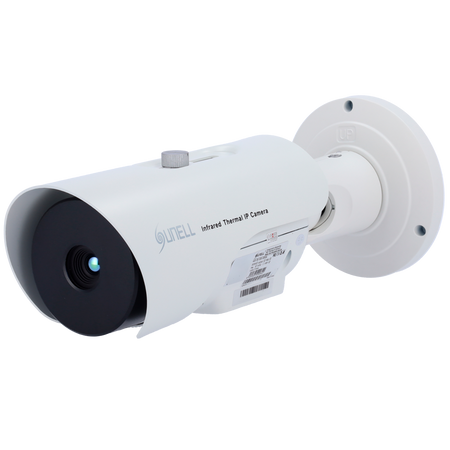

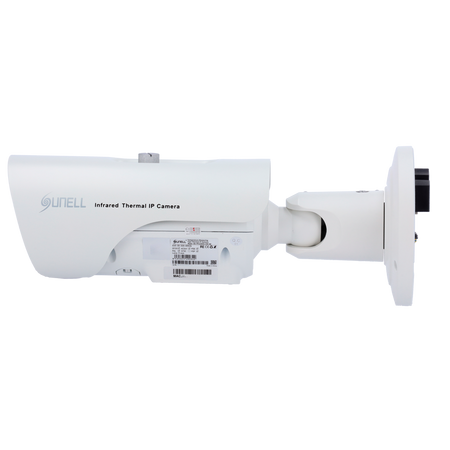

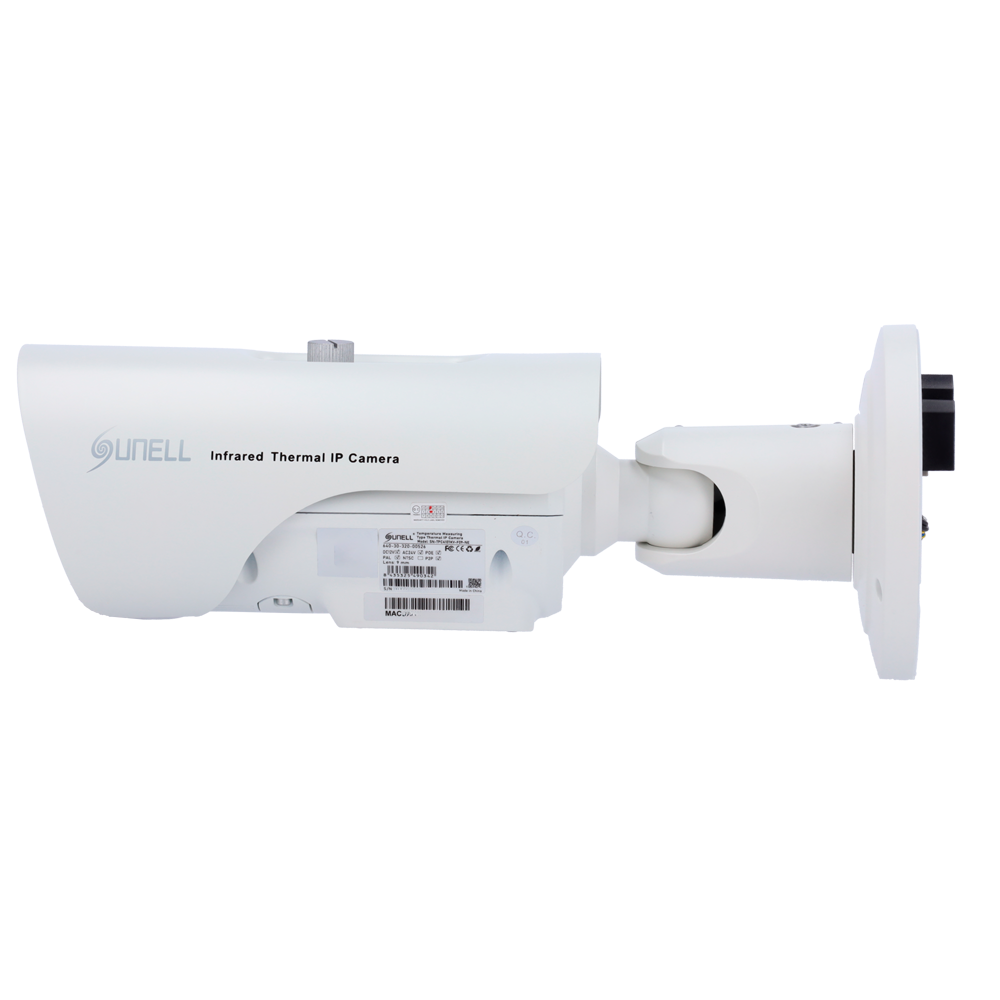

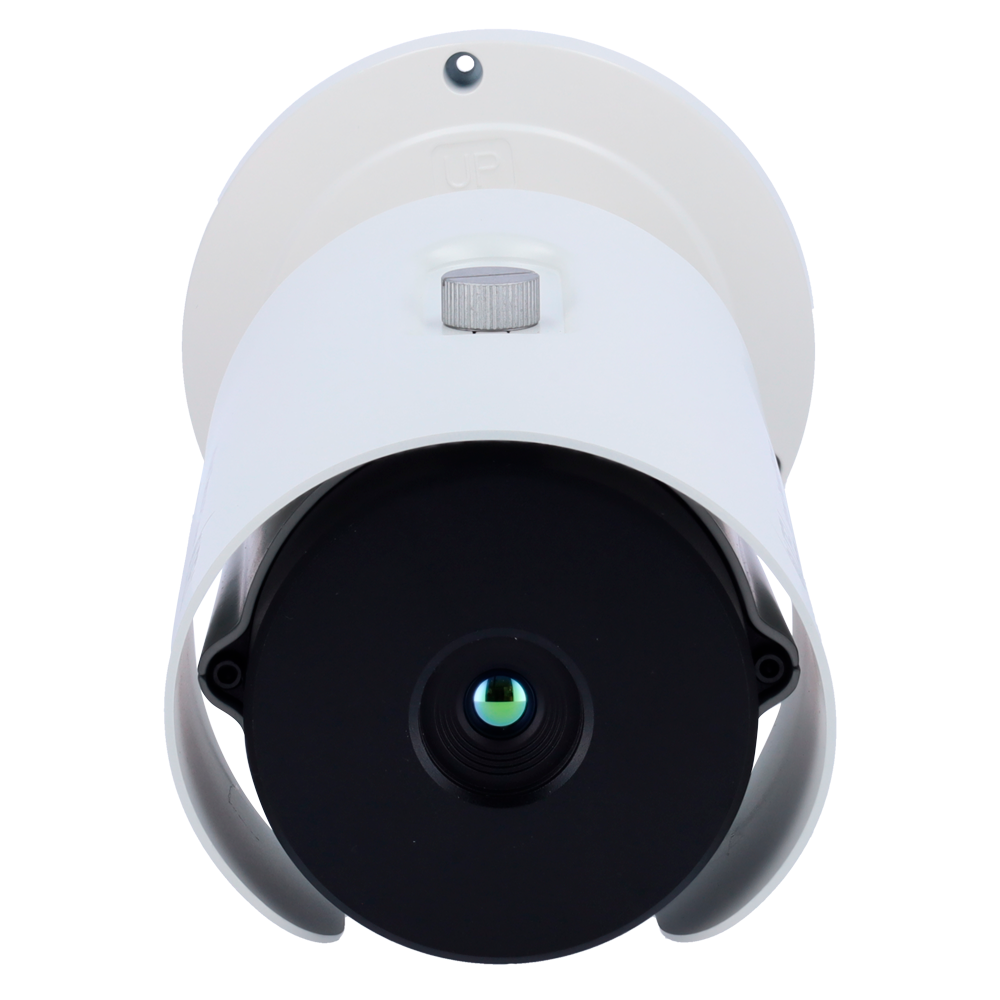

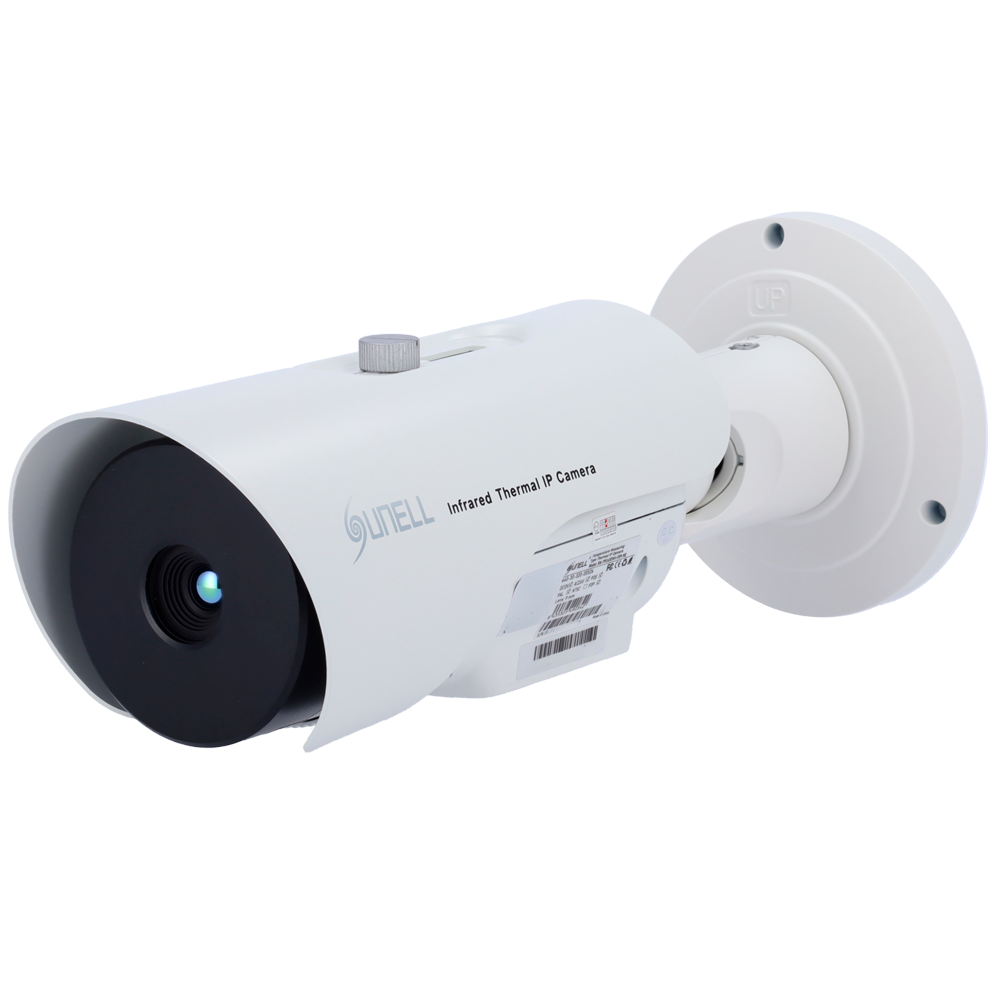

Sunell IP thermal camera - 384x288 VOx | 15mm lens
Sunell IP thermal camera - 384x288 VOx | 15mm lens
Regular price
€1.957,62
Final price
Regular price
-28%
€2.713,20
Sale price
€1.957,62
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Sunell IP Thermal Camera - 384x288 VOx | 15mm Lens - Thermal sensitivity ≤40mK - Accuracy ±8ºC - Temperature, person and vehicle detection - NDAA - NEMA 4X
📋 SPECIFICATIONS:
• Brand: Sunell
• Range: TPC4107KV-NE
• Thermal sensor: Uncooled VOx FPA
• Thermal sensor resolution: 384x288
• Pixel size: 17µm
• Optics: 15mm
• Thermal sensitivity: ≤40mK
• Detectable temperature range: -20ºC to 150ºC
• Temperature accuracy: ±8ºC
• Spectral range: LWIR 8~14µm
• Compression: H.265 / H.264 / MJPEG
• Viewing angle: 28º x 21º
• Focus: Fixed focus, focus-free
• Intelligent functions: Temperature detection and alarms, person and vehicle detection
• Temperature measurement: Supports 3 types of rules (Point, Area and Line)
• DRI Range: Person: 441m (D), 110m (R), 55m (I); vehicle: 1353m (D), 338m (R), 169m (I)
• VCA Range: Person detection: 86m; Vehicle detection: 180m; Fire detection (1x1m object): 441m; Fire detection (0.2x0.2m object): 88m; Temperature measurement (0.2x0.2m object): 35m; Temperature measurement (1x1m object): 176m
• Audio: 1 In / 1 Out
• Alarm: 2 In / 2 Out

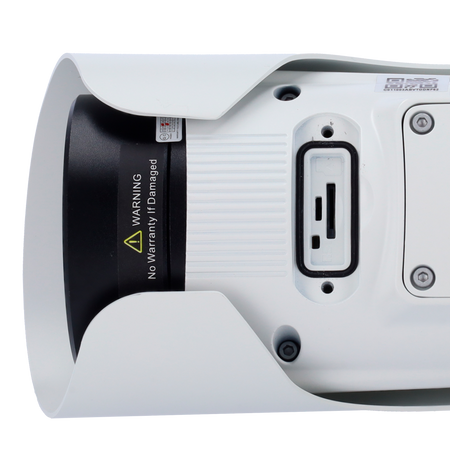

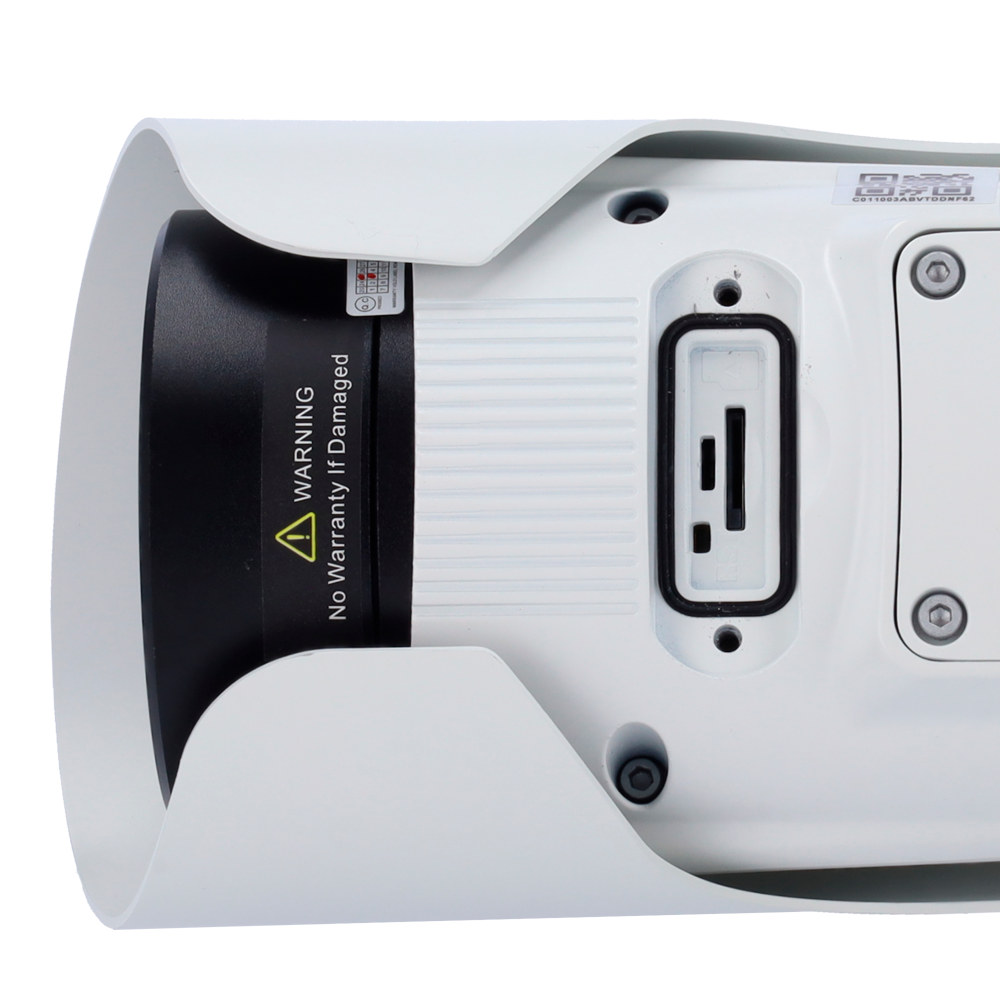

• Internal memory: Micro SD card up to 256GB
• Network interface: Ethernet 10M/100M BaseT
• Remote access: WEB interface, CMS (SunView), Smartphone and NVR
• Interoperability: ONVIF & Private Protocol
• Power supply: 12VDC/4.5W, PoE IEEE802.3af
• Operating temp.: -40ºC~+60ºC
• Protection rating: Waterproof IP66; NEMA 4X
• Material: Metal
• Dimensions: Ø120.5mm × 315.9mm ~ 352.6mm
• Weight: 1620 g
• Certificates: NDAA / CE / FCC
📦 INCLUDED:

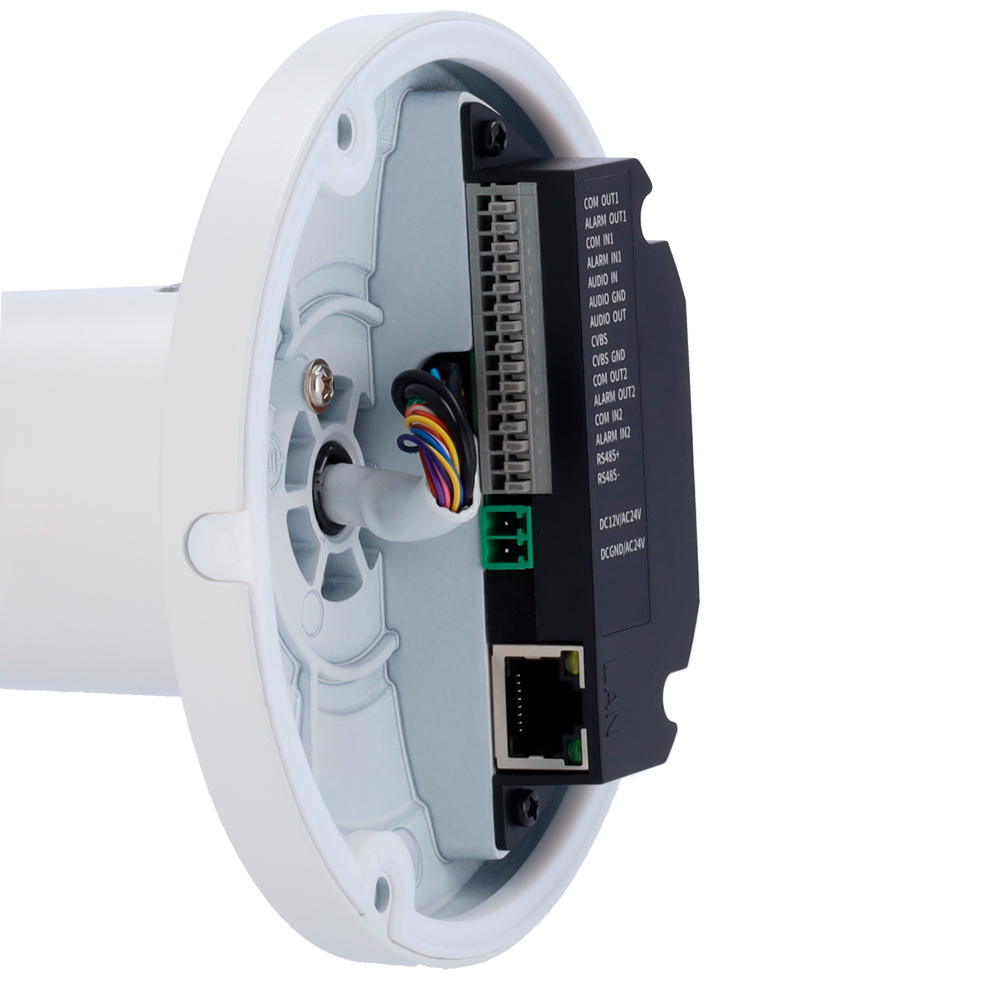

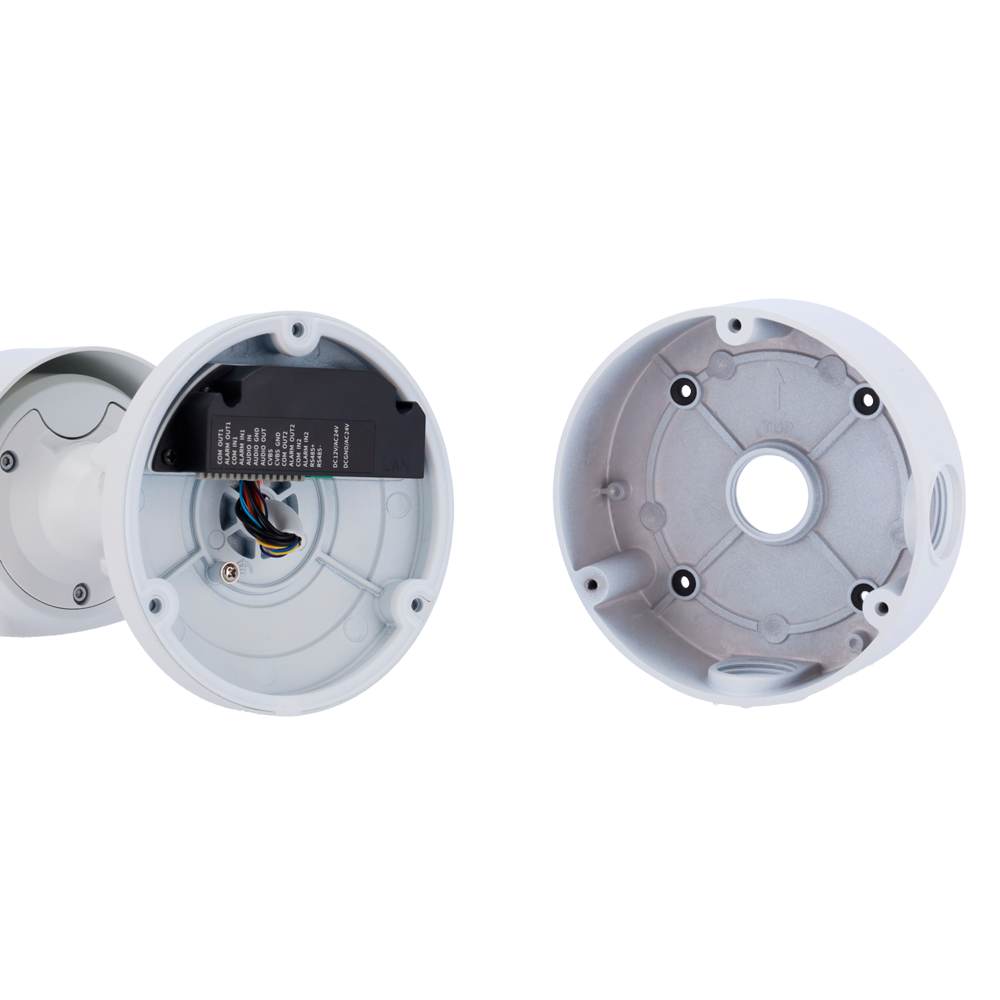

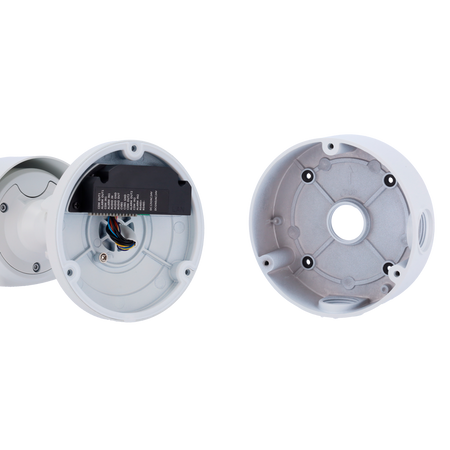

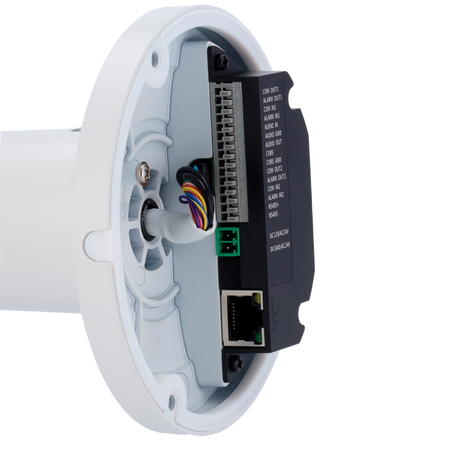

• Sunell IP thermal camera• Installation material• User instructions• Junction box
| Range | TPC4107KV-NE |
|---|---|
| Thermal sensor | Uncooled VOx FPA |
| Thermal sensor resolution | 384x288 |
| Pixel size | 17µm |
| Lens | 15mm |
| Thermal sensitivity | ≤40mK |
| Detectable temperature range | -20ºC to 150ºC |
| Temperature accuracy | ±8ºC |
| Spectral range | LWIR 8~14µm |
| Compression | H.265 / H.264 / MJPEG |
| Field of view | 28º x 21º |
| Focus | Fixed lens, focus-free |
| Intelligent functions | Temperature detection and alarms, human and vehicle detection |
| Temperature measurement | Supports 3 types of rules (Point, Area, and Line) |
| DRI range | Human: 441m (D), 110m (R), 55m (I) vehicle: 1353m (D), 338m (R), 169m (I) |
| VCA range | Human detection: 86m Vehicle detection: 180m Fire detection (1x1m object): 441m Fire detection (0.2x0.2m object): 88m Temperature measurement (0.2x0.2m object): 35m Temperature measurement (1x1m object): 176m |
| Audio | 1 In / 1 Out |
| Alarm | 2 In / 2 Out |
| Internal storage | Micro SD card up to 256GB |
| Network interface | Ethernet 10M/100M BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF & Private Protocol |
| Power supply | 12VDC/4.5W, PoE IEEE802.3af |
| Operating temp. | -40ºC~+60ºC |
| Protection rating | Waterproof IP66 NEMA 4X |
| Material | Metal |
| Dimensions | Ø120.5mm × 315.9mm ~ 352.6mm |
| Weight | 1620 g |
| Certificates | NDAA / CE / FCC |
