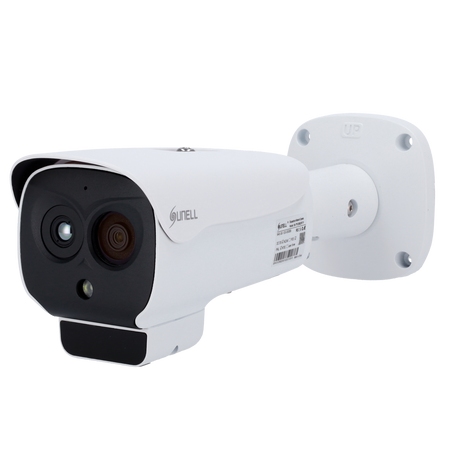

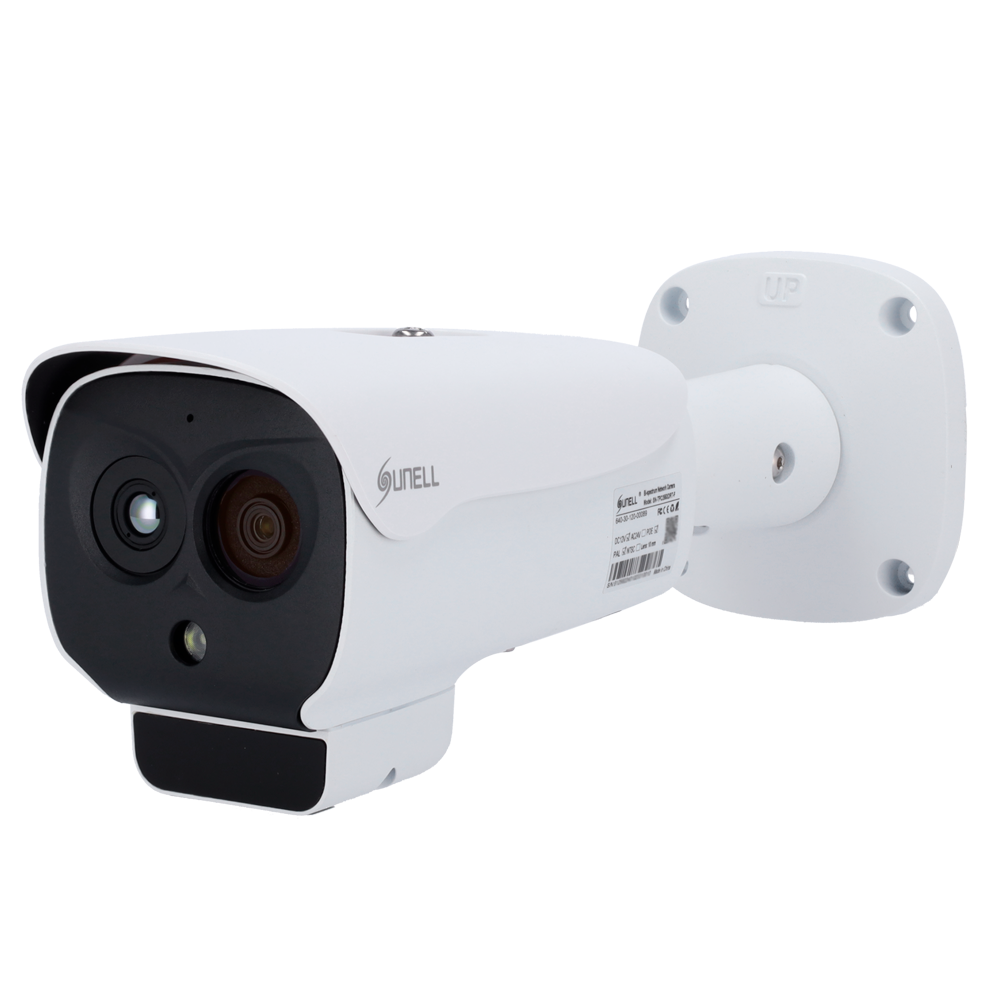

Sunell Dual IP bullet thermal camera - 256x192 VOx | 3.5mm lens
Sunell Dual IP bullet thermal camera - 256x192 VOx | 3.5mm lens
Regular price
€767,83
Final price
Regular price
-9%
€840,00
Sale price
€767,83
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Sunell Dual IP bullet thermal camera - 256x192 VOx | 3.5mm lens - 1/2.7” 4 Mpx optical sensor | 4mm lens - Thermal sensitivity ≤50mK - Fire detection and alarm - Temperature measurement range -20º~150ºC / ±2ºC
📋 SPECIFICATIONS:
• Brand: Sunell
• Thermal sensor: 256x192 Vanadium oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: 704×576 (1~25FPS) Thermal; 2880x1620, 2560x1440, 2304x1296, 1920×1080, 1280×720 (1~25FPS) Optical
• Sub Stream frame rate: D1, CIF, 256x192 (1~25FPS) Thermal; D1/VGA (1~25FPS) Optical
• Compression: H.265 / H.264 / MJPEG
• Lens: 3.5mm (Therm) / 4mm (Opt)
• DORI: Person: 146 m. (D) / 36 m. (R) / 18 m. (I); vehicle: 447 m. (D) / 112 m. (R) / 56 m. (I)
• VCA Range: Person detection: 30 m.; Vehicle detection: 90 m.; Temperature measurement (0.2x0.2m): 11.7 m.; Temperature measurement (1x1m): 58.3 m.; Fire detection (0.2x0.2m): 41.7 m.; Fire detection: 13 m.
• Viewing angle: 48°×36° (Therm) / 92°×46° (Opt)
• Thermal sensitivity: ≤50mK (0.06ºC)
• Thermal measurement range: -20 ~150ºC / ±2ºC
• Spectral range: LWIR 8~14μm
• Detector pitch: 12μm
• VCA: Up to 9 VCA rules (single line crossing, double line crossing, intrusion, loitering, wrong direction, enter and exit area, intelligent motion detection, people counting)
• IR range: Up to 35 m.
• Sound/light alarm: Supports white light flash
• Temperature rules: Up to 20 rules (points, areas, and lines)
• Audio In/Out: 1/1
• Alarm In/Out: 2/2
• Internal memory: Micro SD card up to 256GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS (SunView), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: 12VDC/24VDC, max.12W; PoE IEEE802.3af, max.12W
• Operating temp.: -40ºC ~ +60ºC
• Protection degree: Waterproof IP66
• Dimensions: φ303 × 95 × 107 mm.
• Weight: 1,350 g.
📦 INCLUDED:
• Sunell IP thermal camera• Installation material• User instructions
| Thermal sensor | 256x192 Vanadium Oxide |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Main Stream frame rate | 704×576 (1~25FPS) Thermal 2880x1620, 2560x1440, 2304x1296, 1920×1080, 1280×720 (1~25FPS) Optical |
| Sub Stream frame rate | D1, CIF, 256x192 (1~25FPS) Thermal D1/VGA (1~25FPS) Optical |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.5mm (Therm) / 4mm (Opt) |
| DORI | Person: 146 m. (D) / 36 m. (R) / 18 m. (I) vehicle: 447 m. (D) / 112 m. (R) / 56 m. (I) |
| VCA range | Person detection: 30 m. Vehicle detection: 90 m. Temperature measurement (0.2x0.2m): 11.7 m. Temperature measurement (1x1m): 58.3 m. Fire detection (0.2x0.2m.): 41.7 m. Fire detection: 13 m. |
| Field of view | 48°×36° (Therm) / 92°×46° (Opt) |
| Thermal sensitivity | ≤50mK (0.06ºC) |
| Thermal measurement range | -20 ~150ºC / ±2ºC |
| Spectral range | LWIR 8~14μm |
| Detector pitch | 12μm |
| VCA | Up to 9 VCA rules (single line crossing, double line crossing, intrusion, loitering, wrong direction, area entry and exit, intelligent motion detection, people counting) |
| IR range | Up to 35 m. |
| Sound/light alarm | Supports white light flash |
| Temperature rules | Up to 20 rules (points, areas, and lines) |
| Audio In/Out | 1/1 |
| Alarm In/Out | 2/2 |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC/24VDC, max.12W; PoE IEEE802.3af, max.12W |
| Operating temp. | -40ºC ~ +60ºC |
| Protection rating | Waterproof IP66 |
| Dimensions | φ303 × 95 × 107 mm. |
| Weight | 1,350 g. |
