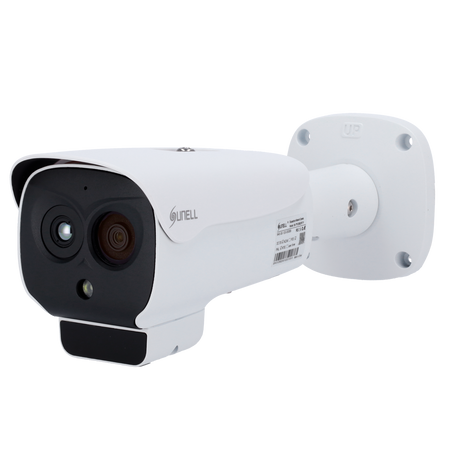

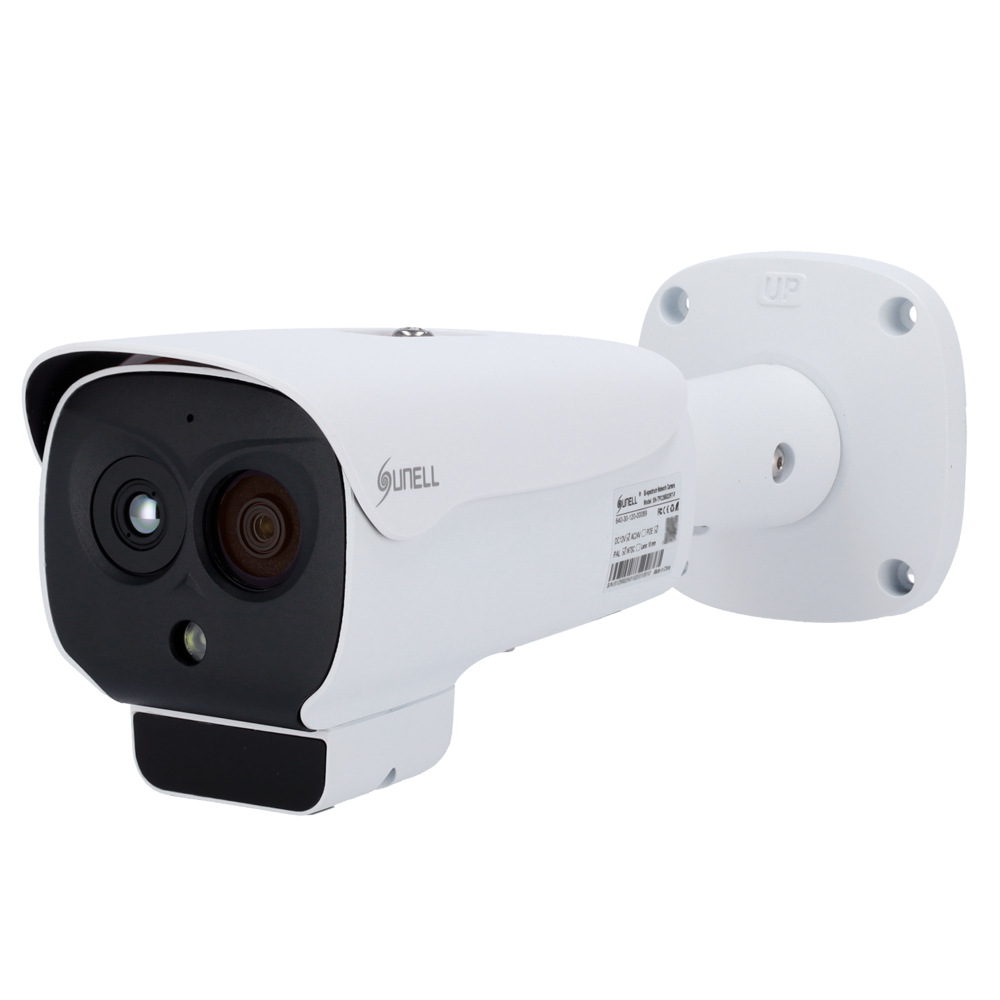

Sunell Dual IP bullet thermal camera - 256x192 VOx | 2.1mm lens
Sunell Dual IP bullet thermal camera - 256x192 VOx | 2.1mm lens
Regular price
€1.081,42
Final price
Regular price
-28%
€1.500,00
Sale price
€1.081,42
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Sunell Dual IP bullet thermal camera - 256x192 VOx | 2.1mm lens - 1/2.7” 4 Mpx optical sensor | 2.2mm lens - Thermal sensitivity ≤50mK - Fire detection and alarm - Temperature measurement range -20º~150ºC / ±2ºC
📋 SPECIFICATIONS:
• Brand: Sunell
• Thermal sensor: 256x192 Vanadium Oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 4 Megapixel
• Detector pitch: 12μm
• Thermal sensitivity: ≤50mK (0.06ºC)
• Spectral range: LWIR 8~14μm
• Thermal measurement range: -20 ~150ºC / ±2ºC
• Lens: 2.1mm (therm) / 2.2mm (vis)
• Field of view: 48°×36° (Therm) / 92°×46° (vis)
• Main Stream frame rate: 704×576 (1~25FPS) Thermal; 2880x1620, 2560x1440, 2304x1296, 1920×1080, 1280×720 (1~25FPS) Optical
• Sub Stream frame rate: D1, CIF, 256x192 (1~25FPS) Thermal; D1/VGA (1~25FPS) Optical
• Compression: H.265 / H.264 / MJPEG
• DORI: Person: 87m. (D) / 22m. (R) / 11m. (I); vehicle: 268m. (D) / 67m. (R) / 34m. (I)
• VCA range: Person detection: 30 m.; Vehicle detection: 90 m.; Temperature measurement (0.2x0.2m): 7m.; Temperature measurement (1x1m): 35m.; Fire detection (0.2x0.2m.): 25m.
• VCA: Up to 9 VCA rules (single line crossing, double line crossing, intrusion, loitering, wrong way, entering/exiting an area, intelligent motion detection, people counting)
• IR range: Up to 15m.
• Audio/light alarm: Supports white light flash
• Temperature rules: Up to 20 rules (points, areas and lines)
• Audio In/Out: 1/1
• Alarm In/Out: 2/2
• Internal memory: Micro SD card up to 256GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS (SunView), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: 12VDC/24VDC, max.12W; PoE IEEE802.3af, max.12W
• Operating temp.: -40ºC ~ +60ºC
• Protection degree: Waterproof IP66
• Dimensions: φ303 × 95 × 107 mm.
• Weight: 1,350 g.
📦 INCLUDED:
• Sunell IP thermal camera• Installation material• User instructions
| Thermal sensor | 256x192 Vanadium oxide |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Detector pitch | 12μm |
| Thermal sensitivity | ≤50mK (0.06ºC) |
| Spectral range | LWIR 8~14μm |
| Thermal measurement range | -20 ~150ºC / ±2ºC |
| Lens | 2.1mm (therm) / 2.2mm (vis) |
| Field of view | 48°×36° (Therm) / 92°×46° (vis) |
| Main Stream frame rate | 704×576 (1~25FPS) Thermal 2880x1620, 2560x1440, 2304x1296, 1920×1080, 1280×720 (1~25FPS) Optical |
| Sub Stream frame rate | D1, CIF, 256x192 (1~25FPS) Thermal D1/VGA (1~25FPS) Optical |
| Compression | H.265 / H.264 / MJPEG |
| DORI | Person: 87m. (D) / 22m. (R) / 11m. (I) vehicle: 268m. (D) / 67m. (R) / 34m. (I) |
| VCA range | Person detection: 30m. Vehicle detection: 90m. Temperature measurement (0.2x0.2m): 7m. Temperature measurement (1x1m): 35m. Fire detection (0.2x0.2m.): 25m. |
| VCA | Up to 9 VCA rules (single line crossing, double line crossing, intrusion, loitering, wrong direction, enter and exit area, intelligent motion detection, people counting) |
| IR range | Up to 15m. |
| Audio/Light alarm | Supports white light flash |
| Temperature rules | Up to 20 rules (points, areas and lines) |
| Audio In/Out | 1/1 |
| Alarm In/Out | 2/2 |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC/24VDC, max.12W; PoE IEEE802.3af, max.12W |
| Operating temp. | -40ºC ~ +60ºC |
| Protection rating | Waterproof IP66 |
| Dimensions | φ303 × 95 × 107 mm. |
| Weight | 1,350 g. |
