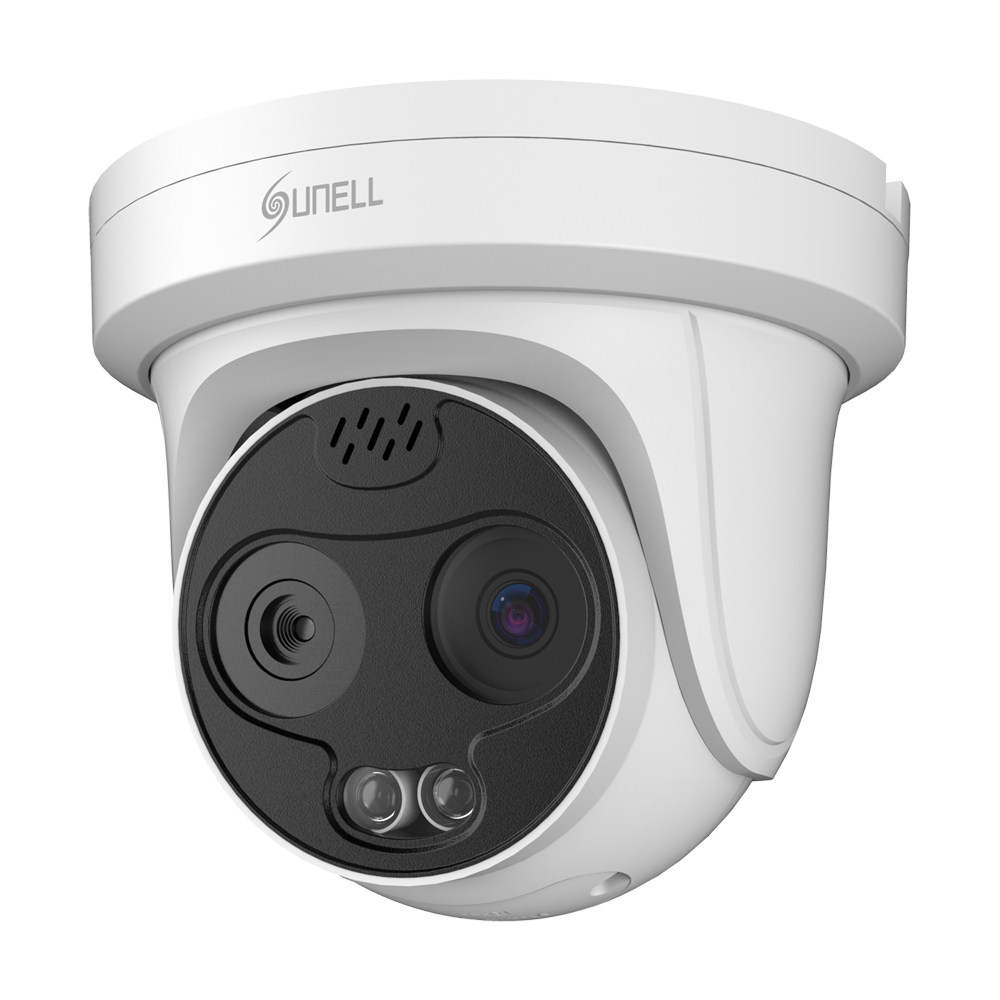

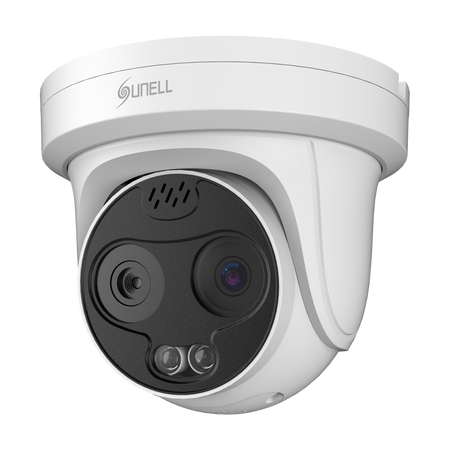

Sunell Raythink bi-spectrum turret IP camera - 7mm thermal lens

Sunell bispectrum turret IP camera - 256x192 pixel 12µm thermal sensor - 2560x1440 pixel 1/2.7" visible sensor - 7mm thermal lens - Thermal sensitivity ≤50mK (25°C, F1.0) - Accuracy ±2ºC or ±2%, whichever is greater

📋 SPECIFICATIONS:
• Thermal sensor: Uncooled VOx FPA
• Thermal resolution: 256 x 192 pixel sensor
• Pixel size: 12µm
• Spectral range: LWIR (8 -14µm)
• NETD sensitivity: ≤50mK
• Optical sensor: 1/2.7" CMOS
• Optical resolution: 2560 x 1440 pixels, 4MPx
• Shutter speed: 1/5 to 1/20,000s
• Minimum illumination: Color: 0.05Lux @(F1.6, AGC ON); B/W: 0.005Lux, 0Lux with IR
• Day / Night: Auto (ICR)
• Thermal lens type: Fixed lens
• Focal length: 7mm
• Maximum aperture: F1.0
• Field of view: H: 24°, V: 18°
• Visible lens type: Fixed lens
• Focal length: 8mm
• Aperture: F1.6 / F2.0
• Field of view: H: 40°, V: 20°
• Illumination type: Infrared (IR)
• IR wavelength: 850nm
• IR range: Up to 50m
• Control: Auto / Manual
• AI object classification (thermal): Supports human/vehicle detection
• Smart analysis (thermal): Intrusion, intelligent motion detection, line crossing, double line crossing, loitering, wrong way, area entry, area exit; People counting; Smoking detection; Fire detection
• AI object classification (visible): Supports human/vehicle detection
• Smart analysis (visible): Intrusion, intelligent motion detection, line crossing, double line crossing, loitering, wrong way, area entry, area exit; Smoke and flame detection; People counting
• Main Stream: D1 (704×576)
• Sub Stream: D1, CIF, 256×192
• Frame rate: Up to 25 fps
• Bitrate control: CBR / VBR
• Bandwidth: Main Stream: 100 Kbps to 3 Mbps; Sub Stream: 10 Kbps to 3 Mbps
• Smart Codec: Supported
• Audio compression: G.711 A-law, G.711 μ-law, RAW_PCM
• Audio bitrate: 64Kbps (G.711), 128Kbps (RAW_PCM)
• Main Stream: 2560×1440, 2304×1296, 1920×1080, 1280×720
• Sub Stream: D1, VGA
• Frame rate: Up to 25 fps
• Bitrate control: CBR / VBR
• Bandwidth: Main Stream: 100 Kbps to 12 Mbps; Sub Stream: 10 Kbps to 6 Mbps
• Smart Codec: Supported
• Audio compression: G.711 A-law, G.711 μ-law, RAW_PCM
• Audio bitrate: 64Kbps (G.711), 128Kbps (RAW_PCM)
• Image settings (thermal): Brightness, contrast, sharpness
• Scene mode (thermal): Mirror
• Pseudo-color settings: Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV / Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose-Bengal)
• FFC control: Auto / Manual
• Noise reduction (thermal): 2D / 3D DNR
• OSD (thermal): Up to 8 OSDs
• Privacy mask (thermal): Up to 4 areas
• Image settings (visible): Brightness, Saturation, Contrast, Sharpness
• Scene mode (visible): Indoor, outdoor, mirror
• Exposure mode: Auto, Manual, Shutter priority
• White balance: Auto / Tungsten / Fluorescent / Daylight / Shade
• Day/Night settings: Auto / Day mode / Night mode / Schedule
• Noise reduction (visible): 2D / 3D DNR
• Image enhancement: WDR, HLC, BLC, Defog
• WDR: True WDR 120dB
• OSD (visible): Up to 8 OSDs
• Privacy Mask (visible): Up to 4 areas
• Temperature range: -20°C to 150°C
• Thermal accuracy: ±2°C / ±2%
• Temperature measurement: 3 rule types (point, line, area), 1 full-screen rule, 19 additional rules
• Temperature alarm: Temperature difference alarm, alarm threshold, sudden temperature rise alarm
• Temperature display: Display in the bottom left corner, maximum, minimum, or average temperature display; Cursor shows current temperature
• Response time: ≤30ms
• Image fusion: Thermographic view overlaid with visible channel details
• Alarm activation: IVS, motion detection, alarm input, network alarm, hard disk alarm, abnormal audio detection
• Event actions: Alarm output, recording, SMTP, FTP, flashing light alarm, audible alarm
• Network protocols: IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPOE, RTSP/RTP/RTCP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, 802.1x, SNMP, Multicast
• API compatibility: ONVIF (Profile S/T/G/M), CGI, SDK
• Max. simultaneous streams: 10 channels
• User/host level: more than 32 users, 3 levels: administrator, operator, common user
• Web browser: IE11, Google Chrome, Firefox, Microsoft Edge
• Firmware / OS protection: Encrypted and signed firmware
• User authentication: Digest authentication, prevents brute force attacks
• Network authentication: IEEE 802.1X (EAP-TLS)
• Secure communications: HTTPS, WSS (WebSocket Secure), SRTP
• Access control: IP-based access control, automatic disconnection
• Data protection: Encrypted credentials
• Audit: Access, system, and event log management
• Supply chain security: SBOM
• Network interface: 1x Ethernet (10/100 Base-T), RJ-45 connector
• Built-in audio: Integrated microphone and speaker
• Physical interfaces: 1 audio input/output channel; 1 alarm input/output channel; 1 RS-485 channel
• Local storage: Built-in slot for microSD card up to 512GB
• Reset button: Supported
• Languages: English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean.; Default: English
• Power supply: 12VDC / 24VDC / PoE (802.3af)
• Power consumption: Maximum 10W
• Operating temperature: -40°C to 60°C
• Operating humidity: Less than 95% relative humidity (RH)
• Protection rating: IP66
• Certifications: CE-EMC; EN 55032, EN IEC 61000-6-3, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4; FCC 47 CFR Part 15 Subpart B
• Legal compliance: NDAA, TAA
• Construction material: Metal
• Dimensions: φ140 x 117.8mm
• Net weight: 1.03Kg
• Detection: 146m
• Observation: 58.4m
• Recognition: 29.2m
• Identification: 14.6m
• Detection; (Human: 1.8x0.5m): 292m
• Detection; (Vehicle: 4x1.5m): 894m
• Recognition; (Human: 1.8x0.5m): 73m
• Recognition; (Vehicle: 4x1.5m): 224m
• Identification; (Human: 1.8x0.5m): 36m
• Identification; (Vehicle: 4x1.5m): 112m
• Note:; Distances calculated based on Johnson's Criterion.: Detection: The object must be covered by more than 1.5 pixels.; Recognition: The object must be covered by more than 6 pixels.; Identification: The object must be covered by more than 12 pixels.
• VCA Detection; (Human: 1.8x0.5m): 60m
• VCA Detection; (Vehicle front/rear: 4x1.5m): 70m
• Temperature measurement; (1x1m object): 116.7m
• Temperature measurement; (0.2x0.2m object): 23.3m
• Fire detection; (0.2x0.2m): 58.3m
• Smoking detection: 25m
• Note:: These values are for reference only. The actual detection distance may vary based on weather conditions, object size, and installation environment.

📦 INCLUDED:
• 1x SN-TPC2553CT-F7 Bispectrum Turret Camera• 1x Quick start guide and technical documentation• 1x Installation accessories and mounting template
