Sunell SN-NVR3964E4-P16-J
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

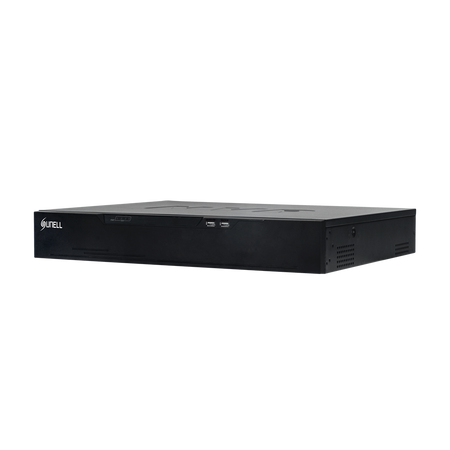

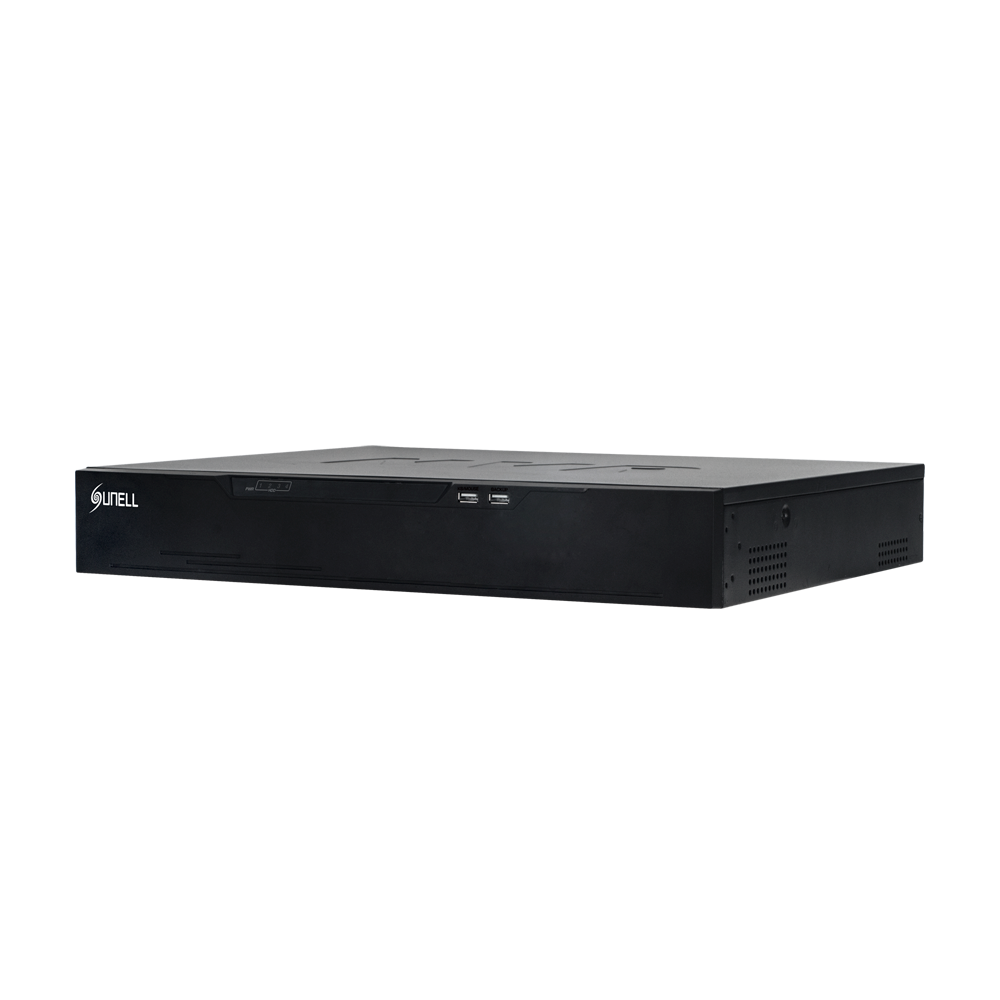

Sunell SN-NVR3964E4-P16-J - Pro Series - 64CH IP NVR Video Recorder | 16CH PoE Switch 140 W max - Maximum resolution 12Mpx@1ch | Alarms | Audio - 400 Mbps bandwidth - Supports 4 hard drives (not included)
📋 SPECIFICATIONS:
• Brand: Sunell
• Series: Pro
• IP camera inputs: LAN port up to 64 channels
• PoE power supply: 16-port PoE switch IEEE802.3af/at (max. 140W)
• Compatible IP cameras: SUNELL (native protocol), ONVIF
• Two-way audio: 1 RCA input / 1 RCA output
• Video output: 1 x 4K HDMI, 1 x 1080p HDMI, 1 x VGA
• Video compression format: H.265+ / H.265 / H.264+ / H.264
• Display resolution: 4K HDMI: 3840x2160, 1920x1080, 1280x1024, 1024x768; 1080p HDMI: 1920x1080, 1280x1024, 1024x768; VGA: 1920x1080, 1280x1024, 1024x768
• Total bandwidth: 400 Mbps input / 400 Mbps output
• Stream type: Video / Video + Audio
• Main Stream recording: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF
• Decoding capacity: 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1, 64ch@D1
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Motion detection: Yes
• Alarms: 6 Inputs / 2 Relay
• Recording method: Manual, scheduled, motion detection
• External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• Remote access: Web browser, SunView Smartphone App, SunView PC Software
• Remote connections: 8
• Internal memory: 4 SATA 3.5" HDDs up to 16 TB each (not included)
• RAID support: RAID5, RAID6, RAID10

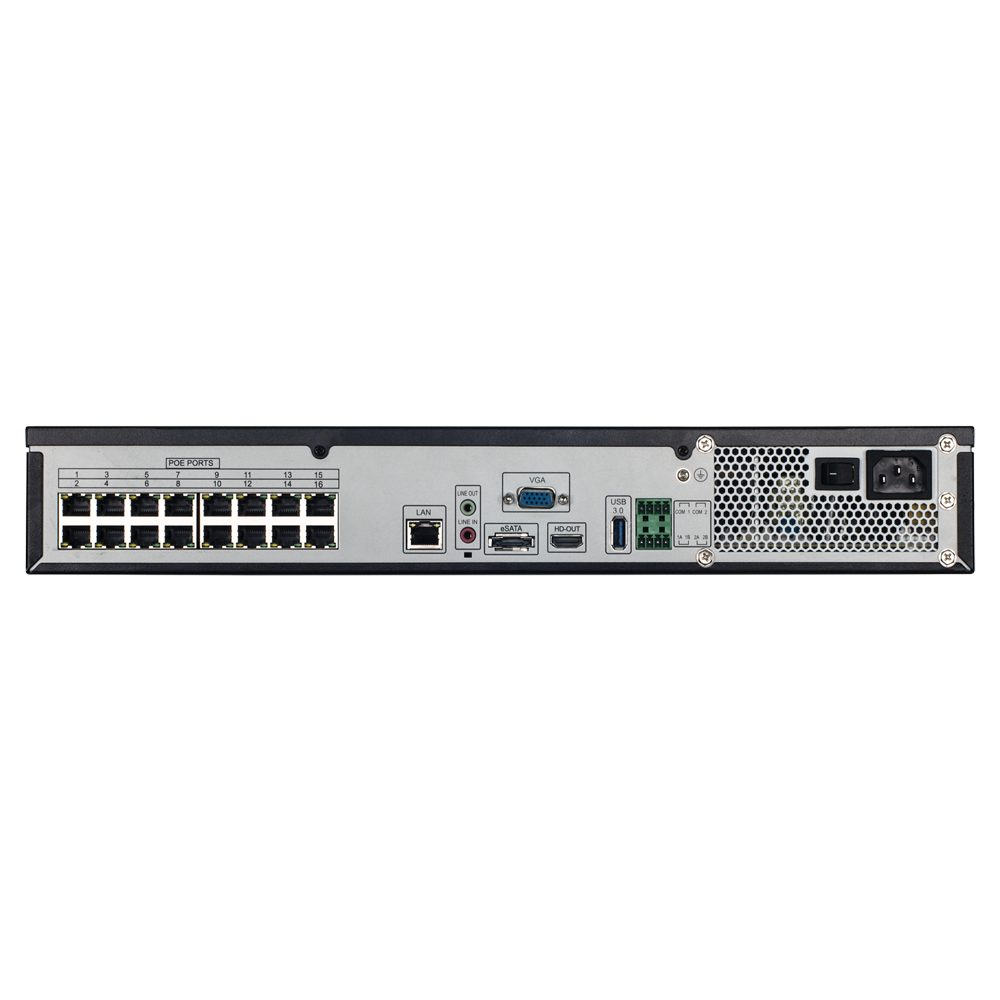

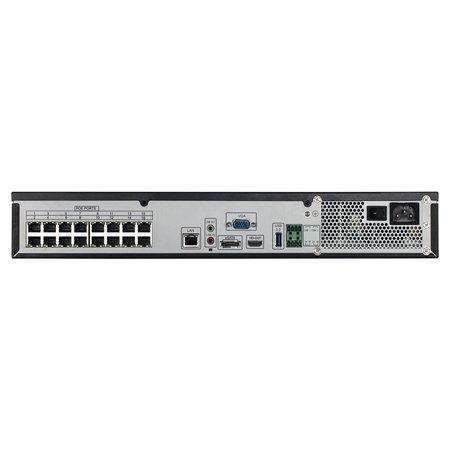

• Communication: 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100/1000Mbps (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x eSATA
• Power supply: AC 100~240 V, ≤ 15 W (without HDD)
• Operating temperature: -10ºC ~ 50ºC (10%-90% Humidity)
• Dimensions / Weight: 440mm x 368.3mm x 70mm / 4.8 Kg (without HDD)
• Certifications: CE/FCC/NDAA
📦 INCLUDED:
• Sunell NVR video recorder• Mouse• Ethernet cable• Instruction manual• Hard drive connection cables• Power supply unit
| Range | Pro |
|---|---|
| IP camera inputs | LAN port up to 64 channels |
| PoE power supply | 16-port PoE switch IEEE802.3af/at (max. 140W) |
| Compatible IP cameras | SUNELL (native protocol), ONVIF |
| Two-way audio | 1 RCA input / 1 RCA output |
| Video output | 1 x 4K HDMI, 1 x 1080p HDMI, 1 x VGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | 4K HDMI: 3840x2160, 1920x1080, 1280x1024, 1024x768 1080p HDMI: 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 |
| Total bandwidth | 400 Mbps incoming / 400 Mbps outgoing |
| Stream type | Video / Video + Audio |
| Main Stream recording | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF |
| Decoding capacity | 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1, 64ch@D1 |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Motion detection | Yes |
| Alarms | 6 Inputs / 2 Relays |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web browser, SunView Smartphone App, SunView PC software |
| Remote connections | 8 |
| Internal memory | 4 SATA 3.5" HDDs up to 16 TB each (not included) |
| RAID support | RAID5, RAID6, RAID10 |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100/1000Mbps (Ethernet) / 1 x RS-485 / 1 x RS-232 / 1 x eSATA |
| Power supply | AC 100~240 V, ≤ 15 W (without HDD) |
| Operating temperature | -10ºC ~ 50ºC (10%-90% Humidity) |
| Dimensions / Weight | 440mm x 368.3mm x 70mm / 4.8 Kg (without HDD) |
| Certifications | CE/FCC/NDAA |
