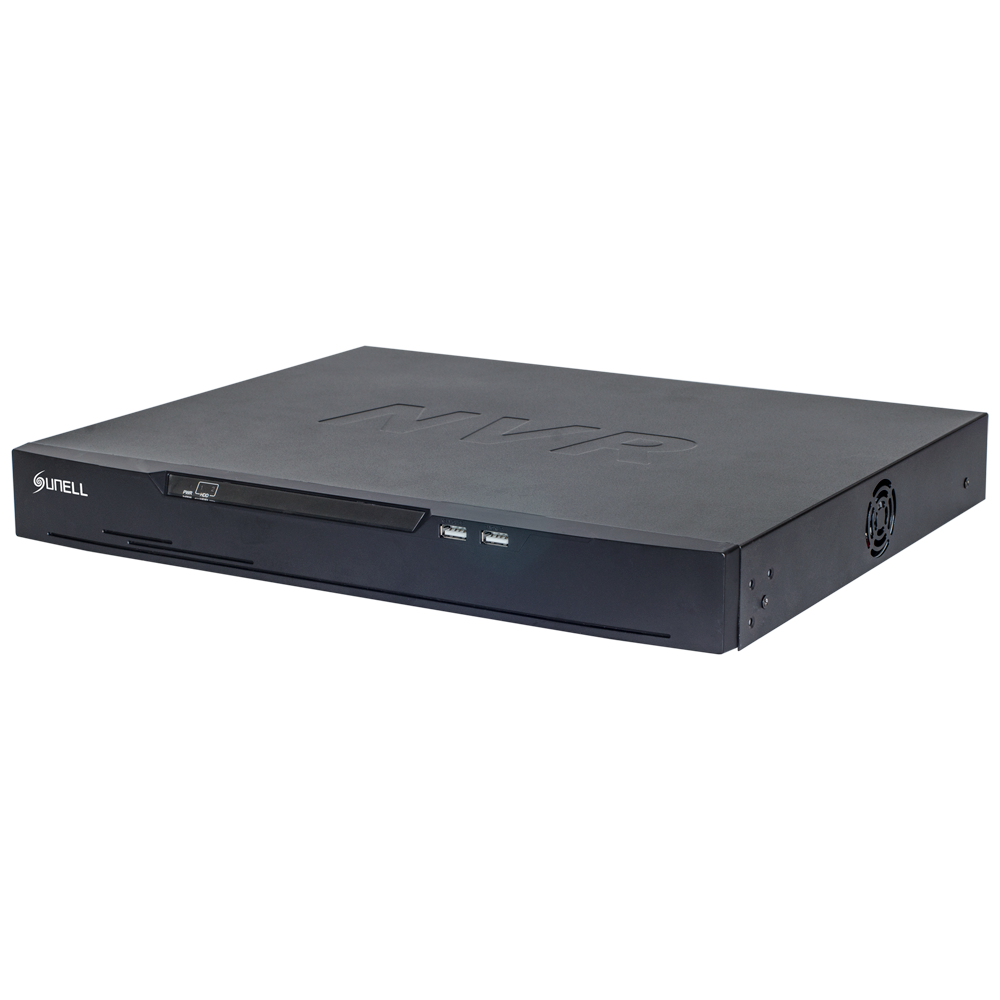

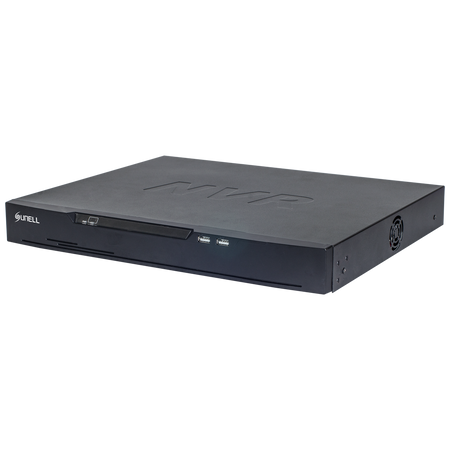

Sunell SN-NVR3816E2-P16-J - Eco Series - 16CH IP NVR Video Recorder | 16CH PoE Switch 128W max - Maximum resolution 12Mpx@1ch | Alarms | Audio - Bandwidth 160/160Mbps (120/120Mbps with AI) - Supports 2 hard drives (not included)
📋 SPECIFICATIONS:
• Brand: Sunell
• Series: Eco
• IP camera inputs: LAN port up to 16 channels
• PoE power supply: 16-port PoE switch IEEE802.3af/at (max. 128W)
• Compatible IP cameras: SUNELL (native protocol), ONVIF
• Two-way audio: 1 RCA input / 1 RCA output
• Video output: 1 x HDMI 4K, 1 x VGA
• Video compression format: H.265 / H.264
• Display resolution: HDMI 4K: 3840x2160, 1920x1080, 1280x1024, 1024x768; VGA: 1920x1080, 1280x1024, 1024x768
• Total bandwidth: 160Mbps input / 160Mbps output (120Mbps/120Mbps with AI enabled)
• Stream type: Video / Video + Audio
• Main Stream recording: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF
• Decoding capacity: 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1
• Multifunction: Pentaplex: Live, recording, playback, backup, and remote access
• Motion detection: Yes
• Alarms: 8 Inputs / 2 Relay
• Recording method: Manual, scheduled, motion detection
• External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• Remote access: Web browser, SunView Smartphone App, SunView PC Software
• Remote connections: 8
• Internal memory: 2 x 3.5" SATA HDD up to 12TB each (not included)
• Communication: 2 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100/1000Mbps (Ethernet)
• Power supply: AC 100~240 V, ≤ 15 W (without HDD)
• Operating temperature: -10ºC ~ 50ºC (10%-90% Humidity)
• Dimensions / Weight: 372mm x 311.2mm x 46.4mm / 2.75 Kg (without HDD)
• Certifications: CE/FCC/NDAA
📦 INCLUDED:
• Sunell NVR video recorder• Mouse• Ethernet cable• Instruction manual• Hard drive connection cables• Power adapter
| Range | Eco |
|---|---|
| IP Camera Inputs | LAN port up to 16 channels |
| PoE Power Supply | 16-port PoE switch IEEE802.3af/at (max. 128W) |
| Compatible IP Cameras | SUNELL (native protocol), ONVIF |
| Two-way audio | 1 RCA input / 1 RCA output |
| Video output | 1 x HDMI 4K, 1 x VGA |
| Video compression format | H.265 / H.264 |
| Display resolution | HDMI 4K: 3840x2160, 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 |
| Total bandwidth | 160Mbps input / 160Mbps output (120Mbps/120Mbps with AI active) |
| Stream type | Video / Video + Audio |
| Main Stream Recording | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF |
| Decoding capacity | 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1 |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Motion detection | Yes |
| Alarms | 8 Inputs / 2 Relays |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web browser, SunView Smartphone App, SunView PC Software |
| Remote connections | 8 |
| Internal storage | 2 x 3.5" SATA HDD up to 12TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100/1000Mbps (Ethernet) |
| Power supply | AC 100~240 V, ≤ 15 W (without HDD) |
| Operating temperature | -10ºC ~ 50ºC (10%-90% Humidity) |
| Dimensions / Weight | 372mm x 311.2mm x 46.4mm / 2.75 Kg (without HDD) |
| Certifications | CE/FCC/NDAA |
