Sunell Gamma Eco - NVR3816E2J variant
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

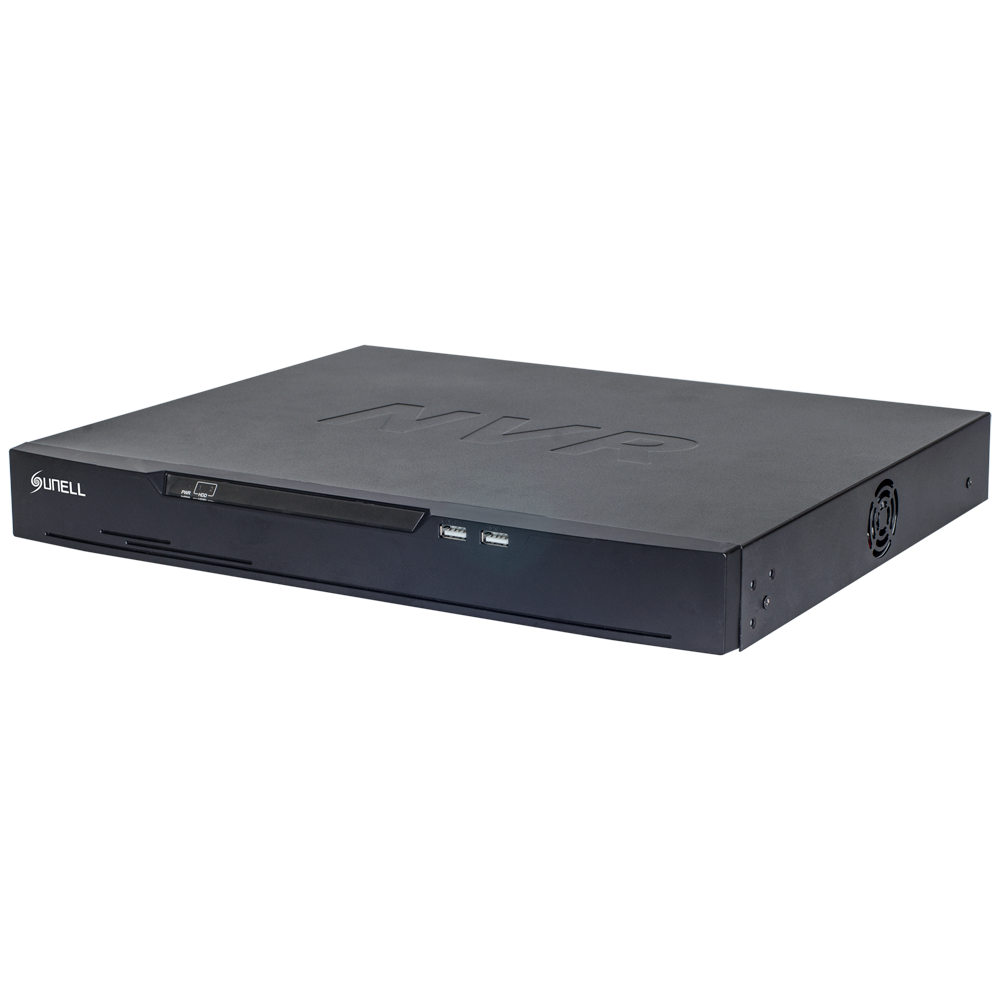

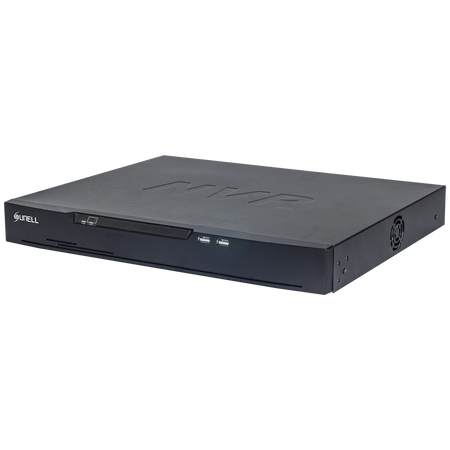

Sunell SN-NVR3816E2-J - Eco Series - 16CH IP NVR Video Recorder - Maximum resolution 12Mpx@1ch | Alarms | Audio - Bandwidth 160Mbps/160Mbps - Supports 2 hard drives (not included)
📋 SPECIFICATIONS:
• Brand: Sunell
• Series: Eco
• IP camera inputs: LAN port up to 16 channels
• PoE power supply: N/A
• Compatible IP cameras: SUNELL (native protocol), ONVIF
• Two-way audio: 1 RCA input / 1 RCA output
• Video output: 1 x HDMI 4K, 1 x HDMI 1080p, 1 x VGA
• Video compression format: H.265 / H.264
• Display resolution: HDMI 4K: 3840x2160, 1920x1080, 1280x1024, 1024x768; VGA: 1920x1080, 1280x1024, 1024x768
• Total bandwidth: 160Mbps input / 160Mbps output (112Mbps/112Mbps with AI enabled)
• Stream type: Video / Video + Audio
• Main Stream recording: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF
• Decoding capacity: 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1
• Multi-function: Pentaplex: Live, recording, playback, backup and remote access
• Motion detection: Yes
• Alarms: 8 Inputs / 1 Relay
• Recording method: Manual, scheduled, motion detection
• External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• Remote access: Web browser, SunView Smartphone App, SunView PC Software
• Remote connections: 8
• Internal memory: 2 SATA 3.5" HDD up to 8TB each (not included)
• Communication: 2 x USB 2.0 front / 2 x RJ45 10/100/1000Mbps (Ethernet)
• Power supply: DC 12V/3A, ≤ 15 W (without HD)
• Operating temperature: -10ºC ~ 50ºC (10%-90% Humidity)
• Dimensions / Weight: 372mm x 311.2mm x 46.4mm / 1.8 kg (without HDD)
• Certifications: CE/FCC/NDAA
📦 INCLUDED:
• Sunell NVR video recorder• Mouse• Ethernet cable• Instruction manual• Hard drive connection wiring• Power adapter
| Range | Eco |
|---|---|
| IP camera inputs | LAN port up to 16 channels |
| PoE power supply | N/A |
| Compatible IP cameras | SUNELL (native protocol), ONVIF |
| Two-way audio | 1 RCA input / 1 RCA output |
| Video output | 1 x 4K HDMI, 1 x 1080p HDMI, 1 x VGA |
| Video compression format | H.265 / H.264 |
| Display resolution | 4K HDMI: 3840x2160, 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 |
| Total bandwidth | 160Mbps input / 160Mbps output (112Mbps/112Mbps with AI enabled) |
| Stream type | Video / Video + Audio |
| Main Stream recording | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF |
| Decoding capacity | 1ch@12Mpx, 4ch@4Mpx, 9ch@1080p, 32ch@D1 |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Motion detection | Yes |
| Alarms | 8 Inputs / 1 Relay |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web browser, SunView Smartphone App, SunView PC Software |
| Remote connections | 8 |
| Internal memory | 2 x 3.5" SATA HDD up to 8TB each (not included) |
| Communication | 2 x USB 2.0 front / 2 x RJ45 10/100/1000Mbps (Ethernet) |
| Power supply | DC 12V/3A, ≤ 15 W (without HDD) |
| Operating temperature | -10ºC ~ 50ºC (10%-90% Humidity) |
| Dimensions / Weight | 372mm x 311.2mm x 46.4mm / 1.8 Kg (without HDD) |
| Certifications | CE/FCC/NDAA |
