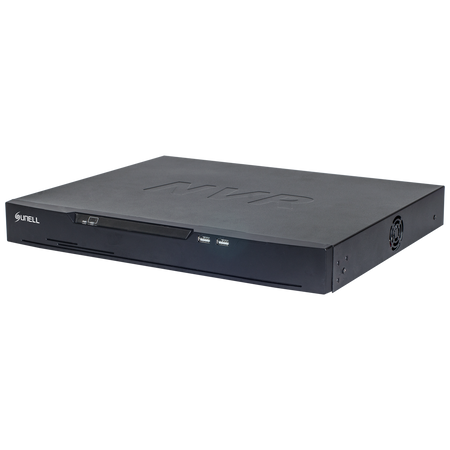

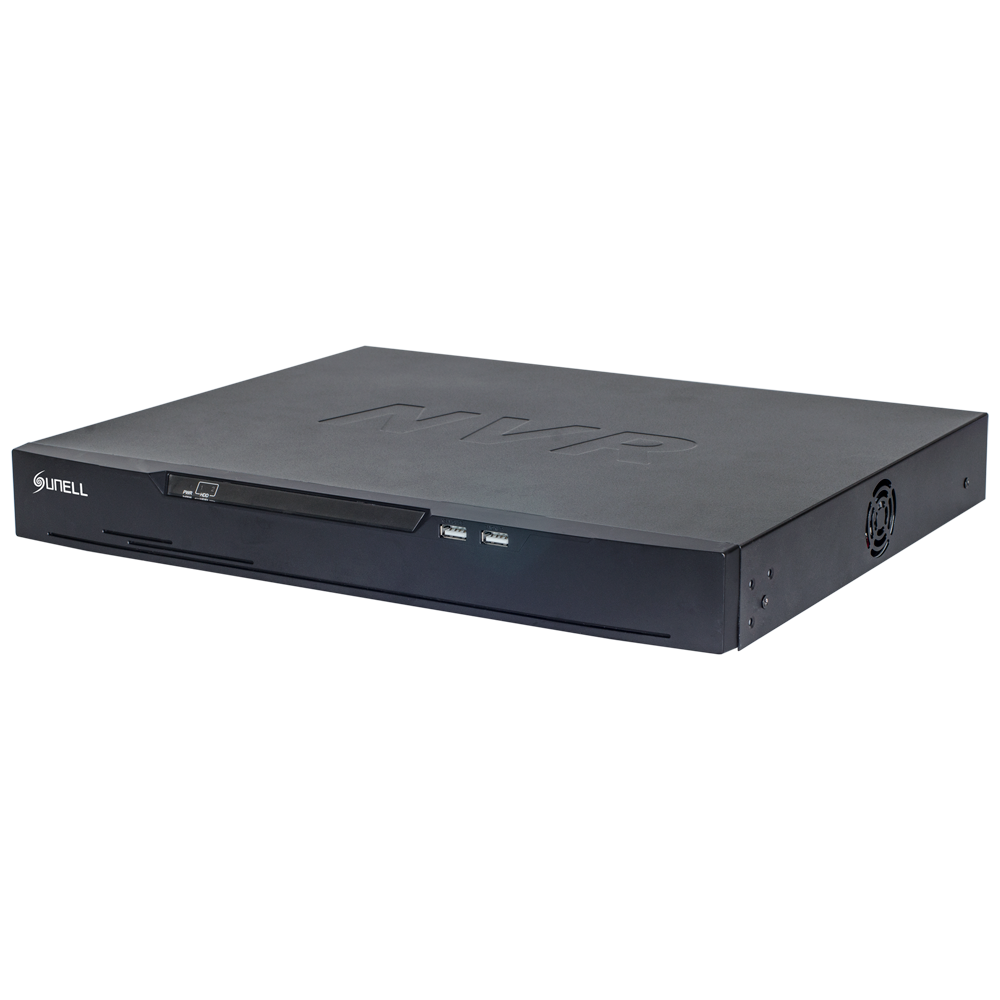

Sunell SN-NVR3808E2-P8-J
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Sunell SN-NVR3808E2-P8-J - Eco Series - 8CH IP NVR Video Recorder | 8CH PoE Switch 128W max - Max resolution 12Mpx@1ch | Alarms | Audio - Bandwidth 80/80Mbps - Supports 2 hard drives (not included)
📋 SPECIFICATIONS:
• Brand: Sunell
• Series: Eco
• IP camera inputs: LAN port up to 8 channels
• PoE power supply: 8-port PoE switch IEEE802.3af/at (max. 128W)
• Compatible IP cameras: SUNELL (native protocol), ONVIF
• Two-way audio: 1 RCA input / 1 RCA output
• Video output: 1 x HDMI 4K, 1 x VGA
• Video compression format: H.265 / H.264
• Display resolution: HDMI 4K: 3840x2160, 1920x1080, 1280x1024, 1024x768; VGA: 1920x1080, 1280x1024, 1024x768
• Total bandwidth: 80Mbps input / 80Mbps output
• Stream type: Video / Video + Audio
• Main Stream recording: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF
• Decoding capacity: 1ch@12Mpx, 4ch@4Mpx, 8ch@D1
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Motion detection: Yes
• Alarms: 8 Inputs / 1 Relay
• Recording method: Manual, scheduled, motion detection
• External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• Remote access: Web browser, Smartphone App SunView App, PC Software SunView
• Remote connections: 8
• Internal memory: 2 SATA 3.5" HDDs up to 12TB each (not included)
• Communication: 2 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100/1000Mbps (Ethernet)
• Power supply: AC 100~240 V, ≤ 15 W (without HDD)
• Operating temperature: -10ºC ~ 50ºC (10%-90% Humidity)
• Dimensions / Weight: 372mm x 311.2mm x 46.4mm / 2.75 Kg (without HDD)
• Certifications: CE/FCC/NDAA
📦 INCLUDED:
• Sunell NVR video recorder• Mouse• Ethernet cable• Instruction manual• Hard drive connection cables• Power adapter
| Range | Eco |
|---|---|
| IP camera inputs | LAN port up to 8 channels |
| PoE power supply | 8-port PoE switch IEEE802.3af/at (max. 128W) |
| Compatible IP cameras | SUNELL (native protocol), ONVIF |
| Two-way audio | 1 RCA input / 1 RCA output |
| Video output | 1 x HDMI 4K, 1 x VGA |
| Video compression format | H.265 / H.264 |
| Display resolution | HDMI 4K: 3840x2160, 1920x1080, 1280x1024, 1024x768 VGA: 1920x1080, 1280x1024, 1024x768 |
| Total bandwidth | 80Mbps input / 80Mbps output |
| Stream type | Video / Video + Audio |
| Main stream recording | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, CIF |
| Decoding capacity | 1ch@12Mpx, 4ch@4Mpx, 8ch@D1 |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Motion detection | Yes |
| Alarms | 8 Inputs / 1 Relay |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web browser, SunView Smartphone App, SunView PC software |
| Remote connections | 8 |
| Internal memory | 2 SATA 3.5" HDD up to 12TB each (not included) |
| Communication | 2 x USB 2.0 front panel, 1 x USB 2.0 rear panel / 1 x RJ45 10/100/1000Mbps (Ethernet) |
| Power supply | AC 100~240 V, ≤ 15 W (without HDD) |
| Operating temperature | -10ºC ~ 50ºC (10%-90% Humidity) |
| Dimensions / Weight | 372mm x 311.2mm x 46.4mm / 2.75 Kg (without HDD) |
| Certifications | CE/FCC/NDAA |
