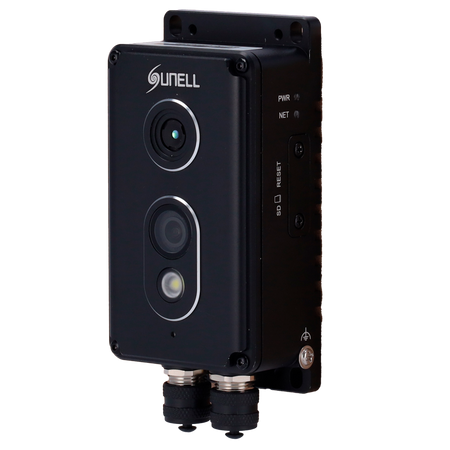

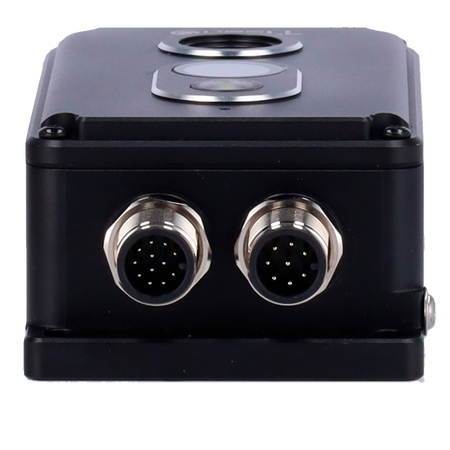

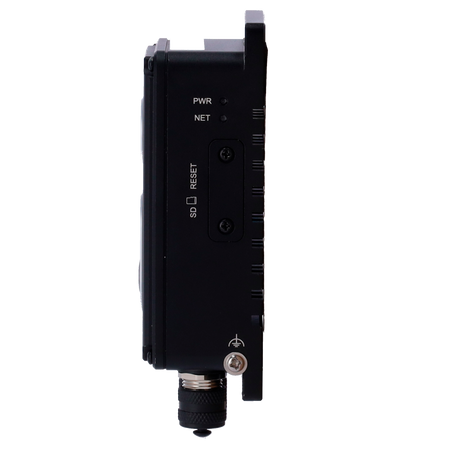

Sunell SN-D2P-F2.0 - compact bi-spectrum IP camera - 256x192 VOx thermal sensor | 2mm lens - Thermal sensitivity ≤60mK - Accuracy ±2ºC/±2% - 1600x1200 1/2.8" visible sensor | 2.3mm lens - Temperature, fire, smoke, and flame detection
📋 SPECIFICATIONS:
• Brand: Sunell
• Range: SN-D2P
• Thermal sensor: Uncooled VOx FPA
• Thermal sensor resolution: 256x192
• Pixel size: 12µm
• Thermal lens: 2mm
• Thermal sensitivity: ≤60mK
• Detectable temperature range: -20ºC - 150ºC and 0ºC - 500ºC
• Temperature accuracy: ±2ºC / ±2%
• Spectral range: LWIR 8~14µm
• Compression: H.265 / H.264 / MJPEG
• Thermal field of view: 90º x 65º
• Focus: Fixed lens, focus-free
• Visible sensor: 1/2.8" 2MP STARVIS CMOS
• Visible sensor resolution: 1600x1200
• Visible sensor minimum illumination: Color: 0.05Lux @(F2.2, AGC ON),; B/W: 0.005Lux @(F2.2, AGC ON), 0Lux with IR
• Visible lens: 2.3mm
• Visible field of view: 100º x 75º
• Illuminator: White light; 0.3m distance: 0.8×0.8m; 1m distance: 1.8×1.2m
• Intelligent functions: Temperature measurement, fire detection (thermal sensor) and smoke/flame detection (visible sensor)
• Temperature measurement: Supports 3 types of rules (Point, Area, and Line)
• Temperature measurement ranges: Temperature Measurement (0.1x0.1m object): 3m
• Audio: Microphone included
• Alarm: 1 In / 1 Out
• Internal memory: Micro SD card up to 512GB
• Network interface: Ethernet 10M/100M BaseT
• Remote access: WEB interface, CMS (SunView), Smartphone, and NVR
• Interoperability: ONVIF (Profile S/T/G/M) & Private Protocol
• Power supply: 12VDC/3W, PoE IEEE802.3af
• Operating temperature: -30ºC~+60ºC
• Protection rating: IP67
• Reliability: Surge protection: 6 kV,; Air discharge: 8 kV,; Contact discharge: 8 kV
• Impact resistance: 25 g (IEC60068-2-29)
• Vibration resistance: 2 g (IEC 60068-2-6)
• Material: Metal
• Dimensions: 55mm × 118mm x 36mm
• Weight: 440 g
• Certificates: CE / FCC

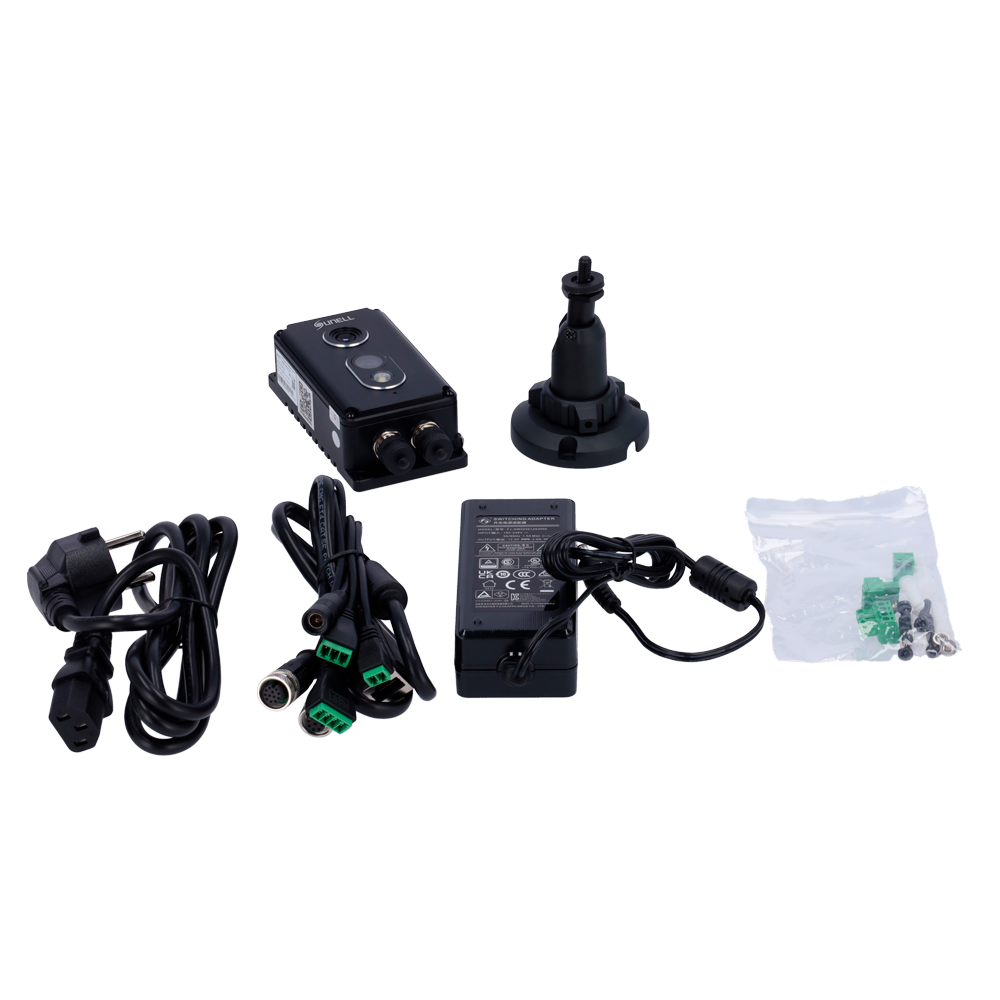

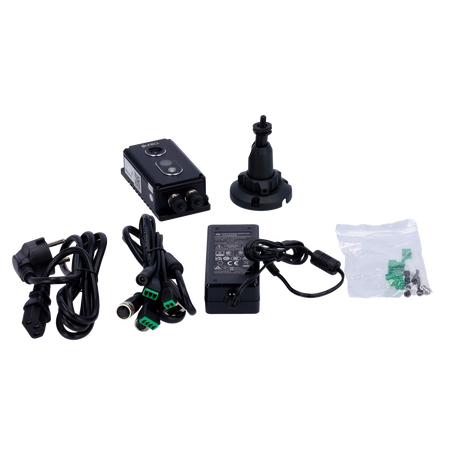

📦 INCLUDED:
• Sunell bi-spectrum IP camera• Installation material• User instructions
| Range | SN-D2P |
|---|---|
| Thermal sensor | Uncooled VOx FPA |
| Thermal sensor resolution | 256x192 |
| Pixel pitch | 12µm |
| Thermal lens | 2mm |
| Thermal sensitivity | ≤60mK |
| Temperature detection range | -20ºC - 150ºC and 0ºC - 500ºC |
| Temperature accuracy | ±2ºC / ±2ºC |
| Spectral range | LWIR 8~14µm |
| Compression | H.265 / H.264 / MJPEG |
| Thermal field of view | 90º x 65º |
| Focus | Fixed lens, focus-free |
| Visible sensor | 1/2.8" 2MP STARVIS CMOS |
| Visible sensor resolution | 1600x1200 |
| Visible sensor minimum illumination | Color: 0.05Lux @(F2.2, AGC ON), B/W: 0.005Lux @(F2.2, AGC ON), 0Lux with IR |
| Visible lens | 2.3mm |
| Visible field of view | 100º x 75º |
| Illuminator | White light 0.3m distance: 0.8×0.8m 1m distance: 1.8×1.2m |
| Intelligent functions | Temperature measurement, fire detection (thermal sensor) and smoke and flame detection (visible sensor) |
| Temperature measurement | Supports 3 types of rules (Point, Area and Line) |
| Temperature measurement ranges | Temperature Measurement (object 0.1x0.1m): 3m |
| Audio | Microphone included |
| Alarm | 1 In / 1 Out |
| Internal memory | Micro SD card up to 512GB |
| Network interface | Ethernet 10M/100M BaseT |
| Remote access | WEB interface, CMS (SunView), Smartphone and NVR |
| Interoperability | ONVIF (Profile S/T/G/M) & Private Protocol |
| Power supply | 12VDC/3W, PoE IEEE802.3af |
| Operating temp. | -30ºC~+60ºC |
| Protection rating | IP67 |
| Reliability | Surge protection: 6 kV, Air discharge: 8 kV, Contact discharge: 8 kV |
| Shock resistance | 25 g (IEC60068-2-29) |
| Vibration resistance | 2 g (IEC 60068-2-6) |
| Material | Metal |
| Dimensions | 55mm × 118mm x 36mm |
| Weight | 440 g |
| Certificates | CE / FCC |
