IP and LTE transmitter for Siscom fire alarm control panels
IP and LTE transmitter for Siscom fire alarm control panels
Regular price
€391,99
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
IP and LTE transmitter for fire alarm control panels. - Certified according to EN 54-21:2006 standard. - Triple path: Ethernet, Wi-Fi, and LTE connectivity. - 100% remote configuration without preliminary connection. - Real-time notifications.
📋 SPECIFICATIONS:
• Main power supply: 24 Vdc (allowed range 5 to 30 Vdc)
• Backup power supply: 24 Vdc (allowed range 5 to 30 Vdc)
• Current consumption: 40 mA (Average) / 90 mA (Peak)
• Dimensions: 80 x 60 x 20 mm (board) / 80 x 60 x 30 mm (with connectors)
• Weight: approximately 40 grams
• Temperature range: -5ºC to 70ºC
• Permitted humidity: Up to 95% non-condensing
• Communication interfaces: Ethernet (RJ45), Wi-Fi, LTE (NB-IoT), LoRa (optional)
• Transmission protocols: Contact ID and SIA
• Internal data ports: RS232, RS485, TTL, expansion bus for accessories
• SIM card format: Nano SIM (M2M recommended with NB-IoT enabled)
• On-board inputs: 2 negative alarm inputs (expandable via bus)
• On-board outputs: 2 open-collector outputs (30Vdc / 10~100mA)
• Light indicators: 3 LEDs (LTE, LAN, COM) visible from 3m at 500 lux
• Certifications: EN 54-21:2006
📦 INCLUDED:

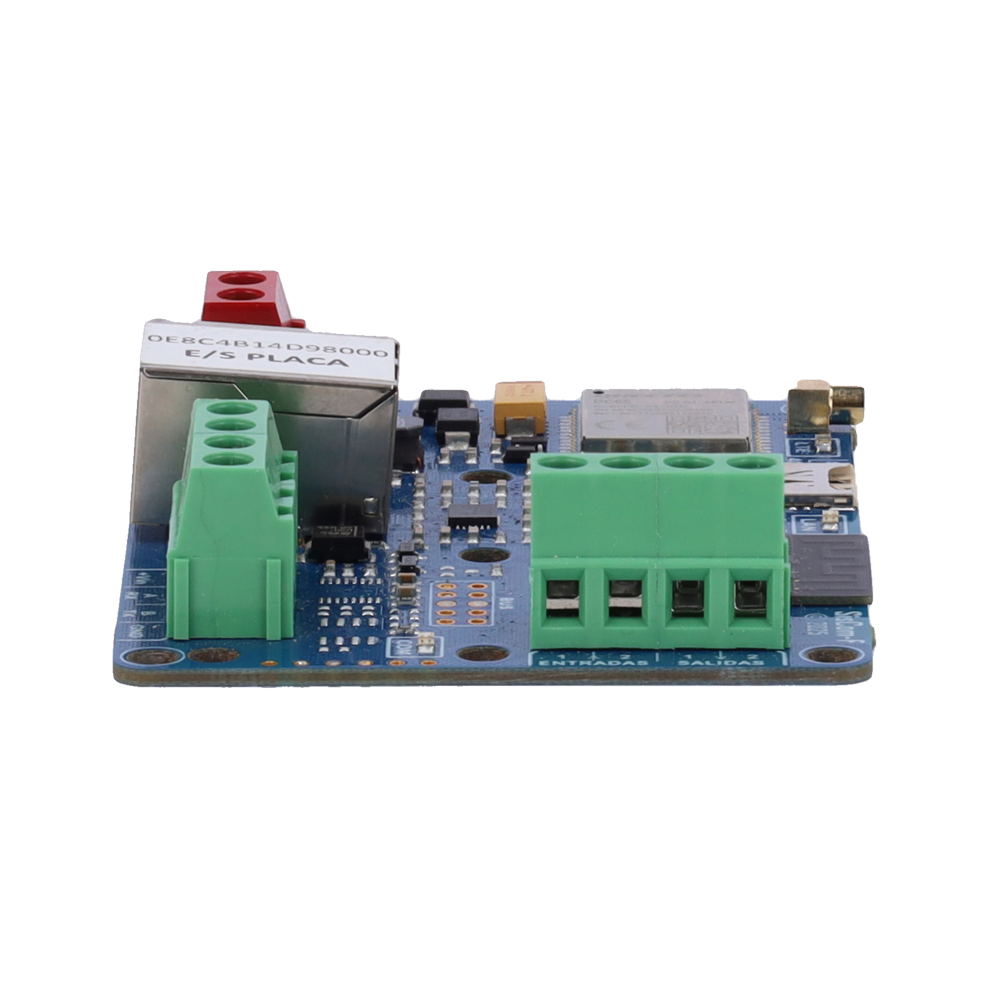

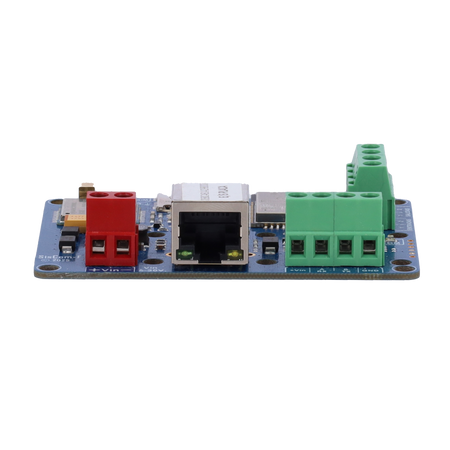

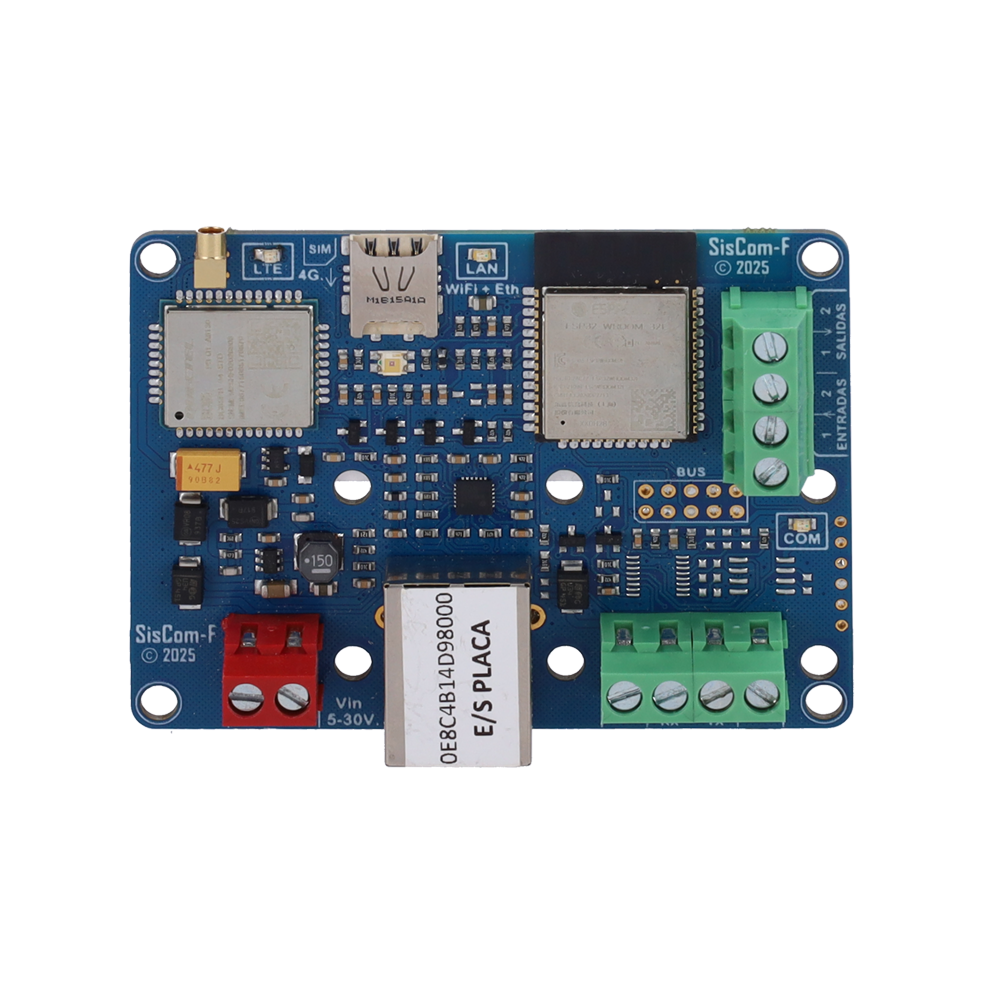

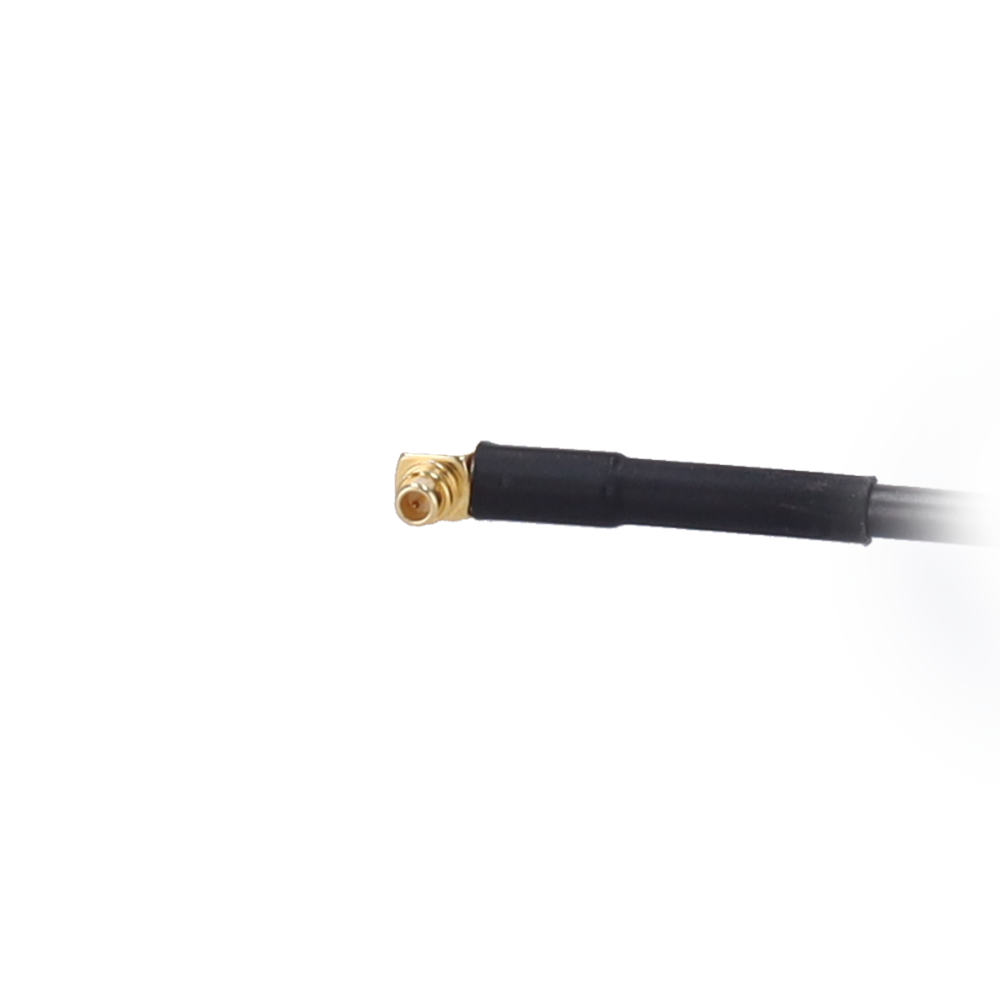

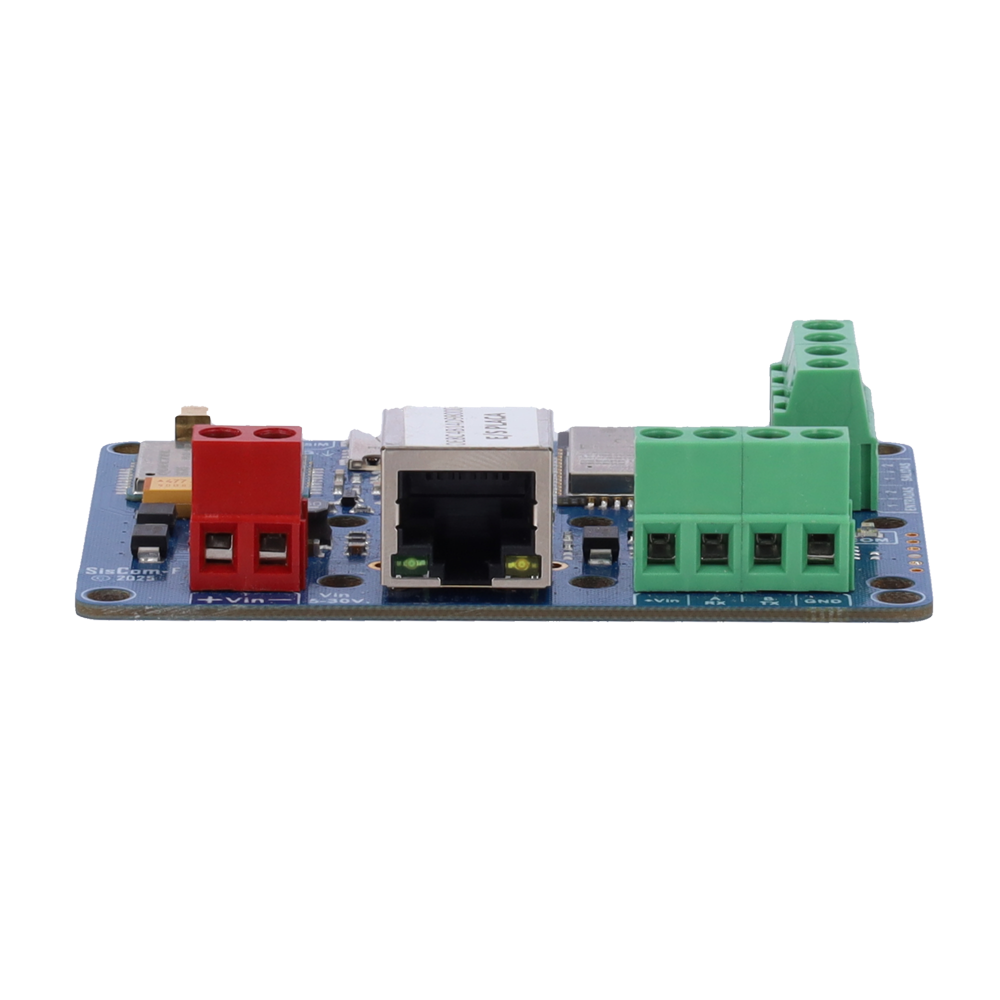

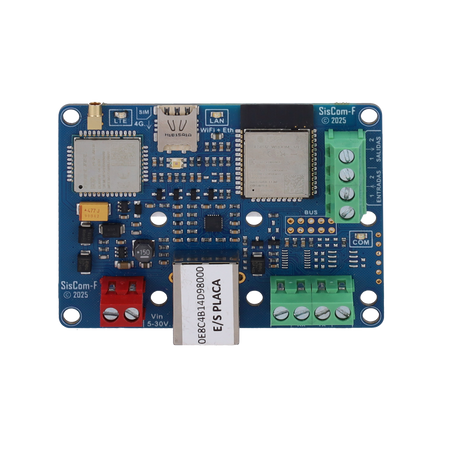

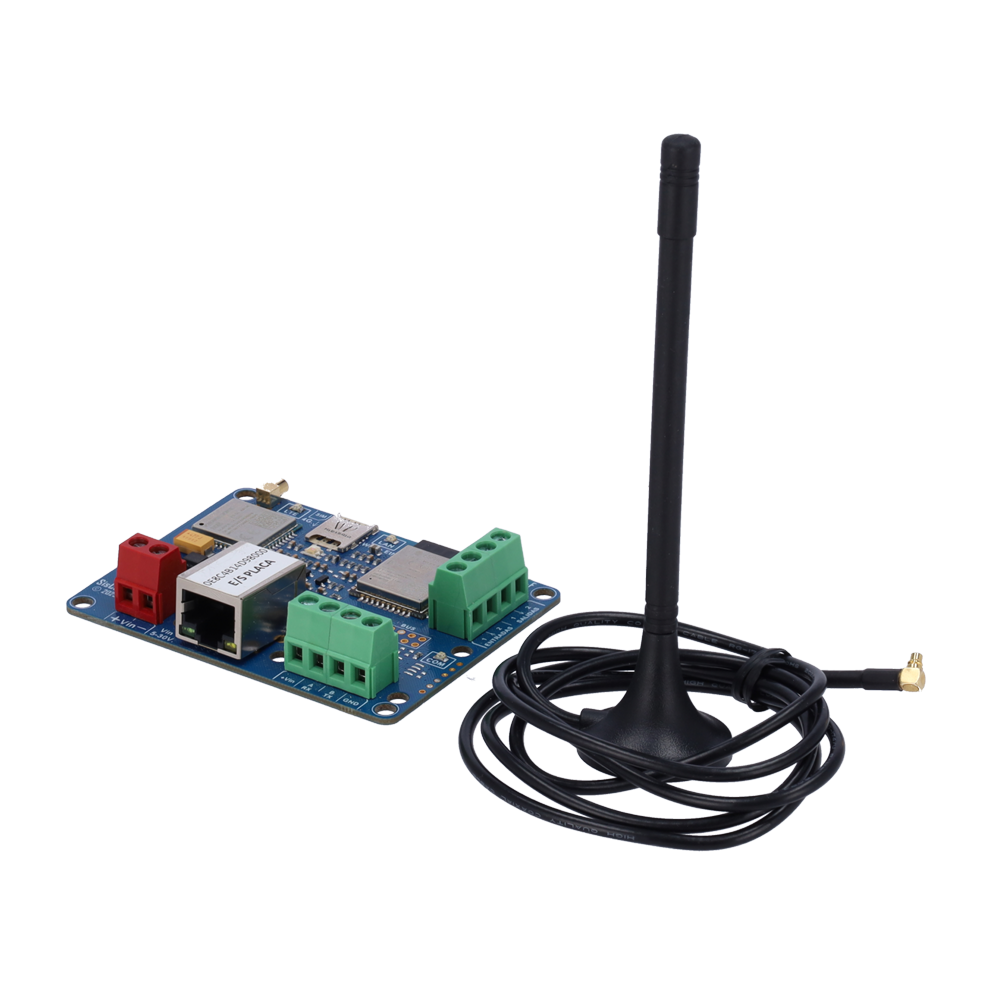

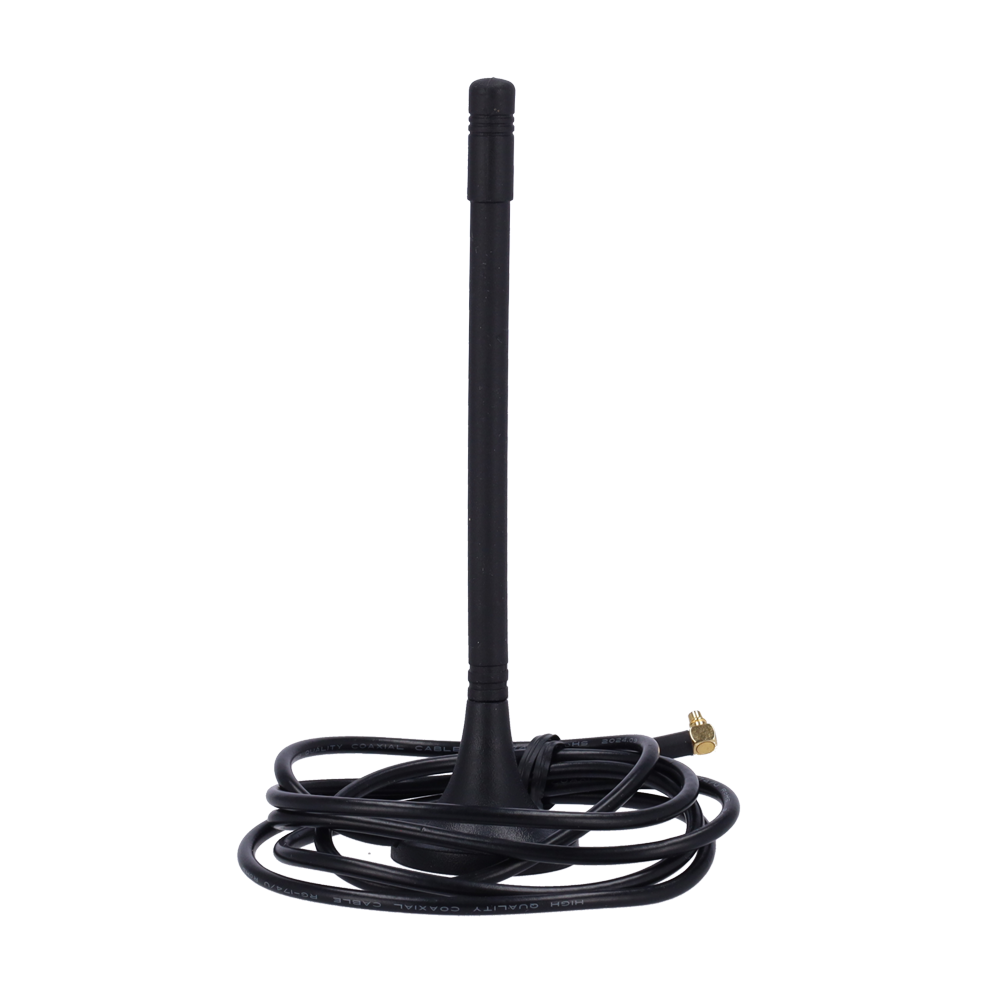

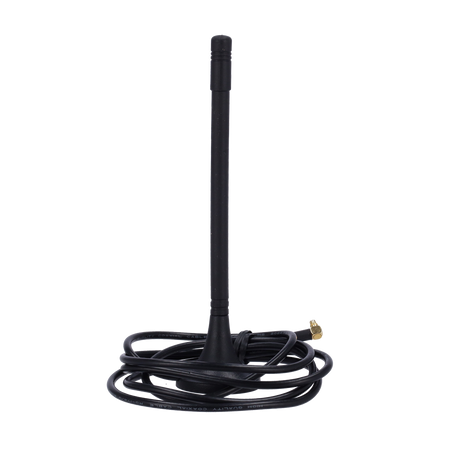

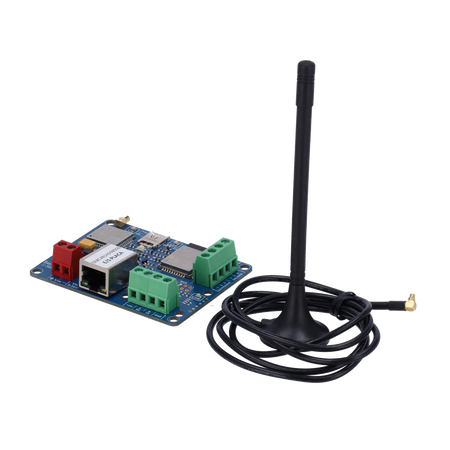

• 1x SIS-F25-F1 transmitter module• 1x High-performance magnetic LTE antenna (MMCX connector and 1-meter cable)• 4x nylon adhesive supports/spacers for mounting inside the control panel
| Main power supply | 24 Vdc (permitted range 5 to 30 Vdc) |
|---|---|
| Backup power supply | 24 Vdc (permitted range 5 to 30 Vdc) |
| Current consumption | 40 mA (Average) / 90 mA (Peak) |
| Dimensions | 80 x 60 x 20 mm (board) / 80 x 60 x 30 mm (with connectors) |
| Weight | approx. 40 grams |
| Temperature range | -5ºC to 70ºC |
| Permitted humidity | Up to 95% non-condensing |
| Communication interfaces | Ethernet (RJ45), Wi-Fi, LTE (NB-IoT), LoRa (optional) |
| Transmission protocols | Contact ID and SIA |
| Internal data ports | RS232, RS485, TTL, expansion bus for accessories |
| SIM card format | Nano SIM (M2M recommended with NB-IoT enabled) |
| On-board inputs | 2 negative alarm inputs (expandable via bus) |
| On-board outputs | 2 open-collector outputs (30Vdc / 10~100mA) |
| Indicator lights | 3 LEDs (LTE, LAN, COM) visible from 3m at 500 lux |
| Certifications | EN 54-21:2006 |
