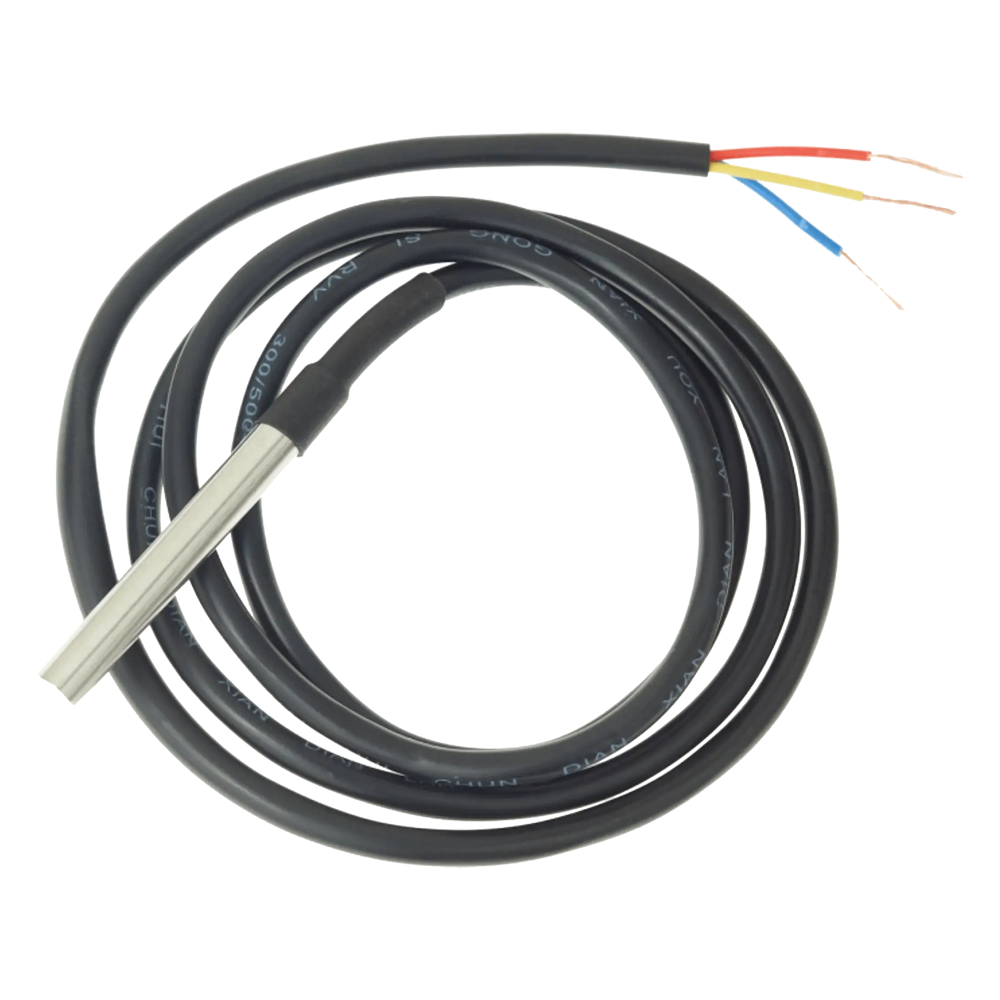

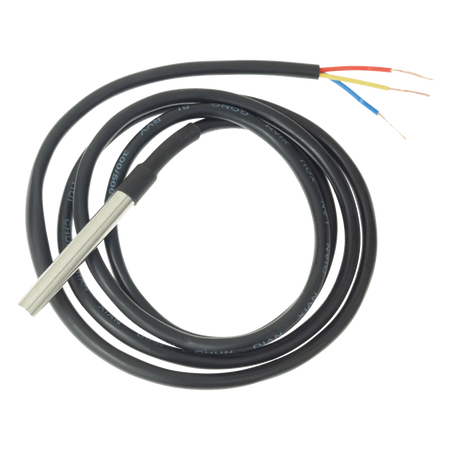

SH-SENSOR-DS18B20-3M
| Compatibility | Shelly Addon and Shelly Plus Addon |
|---|---|
| Device type | Waterproof digital temperature sensor |
| Communication interface | 1-Wire digital bus |
| Temperature measurement range | -55 °C to +125 °C (-67 °F to +257 °F) |
| Thermal accuracy from (-10 °C to +85 °C) | ±0.5 °C |
| Thermal accuracy from (-30 °C to +100 °C) | ±1.0 °C |
| Thermal accuracy (extreme range) | ±2.0 °C |
| Measurement resolution | Configurable from 9 to 12 bits, (0.5 °C to 0.0625 °C) |
| Conversion time | (12 bits) 750 ms (maximum) |
| Supply voltage | 3.0 V to 5.5 V DC |
| Power supply mode | External power or parasite power |
| Unique identification | 64-bit unique serial code stored in ROM |
| Probe housing material | AISI 304 stainless steel |
| Capsule dimensions | 6 mm (diameter) x 50 mm (length) |
| Probe protection rating | IP67 / Waterproof |
| Cable color | Black |

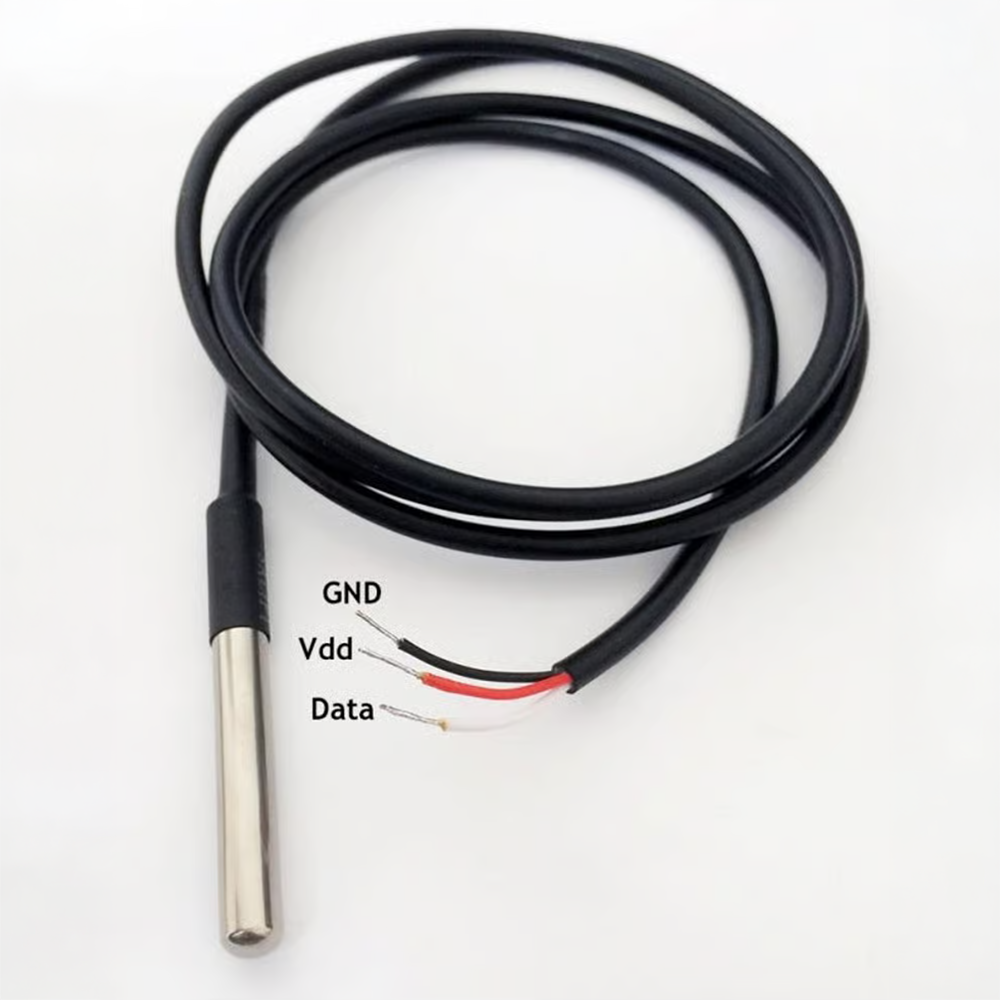

| Cable connection | 3 wires (VDD = red, DQ/Data = yellow/white, GND = black) |
| Hardware compatibility | Shelly Addon, Shelly Plus Addon, Raspberry Pi, Arduino |
| Storage temperature | -55 °C to +125 °C |
| Cable length | 3 meters |
| Sensor weight (with cable) | 46 g |
