Shelly Temperature Sensor DS18B20 3.5 mm Jack 1m

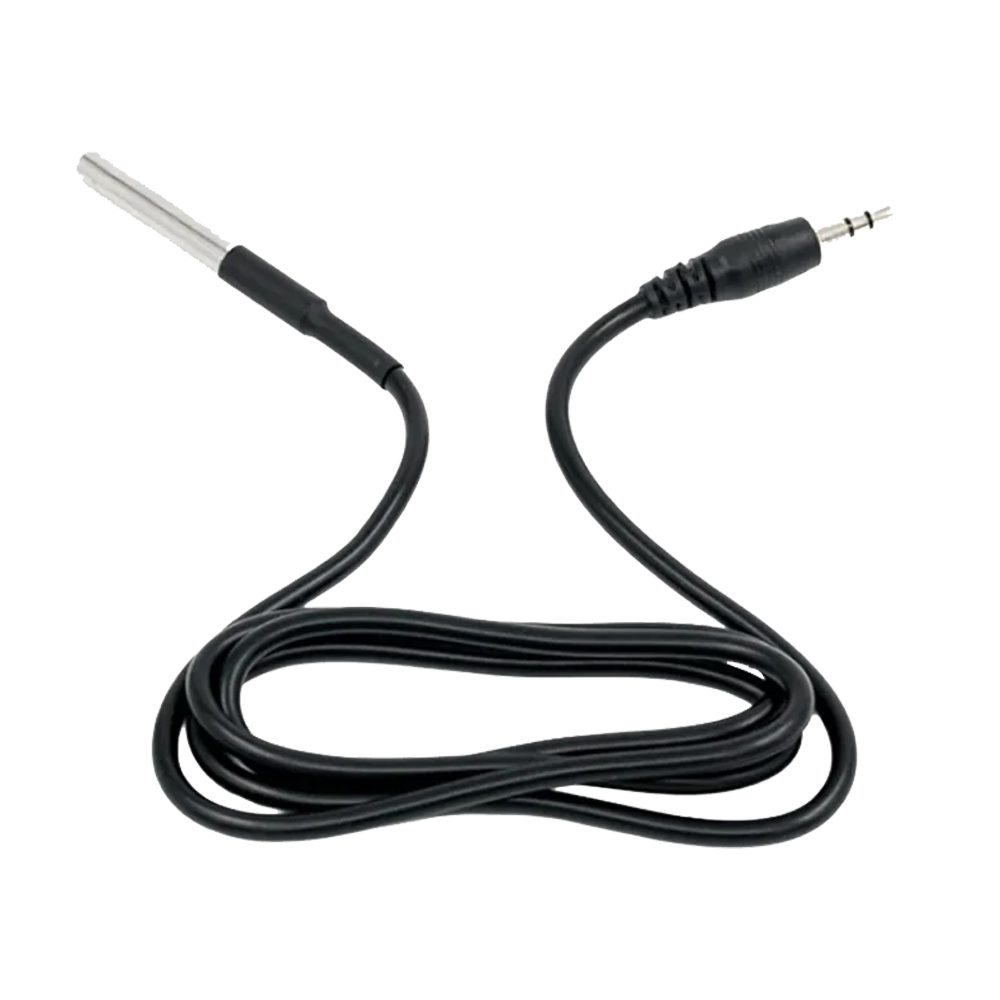

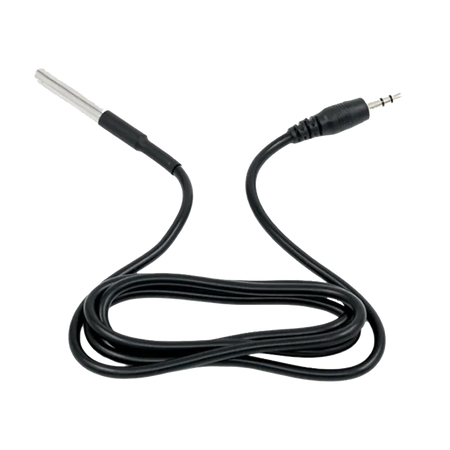

Shelly Temperature Sensor DS18B20 3.5 mm Jack 1m
Regular price
€6,06
Final price
Regular price
-6%
€6,46
Sale price
€6,06
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Shelly Temperature Sensor DS18B20 3.5 mm Jack 1m - Precise temperature measurement from -55°C to +125°C - High accuracy of ±0.5°C between -10°C and +85°C - Waterproof AISI 304 stainless steel probe - Quick connection via 3.5 mm jack connector - Direct compatibility with Shelly Addon modules
📋 SPECIFICATIONS:
• Compatibility: The Pill by Shelly
• Physical connector type: 3.5 mm male jack (Plug & Play)
• Device type: Waterproof digital temperature probe
• Communication interface: 1-Wire digital bus
• Temperature measurement range: -55 °C to +125 °C (-67 °F to +257 °F)
• Thermal accuracy from (-10 °C to +85 °C): ±0.5 °C
• Thermal accuracy from (-30 °C to +100 °C): ±1.0 °C
• Thermal accuracy (extreme range): ±2.0 °C
• Measurement resolution: Configurable from 9 to 12 bits, from (0.5 °C to 0.0625 °C)
• Conversion time: (12 bit) 750 ms (maximum)
• Supply voltage: 3.0 V to 5.5 V DC
• Power mode: External power or parasite power
• Unique identification: Unique 64-bit serial code stored in ROM
• Probe housing material: AISI 304 stainless steel
• Capsule dimensions: 6 mm (diameter) x 50 mm (length)
• Probe protection rating: IP67 / Waterproof
• Cable color: Black

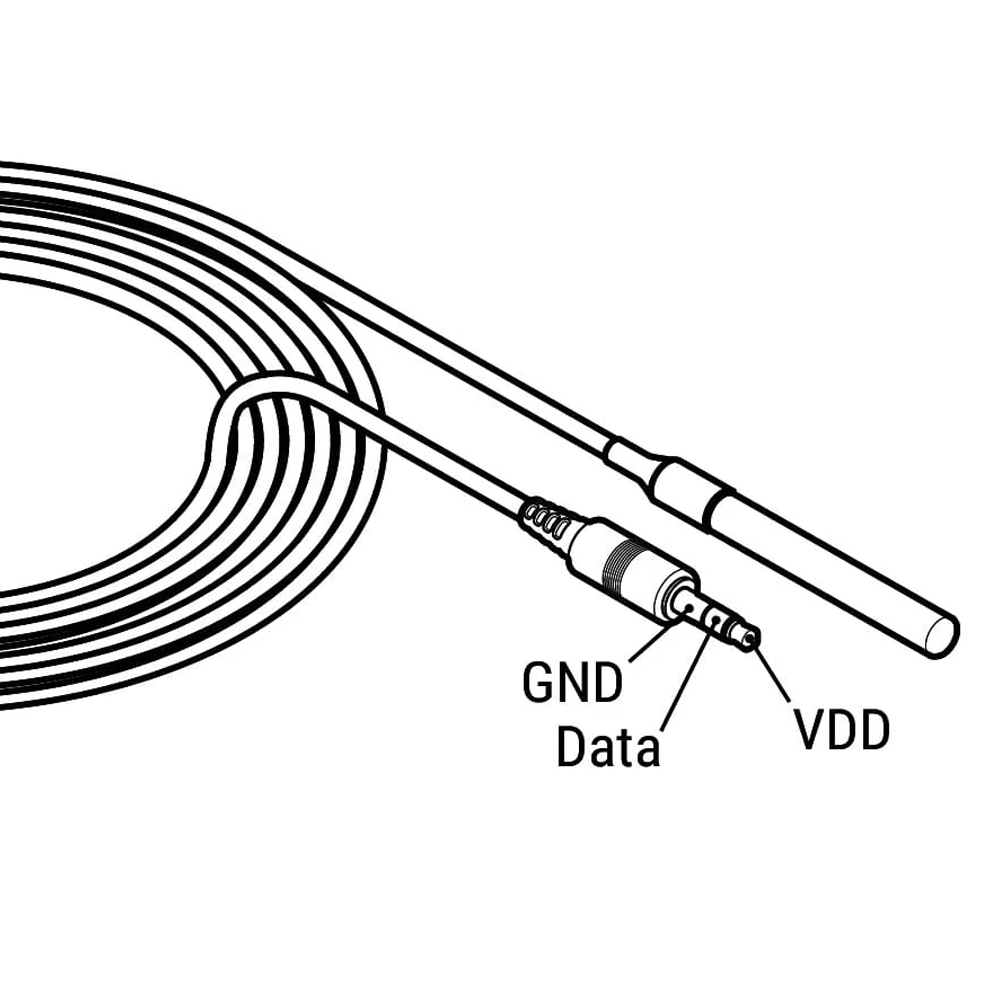

• Cable connection: 3 wires (VDD = red, DQ/Data = yellow/white, GND = black)
• Hardware compatibility: Shelly Addon, Shelly Plus Addon, Raspberry Pi, Arduino
• Storage temperature: -55 °C to +125 °C
• Cable length: 1 meter
• Sensor weight (with cable): 26 g
• Multi-sensor compatibility: Up to 5 simultaneous units on The Pill (via 1-to-5 splitter)
• Home automation integration: Shelly Smart Control App, Home Assistant, REST API, MQTT
📦 INCLUDED:
• 1x Shelly Temperature Sensor DS18B20 3.5 mm Jack 1m
• 1x Instruction manual
| Compatibility | The Pill by Shelly |
|---|---|
| Physical connector type | 3.5 mm male jack (Plug & Play) |
| Device type | Waterproof digital temperature probe |
| Communication interface | 1-Wire digital bus |
| Temperature measurement range | -55 °C to +125 °C (-67 °F to +257 °F) |
| Thermal accuracy from (-10 °C to +85 °C) | ±0.5 °C |
| Thermal accuracy from (-30 °C to +100 °C) | ±1.0 °C |
| Thermal accuracy (extreme range) | ±2.0 °C |
| Measurement resolution | Configurable from 9 to 12 bits, from (0.5 °C to 0.0625 °C) |
| Conversion time | (12 bits) 750 ms (maximum) |
| Supply voltage | 3.0 V to 5.5 V DC |
| Power supply mode | External power or parasite power |
| Unique identification | 64-bit unique serial code stored in ROM |
| Probe housing material | AISI 304 stainless steel |
| Capsule dimensions | 6 mm (diameter) x 50 mm (length) |
| Probe protection rating | IP67 / Waterproof |
| Cable color | Black |
| Cable connection | 3 wires (VDD = red, DQ/Data = yellow/white, GND = black) |
| Hardware compatibility | Shelly Addon, Shelly Plus Addon, Raspberry Pi, Arduino |
| Storage temperature | -55 °C to +125 °C |
| Cable length | 1 meter |
| Sensor weight (with cable) | 26 g |
| Multi-sensor compatibility | Up to 5 simultaneous units on The Pill (via 1-to-5 splitter) |
| Home automation integration | Shelly Smart Control App, Home Assistant, REST API, MQTT |
