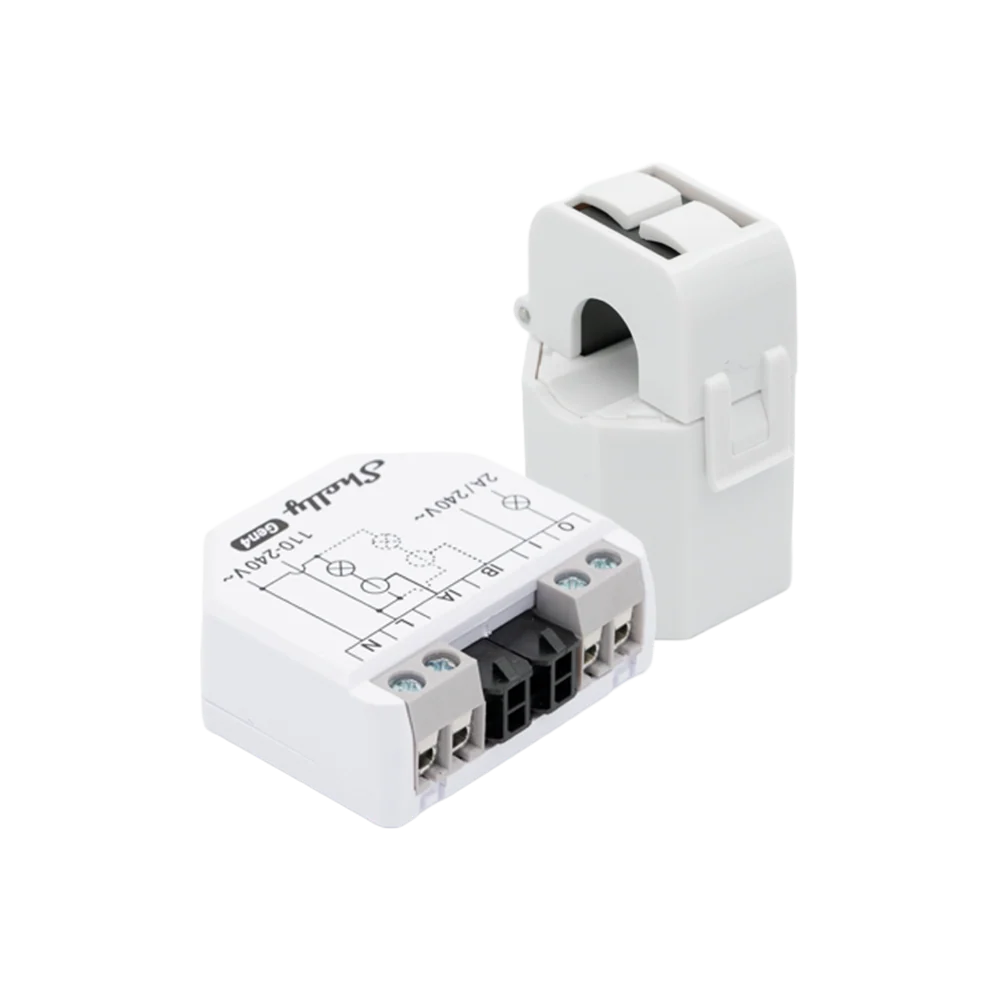

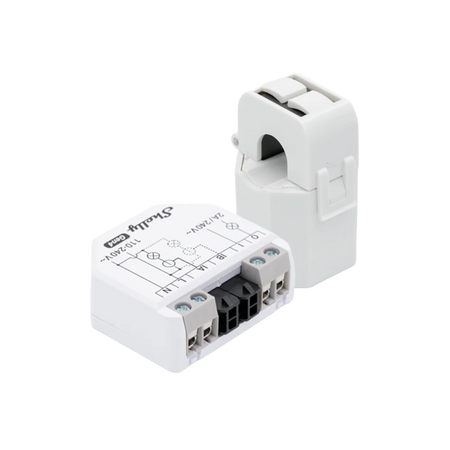

Shelly EM Gen4 + 50A 2-Channel Metering / 50A Clamp Included
Shelly EM Gen4 + 50A 2-Channel Metering / 50A Clamp Included
Regular price
€94,24
Final price
Regular price
-6%
€100,40
Sale price
€94,24
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Shelly EM Gen4 + 50A - 2-channel measurement / 50A Clamp included - Contactor control via 2A relay output - WiFi 2.4GHz / Bluetooth / Matter / Zigbee / RE - Supports 110-240V AC / Energy Meter - Compatible with Apple Homekit / Alexa / Google
📋 SPECIFICATIONS:
• CPU: ESP32-C6
• Flash: 8MB
• AC power supply: 110 - 240 V~ 50/60 Hz
• Neutral not required: Yes or no
• External protection: 2A
• Maximum switching voltage: 240 V~
• Maximum switching current: 2 A/240 V~
• Voltmeter (AC): ±2%
• Ammeter (AC): 0-80 A
• Ammeter accuracy: ±2 % (2 - 50 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A)
• Compatible current transformers: CT 50A (included in the package); 80A meter
• Power and energy meters: Active and apparent power; Active and apparent energy; Power factor; Fundamental active energy and fundamental reactive energy
• Channel-to-channel calibration minimum load: 500 W
• No-load threshold: 30 VA per channel
• Measurement data storage: At least 10 days with 1-minute data resolution
• Data export: CSV for recorded PQ values; Export in JSON format via RPC
• Operating temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Humidity: 30% to 70% relative humidity
• Device power consumption: < 1.2W
• Smart on / off: Yes
• Local and remote control: Yes
• Smart scenes: Sunrise / Sunset
• Weekly scheduling: Yes
• UL certified option: No
• Communication: WiFi 2.4 GHz; Bluetooth 4.2; Zigbee 3.0; Matter
• Material: Plastic
• Internal temperature sensor: Yes
• Hourly schedules: Yes
• Webhooks (URL actions): 20 with 5 URLs per hook
• Scripting: Yes
• MQTT: Yes
• Encryption: Yes (Transport layer)
• Authentication: Yes (Application and transport layer)
• Weight: EM Gen4 - 23 g; CT 50A - 50 g
• Current clamp: 50A
• Accuracy: 1%
• Core: Ferrite core
• Dielectric strength: 3000VAC 1mA 60s
• Inner diameter: 10 mm
• Burden resistance: 20Ω
• Rated primary current: 50A
• Rated secondary current: 16.67mA
• Saturation current: ≥85A
• Dimensions: 37 x 42 x 16 mm
📦 INCLUDED:
• 1x Shelly EM Gen4
• 1x 50A Current clamp
• 1x Quick installation and safety guide
• 1x Instruction manual
| CPU | ESP32-C6 |
|---|---|
| Flash | 8MB |
| AC Power supply | 110 - 240 V~ 50/60 Hz |
| Neutral not required | Yes or no |
| External protection | 2A |
| Maximum switching voltage | 240 V~ |
| Maximum switching current | 2 A/240 V~ |
| Voltmeter (AC) | ±2% |
| Ammeter (AC) | 0-80 A |
| Ammeter accuracy | ±2 % (2 - 50 A), ±2 % (1 - 2 A), ±5 % (0 - 1 A) |
| Compatible current transformers | 50A CT (included in the package) 80A meter |
| Power and energy meters | Active and apparent power Active and apparent energy Power factor Fundamental active energy and fundamental reactive energy |
| Minimum channel-to-channel calibration load | 500 Watts |
| No-load threshold | 30 VA per channel |
| Measurement data storage | At least 10 days of 1-minute data resolution |
| Data export | CSV for logged PQ values JSON format export via RPC |
| Working temperature | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity | 30% to 70% relative humidity |
| Device power consumption | < 1.2W |
| Smart on/off | Yes |
| Local and remote control | Yes |
| Smart scenes | Sunrise / Sunset |
| Weekly scheduling | Yes |
| UL Listed option | No |
| Communication | WiFi 2.4 GHz Bluetooth 4.2 Zigbee 3.0 Matter |
| Material | Plastic |
| Internal temperature sensor | Yes |
| Schedules | Yes |
| Webhooks (URL actions) | 20 with 5 URLs per hook |
| Scripting | Yes |
| MQTT | Yes |
| Encryption | Yes (Transport level) |
| Authentication | Yes (Application and transport level) |
| Weight | EM Gen4 - 23 g 50A CT - 50 g |
| Clamp meter | 50A |
| Accuracy | 1% |
| Core | Ferrite core |
| Dielectric strength | 3000VAC 1mA 60s |
| Internal diameter | 10 mm |
| Burden resistance | 20Ω |
| Rated primary current | 50A |
| Rated secondary current | 16.67mA |
| Saturation current | ≥85A |
| Dimensions | 37 x 42 x 16 mm |
