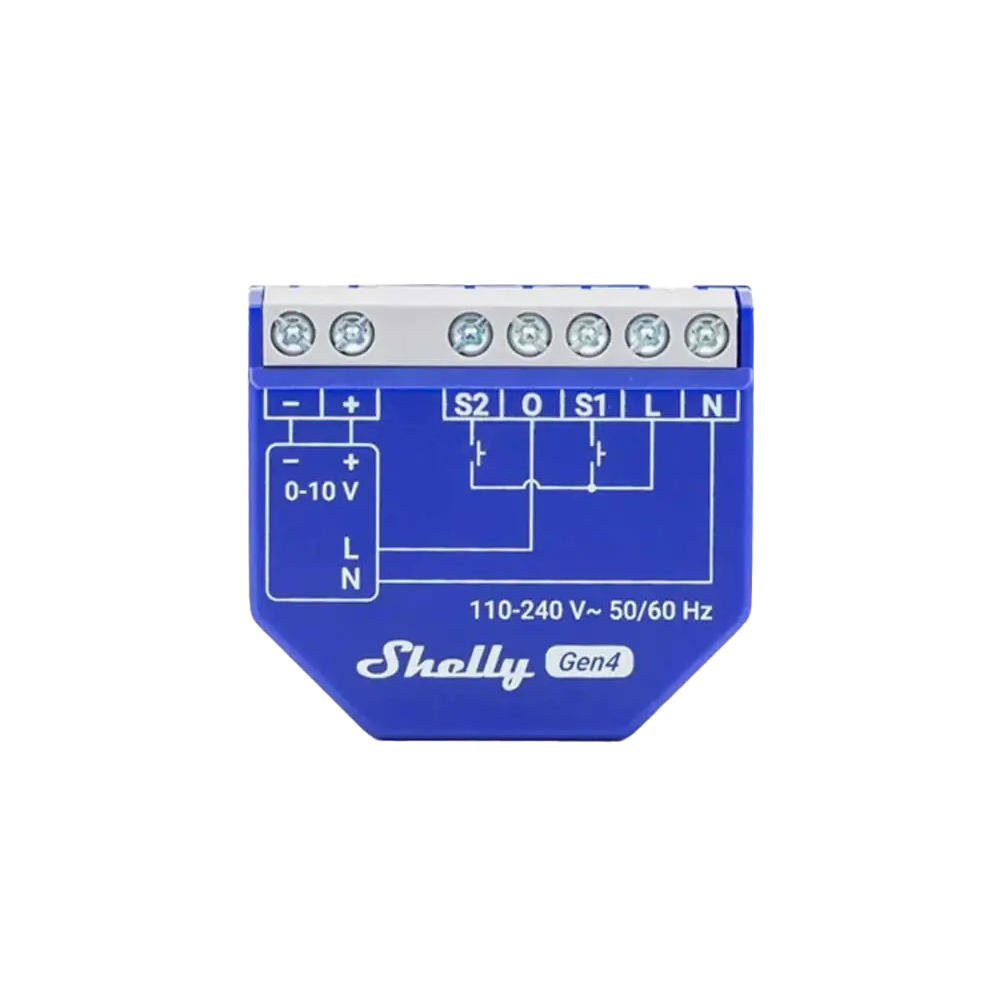

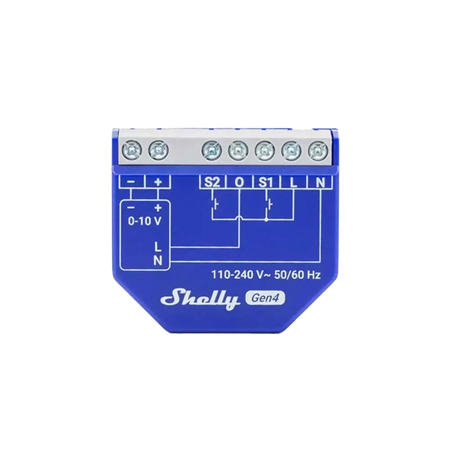

Shelly Dimmer 0/1-10V PM Gen4
Regular price
€40,81
Final price
Regular price
-6%
€43,48
Sale price
€40,81
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Shelly Dimmer 0/1-10V PM Gen4 - 0/1-10V Analog Control / 13A Internal Relay - LED driver and ballast control - 2.4GHz WiFi / Bluetooth / Matter / Zigbee - Supports 110-240V AC - Alexa and Google compatible
📋 SPECIFICATIONS:
• Device type: Analog dimmer and smart relay
• Processor: ESP32-C6 CPU (80 MHz)
• Flash memory: 8 MB
• Power supply: 110-240 V~ ±10 % 50/60 Hz
• Power consumption: < 1.5 W
• Neutral wire required: Yes
• 0-10 V/1-10 V voltage control type: Current sourcing
• External protection: 16 A
• Maximum switching voltage: 240 V~
• Maximum switching current: 13 A
• Maximum control current: 35 mA
• Overload protection: Yes
• Power metering: Yes
• Measurement data storage: No
• Internal temperature sensor: Yes
• Power and energy counters: Active and apparent power; Active and apparent energy; Power factor
• Communication: WiFi 2.4 GHz; Bluetooth 4.2; Zigbee 3.0; Matter
• Mounting: Wall flush-mounted
• Material: Plastic
• Operating temperature: -20°C to 40°C
• Humidity: 30% to 70% relative humidity
• Color changing: No
• Preset effects: Yes
• Smart on/off: Yes
• Local and remote control: Yes
• Weekly scheduling: Yes
• Range: up to 50 m outdoors and up to 30 m indoors
• Bus power supply: 10 mA (up to 5 DALI control devices), short-circuit current < 35 mA
• CPU: High-performance ESP32-C6 processor
• Flash: 8 MB
• Webhooks (URL actions): 20 with 5 URLs
• Scripting: Yes
• MQTT: Yes
• KVS (key-value store): Yes
• Encryption: Yes, TLS 1.2
• Dimensions: 38.5 x 43.5 x 17 mm
• Weight: 28.5 g
📦 INCLUDED:
• 1x Shelly Dimmer 0/1-10V PM Gen4
• 1x Quick start and safety guide
• 1x Instruction manual
| Device Type | Analog dimmer and smart relay |
|---|---|
| Processor | ESP32-C6 CPU (80 MHz) |
| Flash memory | 8 MB |
| Power supply | 110-240 V~ ±10% 50/60 Hz |
| Power consumption | < 1.5 W |
| Neutral wire required | No |
| 0-10 V/1-10 V voltage control type | Current sourcing |
| External protection | 16 A |
| Maximum switching voltage | 240 V~ |
| Maximum switching current | 13 A |
| Maximum control current | 35 mA |
| Overload protection | Yes |
| Power metering | Yes |
| Storage of measurement data | No |
| Internal temperature sensor | Yes |
| Power and energy meters | - Active and apparent power - Active and apparent energy - Power factor |
| Communication | WiFi 2.4 GHz Bluetooth 4.2 Zigbee 3.0 Matter |
| Mounting | Wall box |
| Material | Plastic |
| Operating temperature | -20°C to 40°C |
| Humidity | 30% to 70% relative humidity |
| Color change | No |
| Preset effects | Yes |
| Smart on/off | Yes |
| Local and remote control | Yes |
| Weekly schedule | Yes |
| Range | up to 50 m outdoors and up to 30 m indoors |
| Bus power | 10 mA (up to 5 DALI control devices), short-circuit current < 35 mA |
| CPU | High-performance ESP32-C6 processor |
| Flash | 8 MB |
| Webhooks (URL actions) | 20 with 5 URLs |
| Scripting | Yes |
| MQTT | Yes |
| KVS (key-value store) | Yes |
| Encryption | Yes, TLS 1.2 |
| Dimensions | 38.5 x 43.5 x 17 mm |
| Weight | 28.5 g |
