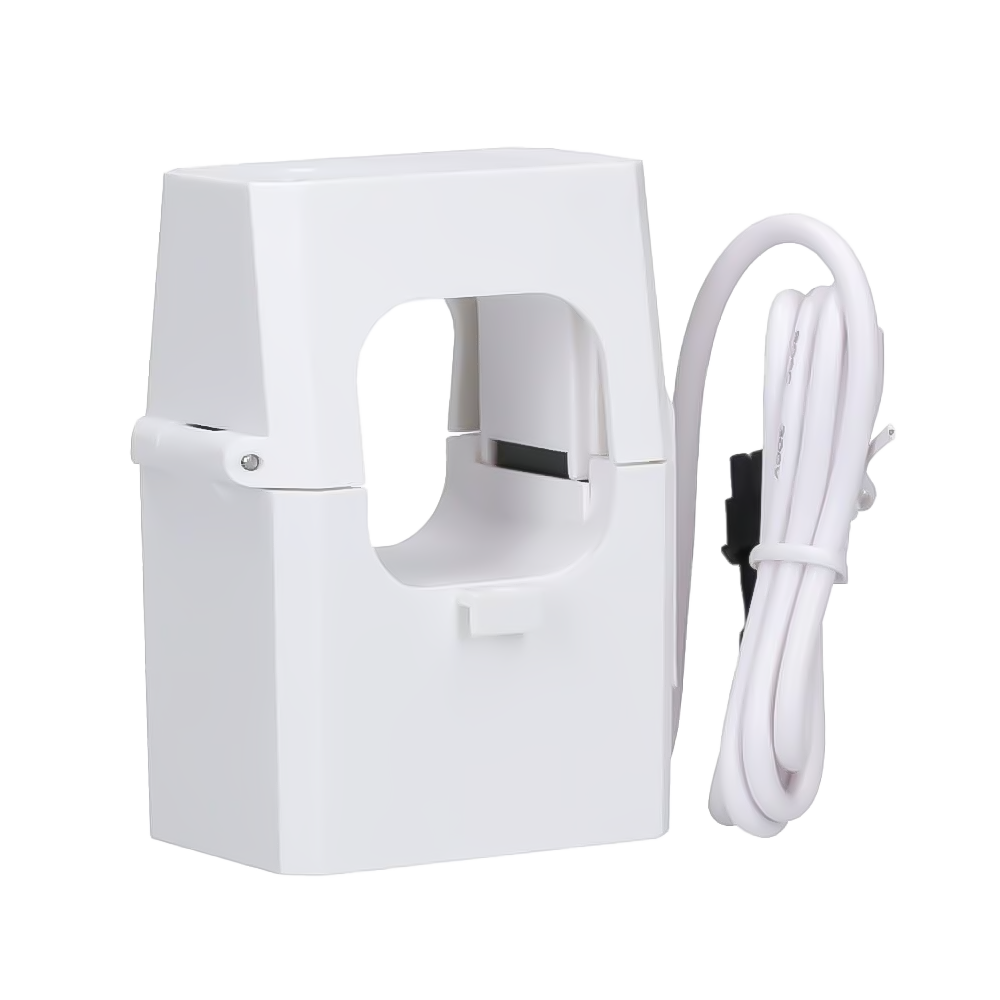

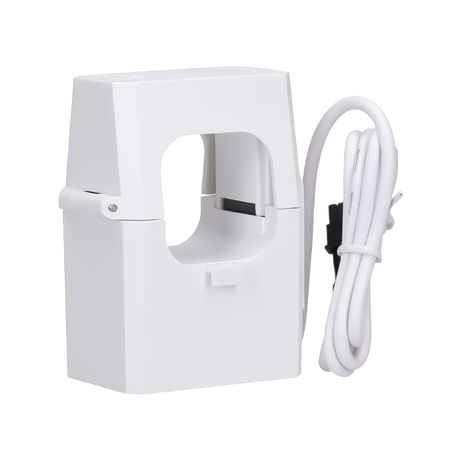

Shelly 400A Clamp Meter
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Shelly 400A Current Clamp - 35 mm wide opening for thick conductors - Split Core design for quick installation - Designed exclusively for Shelly Pro 3EM-400A - Supports AC 110-240V / Consumption Meter - Jack connector/terminals according to compatibility
📋 SPECIFICATIONS:
• Compatibility: Shelly Pro 3EM-400A
• Accuracy: 1%
• Core: Ferrite core
• Dielectric strength: 3000VAC 1mA 60s
• Internal diameter: 35 mm (1.38 in)
• Load resistance: 20Ω
• Rated primary current: 400A
• Rated secondary current: 13.3mA
• Saturation current: ≥400A
• Housing material: Flame-retardant ABS plastic
• Dielectric strength: 3000 VAC (1 minute, 60 Hz)
• Integrated cable length: 650 mm (25.6 in)
• Dimensions (without cable): 84 x 54 x 48 ± 0.5 mm
• Total weight (with cable): 290 g
📦 INCLUDED:
• 1x Shelly 400A Current Clamp
• 1x Quick installation and safety guide
• 1x Instruction manual
| Compatibility | Shelly Pro 3EM-400A |
|---|---|
| Accuracy | 1% |
| Core | Ferrite core |
| Electric strength | 3000VAC 1mA 60s |
| Inner diameter | 35 mm (1.38 in) |
| Burden resistance | 20Ω |
| Rated primary current | 400A |
| Rated secondary current | 13.3mA |
| Saturation current | ≥400A |
| Housing material | Flame-retardant ABS plastic |
| Dielectric strength | 3000 VAC (1 minute, 60 Hz) |
| Integrated cable length | 650 mm (25.6 in) |
| Dimensions (without cable) | 84 x 54 x 48 ± 0.5 mm |
| Total weight (with cable) | 290 g |
