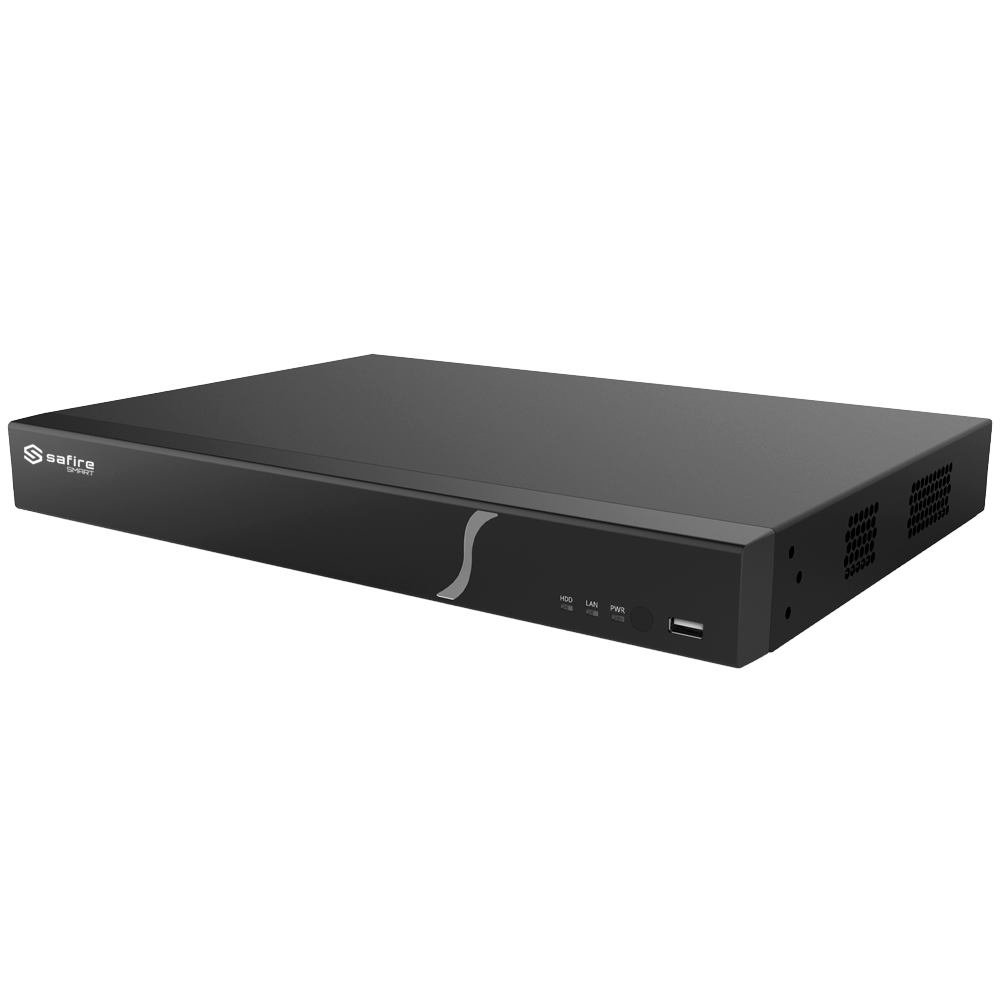

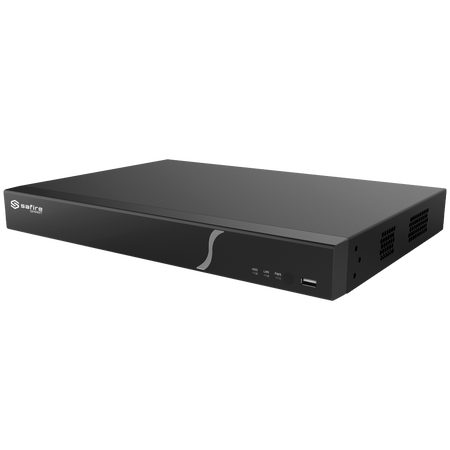

Safire Smart 8 Series Analog XVR Video Recorder - 16CH HDTVI/HDCVI/AHD/CVBS/ + 16+8 IP
Safire Smart 8 Series Analog XVR Video Recorder - 16CH HDTVI/HDCVI/AHD/CVBS/ + 16+8 IP
Regular price
€631,90
Final price
Regular price
-14%
€735,00
Sale price
€631,90
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Safire Smart - Analog video recorder 8 Series XVR - 16CH HDTVI/HDCVI/AHD/CVBS + 16+8 IP - 4K HDMI and VGA output / 2 HDD - Maximum resolution 4K (15fps) - Audio / Alarms
📋 SPECIFICATIONS:
• Brand: Safire Smart
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Default: 16 BNC channels + 8 (extra) IP channels (up to 8 Mpx)
• Video output: 1 4K HDMI, 1 VGA
• Audio inputs: 8 RCA channels
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Video/audio compression: H.264/H.265/H.265+
• Display resolution: HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024; VGA × 1 : 1920 × 1080 / 1280 × 1024; BNC × 1 : CVBS; IP channel: 8MP@ 25fps / 30fps (PAL / NTSC)
• BNC input resolution: TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps
• Main Stream: 4K@ 8fps (PAL/NTSC); 4K Lite@12fps/15fps (PAL/NTSC); 5MP@12fps (PAL / NTSC); 5MP Lite@20fps (PAL/NTSC); 4MP/3MP@12fps/15fps (PAL/NTSC); 4MP Lite/1080P/720P/WD1/D1@25fps/30fps (PAL/NTSC)
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Bit Rate: 32Kbps ~ 5Mbps
• Bandwidth: 32 Mbps (input) / 96 Mbps (output)
• Alarms: 16 inputs / 1 output
• Smart functions: 16CH smart motion detection; 1CH with person and vehicle detection for line crossing or area intrusion
• Recording method: Manual, scheduled, smart events
• Backup: USB / Network
• Internal storage: 2 3.5" SATA HDD up to 10TB (not included)
• Communication: 1 x USB 2.0 / 1 x USB 3.0 / RJ45 (Ethernet) / 1 x e-SATA / RS485
• Remote access: Web browser, Safire Smart Smartphone App and Safire Smart VMS Software
• Power supply: DC 12 V / 4 A (Consumption without HDD < 30 W)
• Dimensions: 45 (H) x 380 (W) x 380 (D) mm
📦 INCLUDED:
• Safire Smart 5-in-1 video recorder • Mouse • AC/DC 12 V / 4 A adapter • Quick installation guide
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 16 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 16 BNC Channels + 8 (extra) IP Channels (up to 8 Mpx) |
| Video output | 1 HDMI 4K, 1 VGA |
| Audio inputs | 8 RCA channels |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing the audio input/output |
| Video/audio compression | H.264/H.265/H.265+ |
| Display resolution | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 VGA × 1 : 1920 × 1080 / 1280 × 1024 BNC × 1 : CVBS IP channel: 8MP@ 25fps / 30fps (PAL / NTSC) |
| BNC input resolution | TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps |
| Main Stream | 4K@ 8fps (PAL/NTSC) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL/NTSC);4MP/3MP@12fps/15fps (PAL/NTSC) 4MP Lite/1080P/720P/WD1/D1@25fps/30fps (PAL/NTSC) |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Bit Rate | 32Kbps ~ 5Mbps |
| Bandwidth | 32 Mbps (incoming) / 96 Mbps (outgoing) |
| Alarms | 16 inputs / 1 output |
| Intelligent functions | 16CH Intelligent motion detection 1CH with human and vehicle detection for line crossing or area intrusion |
| Recording method | Manual, scheduled, intelligent events |
| Backup | USB / Network |
| Internal memory | 2 HDD SATA 3.5" up to 10TB (not included) |
| Communication | 1 x USB 2.0 /1 x USB 3.0/ RJ45 (Ethernet) / 1 x e-SATA / RS485 |
| Remote access | Web browser, Safire Smart Smartphone App and Safire Smart VMS Software |
| Power supply | DC 12 V / 4 A (Consumption without HDD < 30 W) |
| Dimensions | 45 (H) x 380 (W) x 380 (D) mm |
- User manual Link
