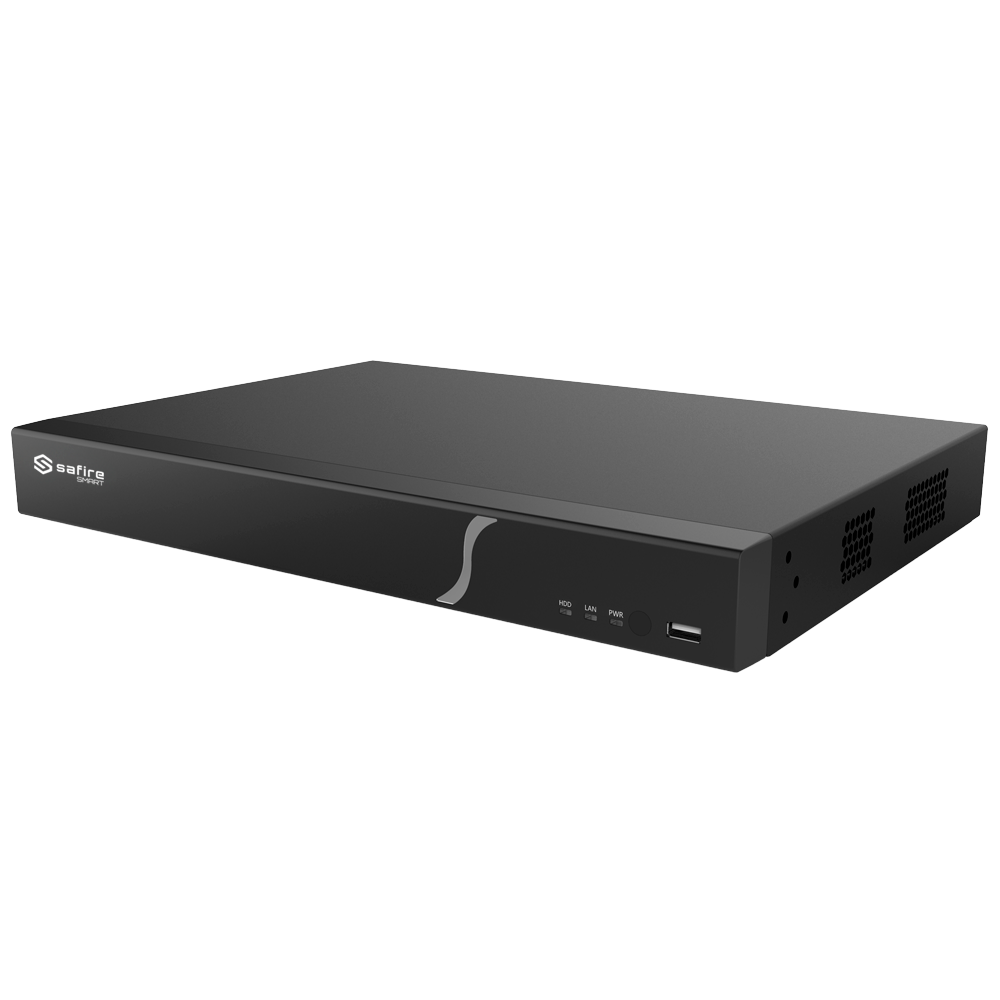

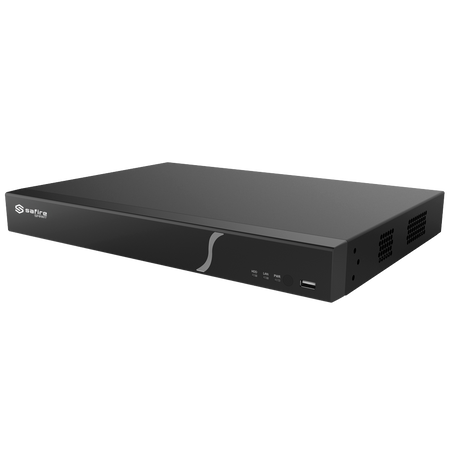

Safire Smart Analog Video Recorder XVR 8 Series - 8CH HDTVI/HDCVI/AHD/CVBS + 8 IP
Safire Smart Analog Video Recorder XVR 8 Series - 8CH HDTVI/HDCVI/AHD/CVBS + 8 IP
Regular price
€346,22
Final price
Regular price
-14%
€401,10
Sale price
€346,22
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Safire Smart - 8-Series Analog XVR Video Recorder - 8CH HDTVI/HDCVI/AHD/CVBS + 8+8 IP - 4K HDMI and VGA output / 2 HDD - Maximum resolution 4K (6FPS) - Audio / Alarms
📋 SPECIFICATIONS:
• Brand: SAFIRE
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: 8 BNC channels (replacement) + 8 IP channels (extra) (up to 8 Mpx)
• Video output: 1 4K HDMI, 1 VGA, 1 BNC
• Audio inputs: 8 RCA channels
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Video/audio compression: H.265 / H.264
• Display resolution: HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS
• BNC input resolution: TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps
• Main Stream: 4K@6fps /7fps (PAL/NTSC) (only supported on channel 1); 4K Lite@12fps/15fps (PAL/NTSC); 5MP@12fps (PAL / NTSC); 5MP Lite@20fps (PAL / NTSC); 4MP/3MP@12fps / 15fps (PAL / NTSC); 4MPLite/1080P/720P/WD1/D1@25fps/ 30fps(PAL / NTSC)
• Multifunction: Pentaplex: Live, recording, playback, backup, and remote access
• Bit Rate: 32 Kbps ~ 5 Mbps
• Bandwidth: 16 Mbps (inbound) / 40 Mbps (outbound)
• Alarms: 8 Input / 2 Output
• Smart functions: 8CH Smart motion detection; 1CH with human and vehicle detection for line crossing or area intrusion
• Recording method: Manual, scheduled, smart events
• Backup: USB / Network
• Internal storage: 2 SATA 3.5" HDDs up to 10TB (not included)
• Communication: 1 x USB 3.0, 1 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) / 1 x e-SATA / RS485
• Remote access: Web browser, Safire Smart Smartphone App, and Safire Smart VMS software
• Power supply: DC 12 V / 4 A (Consumption without HDD < 15 W)
• Dimensions / Weight: 45 (H) x 380 (W) x 268 (D) mm / 1.2 Kg
📦 INCLUDED:
• Safire Smart 5-in-1 video recorder• Mouse• 12 V / 4 A AC/DC adapter• Quick installation guide
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | 8 BNC channels (replacement) + 8 IP channels (extra) (up to 8 Mpx) |
| Video output | 1 4K HDMI, 1 VGA, 1 BNC |
| Audio inputs | 8 RCA channels |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing audio input/output |
| Video/audio compression | H.265 / H.264 |
| Display resolution | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS |
| BNC input resolution | TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps |
| Main stream | 4K@6fps /7fps (PAL/NTSC) (only supported by channel 1) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP/3MP@12fps / 15fps (PAL / NTSC) 4MPLite/1080P/720P/WD1/D1@25fps/ 30fps(PAL / NTSC) |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Bit Rate | 32 Kbps ~ 5 Mbps |
| Bandwidth | 16 Mbps (incoming) / 40 Mbps (outgoing) |
| Alarms | 8 Input / 2 Output |
| Smart functions | 8CH intelligent motion detection 1CH with human and vehicle detection in case of line crossing or area intrusion |
| Recording method | Manual, scheduled, smart events |
| Backup | USB / Network |
| Internal memory | 2 3.5" SATA HDD up to 10TB (not included) |
| Communication | 1 x USB 3.0, 1 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) / 1 x e-SATA / RS485 |
| Remote access | Web browser, Safire Smart Smartphone App and Safire Smart VMS Software |
| Power supply | DC 12 V / 4 A (Consumption without HDD < 15 W) |
| Dimensions / Weight | 45 (H) x 380 (W) x 268 (D) mm / 1.2 Kg |
- User manual Link
