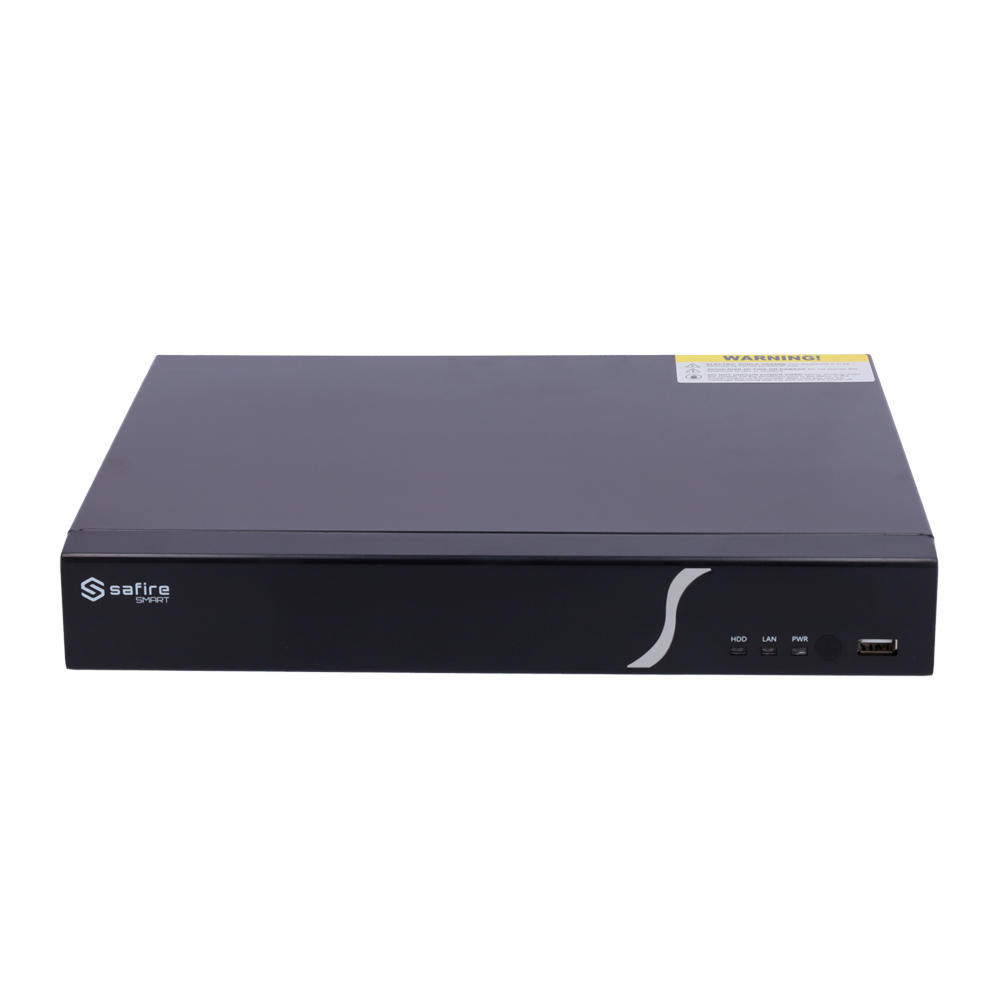

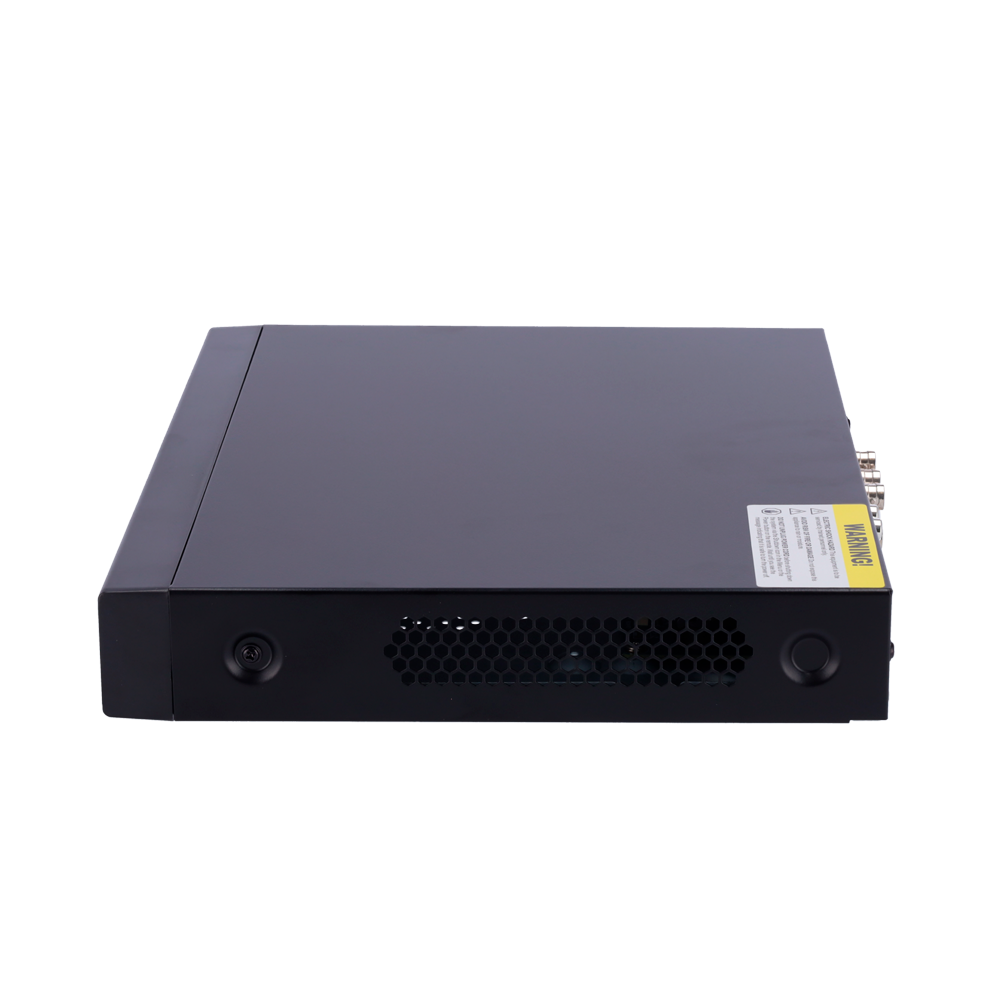

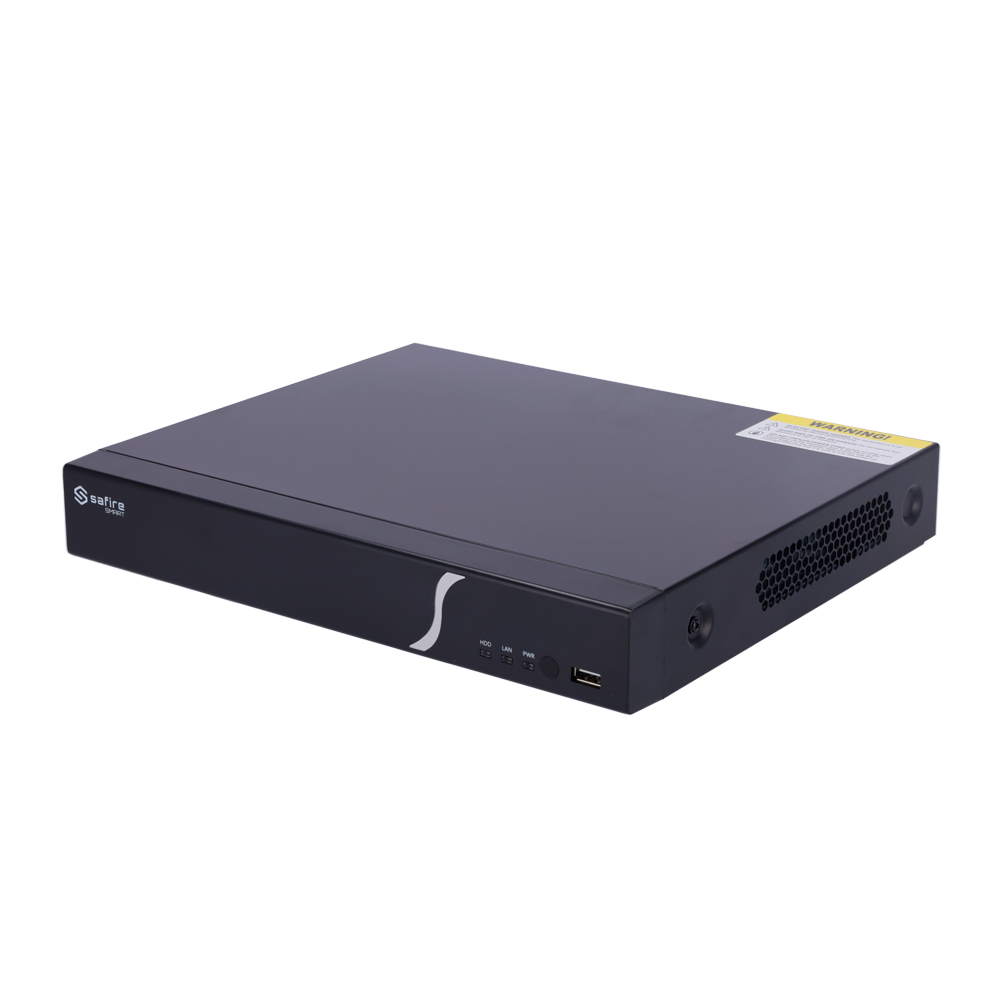

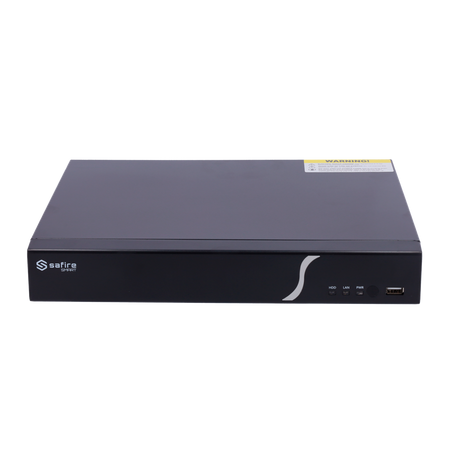

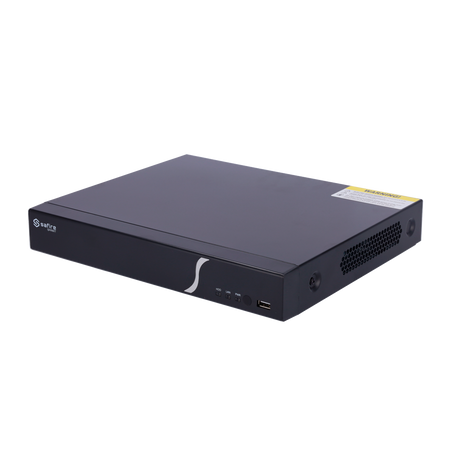

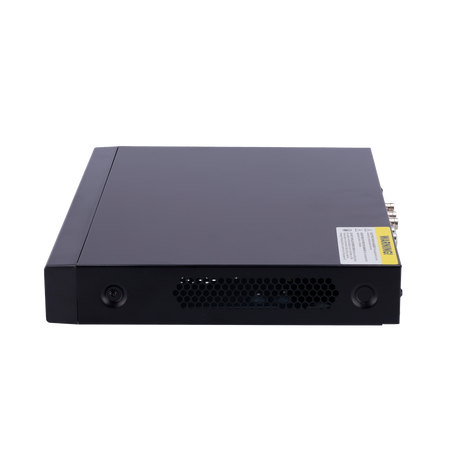

Safire Smart Analog Video Recorder XVR 8 Series - 4CH HDTVI/HDCVI/AHD/CVBS + 4+2 IP
Safire Smart Analog Video Recorder XVR 8 Series - 4CH HDTVI/HDCVI/AHD/CVBS + 4+2 IP
Regular price
€179,16
Final price
Regular price
-14%
€207,90
Sale price
€179,16
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Safire Smart - 8 Series Analog XVR Video Recorder - 4CH HDTVI/HDCVI/AHD/CVBS/ 4+2 IP - Maximum resolution 4K (6FPS) / Alarms - 4K HDMI and VGA output / 1 HDD - AI, based on people and vehicles
📋 SPECIFICATIONS:
• Brand: Safire Smart
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 4 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Default: 4 BNC channels and 4 (replacement) + 2 (extra) IP channels (up to 8 Mpx)

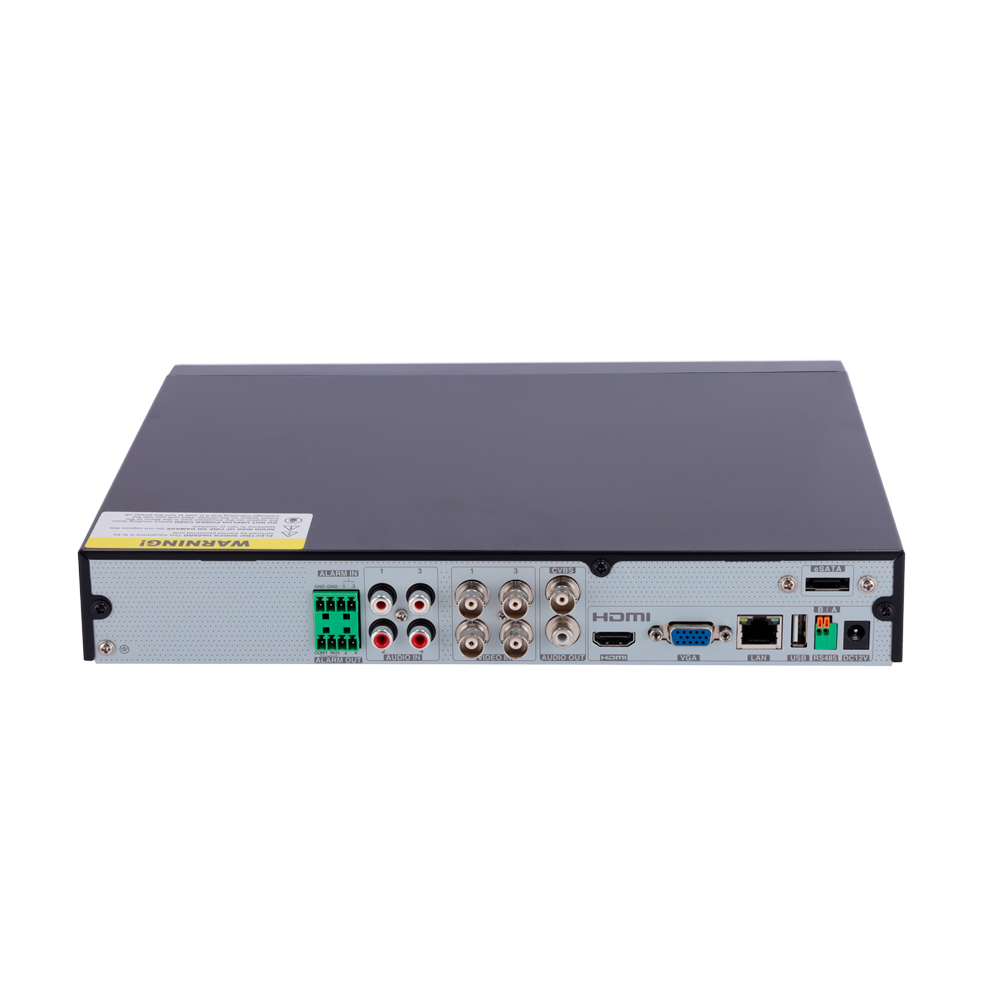

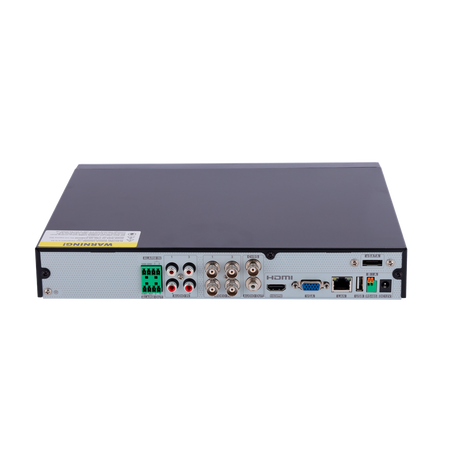

• Video output: 1 4K HDMI, 1 VGA, and 1 CVBS
• Audio inputs: 4 RCA channels
• Audio outputs: 1 RCA channel
• Bidirectional audio: Reusing the audio input/output
• Video/audio compression: H.265 / H.264
• Display resolution: HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS
• Multi-screen display: 1 / 4 / 6 / 9
• BNC input resolution: TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps
• Main stream: 4K@6fps / 7fps (PAL/NTSC) (supported only by channel 1); 4K Lite@12fps/15fps (PAL/NTSC); 5MP@12fps (PAL / NTSC); 5MP Lite@20fps (PAL / NTSC); 4MP/3MP@12fps / 15fps (PAL / NTSC); 4MPLite/1080P/720P/WD1/D1@25fps/ 30fps (PAL / NTSC)
• Multifunction: Pentaplex: Live, recording, playback, backup, and remote access
• Bit Rate: 32Kbps ~ 4Mbps
• Bandwidth: 16 Mbps (input) / 40 Mbps (output)
• Alarms: 4 Input / 1 Output
• Motion detection: SMD based on person and vehicle classification on all channels
• Artificial Intelligence: 1CH based on person and vehicle classification according to intrusion area or line crossing rules
• Recording method: Manual, scheduled, intelligent events
• Backup: USB / Network
• Internal storage: 1 SATA 3.5" HDD up to 10TB (not included)
• Communication: 2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) / 1 x e-SATA
• Remote access: Web browser, Safire Smart Smartphone App, and Safire Smart VMS Software
• Power supply: DC 12 V / 2 A (Consumption without HDD < 10 W)
• Dimensions / Weight: 42 (H) x 300 (W) x 249 (D) mm / 1.2 Kg
📦 INCLUDED:
• Safire Smart 5-in-1 video recorder • Mouse • 12 V / 2 A AC/DC adapter • Quick installation guide
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 4 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 4 BNC channels and 4 (replacement) + 2 (extra) IP channels (up to 8 Mpx) |
| Video output | 1 4K HDMI, 1 VGA and 1 CVBS |
| Audio inputs | 4 RCA channels |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing the audio input/output |
| Video/audio compression | H.265 / H.264 |
| Display resolution | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS |
| Multiple display | 1 / 4 / 6 / 9 |
| BNC input resolution | TVI/ AHD/CVI: 4K@15fps, 5MP@20fps, 4MP/3MP/1080P/720P/WD1@30fps |
| Main stream | 4K@6fps /7fps (PAL/NTSC) (only supported by channel 1) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP/3MP@12fps / 15fps (PAL / NTSC) 4MPLite/1080P/720P/WD1/D1@25fps/ 30fps(PAL / NTSC) |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Bit Rate | 32Kbps ~ 4Mbps |
| Bandwidth | 16 Mbps (input) / 40 Mbps (output) |
| Alarms | 4 Input / 1 Output |
| Motion detection | SMD based on human and vehicle classification on all channels |
| Artificial Intelligence | 1CH based on human and vehicle classification according to area intrusion or line crossing rules |
| Recording method | Manual, scheduled, intelligent events |
| Backup | USB / Network |
| Internal memory | 1 SATA 3.5" HDD up to 10TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup) / RJ45 (Ethernet) / 1 x e-SATA |
| Remote access | Web browser, Safire Smart Smartphone App and Safire Smart VMS Software |
| Power supply | DC 12 V / 2 A (Consumption without HDD < 10 W) |
| Dimensions / Weight | 42 (H) x 300 (W) x 249 (D) mm / 1.2 Kg |
- User manual Link
