Safire Smart 16-channel analog XVR Series 6 - HDTVI/HDCVI/AHD/CVBS + 16+8 IP
Safire Smart 16-channel analog XVR Series 6 - HDTVI/HDCVI/AHD/CVBS + 16+8 IP
Regular price
€278,43
Final price
Regular price
-14%
€323,40
Sale price
€278,43
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

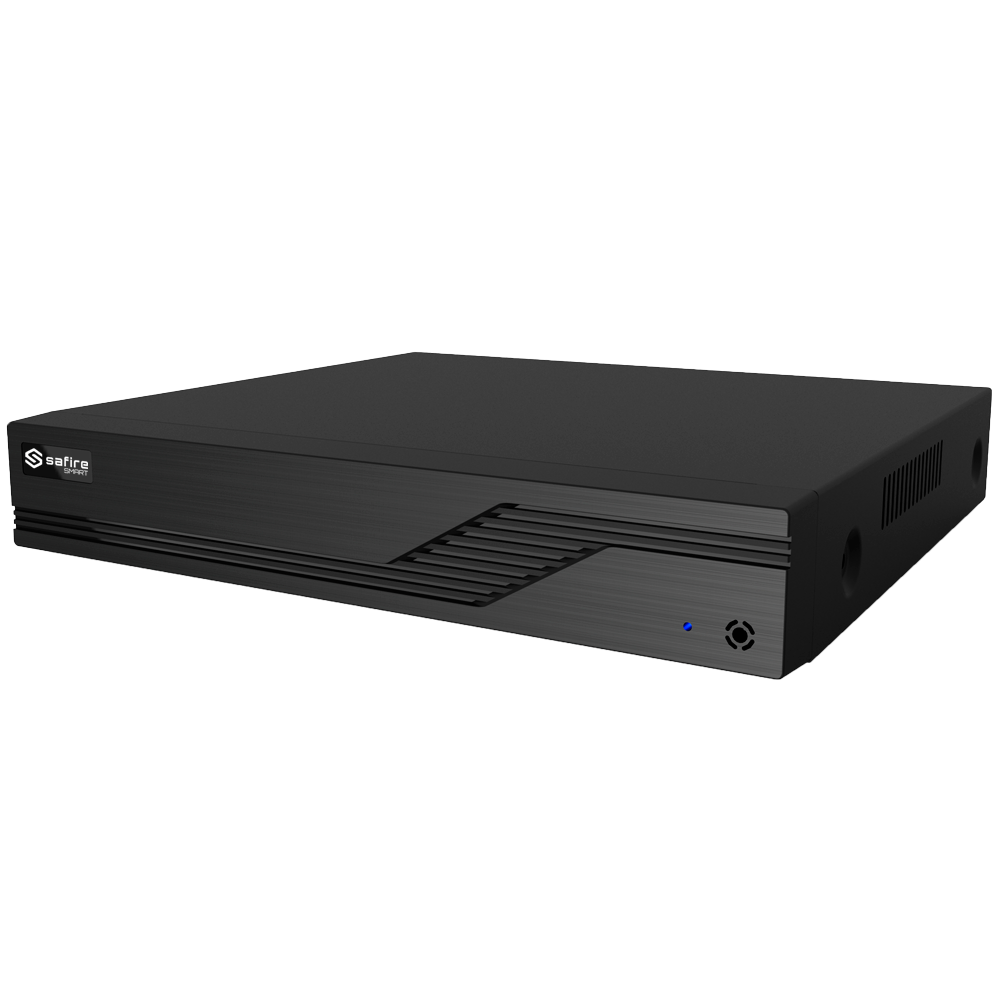

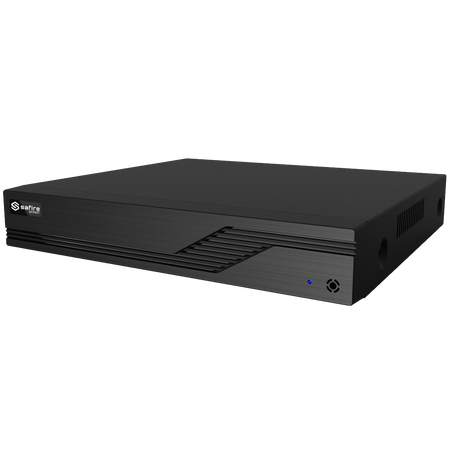

Safire Smart - Analog video recorder XVR Series 6 - 16CH HDTVI/HDCVI/AHD/CVBS / 16+8 IP - Full HD HDMI and VGA output / 1 HD - 5Mpx Lite (10FPS) - Audio
📋 SPECIFICATIONS:
• Brand: SAFIRE
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Default: 8 BNC channels and 8 (replacement) + 8 (extra) IP channels (up to 5Mpx)
• Video output: 1 Full HD HDMI, 1 VGA
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing the audio input/output
• Video/audio compression: H.265 / H.264
• Display resolution: HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS
• BNC input resolution: TVI/ AHD/CVI: 5MP/4MP/1080p Lite/720P/WD1
• Main Stream: 5MP Lite@10fps, 4MP Lite/1080P@12fps(PAL)/15fps(NTSC); 1080P Lite/ 720P/WD1/D1@25fps (PAL)/30fps (NTSC)
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Bit Rate: 32Kbps ~4Mbps
• Bandwidth: 32 Mbps (input) / 60 Mbps (output)
• Alarms: Not available
• Recording method: Manual, scheduled, smart events
• Backup: USB / Network
• Internal storage: 1 HDD SATA 3.5" up to 10TB (not included)
• Communication: 2 x USB 2.0 (Mouse and backup)
• RS 485: 1 x RS 485 (half-duplex)
• Remote access: Web browser, Safire Smart Smartphone App and Safire Smart VMS Software
• Power supply: DC 12 V / 2 A (Consumption without HDD < 8 W)
• Dimensions / Weight: 42 (H) x 255 (W) x 222 (D) mm / 1.2 Kg
📦 INCLUDED:
• Safire Smart 5-in-1 video recorder• Mouse• AC/DC 12 V / 2 A adapter• Quick installation guide
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 16 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 8 BNC channels and 8 (replacement) + 8 (extra) IP channels (up to 5Mpx) |
| Video output | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing the audio input/output |
| Video/audio compression | H.265 / H.264 |
| Display resolution | HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS |
| BNC input resolution | TVI/ AHD/CVI: 5MP/4MP/1080p Lite/720P/WD1 |
| Main stream | 5MP Lite@10fps, 4MP Lite/1080P@12fps(PAL)/15fps(NTSC) 1080P Lite/ 720P/WD1/D1@25fps (PAL)/30fps (NTSC) |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Bit Rate | 32Kbps ~4Mbps |
| Bandwidth | 32 Mbps (incoming) / 60 Mbps (outgoing) |
| Alarms | Not available |
| Recording method | Manual, scheduled, smart events |
| Backup | USB / Network |
| Internal memory | 1 SATA 3.5" HDD up to 10TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup battery) / RJ45 (Ethernet) |
| RS 485 | 1 x RS 485 (half-duplex) |
| Remote access | Web browser, Safire Smart smartphone App and Safire Smart VMS software |
| Power supply | DC 12 V / 2 A (Consumption without HDD < 8 W) |
| Dimensions / Weight | 42 (H) x 255 (W) x 222 (D) mm / 1.2 Kg |
- User manual Link
