Safire Smart Analog Video Recorder XVR 6 Series - 4CH HDTVI/HDCVI/AHD/CVBS + 4+2 IP
Safire Smart Analog Video Recorder XVR 6 Series - 4CH HDTVI/HDCVI/AHD/CVBS + 4+2 IP
Regular price
€96,84
Final price
Regular price
-15%
€113,40
Sale price
€96,84
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

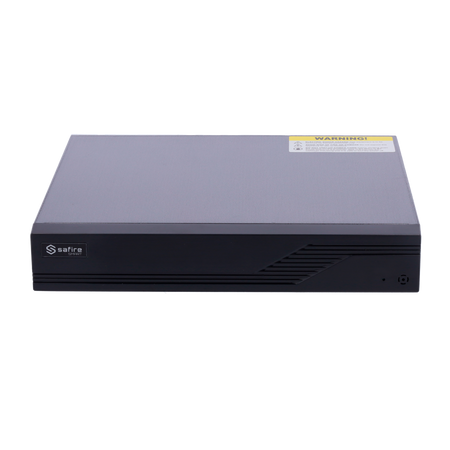

Safire Smart - Analog video recorder XVR Series 6 - 4CH HDTVI/HDCVI/AHD/CVBS/ 4+2 IP - Full HD HDMI and VGA output / 1 HDD - 5Mpx Lite (10FPS) - AI, based on people and vehicles
📋 SPECIFICATIONS:
• Brand: Safire Smart
• Video format: HDTVI / HDCVI / AHD / CVBS / IP

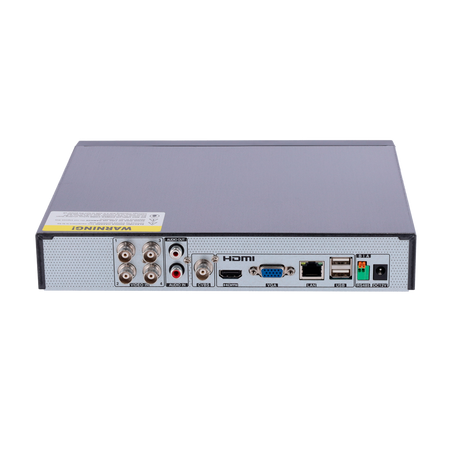

• Video inputs: 4 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Default: 4 BNC channels and 4 (replacement) + 2 (extra) IP channels (up to 5Mpx)

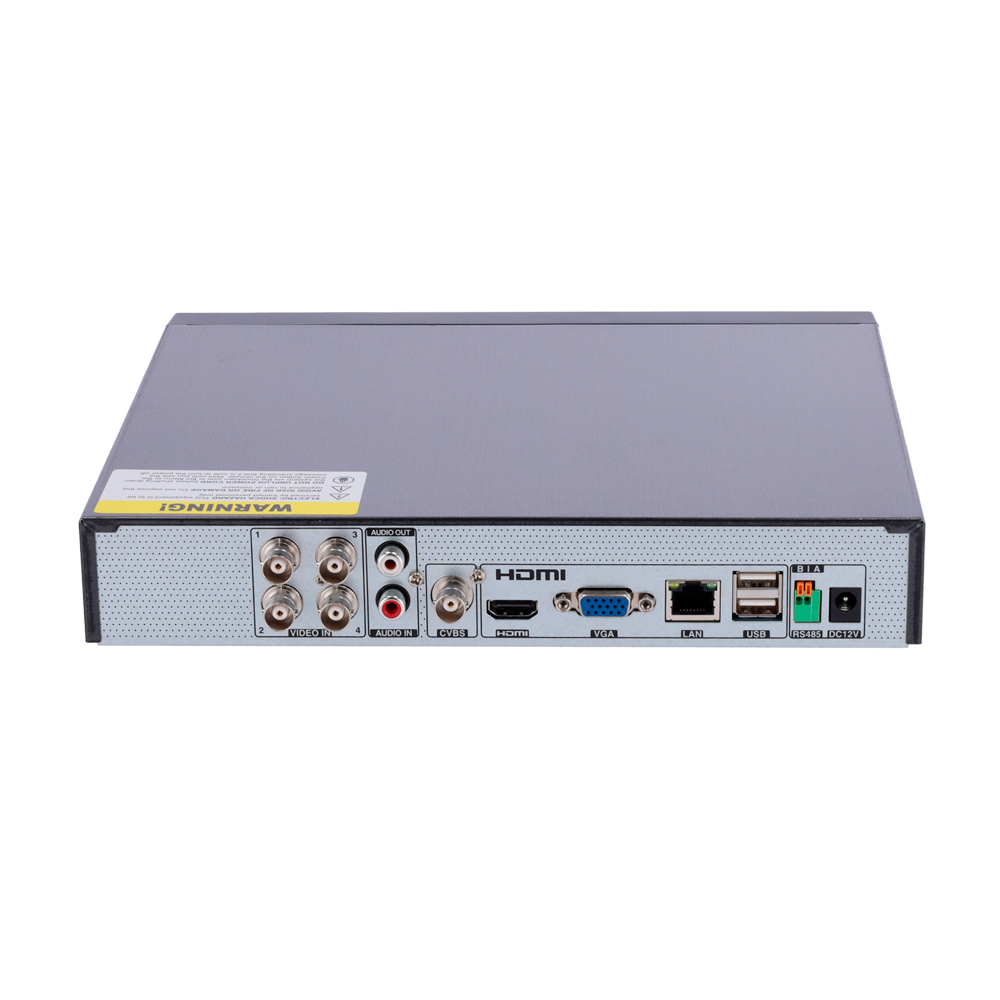

• Video output: 1 Full HD HDMI, 1 VGA and 1 CVBS
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Video/audio compression: H.265 / H.264
• Display resolution: HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS
• Multi-screen display: 1 / 4 / 6 / 9
• BNC input resolution: TVI/ AHD/CVI: 5MP/4MP/1080p Lite/720P/WD1
• Main stream: 5MP Lite@10fps, 4MP Lite/1080P@12fps(PAL)/15fps(NTSC); 1080P Lite/ 720P/WD1/D1@25fps (PAL)/30fps (NTSC)
• Motion detection: SMD based on people and vehicle classification on all channels
• Artificial intelligence: 1CH based on people and vehicle classification according to intrusion area or line crossing rules
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Bit Rate: 32Kbps ~4Mbps
• Bandwidth: 16 Mbps (incoming) / 40 Mbps (outgoing)
• Alarms: Not available
• Recording method: Manual, scheduled, intelligent events
• Backup: USB / Network
• Internal storage: 1 SATA HDD 3.5" up to 10TB (not included)
• Communication: 2 x USB 2.0 (Mouse and backup) / RS485 / RJ45 10/100M (Ethernet)
• Remote access: Web browser, Safire Smart Smartphone App and Safire Smart VMS Software
• Power supply: DC 12 V / 1.5 A (Consumption without HDD < 5 W)
• Dimensions / Weight: 42 (W) x 255 (D) x 222 (H) mm / 1.2 Kg
📦 INCLUDED:
• Safire Smart 5-in-1 video recorder• Mouse• AC/DC 12 V / 1.5 A adapter• Quick installation guide
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 4 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 4 BNC channels and 4 (replacement) + 2 (extra) IP channels (up to 5Mpx) |
| Video output | 1 HDMI FullHD, 1 VGA and 1 CVBS |
| Audio inputs | 1 RCA channel |
| Audio outputs | 1 RCA channel |
| Two-way audio | Reusing the audio input/output |
| Video/audio compression | H.265 / H.264 |
| Display resolution | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS |
| Multiple display | 1 / 4 / 6 / 9 |
| BNC input resolution | TVI/ AHD/CVI: 5MP/4MP/1080p Lite/720P/WD1 |
| Main stream | 5MP Lite@10fps, 4MP Lite/1080P@12fps(PAL)/15fps(NTSC) 1080P Lite/ 720P/WD1/D1@25fps (PAL)/30fps (NTSC) |
| Motion detection | SMD based on human and vehicle classification on all channels |
| Artificial intelligence | 1CH based on human and vehicle classification according to intrusion area or line crossing rules |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Bit Rate | 32Kbps ~4Mbps |
| Bandwidth | 16 Mbps (incoming) / 40 Mbps (outgoing) |
| Alarms | Not available |
| Recording method | Manual, scheduled, smart events |
| Backup | USB / Network |
| Internal memory | 1 SATA 3.5" HDD up to 10TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup) / RS485 / RJ45 10/100M (Ethernet) |
| Remote access | Web browser, Safire Smart smartphone App and Safire Smart VMS software |
| Power supply | DC 12 V / 1.5 A (Consumption without HDD < 5 W) |
| Dimensions / Weight | 42 (H) x 255 (W) x 222 (D) mm / 1.2 Kg |
- User manual Link
