SAFIRE SMART

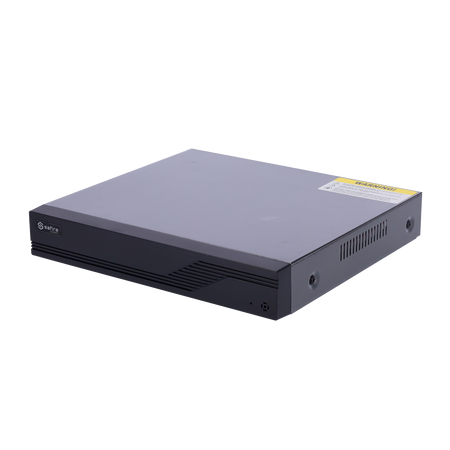

Safire Smart Analog XVR Video Recorder HG Series

SKU: SF-XVR3116-HG
(0)
In stock
Usually shipped within 24 hours
€153,73 Final price
-14% €178,50 €153,73 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Safire Smart - Analog video recorder XVR HG Series - 16CH HDTVI/HDCVI/AHD/CVBS/ 16+2 IP - Full HD HDMI and VGA output / 1 HD - 1080P Lite (25FPS) - Audio

📋 SPECIFICATIONS:
• Brand: Safire Smart
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 16 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: By default: 16 BNC channels and 16 (replacement) +2 (extra) IP channels (up to 5Mpx))

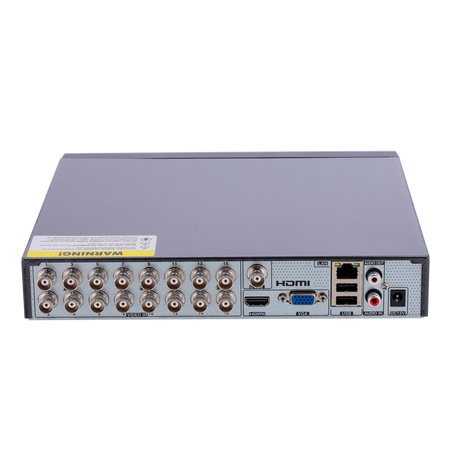

• Video output: 1 Full HD HDMI, 1 VGA, 1 CVBS
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Video/audio compression: H.265 / H.264
• Display resolution: HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS
• BNC input resolution: TVI/ AHD/CVI/AHD : 1080P/ 1080P Lite/ 720P/ 720P Lite/WD1
• Main Stream: Channel 1: 1080P Lite / 720P / WD1 / D1 @25fps (PAL)/30fps (NTSC); Other channels: 1080P Lite / 720P / WD1 @12fps (PAL)/15fps (NTSC); 720P Lite @25fps (PAL)/30fps (NTSC); IP channel: 25fps(PAL) / 30fps (NTSC)
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Bit Rate: 32Kbps ~4Mbps
• Bandwidth: 16 Mbps (input) / 80 Mbps (output)
• Alarms: Not available
• Recording method: Manual, scheduled, exception, motion, smart events
• Backup: USB / Network
• Internal storage: 1 3.5" SATA HDD up to 8TB (not included)
• Communication: 2 x USB 2.0 (Mouse and backup) / RJ45 10/100M (Ethernet)
• Remote access: Web browser, Safire Smart Smartphone App and Safire Smart VMS Software
• Power supply: DC 12 V / 2 A (Consumption without HD < 10W)
• Dimensions / Weight: 42 (W) x 255 (L) x 234 (H) mm / 1.2 Kg

📦 INCLUDED:
• 5-in-1 Safire Smart video recorder• Mouse• AC/DC 12 V / 1.5 A adapter• Quick installation guide
Video format HDTVI / HDCVI / AHD / CVBS / IP
Video inputs 16 BNC Channels (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration Default: 16 BNC channels and 16 (replacement) + 2 (extra) IP channels (up to 5Mpx)
Video output 1 Full HD HDMI, 1 VGA, 1 CVBS
Audio inputs 1 RCA channel
Audio outputs 1 RCA channel
Two-way audio Reusing the audio input/output
Video/audio compression H.265 / H.264
Display resolution HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS
BNC input resolution TVI/ AHD/CVI/AHD : 1080P/ 1080P Lite/ 720P/ 720P Lite/WD1
Main stream Channel 1: 1080P Lite / 720P / WD1 / D1 @25fps (PAL)/30fps (NTSC) Other channels: 1080P Lite / 720P / WD1 @12fps (PAL)/15fps (NTSC) 720P Lite @25fps (PAL)/30fps (NTSC) IP channel: 25fps(PAL) / 30fps (NTSC)
Multifunction Pentaplex: Live, recording, playback, backup and remote access
Bit Rate 32Kbps ~4Mbps
Bandwidth 16 Mbps (input) / 80 Mbps (output)
Alarms Not available
Recording method Manual, scheduled, exception, motion, smart events
Backup USB / Network
Internal memory 1 SATA 3.5" HDD up to 8TB (not included)
Communication 2 x USB 2.0 (Mouse and backup) / RJ45 10/100M (Ethernet)
Remote access Web browser, Safire Smart Smartphone App and Safire Smart VMS Software
Power supply DC 12 V / 2 A (Consumption without HD &lt; 10W)
Dimensions / Weight 42 (H) x 255 (W) x 234 (D) mm / 1.2 Kg
