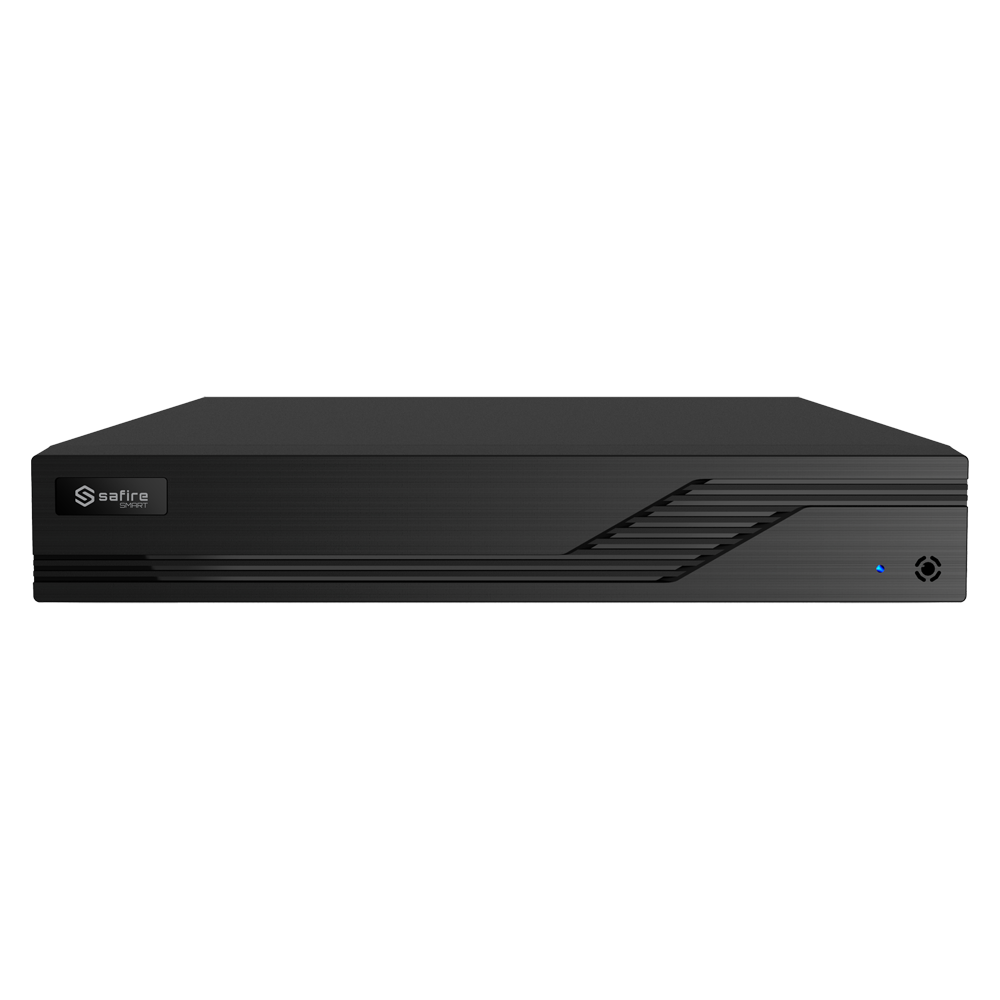

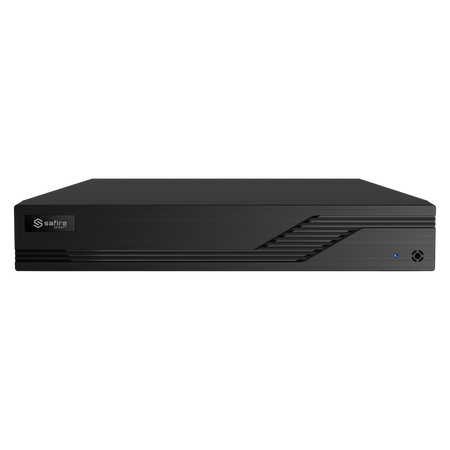

Safire Smart Series 3 Analog XVR Video Recorder
Safire Smart Series 3 Analog XVR Video Recorder
Regular price
€90,37
Final price
Regular price
-14%
€105,42
Sale price
€90,37
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Series 3 XVR Analog Video Recorder - 8CH HDTVI/HDCVI/AHD/CVBS + 2CH IP - Full HD HDMI and VGA output - 5Mpx Lite (10FPS) - Two-way audio | Space for 1 HDD - SMD on all channels
📋 SPECIFICATIONS:
• Brand: Safire Smart
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: By default: 8 Channels (replacement) + 2 (extra) IP Channels (up to 5Mpx)
• Video output: 1 Full HD HDMI, 1 VGA and 1 CVBS
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Video/audio compression: H.265 / H.264
• Display resolution: HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768; BNC × 1 : CVBS
• Multiple display: 1 / 4 / 6 / 8 / 9 / 13 / 16
• BNC input resolution: TVI/ AHD/CVI: 5MP/4MP/1080p Lite/720P/WD1
• Main Stream: Analog channel: 5MP Lite:6fps; 4MP Lite:8fps; 1080P Lite/720P/WD1: 12fps/15fps(PAL/NTSC); 720P Lite: 25fps / 30fps (PAL/NTSC); IP channel: 25fps/ 30fps (PAL/NTSC)
• Motion detection: SMD on all channels
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Bit Rate: 32Kbps ~4Mbps
• Bandwidth: 16 Mbps (input) / 60 Mbps (output)
• Alarms: Not available
• Recording method: Manual, scheduled, smart events
• Backup: USB / Network
• Internal storage: 1 SATA 3.5" HDD up to 8TB (not included)
• Communication: 2 x USB 2.0 (Mouse and backup) / RS485 / RJ45 10/100M (Ethernet)
• Remote access: Web browser, Safire Smart Smartphone App and Safire Smart VMS software
• Power supply: DC 12 V / 1.5 A (Consumption without HDD < 5 W)
• Dimensions / Weight: 42 (H) x 255 (W) x 222 (D) mm / 1.2 Kg
📦 INCLUDED:
• Safire Smart 5-in-1 Video Recorder• Mouse• 12 V / 1.5 A AC/DC adapter• Quick installation guide
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
|---|---|
| Video inputs | 8 BNC channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Default: 8 Channels (replacement) + 2 (extra) IP Channels (up to 5Mpx) |
| Video output | 1 FullHD HDMI, 1 VGA and 1 CVBS |
| Audio inputs | 1 RCA Channel |
| Audio outputs | 1 RCA Channel |
| Bidirectional audio | Reusing the audio input/output |
| Video/audio compression | H.265 / H.264 |
| Display resolution | HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS |
| Multiple display | 1 / 4 / 6 / 8 / 9 / 13 / 16 |
| BNC input resolution | TVI/ AHD/CVI: 5MP/4MP/1080p Lite/720P/WD1 |
| Main stream | Analog channel: 5MP Lite: 6fps; 4MP Lite: 8fps; 1080P Lite/720P/WD1: 12fps/15fps (PAL/NTSC); 720P Lite: 25fps / 30fps (PAL/NTSC) IP channel: 25fps/ 30fps (PAL/NTSC) |
| Motion detection | SMD on all channels |
| Multifunction | Pentaplex: Live, recording, playback, backup and remote access |
| Bit Rate | 32Kbps ~4Mbps |
| Bandwidth | 16 Mbps (input) / 60 Mbps (output) |
| Alarms | Not available |
| Recording method | Manual, scheduled, intelligent events |
| Backup | USB / Network |
| Internal storage | 1 3.5" SATA HDD up to 8TB (not included) |
| Communication | 2 x USB 2.0 (Mouse and backup) / RS485 / RJ45 10/100M (Ethernet) |
| Remote access | Web browser, Safire Smart smartphone app and Safire Smart VMS software |
| Power supply | DC 12 V / 1.5 A (Consumption without HDD < 5 W) |
| Dimensions / Weight | 42 (H) x 255 (W) x 222 (D) mm / 1.2 Kg |
- User manual Link
