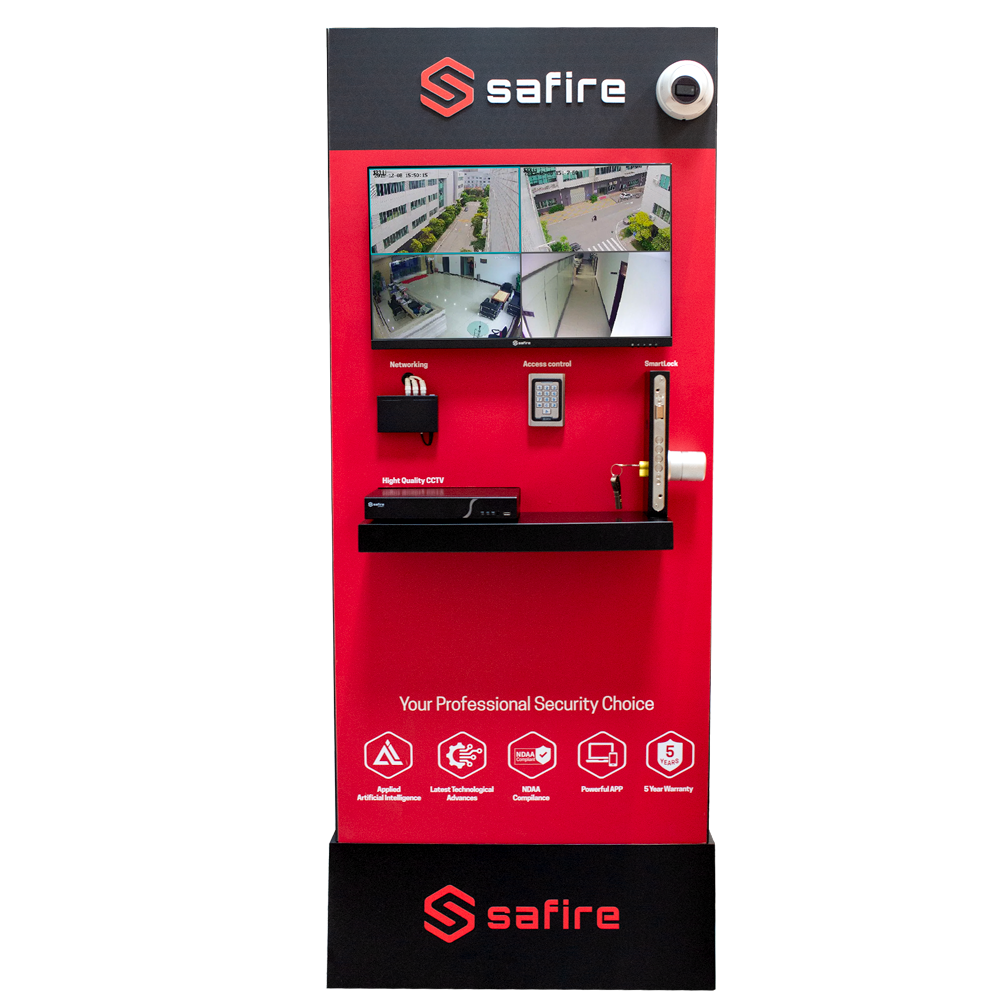

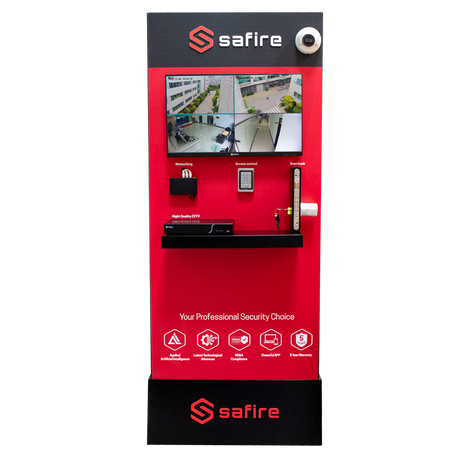

Safire 4K CCTV display panel

Display panel - 4K CCTV | Video intercoms - Access and attendance - Switch with internet connection - Plug & Play - Stand included

📋 SPECIFICATIONS:
• Dimensions: Height: 202 cm; Width: 81 cm; Depth: 15 cm (40 cm with shelf)
• Brand: Safire
• Model: SF-VIMOD-CAM-IP
• Operating system: LINUX OS
• Optical sensor: Low light 2 MPx IR
• Image functions: BLC / WDR / DNR
• Viewing angle: D: 180º H: 96º
• Audio: Two-way audio with microphone and speaker
• Keypad: Mechanical call button with LED name tag
• Outputs: 2 relays / 1 module output
• Inputs: 4 inputs
• Remote access: Smartphone app or Safire Control Center software
• Network interface: Ethernet 10/100 BaseT
• Modular: Compatible with Safire modular stations
• Power supply: DC 12 V / 850 mA max. / PoE (IEEE 802.3af)
• Protection rating: IP65
• Material: Stainless steel
• Operating temp.: -40º C ~ +60º C
• Brand: Safire
• Model: SF-VIDISP01-7IP
• Operating system: LINUX OS
• LCD: 7" 1024x600, capacitive
• Operating mode: Touch keypad
• Inputs: 8 configurable alarm inputs
• Audio: Two-way audio with microphone and noise-canceling speaker
• Remote access: Smartphone app or Safire Control Center software
• Memory: MicroSD slot up to 32GB
• Network interface: Ethernet 10/100 BaseT / RS485 / RTSP
• Power supply: DC 12 V / 600 mA / standard PoE (IEEE802.3af)
• Operating temp.: -10º C ~ +55º C
• Brand: Safire
• Model: SF-AC3003KEMD-IP
• Keypad: Numeric keypad for apartment calling and access control
• Remote access: Web browser for Safire modular modules
• Modular: Compatible with Safire modular stations
• Power supply: Via 4 wires between modular panels
• Protection rating: IP65
• Brand: Safire
• Model: SF-AC3003KEMD-IP
• CPU: Linux
• Sensor: Optical
• Activation sensor: Auto-activation via infrared
• Verification time: < 1 s
• Capacity: Up to 1,000 fingerprints/cards (up to 10 per user)
• Events: 100,000 events and 50,000 attendance records
• Identification mode: Fingerprint, EM card, PIN and combinations
• Proximity card: EM 125 KHz card
• Screen: 2.4" color TFT LCD
• Communication: TCP/IP, USB, RS485
• Outputs: Doorbell, relay
• Inputs: Door sensor, exit button
• Software: Safire Control Center
• Power supply: DC 12 V / 1 A max.
• Protection rating: Not available
• Operating temp.: -10º C ~ +55º C
• Brand: Safire
• Range: ULTRA
• Optical sensor: High-performance CMOS with Ultra Low Light
• Maximum resolution: 8 Mp (3480x2160)
• Resolution: 8 Mpx at 15 fps
• Lens: Motorized 2.7~13.5 mm Autofocus
• Minimum illumination: 0.003 Lux @ (F1.2, AGC ON)
• Infrared illumination: 0 Lux / SMART IR LED EXIR (60 m)
• Day / Night: Auto / Color / BW (Black and white)
• Video output: 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS
• Video output switching: Via Switch
• Basic functions: OSD menu (remote)
• Configurable OSD functions: WDR (130dB), 3D-DNR, AWB, ATW, BLC, AGC, HLC, Mirror, Smart IR
• Lens positioning: 3 Axes
• Power supply: DC 12 V / 900 mA, 11 W max
• Protection rating: Suitable for indoor use
• Operating temp.: -40º C ~ +60º C
• Material: Metal
• Brand: SAFIRE
• Video format: HDTVI / HDCVI / AHD / CVBS / IP
• Video inputs: 8 BNC channels (HDTVI / HDCVI / AHD / CVBS)
• Hybrid configuration: Default: 8 BNC channels and 8 (replacement) + 2 (extra) IP channels (up to 8 Mpx); Advanced IP mode: 8 BNC channels and 8 (replacement) + 8 (extra) IP channels (up to 8 Mpx); Advanced IP mode limits bandwidth to 4 Mbps per IP channel
• Incoming bandwidth: 64 Mbps
• Video output: 1 HDMI Full HD, 1 VGA
• Audio inputs: 1 RCA channel
• Audio outputs: 1 RCA channel
• Two-way audio: Reusing audio input/output
• Video/audio compression: H.265Pro+ / H.265Pro / H.264+ / H.264 / G.711u
• Display resolution: 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768
• BNC input resolution: 8 Mpx / 5 Mpx / 4 Mpx / 3 Mpx / 1080p / 720p
• Main Stream: TVI: 8 MP (8 FPS), 5 MP, 4 MP (15 FPS), 3 MP (18 FPS), 1080p / 720p (25 FPS); AHD: 5 MP, 4 MP, 1080P; CVI: 5 MP, 4 MP, 1080P
• Sub Stream: WD1 / 4CIF (12 FPS) / CIF (25 FPS)
• Multifunction: Pentaplex: Live, recording, playback, backup and remote access
• Alarms: Not available
• Video analytics: Not available
• Recording mode: Manual, scheduled, motion detection, alarm
• Backup: USB / Network / Cloud (Microsoft OneDrive, Dropbox)
• Internal memory: 1 HDD SATA 3.5" up to 6TB (not included)
• Communication: RS485 (PTZ) / 2 x USB 2.0 (mouse and backup) / RJ45 (Ethernet)
• Remote access: Web Browser, Smartphone App and Safire Control Center CMS Software
• Power supply: DC 12 V / 1.5 A (Consumption < 15 W)
• Brand: Safire
• Size (inches): 28"
• Number of colors: 16.7 M
• Resolution: 3840x2160 (4K) @ 60Hz
• Viewing angle: 170º/160º (Horizontal/Vertical)
• Brightness: 280 cd/m2
• Contrast ratio: 3000:1 (typical)
• Response time: 5 ms
• Inputs: 2 x HDMI 2.0, 2 x DP1.2 x [%VAR%]
• Speaker: 2x 5W
• Power consumption: Operating < 40W, Off < 0.5W
• Power supply: 12 VDC / 5A

📦 INCLUDED:
• Vinyl stand with Switch and Power strip• 4K Video recorder• 4K Camera• 4K Monitor• Monitor, Plate, Module and Support for video intercom• Access control and Attendance
