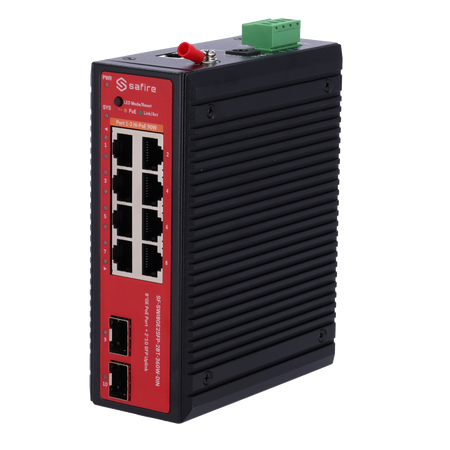

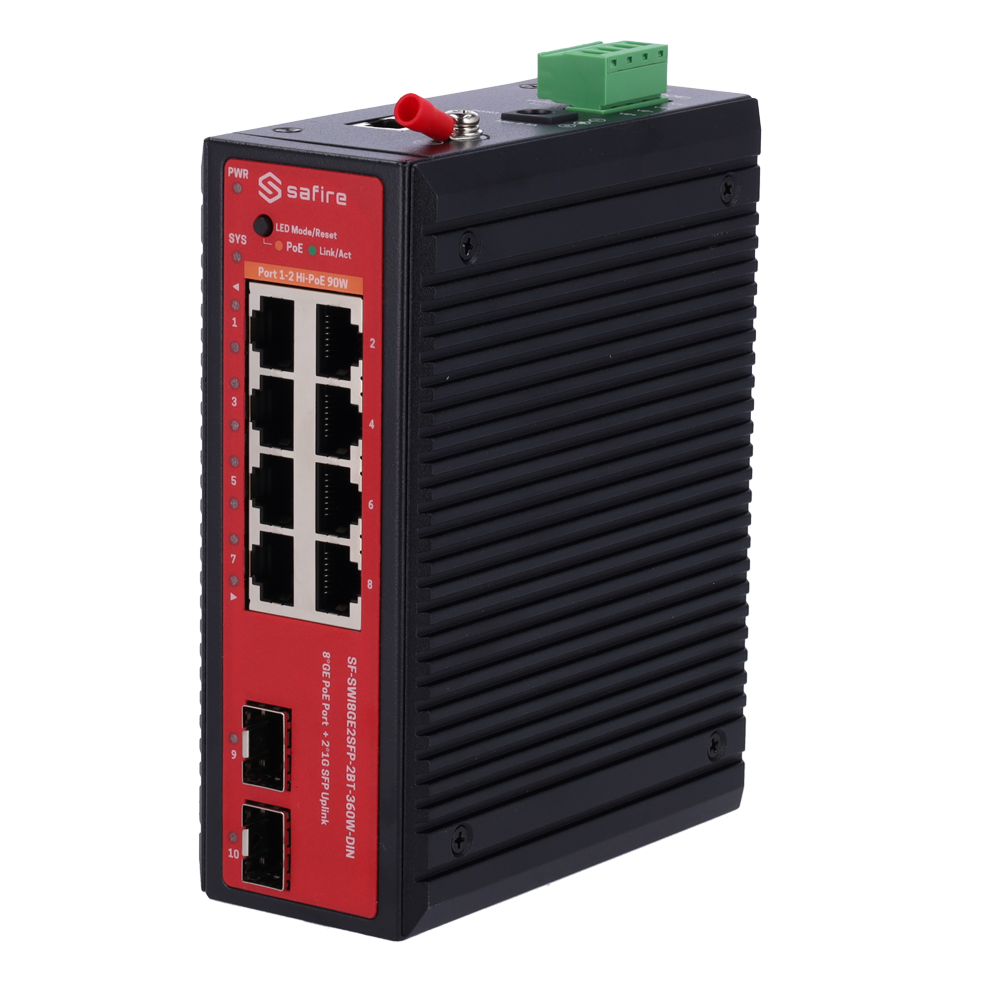

L2+ managed switch with 8x RJ45 and 2x SFP
Regular price
€276,70
Final price
Regular price
-8%
€300,00
Sale price
€276,70
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

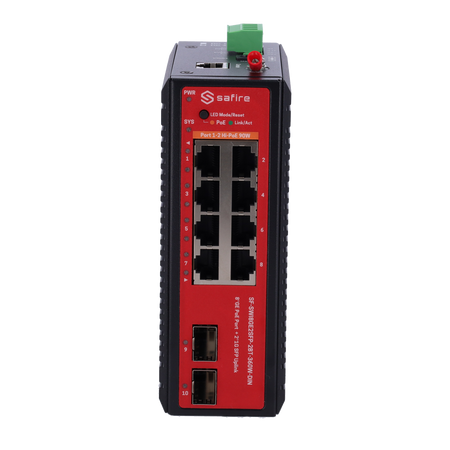

L2+ managed switch with 8x RJ45 and 2x SFP - 8 Gigabit PoE ports with IEEE 802.3bt support - Dual dedicated high-power 90W output - Industrial fanless architecture - IPv4/IPv6 static routing and L2+ management - Redundant power supply via 4-pin terminal block
📋 SPECIFICATIONS:
• Product category: Industrial L2+ managed switch with high-power PoE power supply

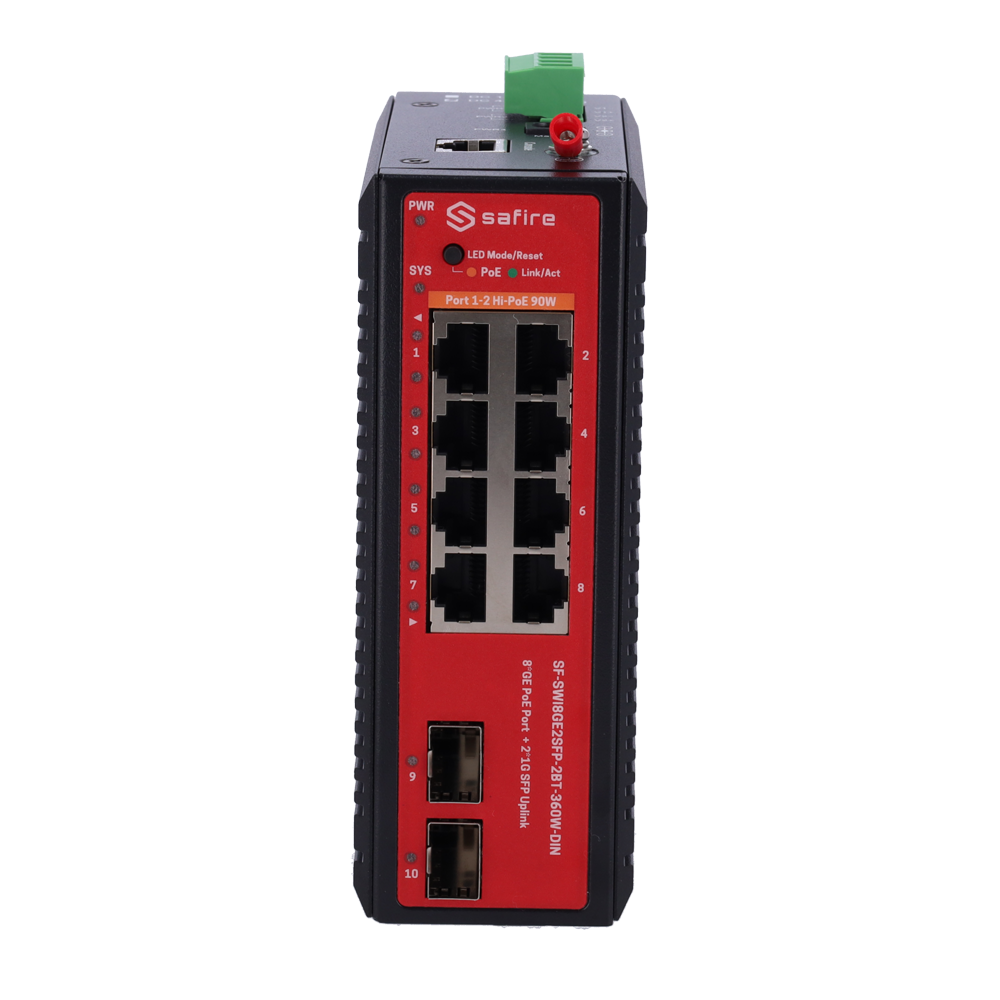

• Copper interfaces: 8 × 10/100/1000 Mbps RJ-45 PoE (Access ports 1 to 8)
• Fiber optic interfaces: 2 × 1000 Mbps independent modular SFP slots
• Diagnostic port: 1 × Serial console port
• Network standards: IEEE 802.3/u/ab/z/x, IEEE 802.1D STP, IEEE 802.1w RSTP, MSTP, LLDP, LLDP-MED
• Switching capacity: 20 Gbps system switching bandwidth
• Data transmission rate: 14.88 Mpps (Packet Forwarding Rate)
• MAC address table: 8000 dynamic, static, and filtered logical entries
• Internal data buffer: 4.1 Mbit packet buffer memory
• Jumbo Frame size: Supports large and heavy files up to 10 Kbyte
• Switching logic: Store and Forward
• Network segmentation: Full range VLAN 1-4094, with Voice, MAC, Protocol, GVRP, and Q-in-Q support
• PoE standards: IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3bt (90W)
• PoE distribution: Ports 1-2: BT support up to 90W / Ports 3-8: Standard output less than 30W
• PoE output voltage: DC range 48V to 55V
• PoE management functions: Configuration, temperature/voltage/current monitoring, watchdog, and scheduling
• Advanced security: DHCP Snooping, IP Source Guard, DAI, DoS, RADIUS/TACACS+ AAA authentication, 802.1X
• Access control list: Support for MAC, IPv4, and IPv6-based ACLs
• L3+ Static routing: L2+ static routing and VLAN interfaces for IPv4 and IPv6
• Industrial redundancy: ERPS ring protocol (on SFP ports), static and dynamic LACP aggregation (8 groups)
• Cooling system: Thermal load due to natural heat dissipation of the chassis (Fanless / 0 fans)

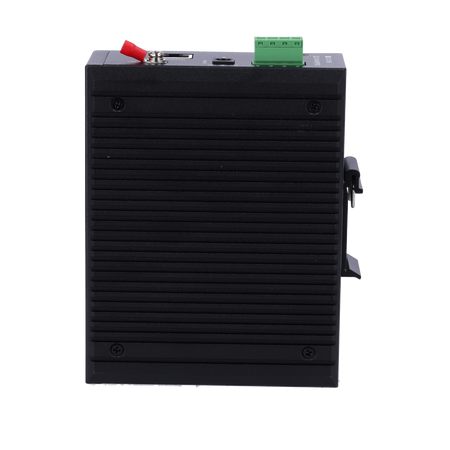

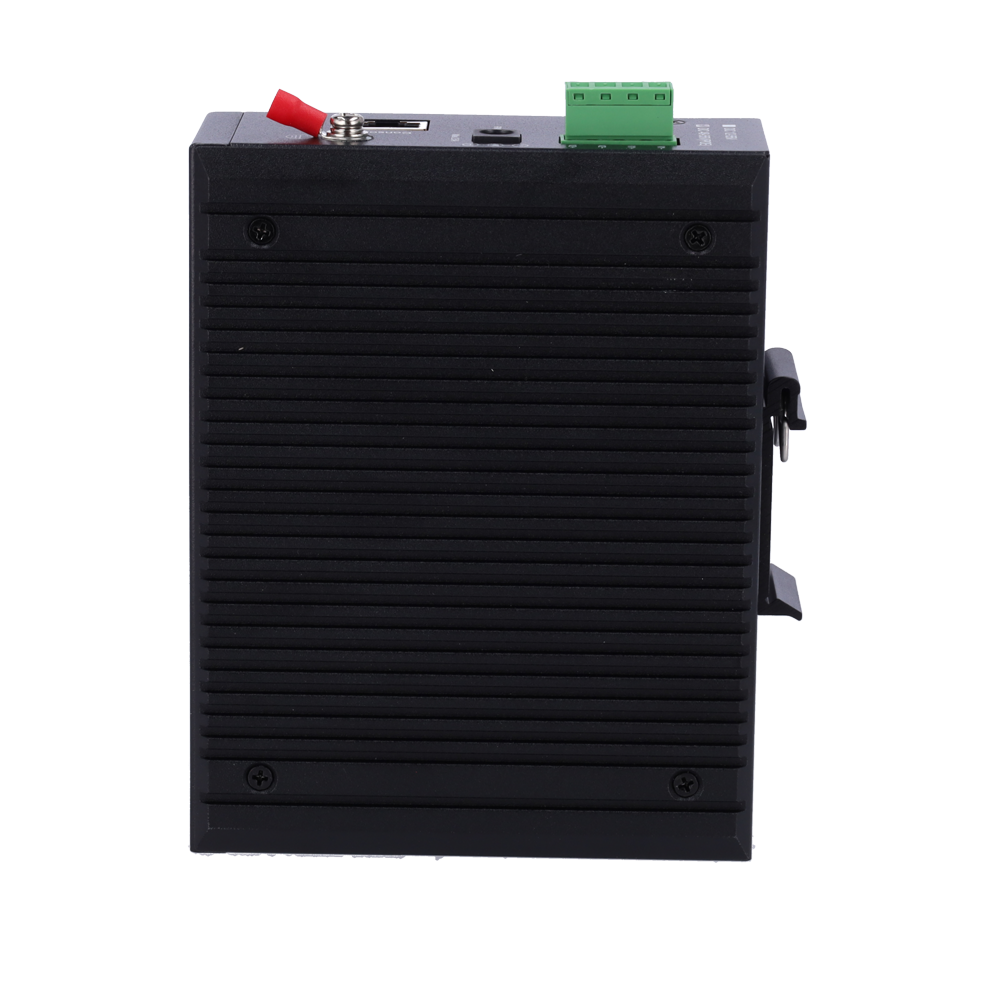

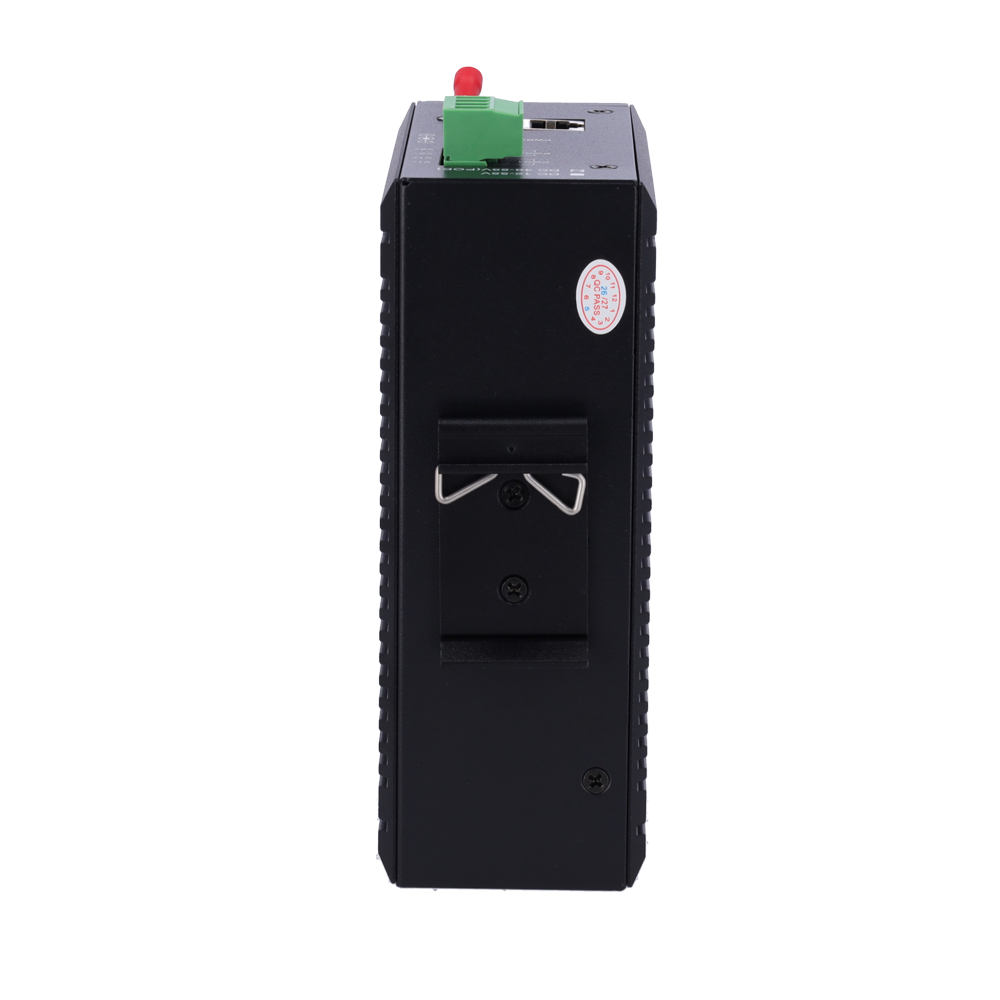

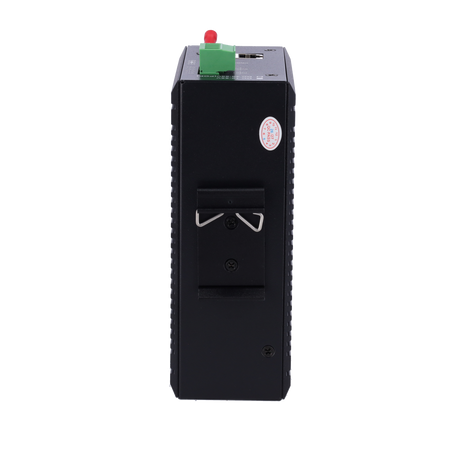

• Structure and mounting: Rugged metal housing for desktop, wall, or DIN rail installation
• Electrical protection: Port surge: Common 6KV, Differential 2KV. ESD: Air 8KV, Contact 6KV

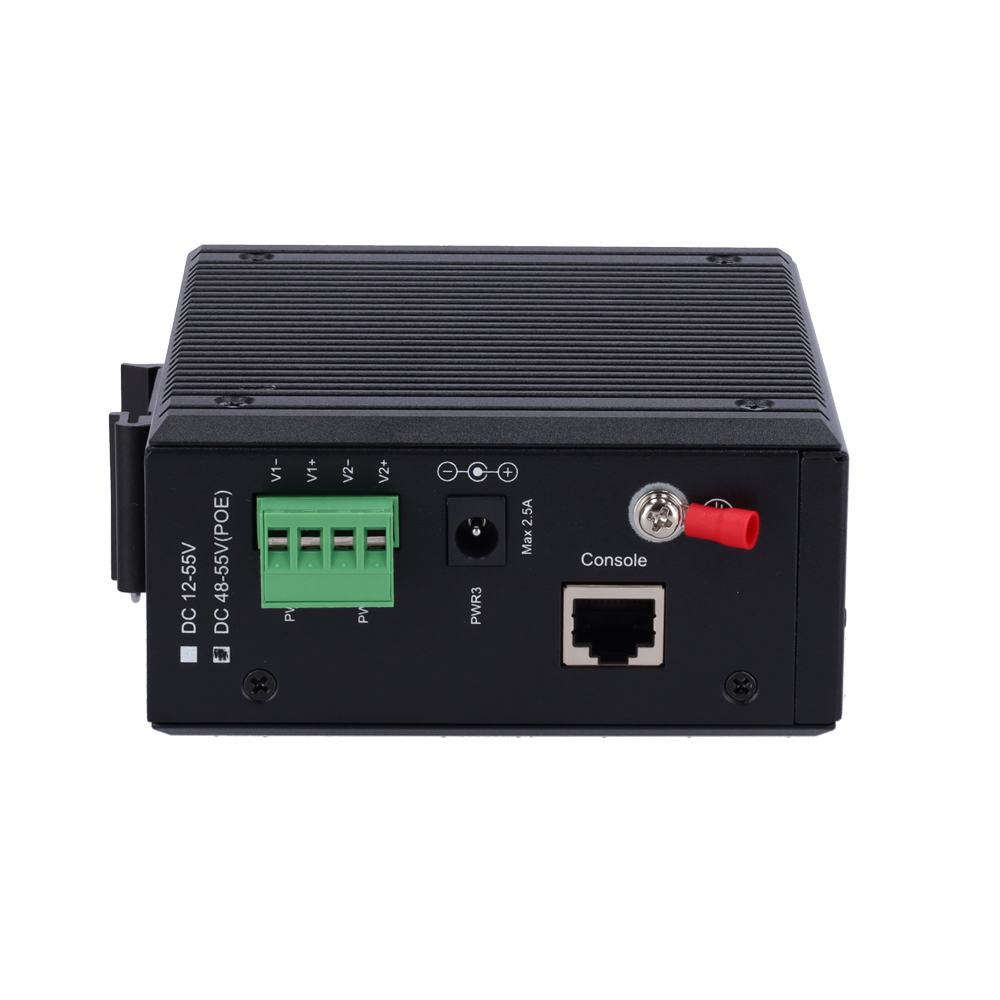

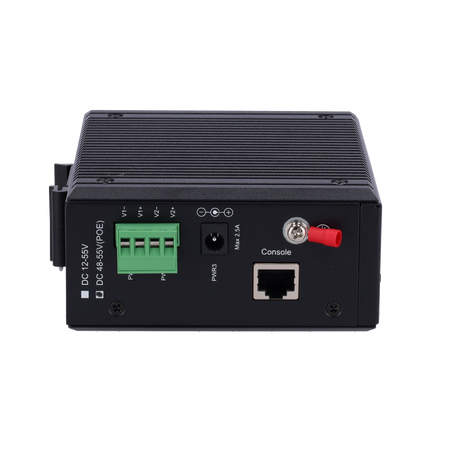

• Input power: Dual range: DC 12V~55V / DC 48V~55V (Required for PoE). Redundant terminal with 4 pins
• Base board consumption: 8.32 W net motherboard consumption
• System metrics: Estimated MTBF of 3,638,327.01 hours of continuous operation
• Operating temperature: Industrial critical range from -40 °C to 75 °C
• Cooling system: Passive natural convection design (Fanless)
• Operating humidity: 10% to 90% RH (non-condensing)
• Chassis dimensions: 138 mm × 108 mm × 51 mm (Length × Width × Height)
• Net / gross weight: Switch net weight: 0.88 kg / Gross weight with packaging: 1.07 KG
📦 INCLUDED:
• 1x Industrial Managed L2+ Switch SF-SWI8GE2SFP-2BT-360W-DIN• 1x Serial communication cable (Console cable)• 1x Instruction manual and user guide• 1x Factory quality control certificate
| Product Category | Managed L2+ industrial switch with high-power PoE supply |
|---|---|
| Copper interfaces | 8 × 10/100/1000 Mbps RJ-45 PoE (Access ports 1 to 8) |
| Fiber optic interfaces | 2 × 1000 Mbps independent modular SFP slots |
| Diagnostic port | 1 × Serial console port |
| Network standards | IEEE 802.3/u/ab/z/x, IEEE 802.1D STP, IEEE 802.1w RSTP, MSTP, LLDP, LLDP-MED |
| Switching matrix | 20 Gbps system switching bandwidth |
| Data transmission speed | 14.88 Mpps (Packet Forwarding Rate) |
| MAC address table | 8,000 dynamic, static, and filtered logical entries |
| Internal data buffer | 4.1 Mbit packet buffer memory |
| Jumbo Frame size | Supports large and heavy files up to 10 Kbytes |
| Switching logic | Store and Forward |
| Network segmentation | Full range VLAN 1-4094, with support for Voice, MAC, Protocol, GVRP, and Q-in-Q |
| PoE standards | IEEE 802.3af (15.4W), IEEE 802.3at (30W), IEEE 802.3bt (90W) |
| PoE distribution | Ports 1-2: BT support up to 90W / Ports 3-8: Standard output less than 30W |
| PoE output voltage | DC range 48 V to 55 V |
| PoE management functions | Configuration, temperature/voltage/current monitoring, watchdog, and scheduling |
| Advanced security | DHCP Snooping, IP Source Guard, DAI, DoS, RADIUS/TACACS+ AAA authentication, 802.1X |
| Access Control List | Support for MAC, IPv4, and IPv6-based ACLs |
| L3+ Static routing | L2+ static routes and VLAN interfaces for IPv4 and IPv6 |
| Industrial redundancy | ERPS ring protocol (on SFP ports), static and dynamic LACP aggregation (8 groups) |
| Cooling system | Thermal load via natural chassis heat dissipation (Fanless / 0 fans) |
| Structure and mounting | Robust metal housing for desktop, wall, or DIN rail installation |
| Electrical protection | Port surge: Common 6KV, Differential 2KV. ESD: Air 8KV, Contact 6KV |
| Power input | Dual range: DC 12V~55V / DC 48V~55V (Required for PoE). Redundant terminal with 4 pins |
| Base board consumption | Net motherboard consumption of 8.32 W |
| System metrics | Estimated MTBF of 3,638,327.01 hours of continuous operation |
| Operating temperature | Critical industrial range from -40 °C to 75 °C |
| Cooling system | Passive natural convection design (Fanless) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Chassis dimensions | 138 mm × 108 mm × 51 mm (Length × Width × Height) |
| Net / Gross weight | Switch net weight: 0.88 kg / Gross weight with packaging: 1.07 KG |
