Solarkit DC 768WH 80W with Safire CLOUD
Solarkit DC 768WH 80W with Safire CLOUD
Regular price
€615,65
Final price
Regular price
-15%
€726,00
Sale price
€615,65
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

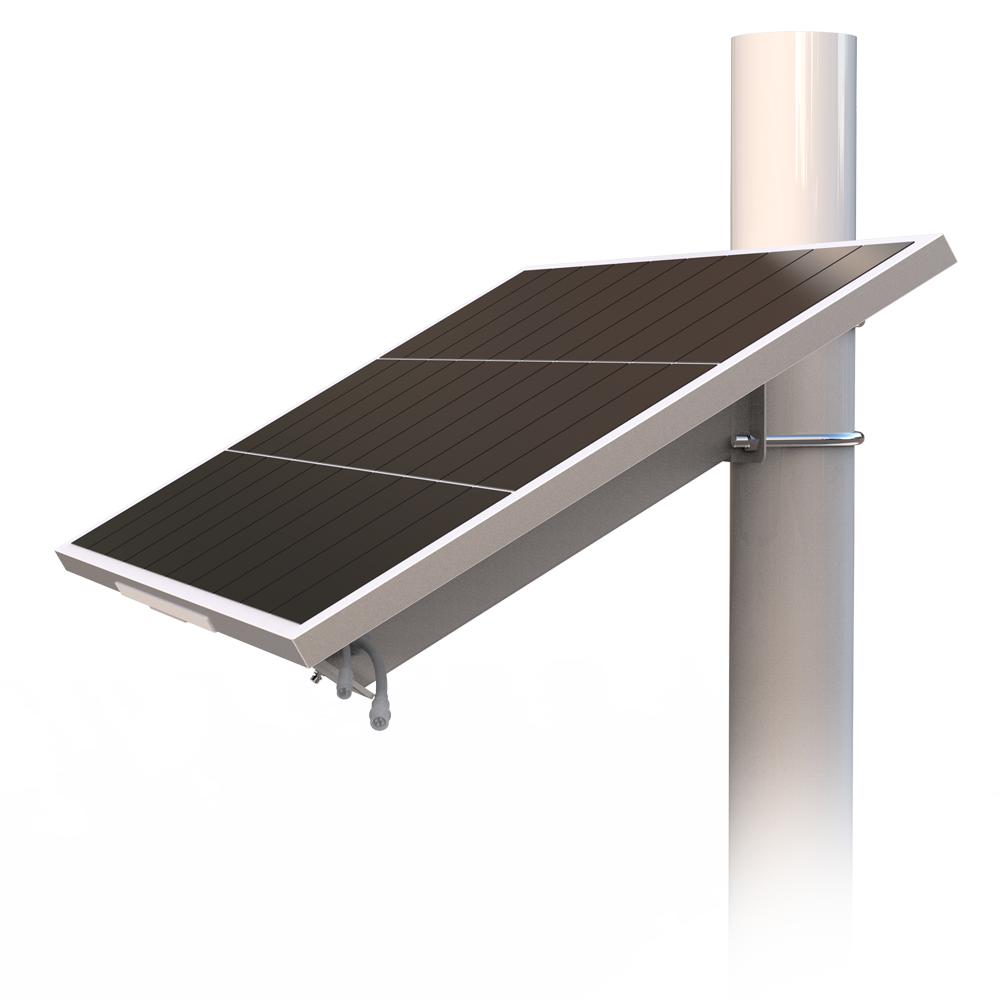

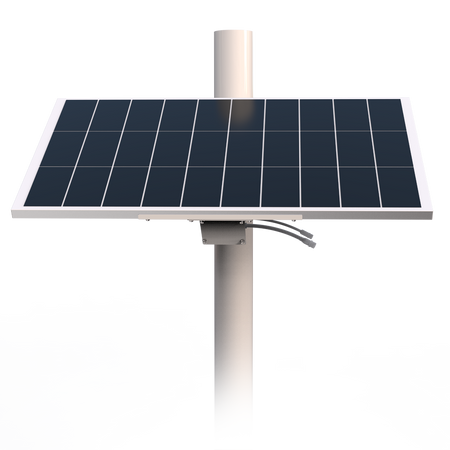

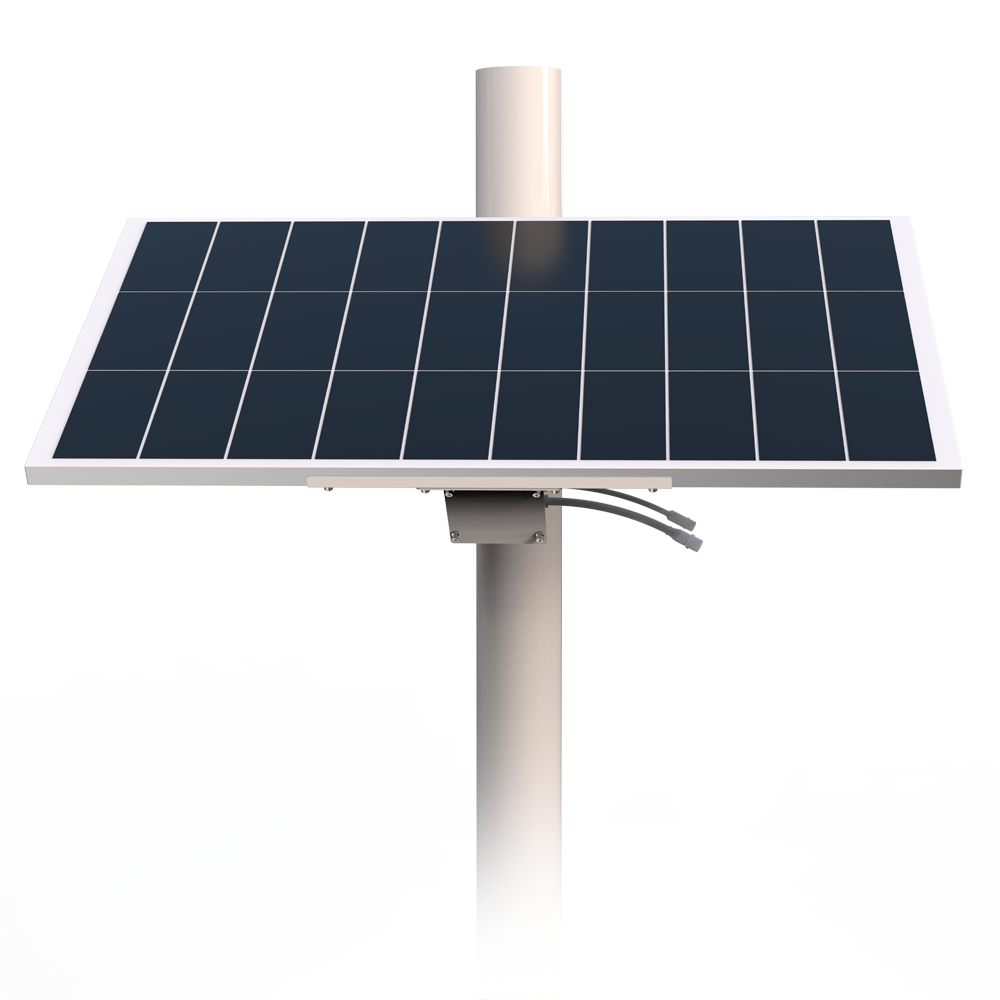

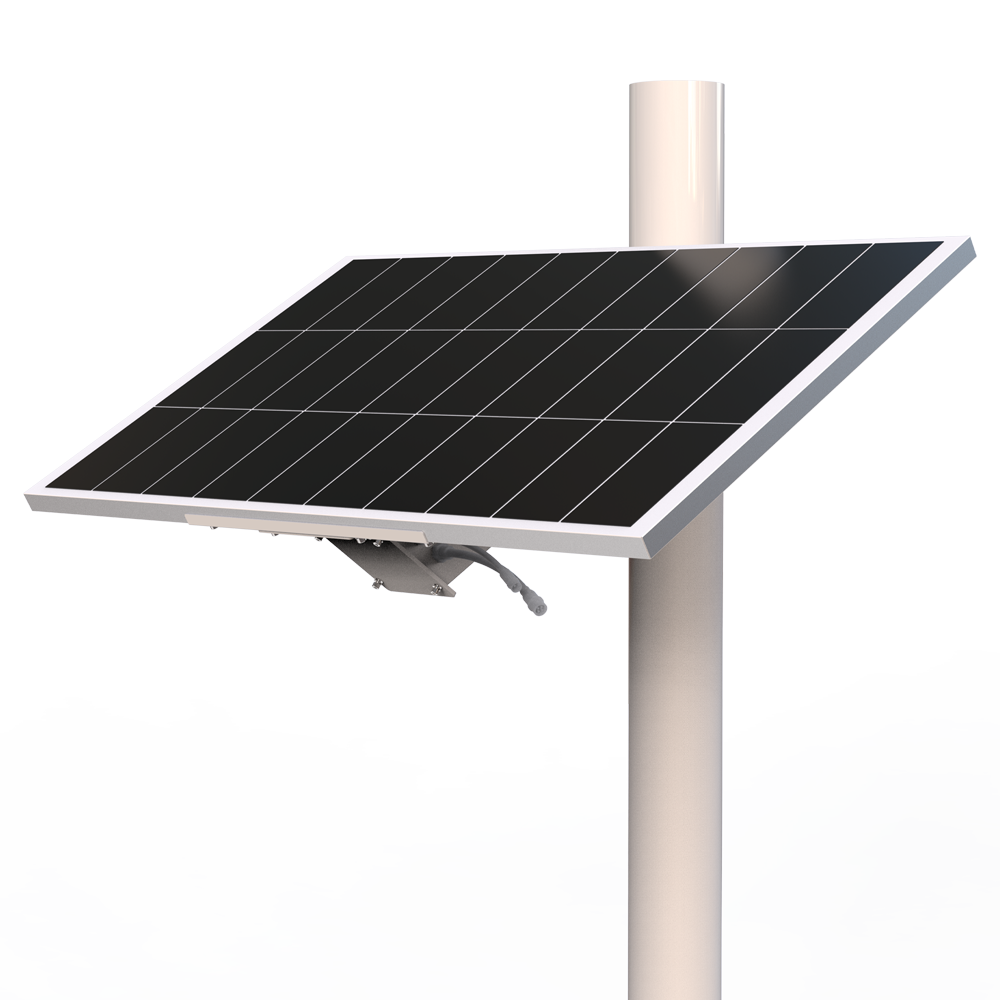

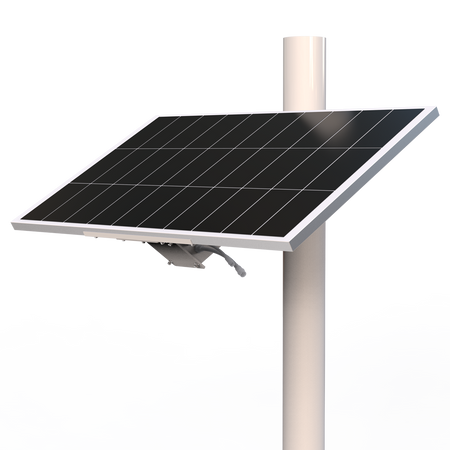

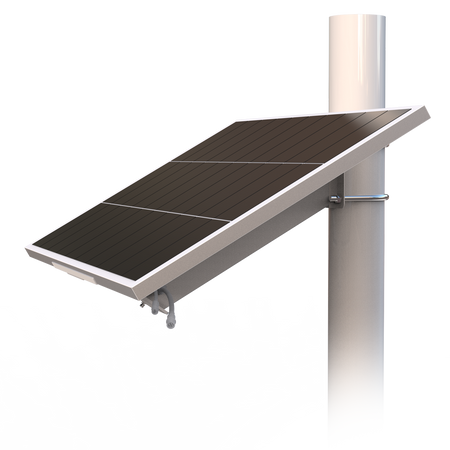

Solarkit DC 768WH 80W with CLOUD - 4G modem included with free 1st year connection - 768W/h | 120W panel | 60Ah battery | Lithium - IP 65 protection - Ideal for medium-sized electronic devices
📋 SPECIFICATIONS:
• Model: SF-SOLARKIT-DC-768WH-12V-CLOUD
• PV Power: 120W
• PV Input Voltage: 18V
• Panel Material: Monocrystalline silicon
• Battery Type: LiFePo4
• Battery Capacity: 60AH
• Total Energy: 768Wh
• Available Capacity: 691Wh
• Depth of Discharge: 90%DOD
• Lifecycle: >3000 deep discharge cycles
• Nominal Voltage: 12.8V
• Operating Voltage Range: 11.2-14.6Vd.c
• Output Voltage: 11.2-14.6Vd.c
• Maximum Output Current: 10A
• System Efficiency: >95%
• Communication Protocol: RS485 / Modbus / Bluetooth
• Battery Heating: Active with current > 2A and below -5 C
• Protection Systems: Current / Voltage / Short circuit / Temperature
• Operating Temperature: From -20 C to 65 C
• Status Indicators: LED (Charge, battery, and output)
• Output Method: Standard 5521 DC plug
• Output Cable Length: 1.5m
• Protection Rating: IP65
• Humidity Range: 4-100% (Non-condensing)
• Cooling Method: Natural heat dissipation
• Housing Material: Metal

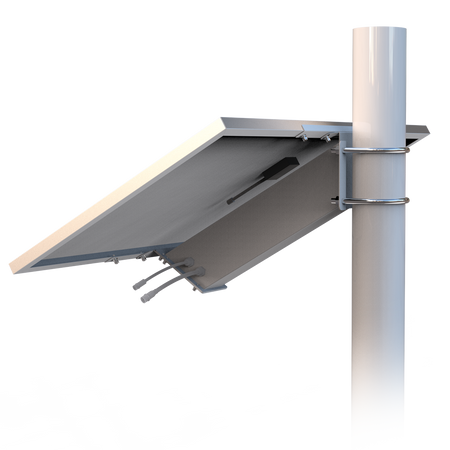

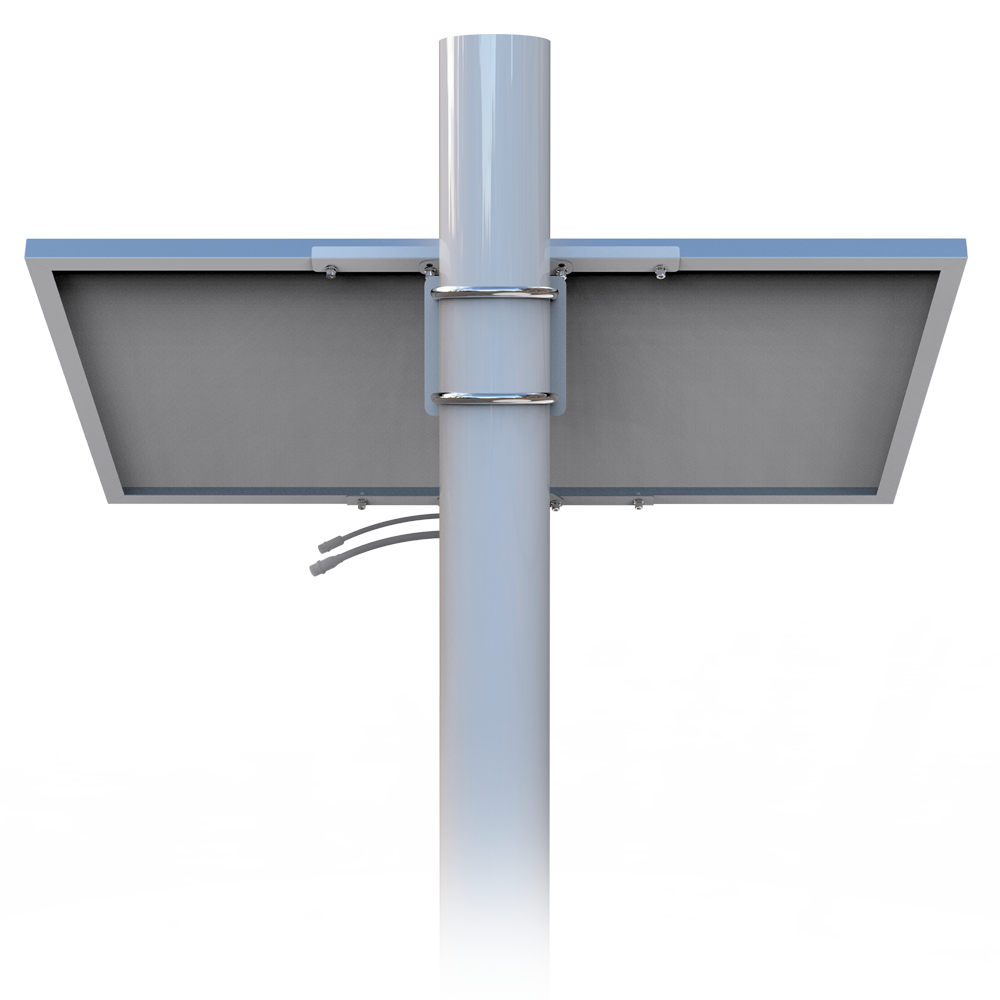

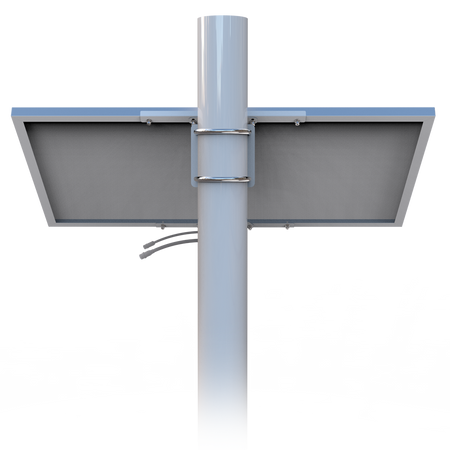

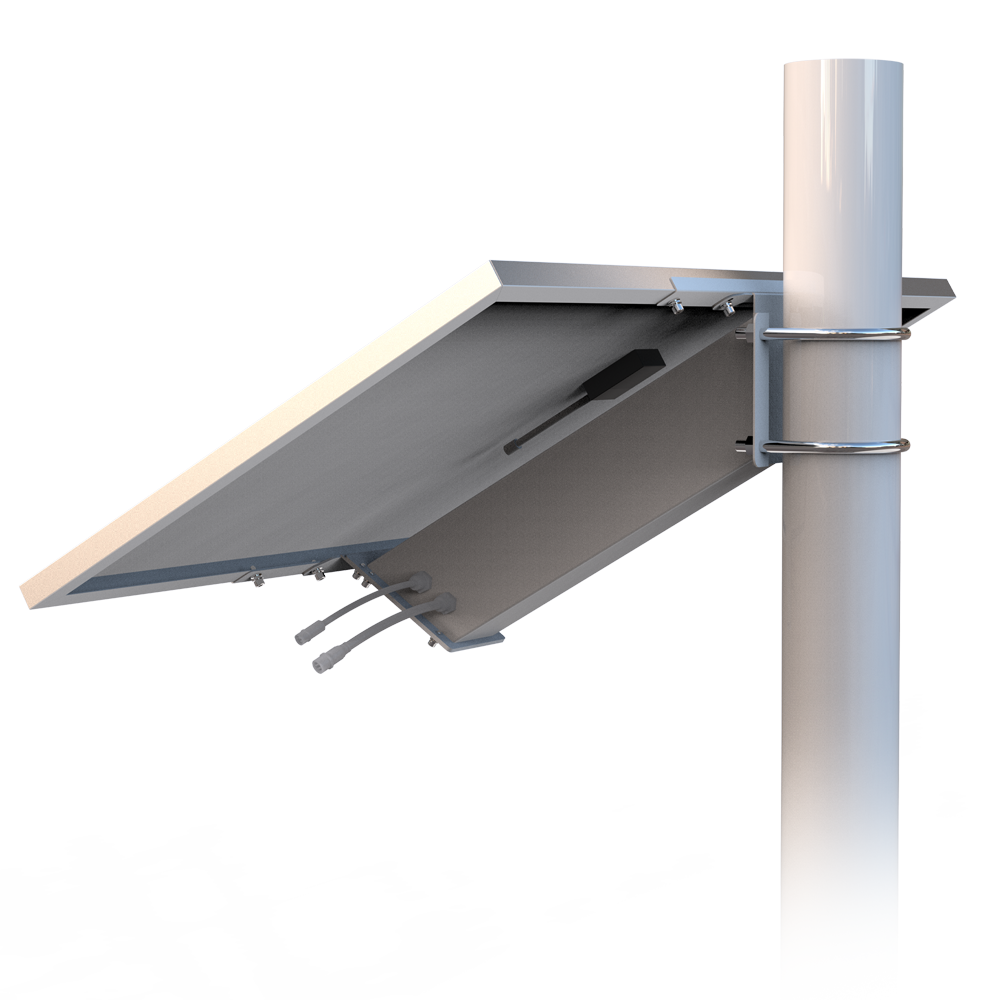

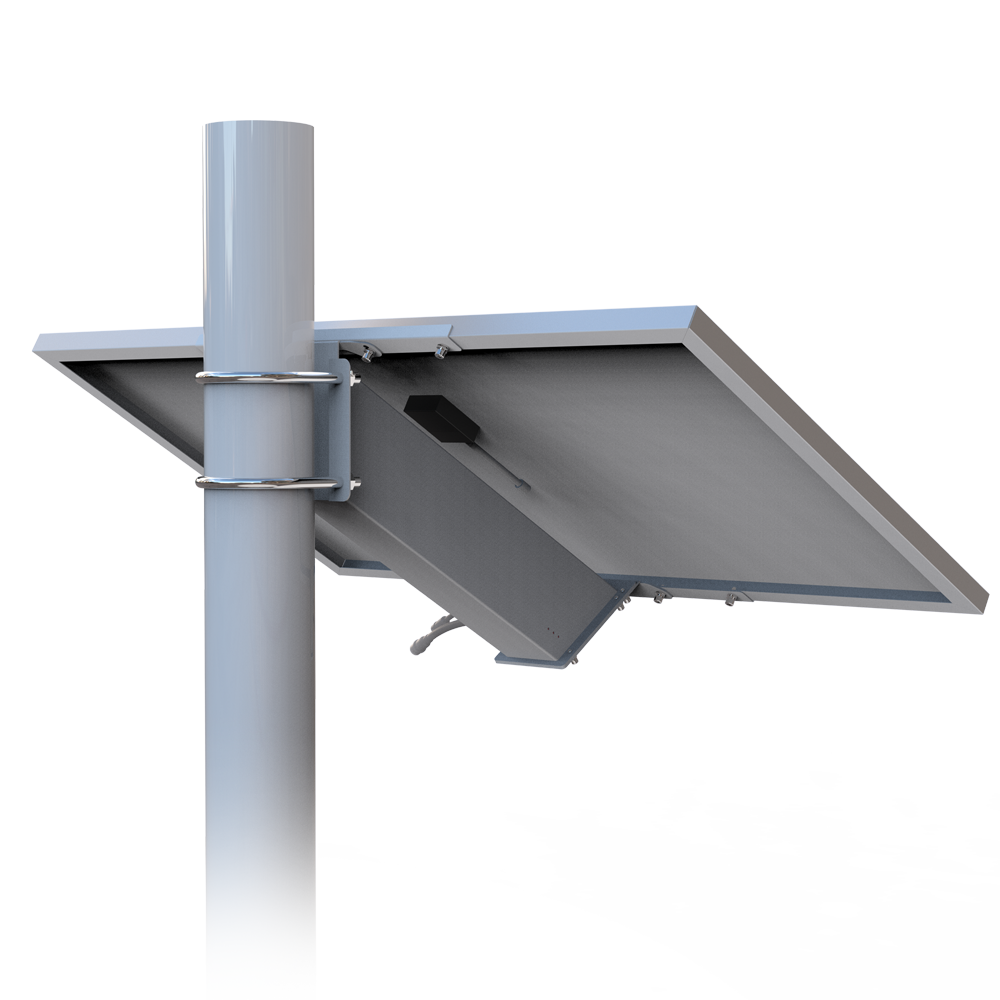

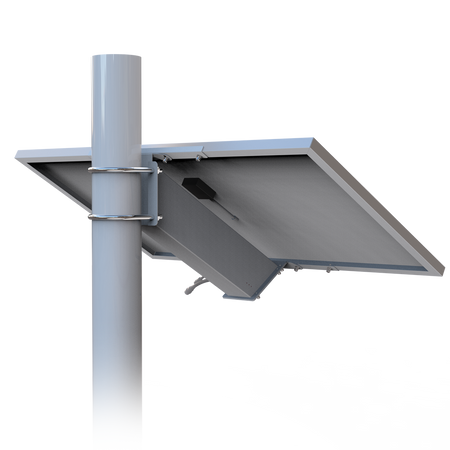

• Mounting Procedure: Pole suspension / Wall mounting
• Certifications: UN38.3 / MSDS
• Manufacturer Warranty: 2 years
• Width (W): 685mm
• Depth (D): 765mm
• Base Width (W1): 665mm
• Short Fixing (D1): 80mm
• Long Fixing (D2): 149mm
• Height (H): 147mm
• Total Weight: 16.5kg
📦 INCLUDED:
• 1x SF-SOLARKIT-DC-768WH-12V-CLOUD power system• 1x Quick installation guide and technical documentation• 1x Kit of mounts and accessories for pole mounting• 1x Set of waterproof connection cables with 12V Jack output
| Model | SF-SOLARKIT-DC-768WH-12V-CLOUD |
|---|---|
| PV Power | 120W |
| PV Input Voltage | 18V |
| Panel Material | Monocrystalline silicon |
| Battery Type | LiFePo4 |
| Battery Capacity | 60AH |
| Total Energy | 768Wh |
| Available Capacity | 691Wh |
| Depth of Discharge | 90%DOD |
| Life Cycles | >3000 deep discharge cycles |
| Nominal Voltage | 12.8V |
| Operating Voltage Range | 11.2-14.6Vd.c |
| Output Voltage | 11.2-14.6Vd.c |
| Maximum Output Current | 10A |
| System Efficiency | >95% |
| Communication Protocol | RS485 / Modbus / Bluetooth |
| Battery Heating | Active with current > 2A and below -5 C |
| Protection Systems | Current / Voltage / Short circuit / Temperature |
| Operating Temperature | From -20 C to 65 C |
| Status Indicators | LED (Charge, battery and output) |
| Output Method | Standard DC 5521 plug |
| Output Cable Length | 1.5m |
| Protection Rating | IP65 |
| Humidity Range | 4-100% (Non-condensing) |
| Cooling Method | Natural heat dissipation |
| Housing Material | Metal |
| Mounting Procedure | Pole suspension / Wall mounting |
| Certifications | UN38.3 / MSDS |
| Manufacturer Warranty | 2 years |
| Width (W) | 685mm |
| Depth (D) | 765mm |
| Base Width (W1) | 665mm |
| Short Fastening (D1) | 80mm |
| Long Fastening (D2) | 149mm |
| Height (H) | 147mm |
| Total Weight | 16.5kg |
