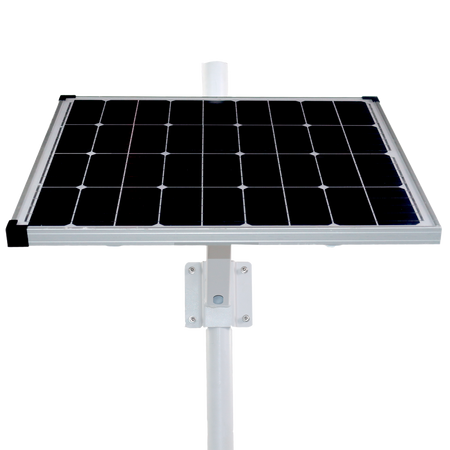

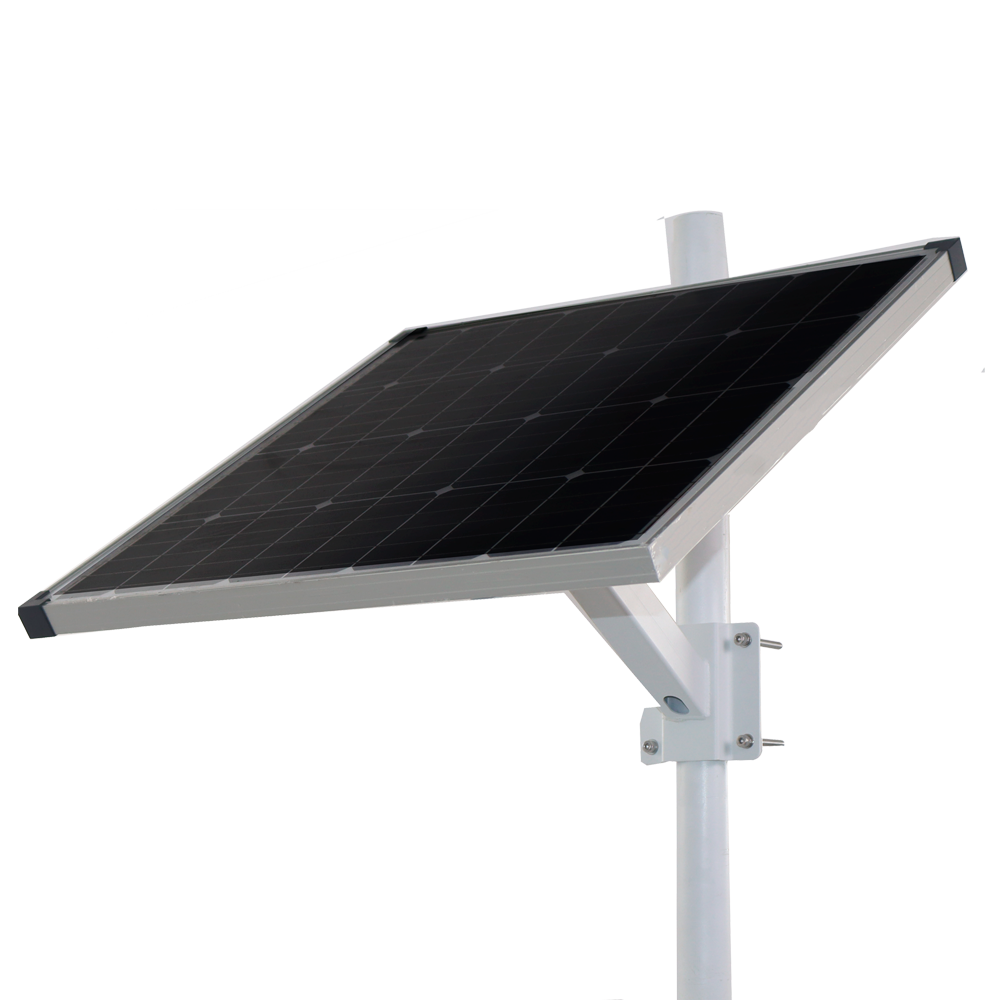

Safire stand-alone power supply system for CCTV - 80W solar panel - 15kg (with battery)
Safire stand-alone power supply system for CCTV - 80W solar panel - 15kg (with battery)
Regular price
€668,68
Final price
Regular price
-11%
€750,00
Sale price
€668,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Stand-alone power system for CCTV - 80W Solar panel - 512Wh (40Ah) LiFePo4 lithium battery - Integrated MPPT controller | AC&DC converter - Pole mounting bracket - RS-485 for communication | Street light connection
📋 SPECIFICATIONS:

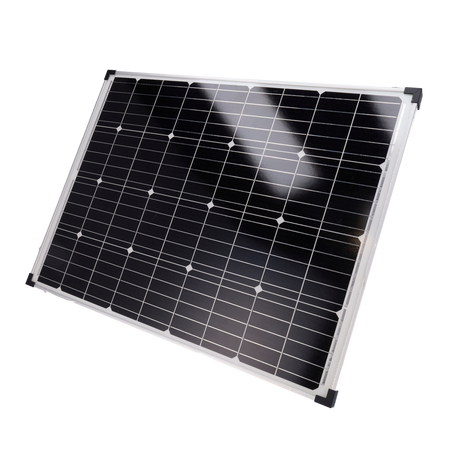

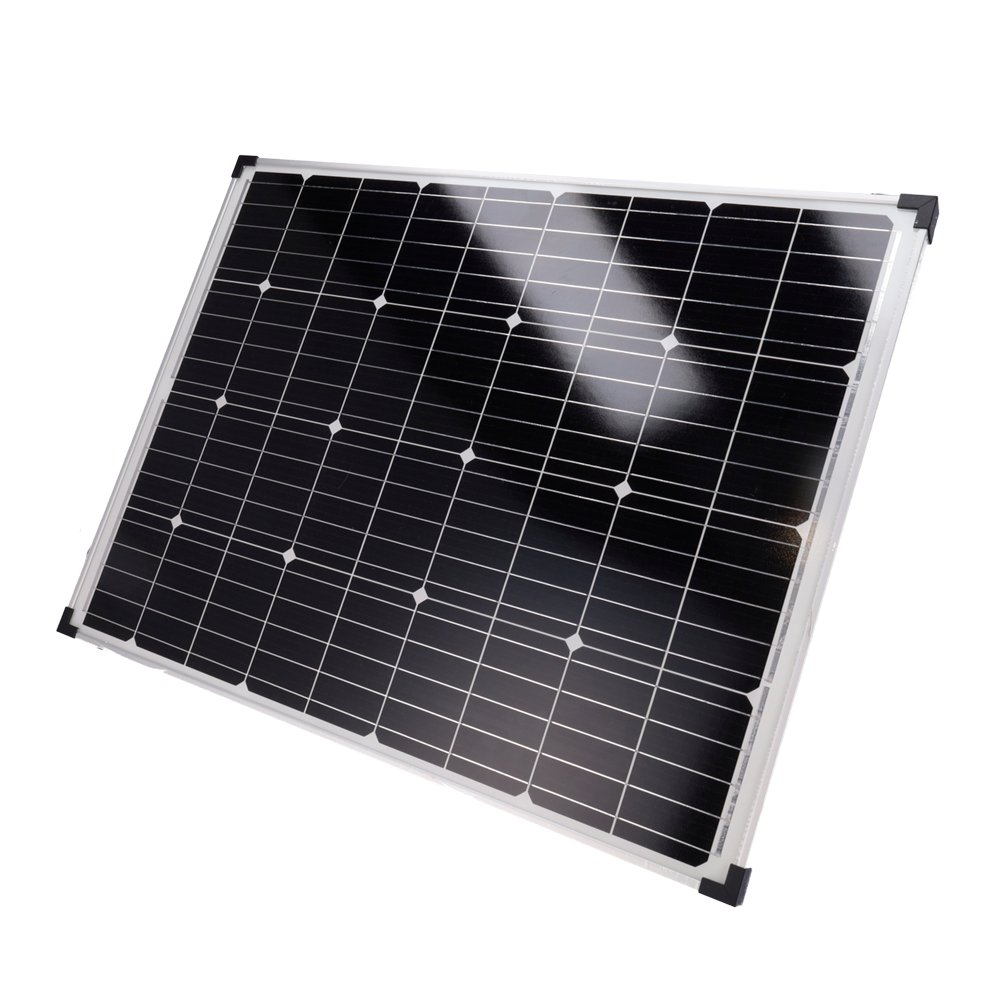

• Power: 80W
• Power tolerance (W): ±3%
• Cells: 156 monocrystalline
• Short-circuit current: 3.66A
• Open-circuit voltage: 21.24V
• Efficiency: 21.6%
• Glass thickness: 3.2mm
• Maximum wind load: 60 m/s (5kg/sq.m)
• Permissible hail resistance: 23m/s, 7.53g
• Temperature range: -20ºC ~ 85ºC
• Module dimensions: 680 (H) x 510 (W) x 30 (D) mm
• Weight: 15Kg (with battery)
• Protection rating: IP67
• Maximum pole diameter (not included): 105mm

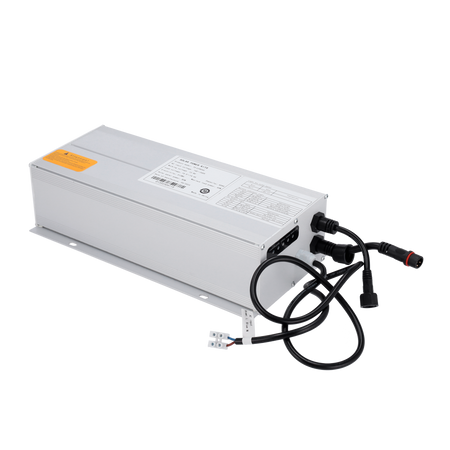

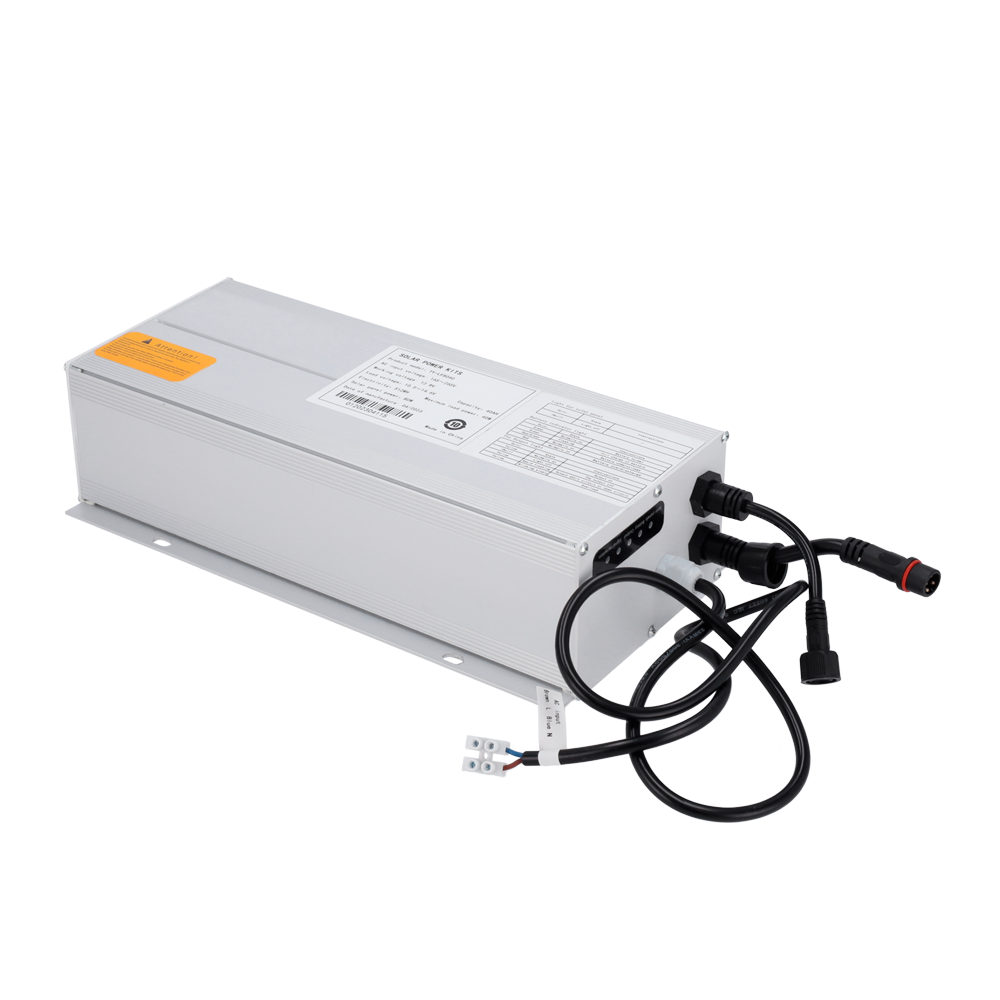

• Material: LiFePo4 Lithium
• Capacity: 512Wh (40Ah)
• Controller: Integrated MPPT
• Converter: AC & DC
• Cycles: >2000
• Solar input voltage: 18V
• Charging voltage: 10-14.6V
• Maximum charging current: 10A
• Output voltage: 12V DC Integrated regulator (with standard jack connector compatible with CCTV cameras)
• AC input voltage: 220V
• Operating temperature: Charging: 0 °C to 65 °C (32 °F to 140 °F); Discharging: 0 °C to 65 °C (32 °F to 140 °F)
• Maximum output power: 40W
• Maximum input power: 100W
• Battery dimensions: 205 (H) x 68 (W) x 112 (D) mm
• Protection rating: IP67
• Communication: RS485 (For third-party integration). Provides all system information, such as charge level, system status, or consumption

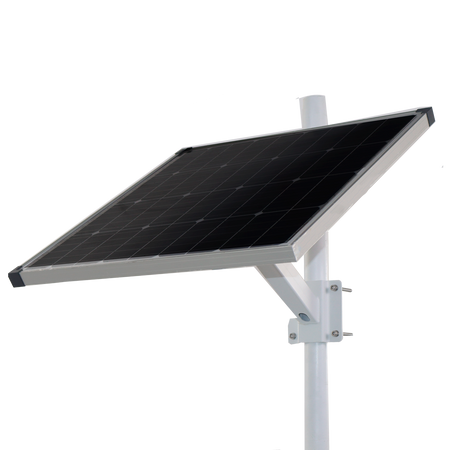

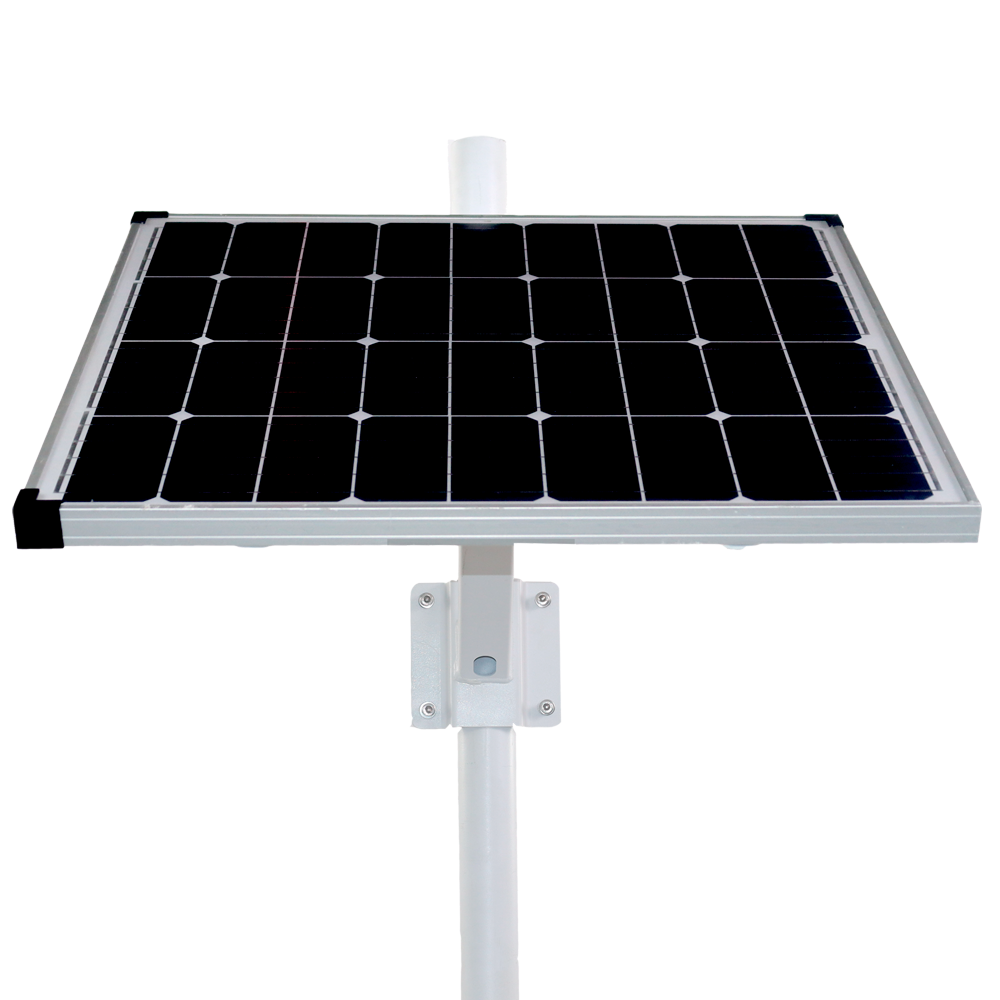

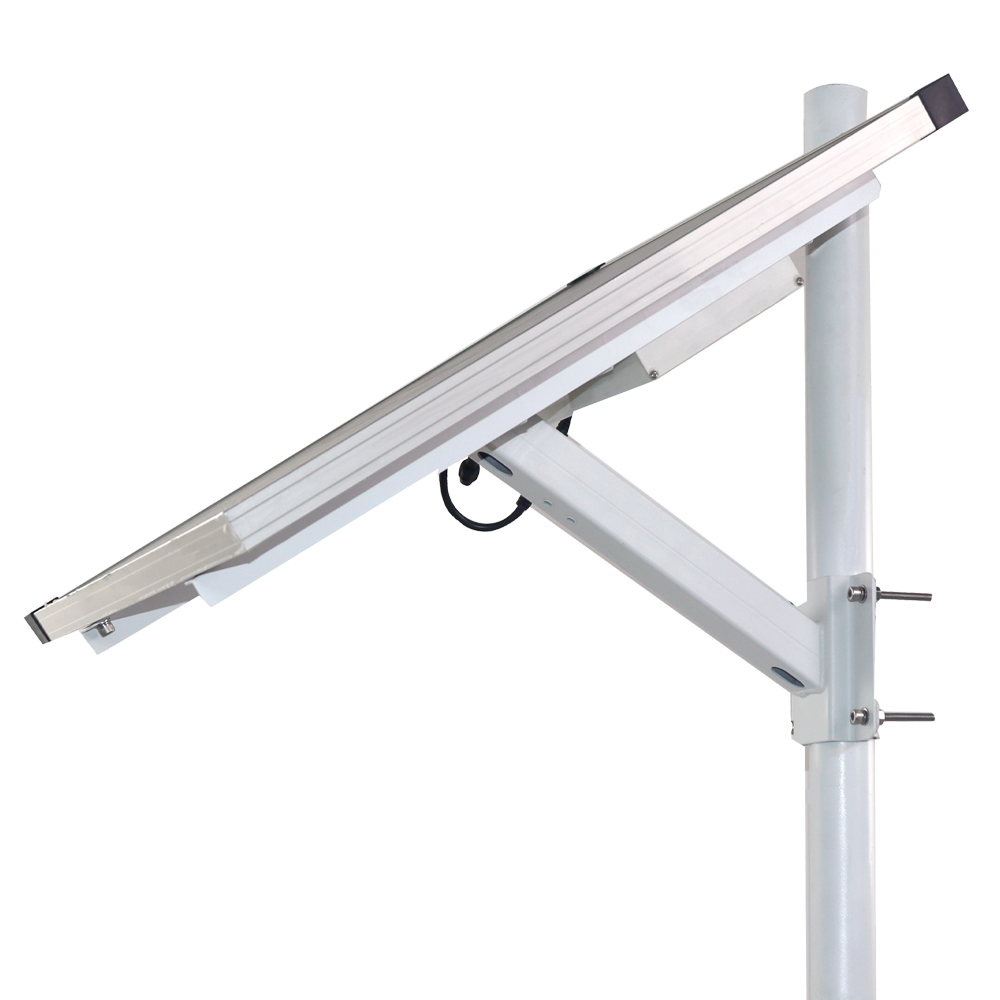

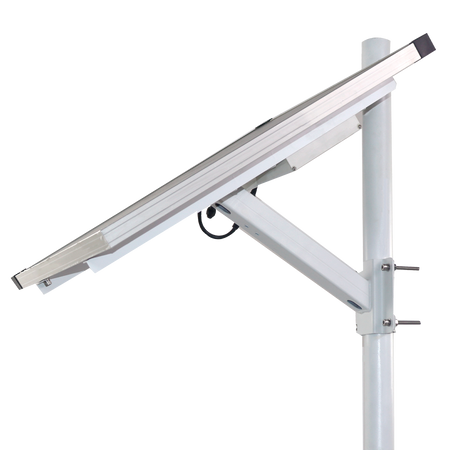

• Bracket: Pole or vertical structure mounting bracket; Connection to street light
• Maximum pole diameter (not included): 105mm

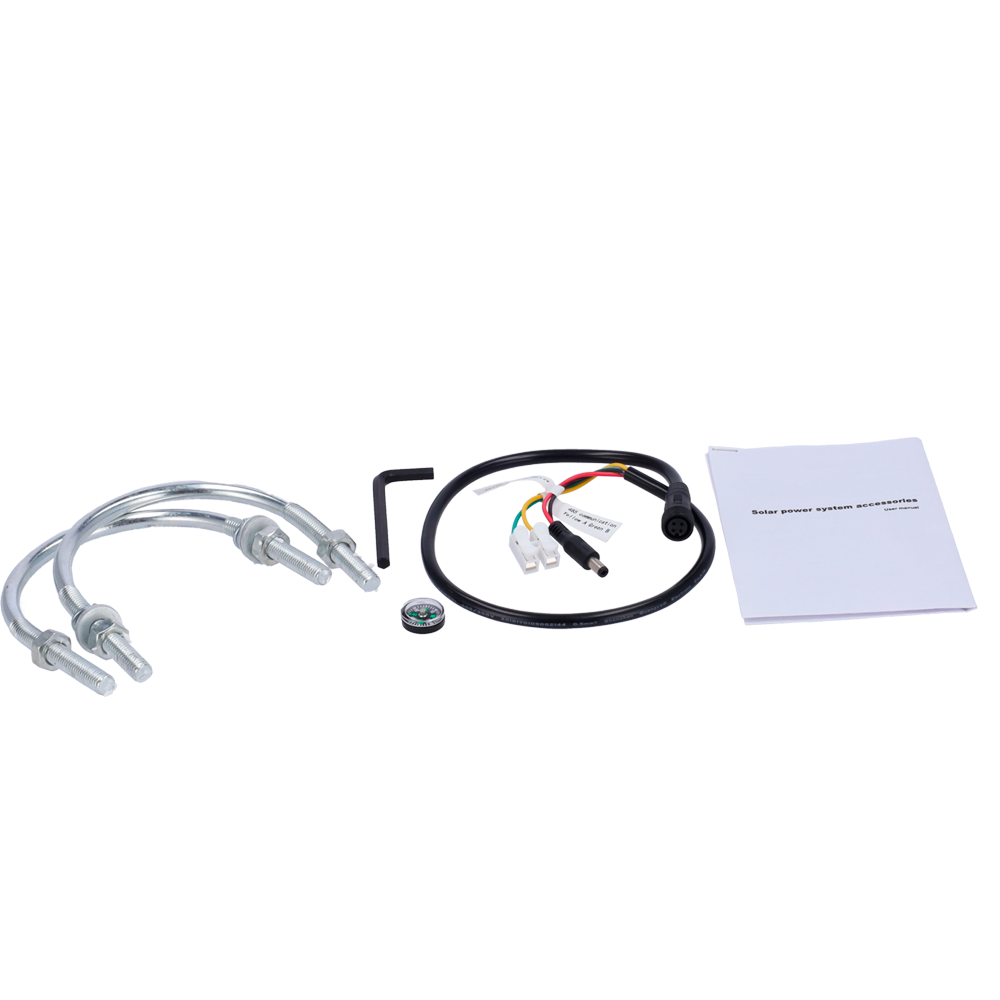

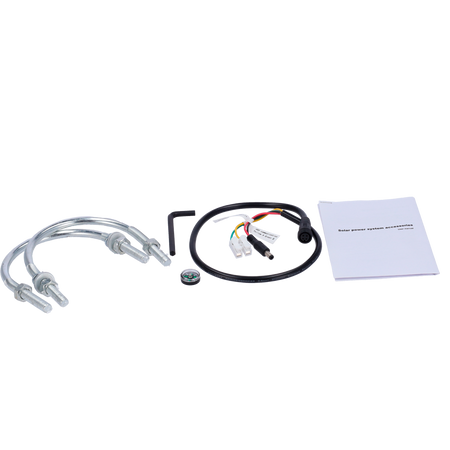

📦 INCLUDED:
• 80W Solar panel• 512Wh LiFePo4 battery• Pole mount• Mounting accessories• Assembly instructions• Compass for orientation• Pole not included
| Power | 80W |
|---|---|
| Power tolerance (W) | ±3% |
| Cells | 156 monocrystalline |
| Short-circuit current | 3.66A |
| Open-circuit voltage | 21.24V |
| Efficiency | 21.6% |
| Glass thickness | 3.2mm |
| Maximum load capacity | 60 m/s (5Kg/sq.m) |
| Permissible hail resistance | 23m/s, 7.53g |
| Temperature range | -20ºC ~ 85ºC |
| Module dimensions | 680 (H) x 510 (W) x 30 (D) mm |
| Weight | 15Kg (with battery) |
| Protection rating | IP67 |
| Maximum pole diameter (not included) | 105mm |
| Material | Lithium LiFePo4 |
| Capacity | 512Wh (40Ah) |
| Controller | Integrated MPPT |
| Converter | AC & DC |
| Cycles | >2000 |
| Solar input voltage | 18V |
| Charging voltage | 10-14.6V |
| Maximum charging current | 10A |
| Output voltage | 12V DC Integrated controller (with standard jack connector compatible with CCTV cameras) |
| AC input voltage | 220V |
| Operating temperature | Charge: 0 °C to 65 °C (32 °F to 140 °F) Discharge: 0 °C to 65 °C (32 °F to 140 °F) |
| Maximum output power | 40W |
| Maximum input power | 100W |
| Battery dimensions | 205 (H) x 68 (W) x 112 (D) mm |
| Protection rating | IP67 |
| Communication | RS485 (For third-party integration). Provides all system information, such as charge level, system status, or consumption |
| Bracket | Bracket for pole or vertical structure mounting Connection to street lamp |
| Maximum pole diameter (not included) | 105mm |
