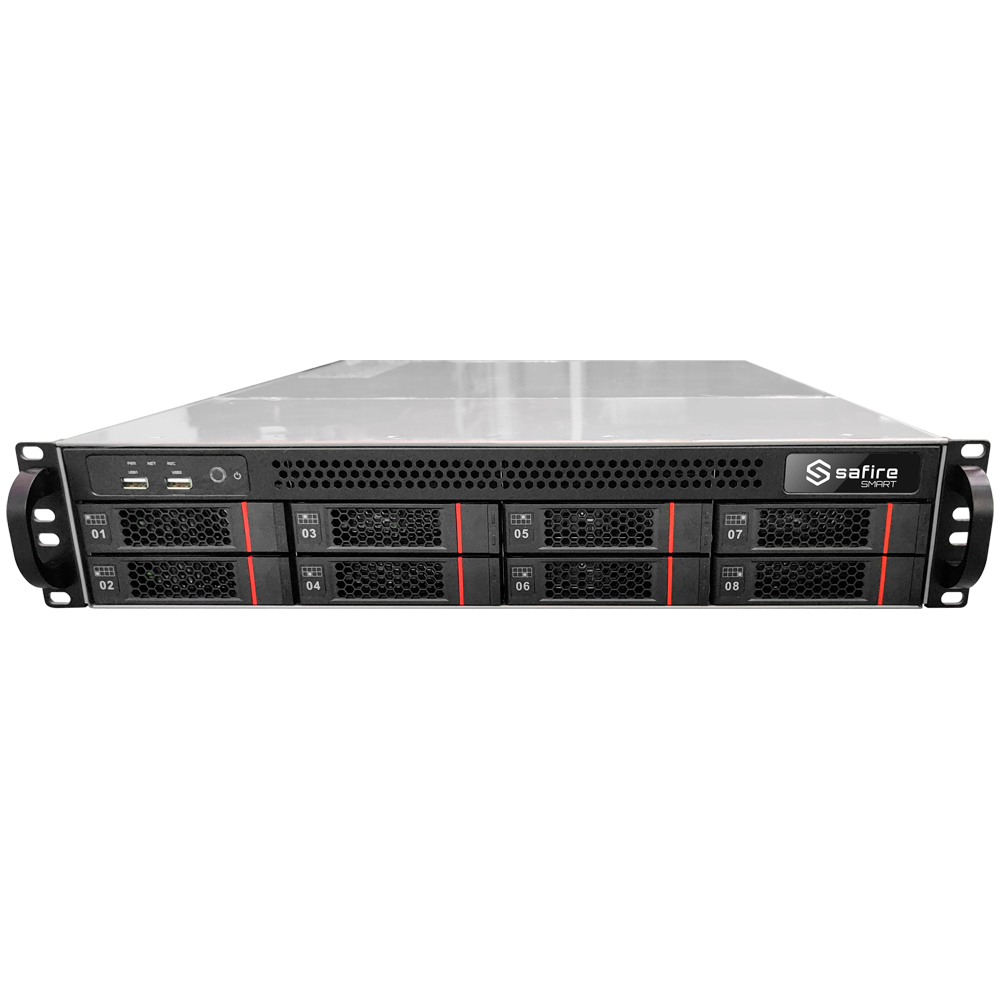

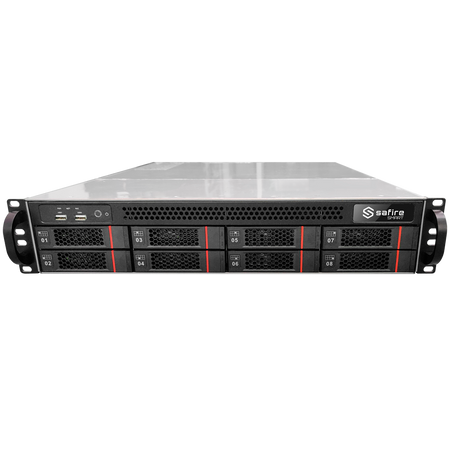

Safire Smart Server with VMS up to 1000CH

Safire Smart - Server with VMS up to 1000CH - 256 devices - Up to 64 users - Up to 8 x 10TB HDDs / RAID - ONVIF compatible

📋 SPECIFICATIONS:
• CPU: ARM 8-Core 64bit AI
• Memory: LPDDR4 8G, 64GB EMMC
• Operating system: Linux
• Display resolution: HDMI1: 7680x4320@60/30, 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768; HDMI2: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768; HDMI3: 3840x2160@60/30, 1920x1080, 1280x1024, 1024x768; HDMI4: 1920x1080, 1280x1024, 1024x768; VGA: 1920x1080; *HDMI 1 and VGA output the same video signal
• Multi-screen: Main output HDMI 1: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 / 24 / 25 / 33 / 36 (Live view); HDMI 2 output: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 / 25 / 36 (Live view); HDMI 3 output: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 (Live view); HDMI 4 output: 1 / 4 / 6 / 7 / 8 / 9 / 10 / 12 / 13 / 16 (Live view)
• Video compression: H.264/H.265/H.265+/H.265S
• Recording mode: Manual, scheduled, motion detection, intelligent events, alarm input, POS
• Audio output: 1CH audio output (MONO); HDMI 1 supports audio output
• Audio compression: G.711(U/A)
• Maximum number of CH: 104 (36 + 36 + 16 + 16)
• Maximum resolution: 16 Mpx
• Decoding capacity: 1x 16Mpx or 4x 12Mpx or 6x 8Mpx (Available only for main output)
• Simultaneous playback: 16CH
• Decoding capacity: 1x 16Mpx or 4x 12Mpx or 6x 8Mpx (Available only for main output)
• Maximum number of user accesses: 64
• Maximum number of online users: 64 (with simultaneous live view)
• Maximum number of channels: 1000 CH
• Maximum number of devices: 256 devices
• Maximum number of decoding outputs: 64
• Maximum number of transfer server accesses: 1
• Maximum number of storage servers: 1
• Maximum number of recording channels via server: 128
• Maximum number of channels via third-party protocols: 1000
• Maximum number of devices via third-party protocols: 256
• Maximum number of channels in simultaneous live playback: 256 (per client/user)
• Maximum number of channels in simultaneous recording playback: 16 (per client/user)
• Maximum number of views: Up to 64 views
• Bandwidth: 768 Mbps incoming / 256 Mbps outgoing
• Storage bandwidth: 512 Mbps
• Face database: 50,000 faces can be registered; Comparison capacity up to 30 faces/second
• Vehicle license plate database: 10,000 license plates can be registered; Comparison capacity up to 25 plates/second
• Fisheye camera access: Supports 1CH configuration for Fisheye camera
• Videowall decoder: Up to 16 videowalls can be created
• Videowall plans: Up to a maximum of 64 videowall plans can be created
• Ethernet interface: 2x RJ45 10/100/1000M auto-adaptive
• Storage: 8x SATA3.0 up to 10TB per HDD; Supports RAID: 0, 1, 5, 6, 10
• E-SATA interface: 2x E-SATA
• Alarms: 16 alarm inputs / 8 alarm outputs
• USB: 1x USB 3.0, 3x USB 2.0
• Power supply: Redundant power supply, AC100V~240V
• Power consumption: <50W (without HDD)
• Operating temperature: -10ºC ~ 50ºC
• Relative humidity: 10% ~ 90%
• Dimensions: 560 (D) x 437.2 (W) X 88 (H) mm
• Environmental protection: EU RoHS Directive, WEEE(2012/19/EU), Directive 94/62/EC and REACH(EC1907/2006)

📦 INCLUDED:
• 1000CH Safire Smart Server • Power cable • Ethernet cable • Quick guide
