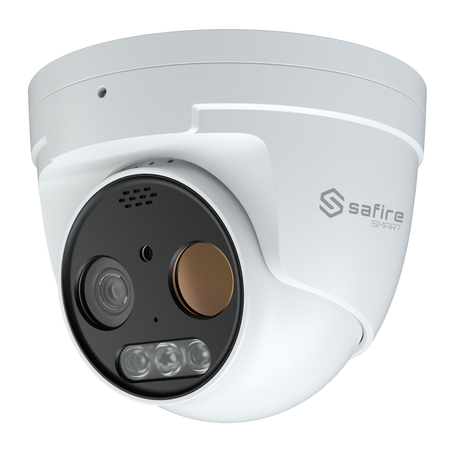

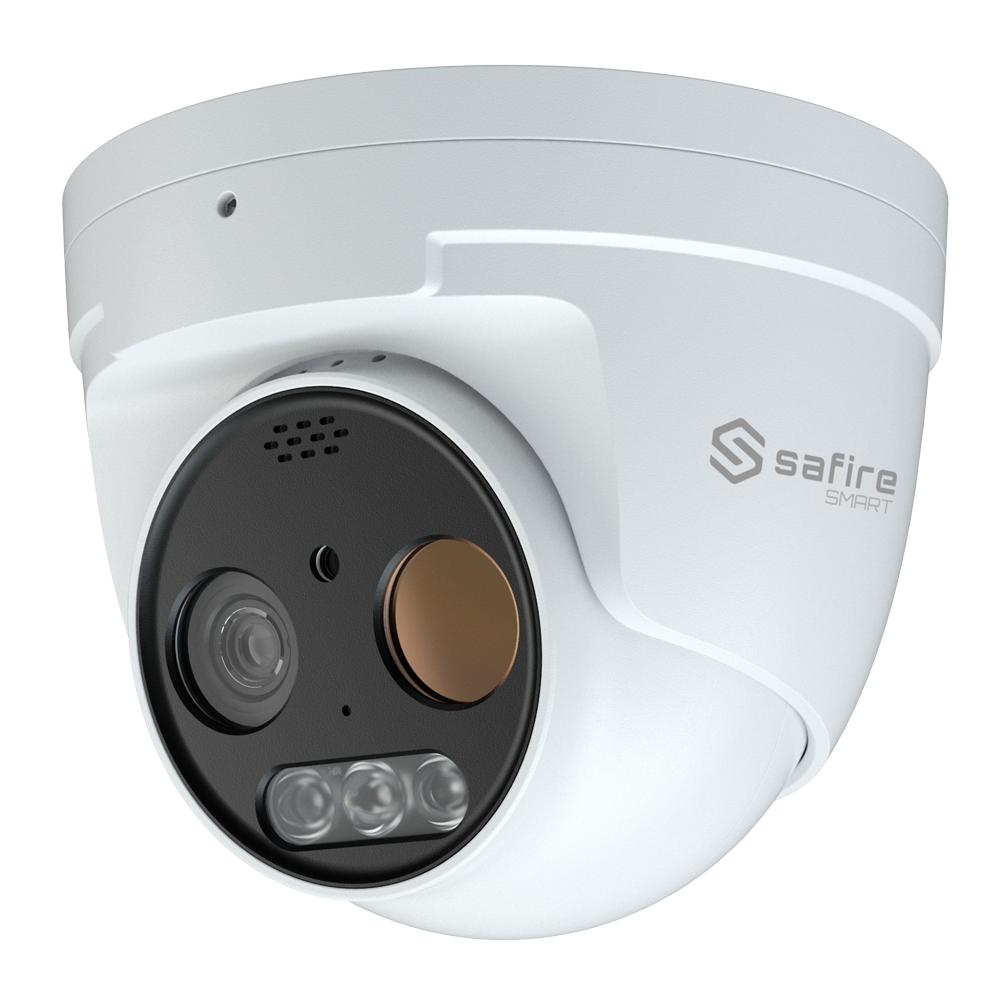

Safire Smart IP dual-lens thermal turret camera
Safire Smart IP dual-lens thermal turret camera
Regular price
€627,06
Final price
Regular price
-15%
€735,00
Sale price
€627,06
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Safire Smart IP dual-lens thermal turret camera - 256x192 VOx thermal sensor | 7 mm lens - 1/2.7” 5 Mpx optical sensor | 8 mm lens - Thermal sensitivity ≤ 50mK - AI based on human and vehicle classification - Temperature measurement range -20~150ºC / ± 8ºC
📋 SPECIFICATIONS:
• Brand: Safire Smart
• Range: Thermal
• Thermal sensor: Vanadium Oxide
• Thermal sensor resolution: 256x192
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Optical sensor resolution: 5 Megapixel (2592x1944)
• Main Stream frame rate: Thermal: 25 fps (256x192, output image obtained is 720P); Optical: 25 fps (5MPx, 4MPx, 2K, 3MPx, 1080P, 720P)
• Sub Stream frame rate: Thermal: 25 fps (256x192, output image obtained is 720P); Optical: 25 fps (720P, D1, CIF)
• Third Stream: Thermal: 25 fps (256x192, output image obtained is 720P); Optical: 25 fps (D1, CIF, 480x240)
• Compression: H.265 / H.264 / MJPEG
• Lens: 7 mm (Therm) / 8 mm (Opt)
• DORI (Thermal): Person: 292 m (D), 73 m (R), 36 m (I); Vehicle: 894 m (D), 224 m (R), 112m (I)
• Temperature measurement: 2m x 2m object: 233m; 1m x 1m object: 117m
• Fire detection: 2m x 2m object: 583m; 1m x 1m object: 292m
• Angle of view: Thermal: 24.8° (H), 18.7° (V); Optical: 34° (H), 27.5° (V)
• Thermal sensitivity: ≤ 50mK (0.05 ºC)
• Thermal measurement range: -20 ~150 ºC / ± 8 ºC
• Spectral range: 8~14 μm
• Detector pitch: 12 μm
• Basic functions: Motion detection, microSD error, microSD full, IP conflict, cable connection status
• Temperature rules: Up to 10 rules (10 points, 2 areas and 2 lines)
• Temperature alarm: High temperature, Low temperature
• Fire detection: Dynamic fire detection up to 10 areas
• Intelligent functions: Thermal:; Advanced Artificial Intelligence: Human and vehicle classification for: Area intrusion and Line crossing; Optical:; Advanced Artificial Intelligence: Human, vehicle and non-motorized vehicle classification for: Area intrusion and Line crossing; Face detection and capture; People, vehicle and non-motorized vehicle counting; Video exceptions (scene change, video loss, ...)
• Audio: Built-in microphone, 1 input / 1 output 600 ohm
• Audio compression: G.711 A/U
• Alarms: 1 Input / 1 Output
• Deterrence alarm: Siren and flash integrated in the camera
• Internal memory: MicroSD card slot up to 256 GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: Web browser, NVR and Safire Smart Center PC software
• Interoperability: ONVIF
• Power supply: DC 12 V, 0.7 A, 9 W max.; PoE IEEE802.3af
• Operating temp.: -30º C ~ +60º C
• Protection rating: Waterproof IP66
• Dimensions: 111.5 (Ø) x 99.6 (L) mm
• Weight: 680 g
📦 INCLUDED:
• Safire Smart dual-lens IP thermal camera• Installation material• User manual
| Range | Thermal |
|---|---|
| Thermal sensor | Vanadium Oxide |
| Thermal sensor resolution | 256x192 |
| Optical sensor | 1/2.7” Progressive Scan CMOS |
| Optical sensor resolution | 5 Megapixel (2592x1944) |
| Main Stream frame rate | Thermal: 25 fps (256x192, output image is 720P) Optical: 25 fps (5MPx, 4MPx, 2K, 3MPx, 1080P, 720P) |
| Sub Stream frame rate | Thermal: 25 fps (256x192, output image is 720P) Optical: 25 fps (720P, D1, CIF) |
| Third Stream | Thermal: 25 fps (256x192, output image is 720P) Optical: 25 fps (D1, CIF, 480x240) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 7 mm (Therm) / 8 mm (Opt) |
| DORI (Thermal) | Person: 292 m (D), 73 m (R), 36 m (I) Vehicle: 894 m (D), 224 m (R), 112m (I) |
| Temperature measurement | Object 2m x 2m: 233m Object 1m x 1m: 117m |
| Fire detection | Object 2m x 2m: 583m Object 1m x 1m: 292m |
| Viewing angle | Thermal: 24.8° (H), 18.7° (V) Optical: 34° (H), 27.5° (V) |
| Thermal sensitivity | ≤ 50mK (0.05 ºC) |
| Thermal measurement range | -20 ~150 ºC / ± 8 ºC |
| Spectral range | 8~14 μm |
| Detector pitch | 12 μm |
| Basic functions | Motion detection, microSD error, microSD full, IP conflict, cable connection status |
| Temperature rules | Up to 10 rules (10 points, 2 areas and 2 lines) |
| Temperature alarm | High temperature, Low temperature |
| Fire detection | Dynamic fire detection up to 10 areas |
| Intelligent functions | Thermal: Advanced Artificial Intelligence: Classification of people and vehicles for: Area intrusion and Line crossing Optical: Advanced Artificial Intelligence: Classification of people, vehicles and non-motorized vehicles for: Area intrusion and Line crossing Face detection and capture People, vehicle and non-motorized vehicle counting Video exceptions (scene change, video loss, ...) |
| Audio | Built-in microphone, 1 input / 1 output 600 ohm |
| Audio compression | G.711 A/U |
| Alarms | 1 Input / 1 Output |
| Deterrent alarm | Siren and flash built into the camera |
| Internal memory | MicroSD card slot up to 256 GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web browser, NVR and PC software Safire Smart Center |
| Interoperability | ONVIF |
| Power supply | DC 12 V, 0.7 A, 9 W max. PoE IEEE802.3af |
| Operating temp. | -30º C ~ +60º C |
| Protection rating | Waterproof IP66 |
| Dimensions | 111.5 (Ø) x 99.6 (L) mm |
| Weight | 680 g |
