SAFIRE SMART

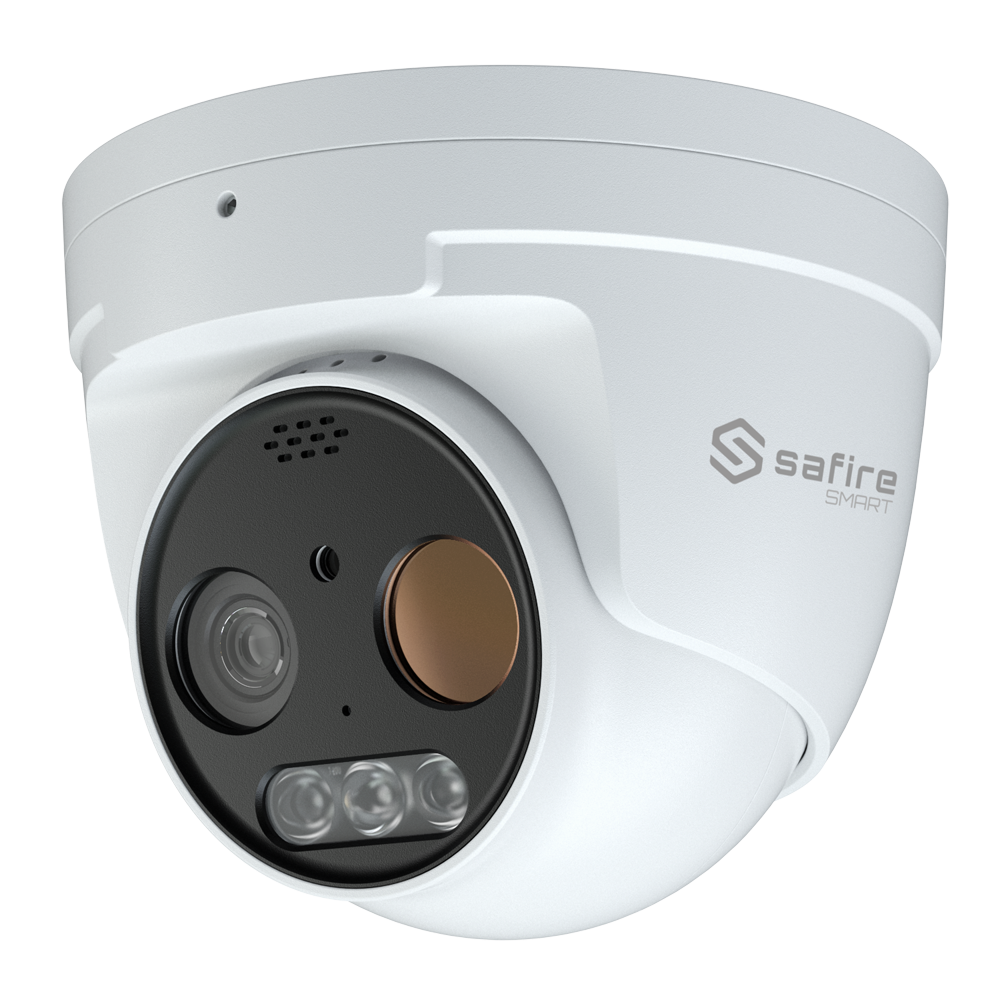

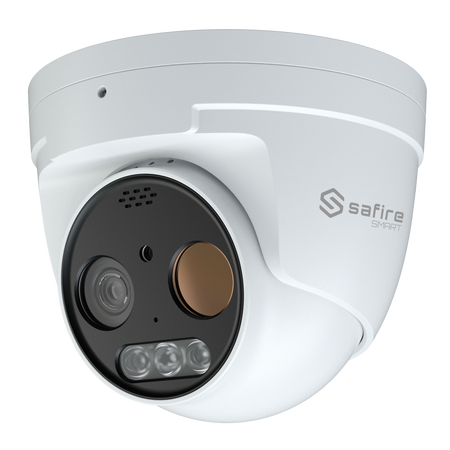

Safire Smart IP Turret dual-lens thermal camera

SKU: SF-IPTT256A-3D5
(0)
In stock
Usually shipped within 24 hours
€627,06 Final price
-15% €735,00 €627,06 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Safire Smart IP Dual-Lens Thermal Turret Camera - 256x192 VOx thermal sensor | 3.2 mm lens - 1/2.7” 5 Mpx optical sensor | 4 mm lens - Thermal sensitivity ≤ 50mK - AI based on human and vehicle classification - Temperature measurement range -20~150ºC / ± 8ºC

📋 SPECIFICATIONS:
• Brand: Safire Smart
• Range: Thermal
• Thermal sensor: Vanadium Oxide
• Thermal sensor resolution: 256x192
• Optical sensor: 1/2.7” Progressive Scan CMOS
• Optical sensor resolution: 5 Megapixels (2592x1944)
• Main Stream frame rate: Thermal: 25 fps (256x192, output image is 720P); Optical: 25 fps (5MPx, 4MPx, 2K, 3MPx, 1080P, 720P)
• Sub Stream frame rate: Thermal: 25 fps (256x192, output image is 720P); Optical: 25 fps (720P, D1, CIF)
• Third Stream: Thermal: 25 fps (256x192, output image is 720P); Optical: 25 fps (D1, CIF, 480x240)
• Compression: H.265 / H.264 / MJPEG
• Lens: 3.2 mm (Therm) / 4 mm (Opt)
• DORI (Thermal): Person: 133 m (D), 33 m (R), 17 m (I); vehicle: 409 m (D), 102 m (R), 51 (I)
• Temperature measurement: Object 2m x 2m: 107m; Object 1m x 1m: 53m
• Fire detection: Object 2m x 2m: 267m; Object 1m x 1m: 133m.
• Viewing angle: Thermal: 56° (H), 42.2° (V); Optical: 81° (H), 56.7° (V)
• Thermal sensitivity: ≤ 50mK (0.05 º C)
• Thermal measurement range: -20 ~150 ºC / ± 8 ºC
• Spectral range: 8~14 μm
• Detector pitch: 12 μm
• Basic functions: Motion detection, microSD error, microSD full, IP conflict, cable connection status
• Temperature rules: Up to 10 rules (10 points, 2 areas and 2 lines)
• Temperature alarm: High temperature, Low temperature
• Fire detection: Dynamic fire detection up to 10 areas
• Intelligent functions: Thermal:; Advanced Artificial Intelligence: Human and vehicle classification on: Area intrusion and Line crossing; Optical:; Advanced Artificial Intelligence: Human, vehicle and non-motorized vehicle classification on: Area intrusion and Line crossing; Face detection and capture; Human, vehicle and non-motorized vehicle counting; Video exceptions (scene change, video loss, ...)
• Audio: Built-in microphone, 1 input / 1 output 600 ohm
• Audio compression: G.711 A/U
• Alarms: 1 Input / 1 Output
• Deterrent alarm: Siren and flash integrated into the camera
• Internal memory: MicroSD card slot up to 256 GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: Web browser, NVR and Safire Smart Center PC Software
• Interoperability: ONVIF
• Power supply: DC 12 V, 0.7 A, 9 W max.; PoE IEEE802.3af
• Operating temp.: -30º C ~ +60º C
• Protection rating: Waterproof IP66
• Dimensions: 130 (Ø) x 110 (L) mm
• Weight: 680 g

📦 INCLUDED:
• Safire Smart IP dual-lens thermal camera• Installation material• User instructions
Range Thermal
Thermal sensor Vanadium Oxide
Thermal sensor resolution 256x192
Optical sensor 1/2.7” Progressive Scan CMOS
Optical sensor resolution 5 Megapixel (2592x1944)
Main Stream frame rate Thermal: 25 fps (256x192, output image obtained is 720P) Optical: 25 fps (5MPx, 4MPx, 2K, 3MPx, 1080P, 720P)
Sub Stream frame rate Thermal: 25 fps (256x192, output image obtained is 720P) Optical: 25 fps (720P, D1, CIF)
Third Stream Thermal: 25 fps (256x192, output image obtained is 720P) Optical: 25 fps (D1, CIF, 480x240)
Compression H.265 / H.264 / MJPEG
Lens 3.2 mm (Therm) / 4 mm (Opt)
DORI (Thermal) Person: 133 m (D), 33 m (R), 17 m (I) Vehicle: 409 m (D), 102 m (R), 51 (I)
Temperature measurement Object 2m x 2m: 107m Object 1m x 1m: 53m
Fire detection Object 2m x 2m: 267m Object 1m x 1m: 133m.
Field of view Thermal: 56° (H), 42.2° (V) Optical: 81° (H), 56.7° (V)
Thermal sensitivity ≤ 50mK (0.05 ºC)
Thermal measurement range -20 ~150 ºC / ± 8 ºC
Spectral range 8~14 μm
Detector pitch 12 μm
Basic functions Motion detection, microSD error, microSD full, IP conflict, cable connection status
Temperature rules Up to 10 rules (10 points, 2 areas, and 2 lines)
Temperature alarm High temperature, Low temperature
Fire detection Dynamic fire detection up to 10 areas
Intelligent functions Thermal: Advanced Artificial Intelligence: Human and vehicle classification for: Area intrusion and Line crossing Optical: Advanced Artificial Intelligence: Human, vehicle, and non-motorized vehicle classification for: Area intrusion and Line crossing Face detection and capture People, vehicle, and non-motorized vehicle counting Video exceptions (scene change, video loss, ...)
Audio Built-in microphone, 1 input / 1 output 600 ohm
Audio compression G.711 A/U
Alarms 1 Input / 1 Output
Deterrent alarm Siren and flash integrated in the camera
Internal memory MicroSD card slot up to 256 GB
Network interface Ethernet 10/100M BaseT
Remote access Web browser, NVR, and Safire Smart Center PC software
Interoperability ONVIF
Power supply DC 12 V, 0.7 A, 9 W max. PoE IEEE802.3af
Operating temp. -30º C ~ +60º C
Protection degree Waterproof IP66
Dimensions 130 (Ø) x 110 (L) mm
Weight 680 g
