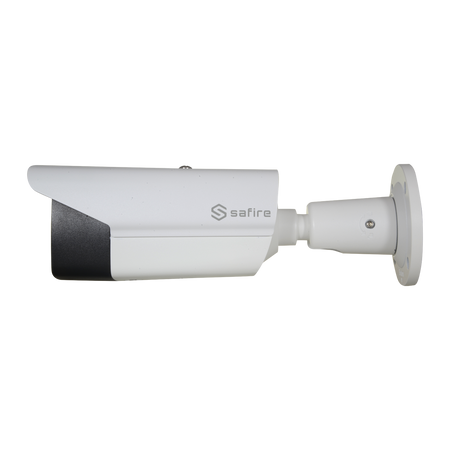

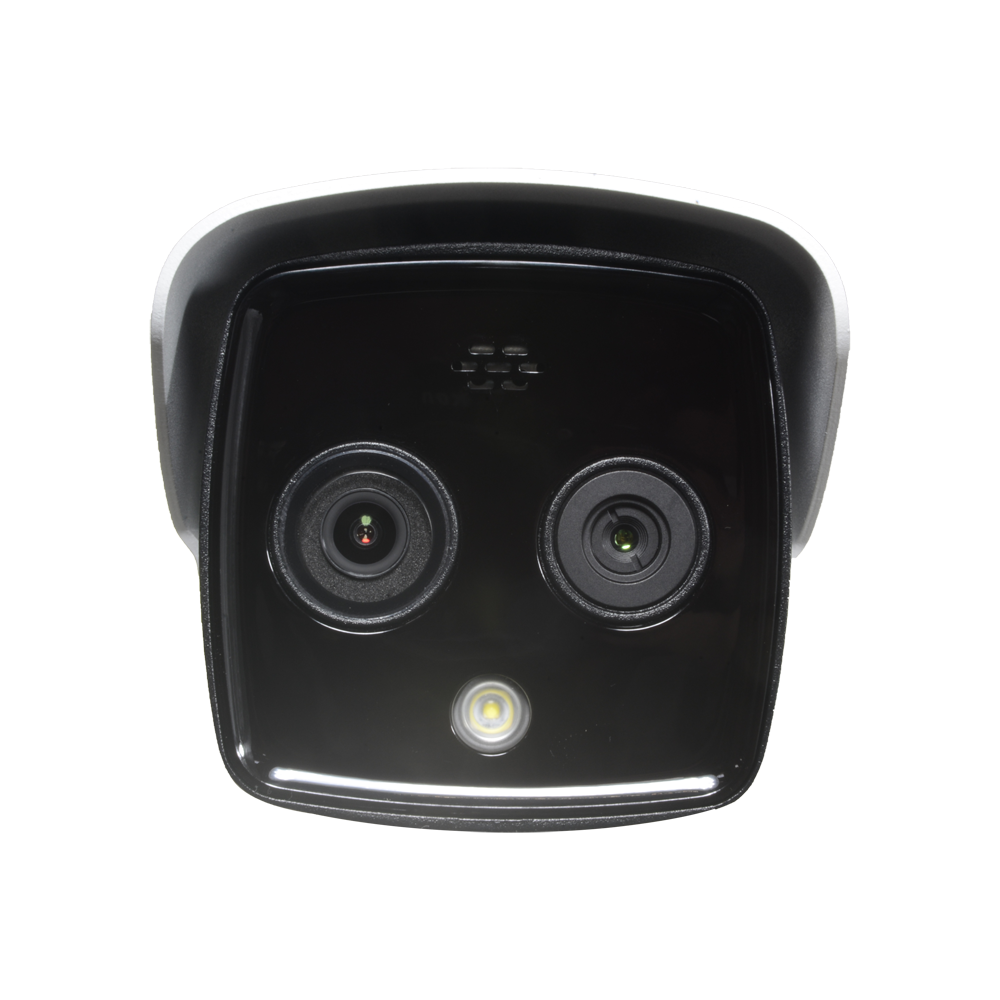

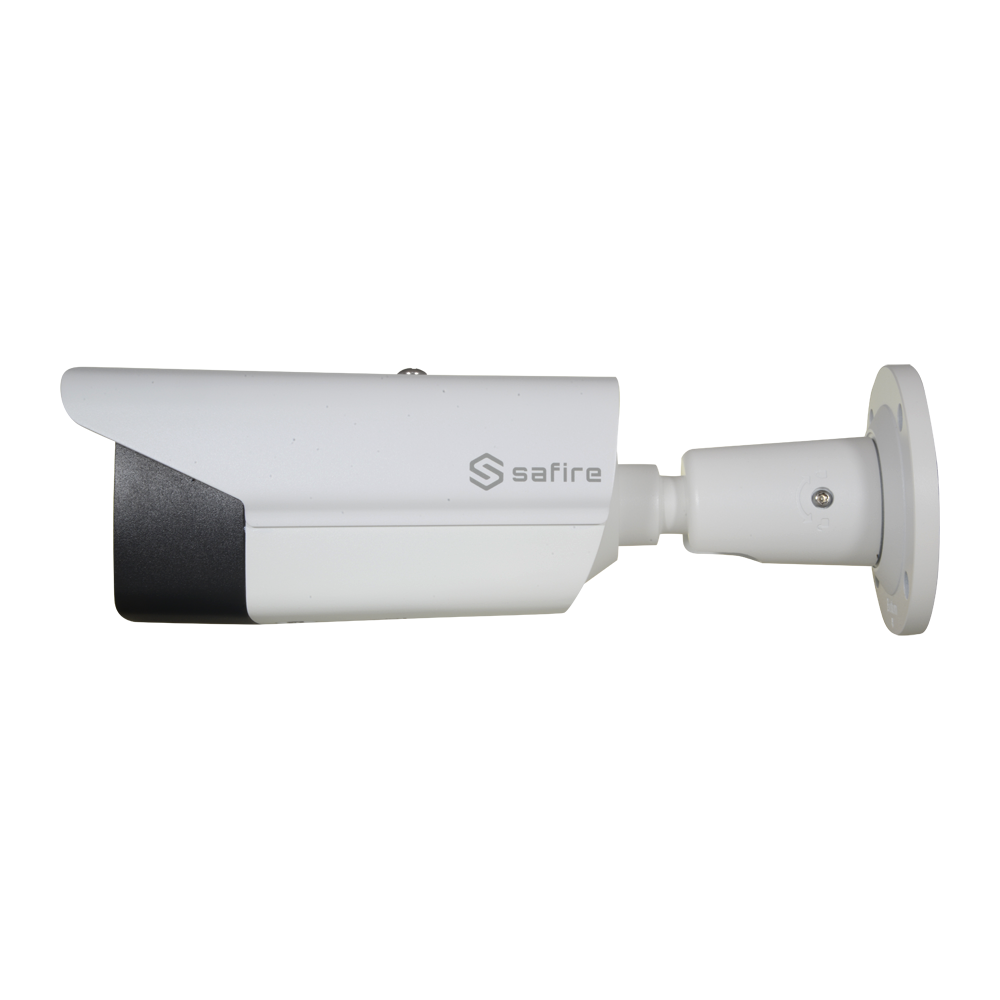

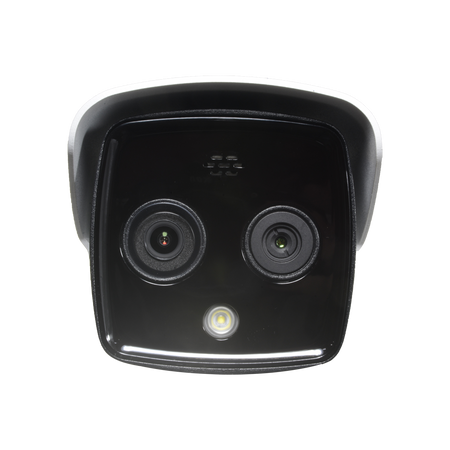

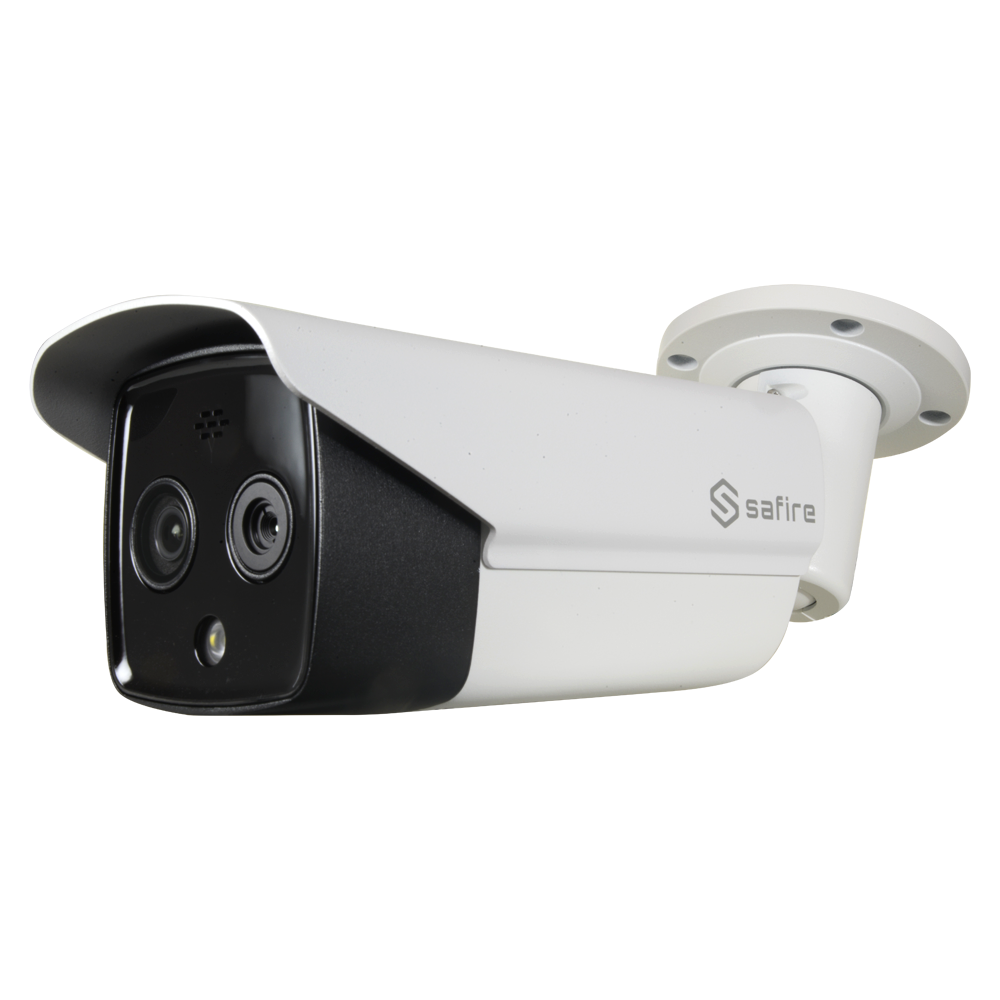

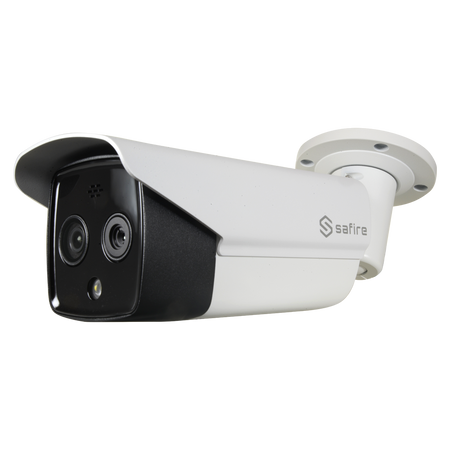

Safire Dual IP Thermal Camera
Regular price
€1.095,26
Final price
Regular price
-5%
€1.148,00
Sale price
€1.095,26
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Safire Dual IP thermal camera - 256x192 VOx | 9.7mm lens - 1/2.7” 4 Mpx optical sensor | 8mm lens - Thermal sensitivity ≤ 40mK - Fire detection and alarm - Temperature measurement range -20~150ºC / ± 8ºC
📋 SPECIFICATIONS:
• Brand: Safire
• Thermal sensor: 256x192 Vanadium Oxide
• Optical sensor: 1/2.7” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: 1280 × 720, 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal; 2688 × 1520, 1920 × 1080, 1280 × 720) (1~25FPS) Optical
• Sub Stream frame rate: 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal; 704 x 576, 352 x 288 (1~25FPS) Optical
• Compression: H.265 / H.264 / MJPEG
• Optics: 9.7 mm (Therm) / 8 mm (Opt)
• DORI: Person: 404 (D) / 101 (R) / 50 (I) m; vehicle: 1239 (D) / 310 (R) / 155 (I) m
• VCA Range: Person: 77.6m; vehicle: 203.7 m; Tº measurement (0.2x0.2m): 32.3 m; Tº measurement (1x1m): 161.7 m
• Viewing angle: 18° x 13.5° (Therm) / 39.4° x 22.1° (Opt)
• Thermal sensitivity: < 40mK (0.05 º C)
• Thermal measurement range: -20 ~150 º C / ± 8 º C
• Spectral range: 8~14μm
• Pixel pitch: 12μm
• VCA: Up to 8 VCA rules (crossing lines, intrusion, region entrance and exit)
• Temperature rules: Up to 21 rules (10 points, 10 areas and 1 line)
• Audio In/Out: 1/ 1 line level 600 ohm
• Alarm In/Out: 2/2 Relay
• Internal memory: Micro SD card up to 256GB
• Network interface: Ethernet 10/100 BaseT
• Remote access: WEB interface, CMS (DSS/PSS), Smartphone and NVR
• Interoperability: ONVIF
• Power supply: 12VDC, 0.5A, max.6W; PoE IEEE802.3af, 0.14~0.22A, max.6.5W
• Operating temp.: -40º C ~ +65º C
• Protection rating: Waterproof IP67
• Dimensions: 138.3 mm (D) x 138.3 (H) x 123.1 (W) mm
• Weight: 940 g
📦 INCLUDED:

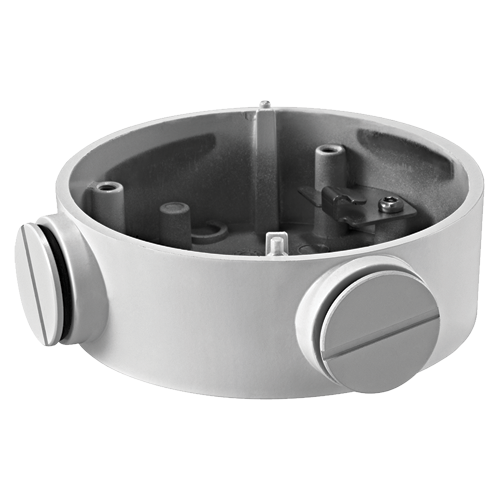

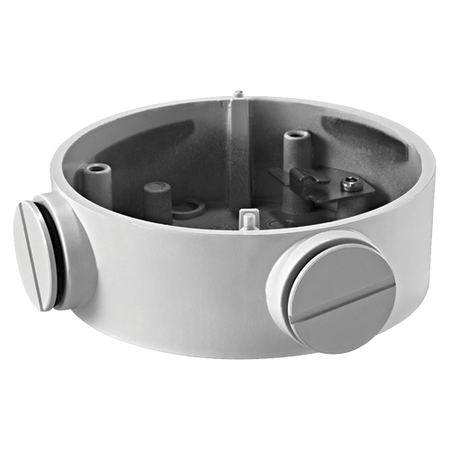

• Safire IP thermal camera• Installation material• User instructions• Connection box included
| Thermal sensor | 256x192 Vanadium Oxide |
|---|---|
| Optical sensor | 1/2.7” Progressive Scan 4 Megapixel CMOS |
| Main Stream frame rate | 1280 × 720, 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal; 2688 × 1520, 1920 × 1080, 1280 × 720 (1~25FPS) Optical |
| Sub Stream frame rate | 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal; 704 x 576, 352 x 288 (1~25FPS) Optical |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 9.7 mm (Therm) / 8 mm (Opt) |
| DORI | Person: 404 (D) / 101 (R) / 50 (I) m; vehicle: 1239 (D) / 310 (R) / 155 (I) m |
| VCA Range | Person: 77.6m; vehicle: 203.7 m; Temp measurement (0.2x0.2m): 32.3 m; Temp measurement (1x1m): 161.7 m |
| Field of view | 18° x 13.5° (Therm) / 39.4° x 22.1° (Opt) |
| Thermal sensitivity | < 40mK (0.05 º C) |
| Thermal measurement range | -20 ~150 º C / ± 8 º C |
| Spectral range | 8~14μm |
| Detector pitch | 12μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature rules | Up to 21 rules (10 points, 10 areas and 1 line) |
| Audio In/Out | 1/1 line level 600 ohm |
| Alarm In/Out | 2/2 Relay |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC, 0.5A, max.6W; PoE IEEE802.3af, 0.14~0.22A, max.6.5W |
| Operating temp. | -40º C ~ +65º C |
| Protection rating | Waterproof IP67 |
| Dimensions | 138.3 mm (D) x 138.3 (H) x 123.1 (W) mm |
| Weight | 940 g |
