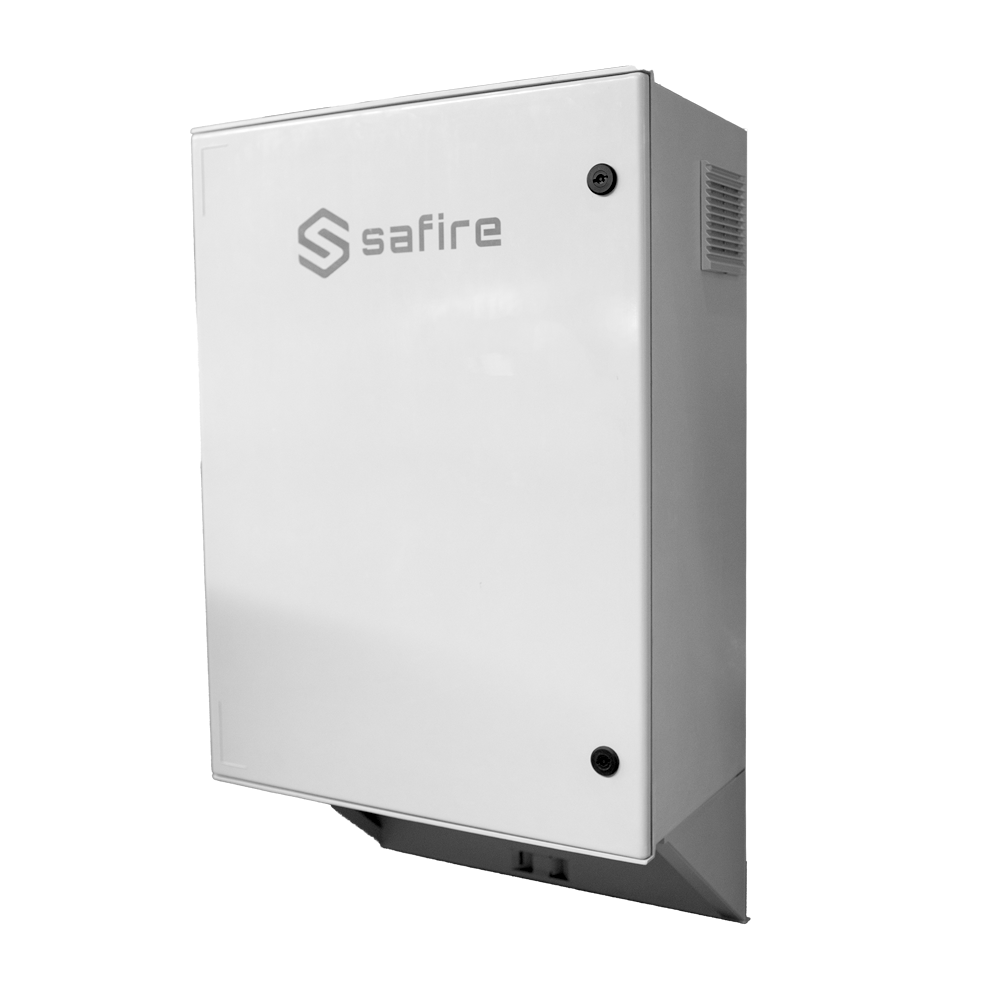

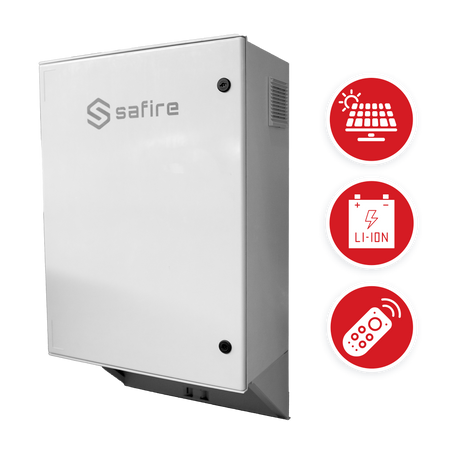

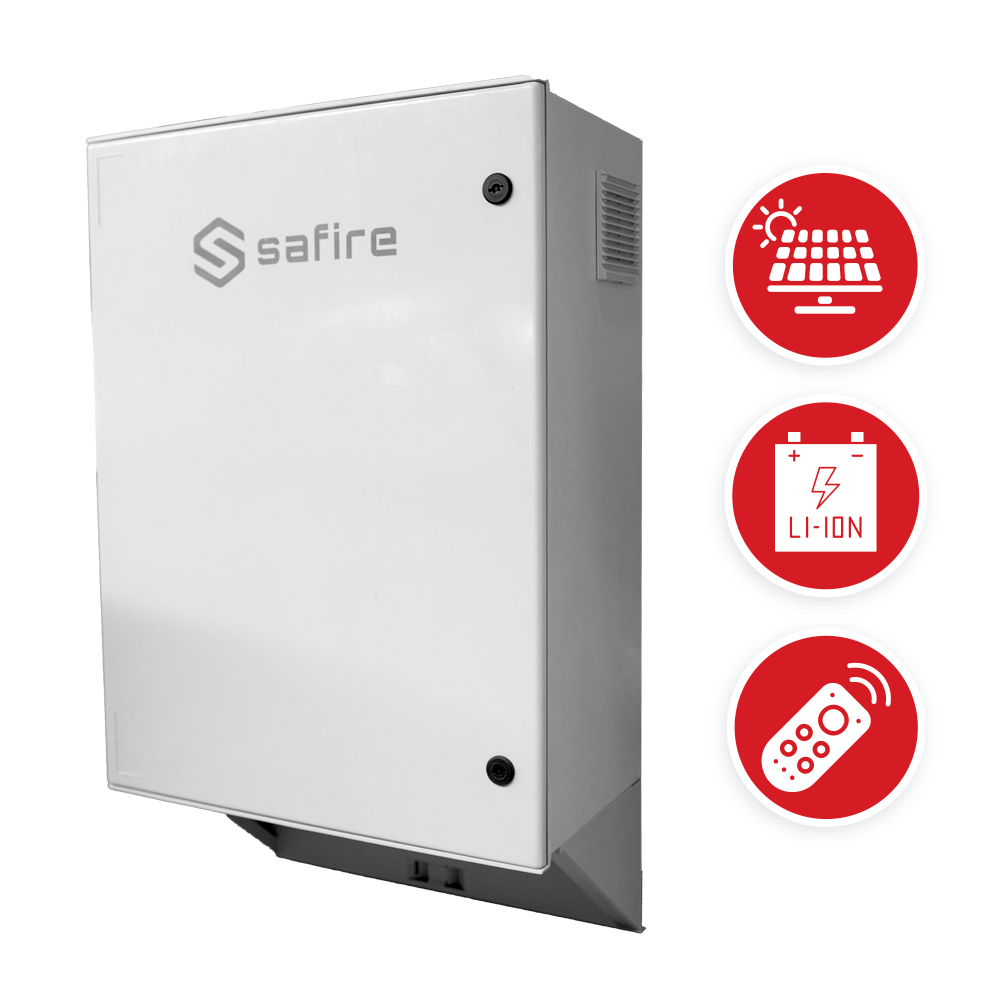

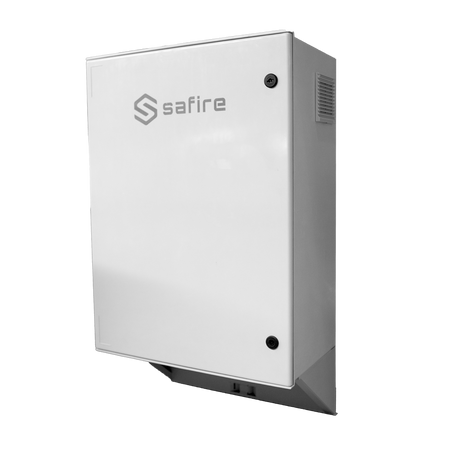

Safire polyester solar fast charging box - White

Solar fast-charging polyester box - Circuit breaker and SPD - External dimensions 80x60x30cm - 8-port POE switch | Fiber fusion tray - IP55 protection rating / DIN rail - Fast charging 17 amps/hour

📋 SPECIFICATIONS:
• Brand: Safire

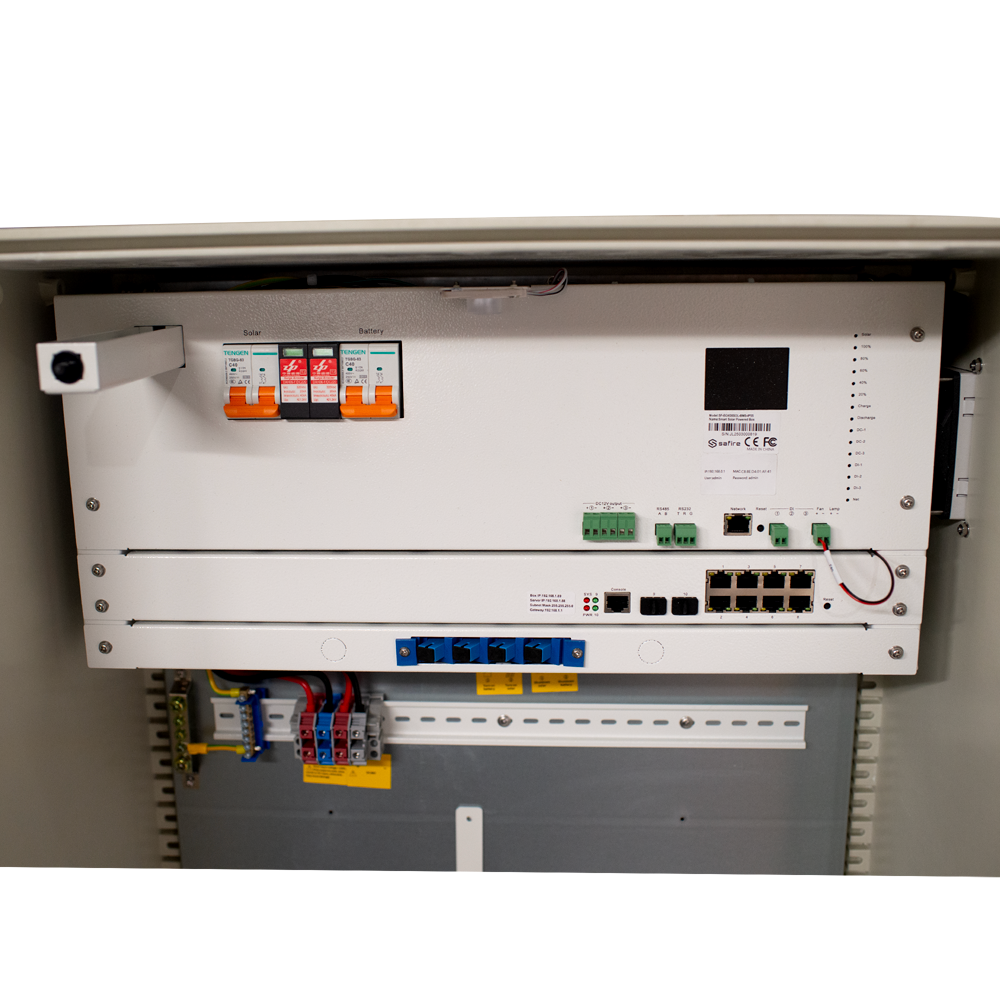

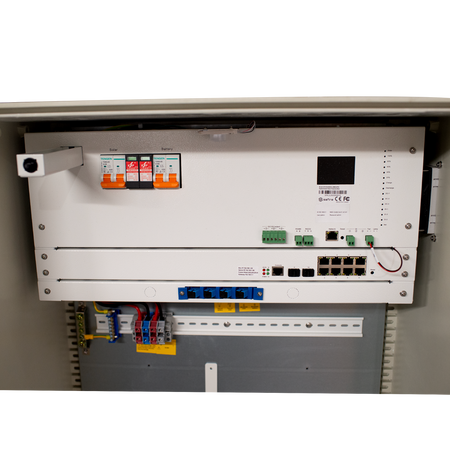

• Type: Polyester cabinet with switch and power supply included
• Security: Double key lock
• Power input: Input < 100VDC (voltage supplied by a solar panel not included, a 60V panel or 2 30V DC panels connected in series are recommended)
• Plug: x2, European type F
• Transient SPD: xSPD 2P, AC380V, 20KA
• Circuit breaker: MCB circuit breaker, 1P, DC220V, 16A, type C + 1P, DC220V, 16A, type C
• DC output: 3x 12V DC, Max. 240 (across the 3 outputs)
• Fan: 1x 12V DC
• Light: DC 12V; internal LED for nighttime maintenance. Turns on when the door is opened
• Door sensor: Yes
• Ethernet switch: xSwitch 8*10/100/1000M PoE (2*90W ports, 6*30W ports) + 2*1000 SFP, L2 managed
• Alarm input: 3 inputs, dry contact; *Input 1 used by default for the door contact
• Smart module network port: 1 x 10/100Base-TX
• Reset button: > Hold for 5 s: Factory reset
• Converter: DC 48V to DC 12V converter
• Charge controller: Maximum input voltage 100V, supports DC12V/24V/48V battery, 20A charging current
• LCD screen: Size: 2.5-inch LCD display
• Fiber fusion tray: 4 x SC (connector) UPC
• Operating temperature: -20℃~70℃
• Storage temperature: -40℃~85℃
• Humidity: 0~90% non-condensing

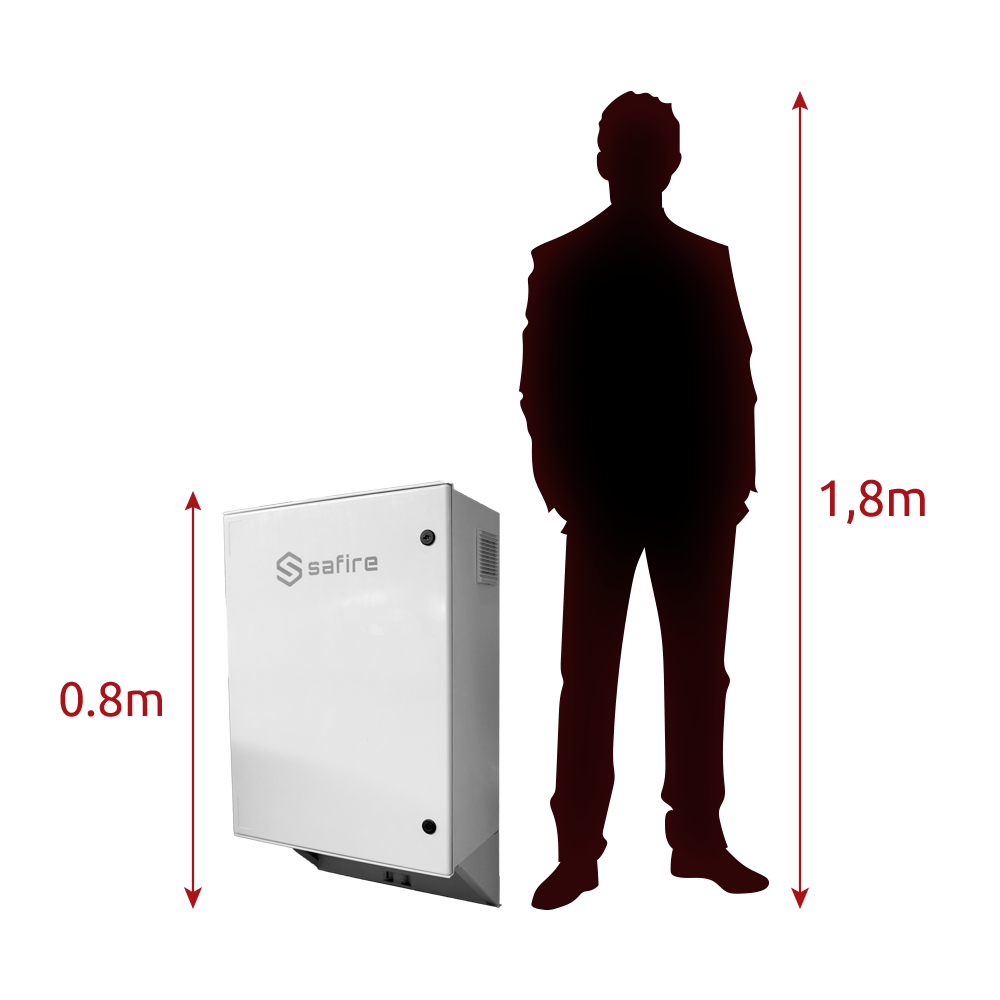

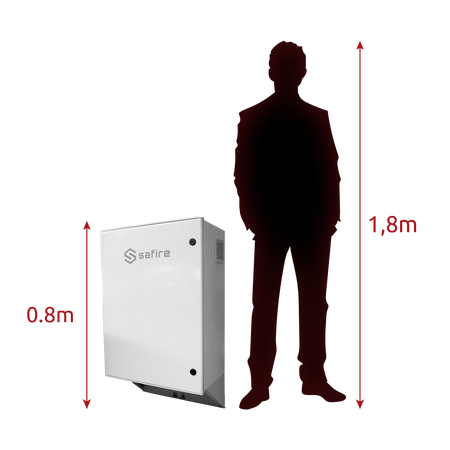

• External dimensions: 800 (W) x 600 (H) x 300 (D) mm
• Material: SMC (fiberglass-reinforced polyester resin)
• Color: White
• Net weight: 22Kg
• Management software: Yes
• Clamp diameter: 400mm
• Consumption: Self-consumption < 20W, output < PoE 180W max.
• Extended POE: Yes
• Ports: Ports 1-2: 10/100/1000Base-T, 90 W, PoE RJ45 (IEEE 802.3bt, also compatible with IEEE802.3af/at); Ports 3-8: 10/100/1000Base-T, 30 W, PoE RJ45 (IEEE802.3af/at)
• SFP: Ports 9~10, 1000Base-X SFP Slot
• Switching capacity: 20Gbps
• Bandwidth: 14.88Mpps
• Buffer: 1M
• MAC address table: 8K
• Protection: Overvoltage: 6 kV, standard: IEC61000-4-5; ESD: 6 kV: contact/8 kV: air, standard: IEC61000-4-2
• System configuration: Date and time; User management; Security management (http, SNMP, telnet, SSH); Configuration files (export/import); Firmware; System (reboot, default)
• Port configuration: Status; Port speed; Traffic control; Storm control (broadcast, range, unicast, multicast); Port protection; MAC Learning; Trunk ports; Mirror ports; DHCP; IGMP snooping; VLAN; LACP; LLDP; Loopback detection; MAC VLAN; VLAN mapping; Voice VLAN; Mvr interface; OAM; QinQ; Udld; Jumbo frame; DDM information
• MAC: MAC binding; Auto binding; MAC filter; Bridge
• VLAN: Work mode (access, trunk, hybrid); Default VLAN; Tagged member
• SNMP configuration: SNMP community (community name, read, write); TRAP (SNMP version V1, V2C, V3)
• ACL configuration: Standard IP (Groups, source IP, wildcard, math data packets); Extended IP (Groups, source IP, source wildcard, destination IP, destination wildcard, protocol, source port); IP MAC; MAC ARP; ACL time range; Time interval
• QoS configuration: QoS application; QoS agenda; IP address; ARP; Host static path
• AAA configuration: Tacacs+; Radius; 802.1X authentication
• STP configuration: MSTP; STP port
• IGMP Snooping configuration: Available
• GMRP configuration: Global GMRP; GMRP ports; GMRP registration
• EAPS configuration: EAPS
• RMON configuration: Statistics; History; Alarm; Events
• Cluster management: NDP; NTDP; Cluster
• Log information: Log; Syslog
• POE power control: Type; Admin status; Total power; POE policy; PD query
• DHCP: DHCP Snooping
• ERPS configuration: ERPS; ERPS loop 1~21
• LACP: LACP active links
• Line: Vty
• LLDP: Global; Hold multiplier; Timer
• Loop detection: Detection time; Protocol; Response packets; Response time
• MVR: Groups; VLAN
• OAM: Error frame; Period; Seconds
• Redundant port: Forced; Primary port
• UDLD: Enable; Time
• VLAN protocol: ARP, Atalkaarp, Atalkddp, Atmmulti, Atmtransport, Dec, Deccustom, Decdiagnostics, Decnadumpload, Decdnaremoteconsole, Decnarouting, Declat, Desyscomn, G8bpqx25, IEEEaddrtrans, IEEEpup, IP, IPX, PPPdiscovery, PPPsession, Rarp, X25, Xeroxaddrtrans, Xeroxpup
• CFM: CC; Enable; Linktrace; MA; MD; Regola-mip; Service-instance
• Open circuit input voltage: 100Vdc
• MPPT voltage range: (Battery voltage +2V) 72Vdc
• Maximum input power: 260W/12V; 520W/24V; 780W/36V; 1040W/48V; 1300W/60V
• Battery type: Lithium
• Battery capacity: 12/24/36/48Vdc
• Battery voltage range: 8~64Vdc
• Charging current: 20A
• Charging type: Resistive, capacitive, inductive
• Charging voltage: Equal to battery voltage 12V/24/36/48V
• Power current: 20A
• Efficiency: >99%
• Charging conversion efficiency: 85%~98% (Corresponding to charging power 10%~100%)

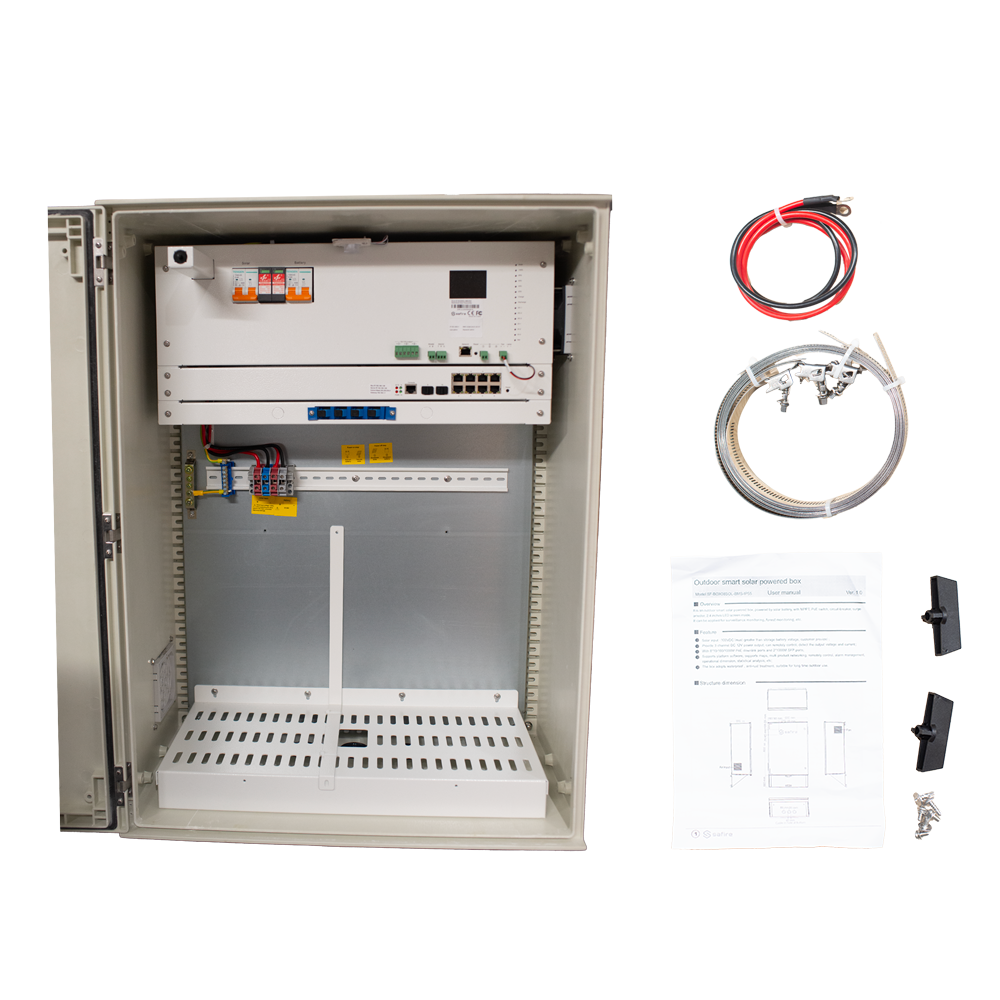

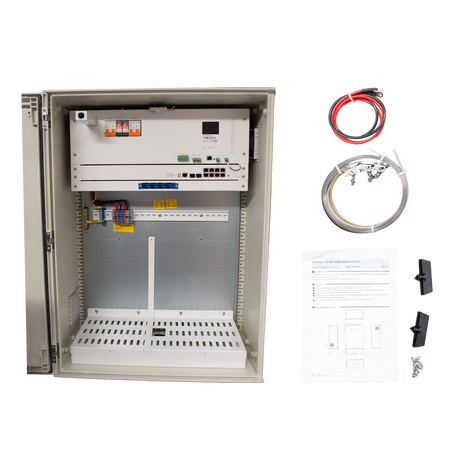

📦 INCLUDED:
• Polyester box • Installation material • Din rail • Pole clamps • Battery connection cable • Plastic door key
