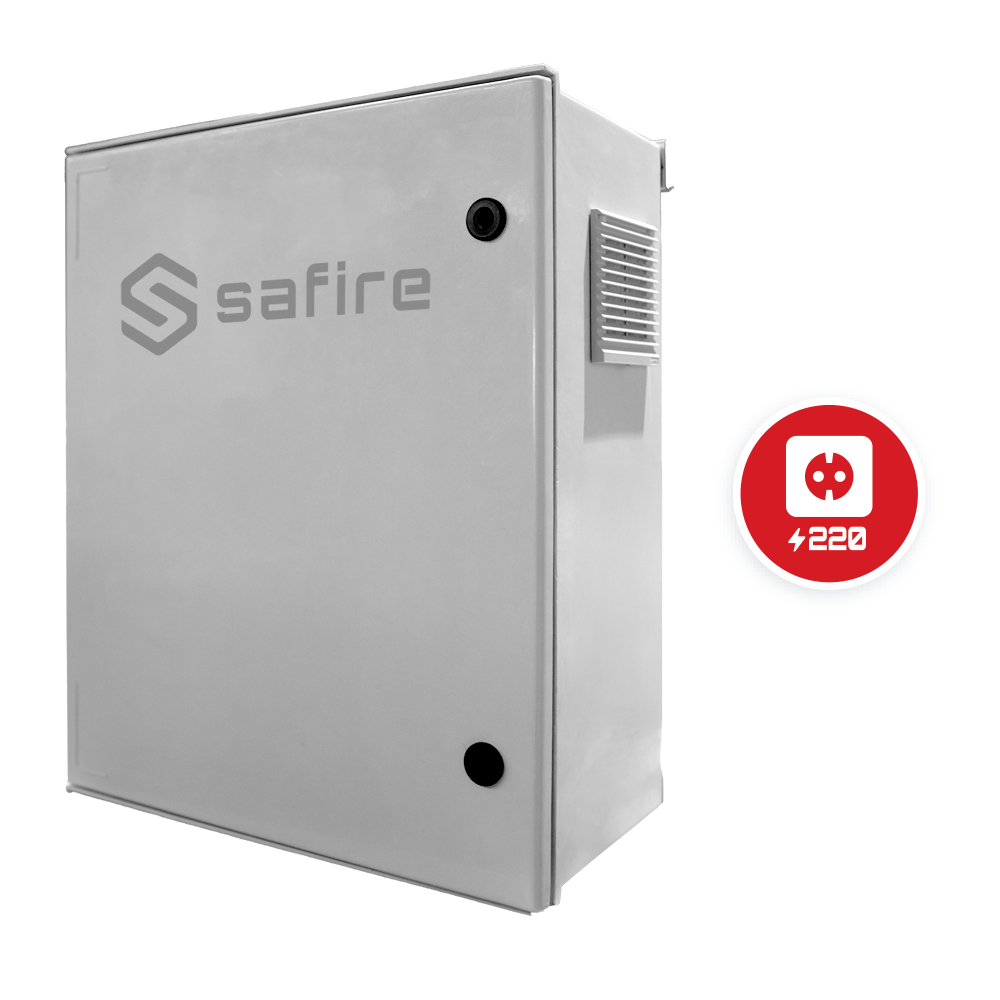

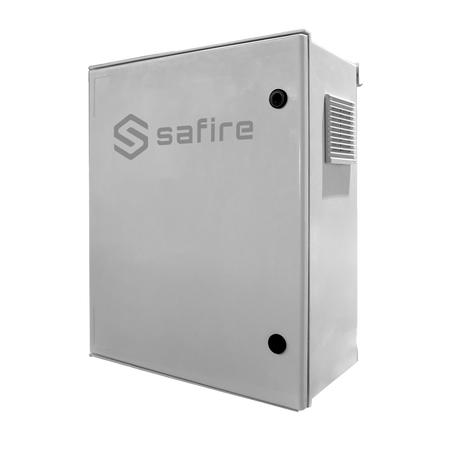

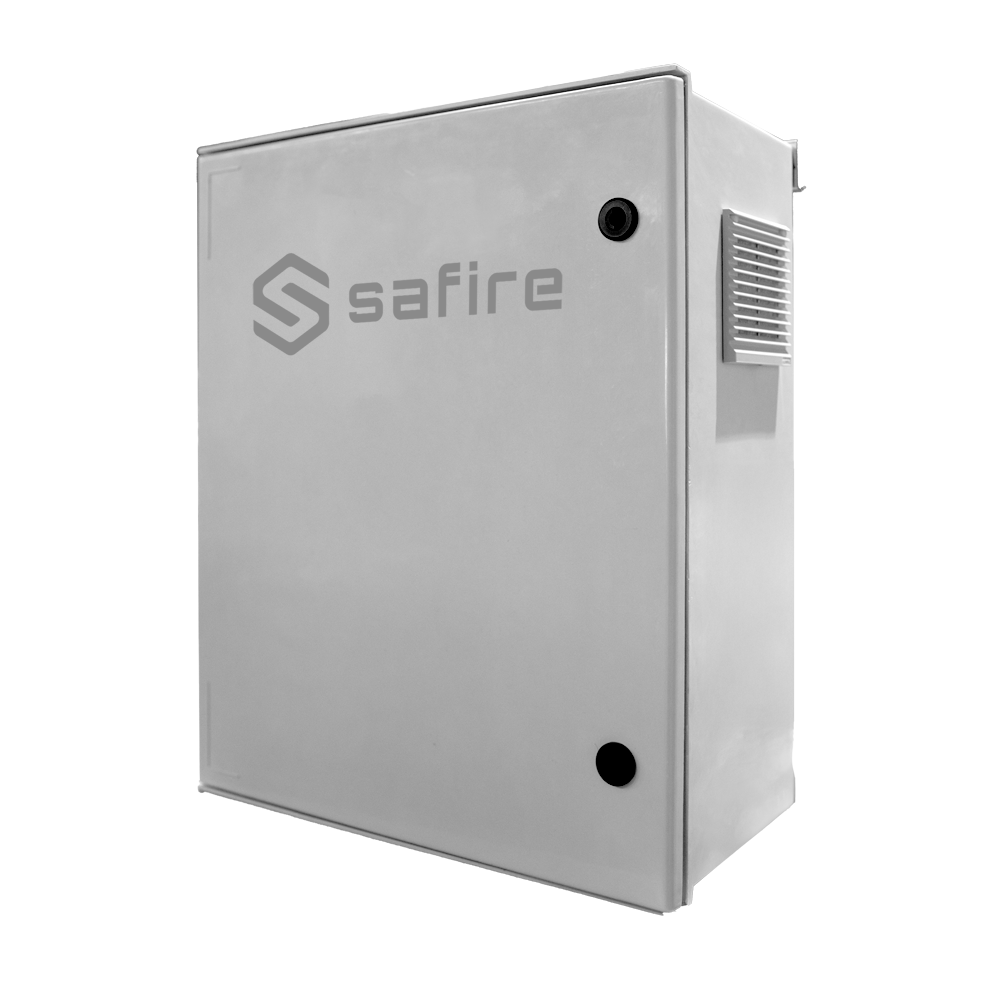

Safire SMC polyester enclosure
Regular price
€698,65
Final price
Regular price
-6%
€740,00
Sale price
€698,65
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

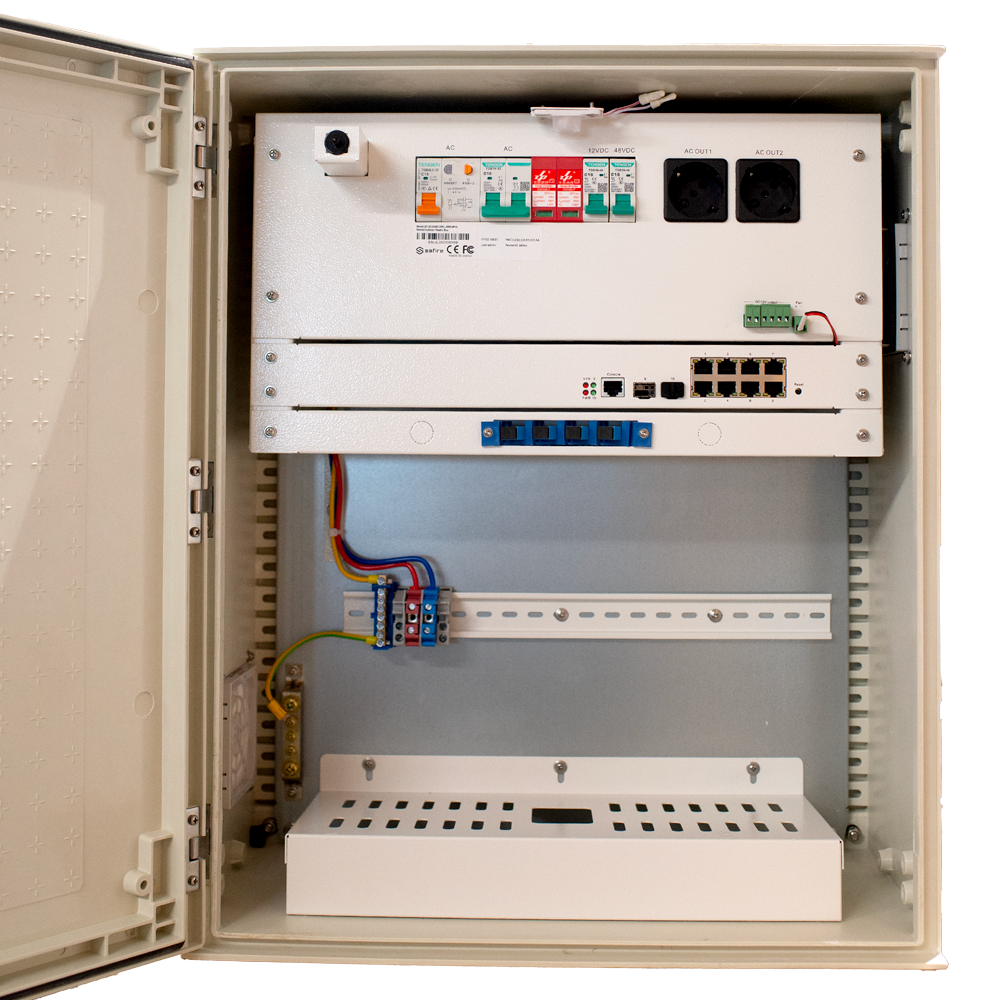

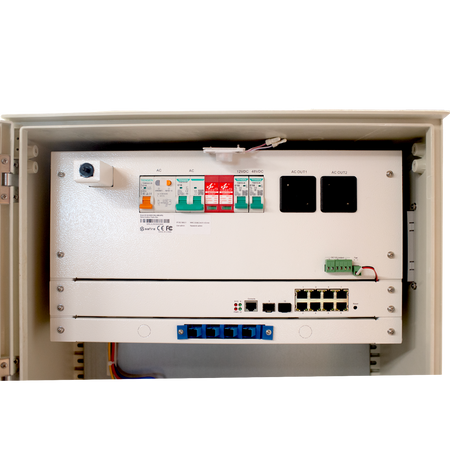

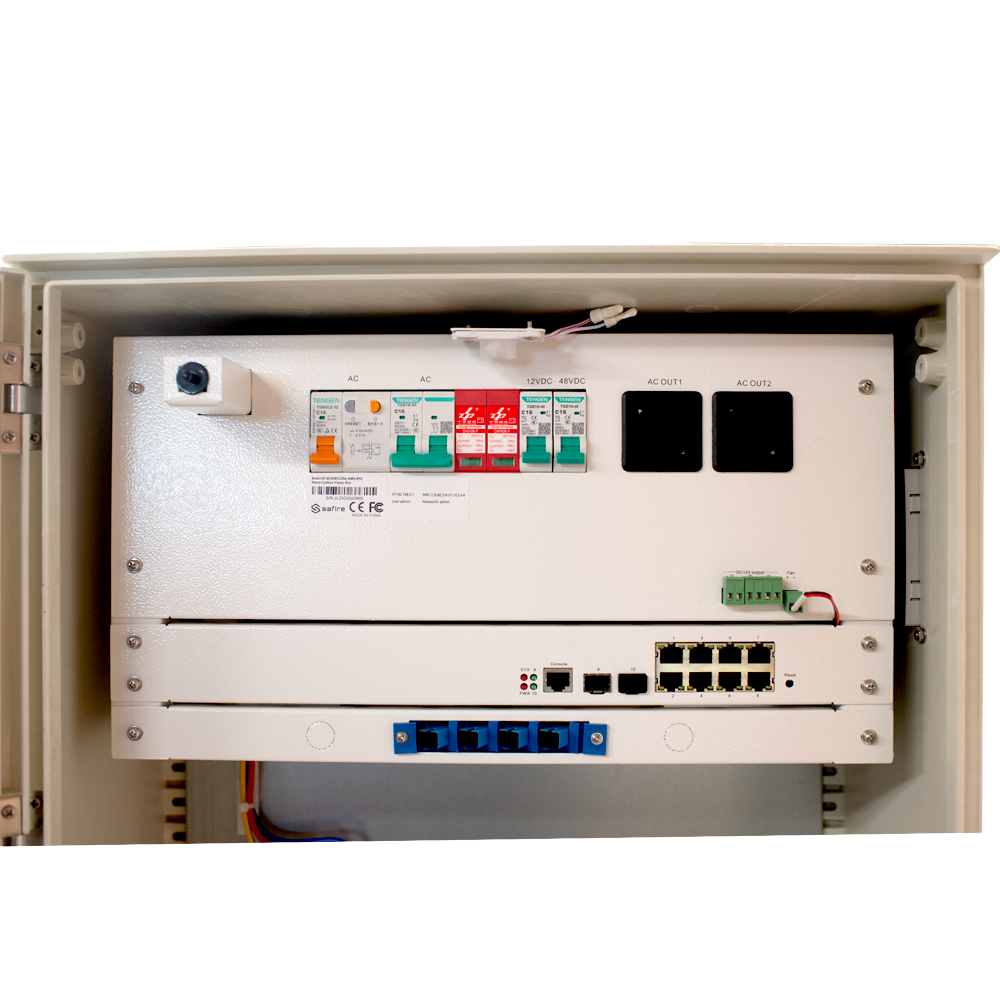

SMC polyester cabinet - RCD, MCB and SPD - External dimensions 60x50x23cm - 8-port PoE switch | Fiber fusion tray - IP55 protection rating / DIN rail - Economical distribution box without intelligence
📋 SPECIFICATIONS:
• Brand: Safire

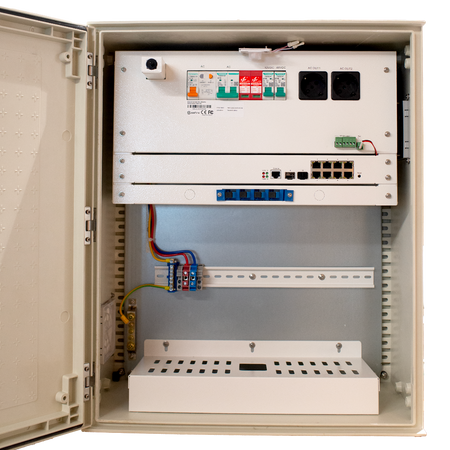

• Type: Polyester cabinet with included switch and power supply
• Security: Double key lock

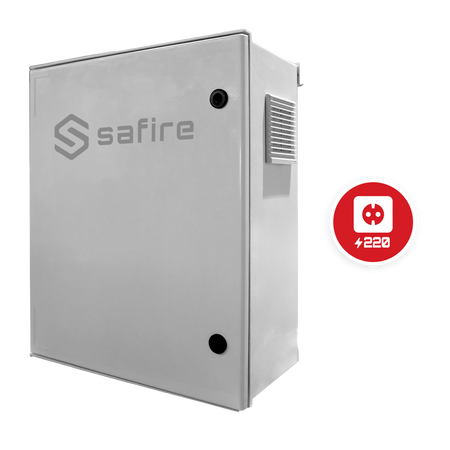

• Power input: AC 100~240V, 50/60Hz
• Fiber splice tray: 4x SC UPC
• Socket: 2x, European type F
• RCD: RCD 1P+N, 16A
• SPD surge protection: SPD 2P, AC380V, 20KA
• Circuit breaker: MCB switch, 1P, DC220V, 16A, C-curve + 1P, DC220V, 16A, C-curve
• DC output: 3x 12V DC, max. 240W (total across 3 outputs)

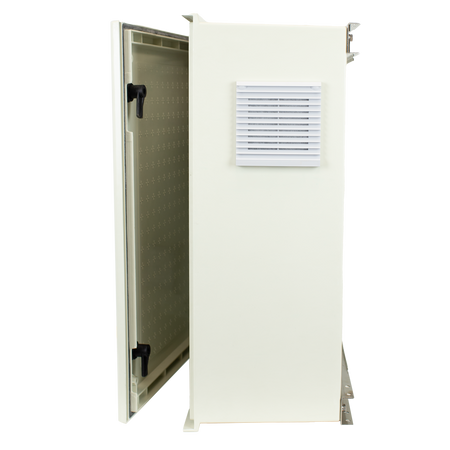

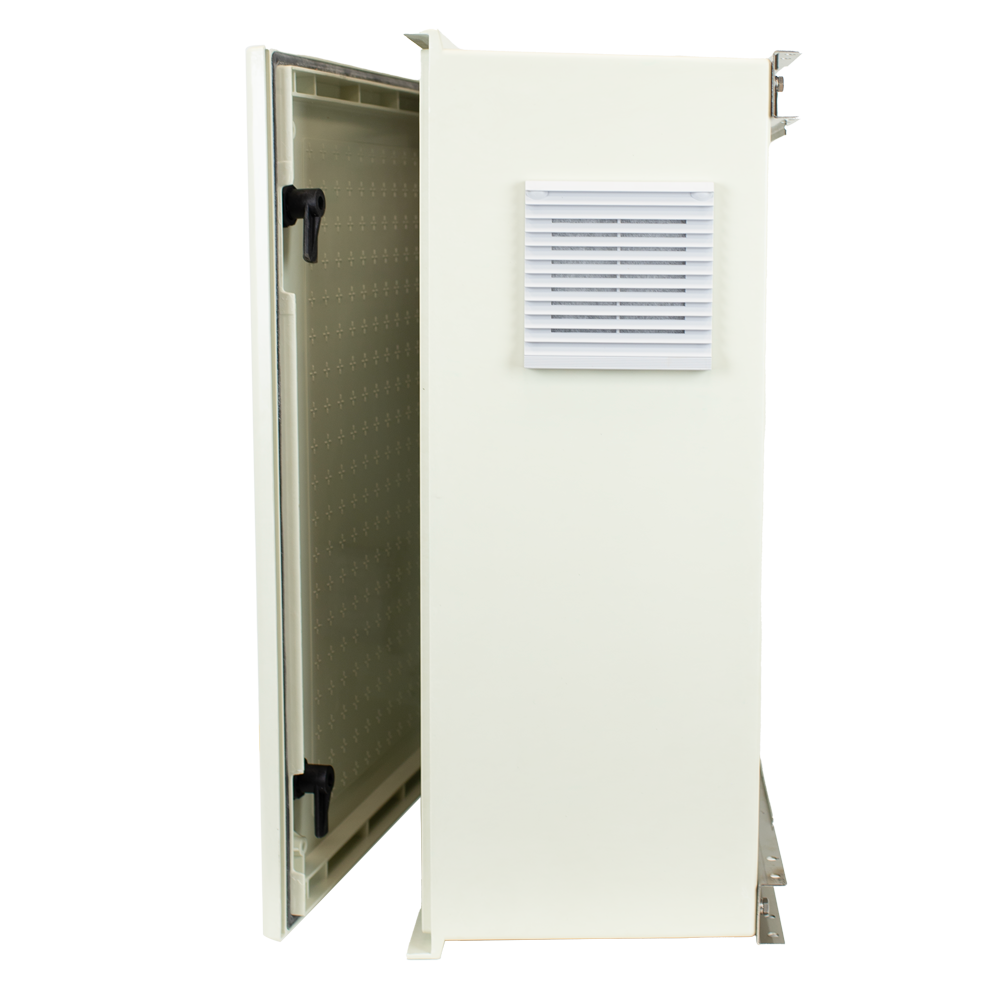

• Fan: 1x 12V DC
• Lighting: DC 12V; internal LED for night maintenance. Turns on when the door is opened
• Door sensor: Yes
• Ethernet switch: xSwitch 8*10/100/1000M PoE (2*90W ports, 6*30W ports) + 2*1000 SFP, L2 managed
• Serial port: RS485 / RS232
• Alarm input: 3 inputs, dry contact; *Input 1 used by default for door contact
• Management software: No
• Material: SMC (fiberglass reinforced polyester resin)
• Operating temperature: -20℃~70℃
• Storage temperature: -40℃~85℃
• Humidity: 0~90% non-condensing

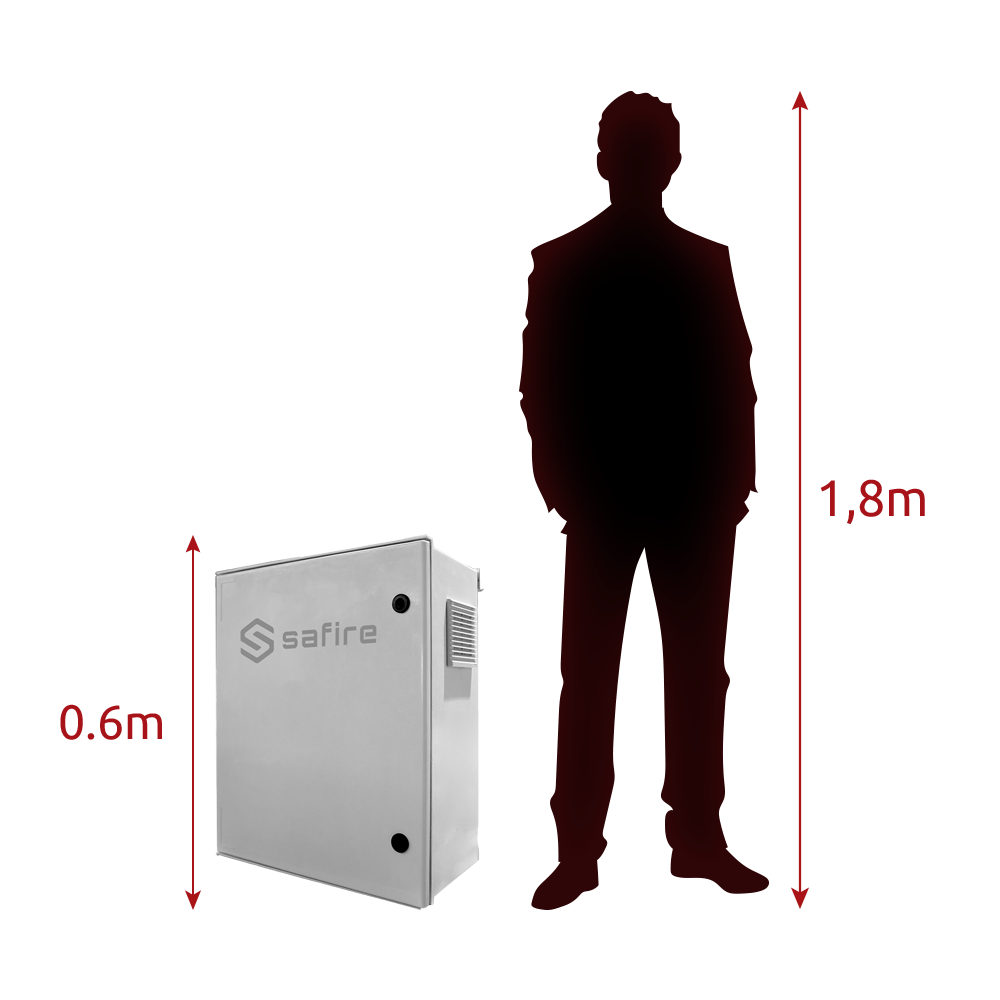

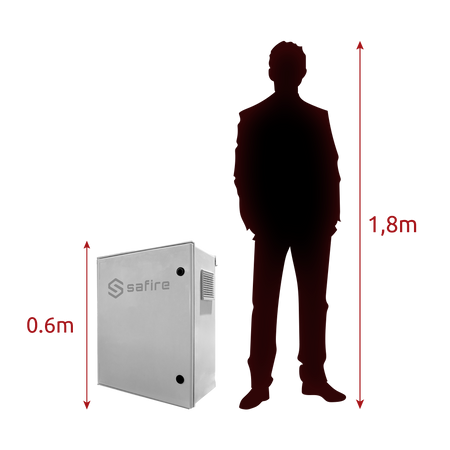

• External dimensions: 600 (W) x 500 (H) x 230 (D) mm
• Color: White
• Net weight: 15Kg
• Band clamp diameter: 400mm
• Consumption: Self-consumption <20W, PoE output 180W max.
• Extended PoE: Yes
• Ports: Ports 1-2: 10/100/1000Base-T, 90 W, PoE RJ45 (IEEE 802.3bt, also compatible with IEEE802.3af/at);
• SFP: Ports 9~10, 1000Base-X SFP slots
• Switching capacity: 20Gbps
• Bandwidth: 14.88Mpps
• Buffer: 1M
• MAC address table: 8K
• Protection: Surge: 6 kV, standard: IEC61000-4-5; ESD: 6 kV: contact/8 kV: air, standard: IEC61000-4-2
• System configuration: Date and time; User management; Security management (http, SNMP, telnet, SSH); Configuration file (export/import); Firmware; System (reboot, default)
• Port configuration: Status; Port speed; Traffic control; Storm control (broadcast, interval, unicast, multicast); Port protection; MAC learning; Trunk ports; Mirror ports; DHCP; IGMP snooping; VLAN; LACP; LLDP; Loopback detection; MAC VLAN; VLAN mapping; Voice VLAN; Mvr interface; OAM; QinQ; Udld; Jumbo frame; DDM information
• MAC: MAC binding; Auto binding; MAC filter; Bridge
• VLAN: Working mode (access, trunk, hybrid); Default VLAN; Tagged member
• SNMP configuration: SNMP community (community name, read, write); TRAP (SNMP version V1, V2C, V3)
• ACL configuration: Standard IP (Groups, Source IP, wildcard, math data packets); Extended IP (Groups, Source IP, source wildcard, Destination IP, destination wildcard, protocol, source port); MAC IP; ARP MAC; ACL reference; Time range
• QoS configuration: QoS application; QoS scheduling; IP address; ARP; Static host route
• AAA configuration: Tacacs+; Radius; 802.1X authentication
• STP configuration: MSTP; STP port
• IGMP Snooping configuration: Available
• GMRP configuration: Global GMRP; GMRP ports; GMRP register
• EAPS configuration: EAPS
• RMON configuration: Statistics; History; Alarm; Events
• Cluster management: NDP; NTDP; Cluster
• Log information: Log; Syslog
• PoE power control: Type; Admin status; Total power; PoE policy; PD query
• DHCP: DHCP Snooping
• ERPS configuration: ERPS; ERPS ring 1~21
• LACP: LACP active links
• Line: Vty
• LLDP: Global; Hold multiplier; Timer
• Loop detection: Detection time; Protocol; Response packets; Response time
• MVR: Groups; VLAN
• OAM: Errored frames; Period; Seconds
• Redundant port: Forced; Primary port
• UDLD: Enable; Time
• VLAN protocol: ARP, Atalkaarp, Atalkddp, Atmmulti, Atmtransport, Dec, Deccustom, Decdiagnostics, Decnadumpload, Decdnaremoteconsole, Decnarouting, Declat, Desyscomn, G8bpqx25, IEEEaddrtrans, IEEEpup, IP, IPX, PPPdiscovery, PPPsession, Rarp, X25, Xeroxaddrtrans, Xeroxpup

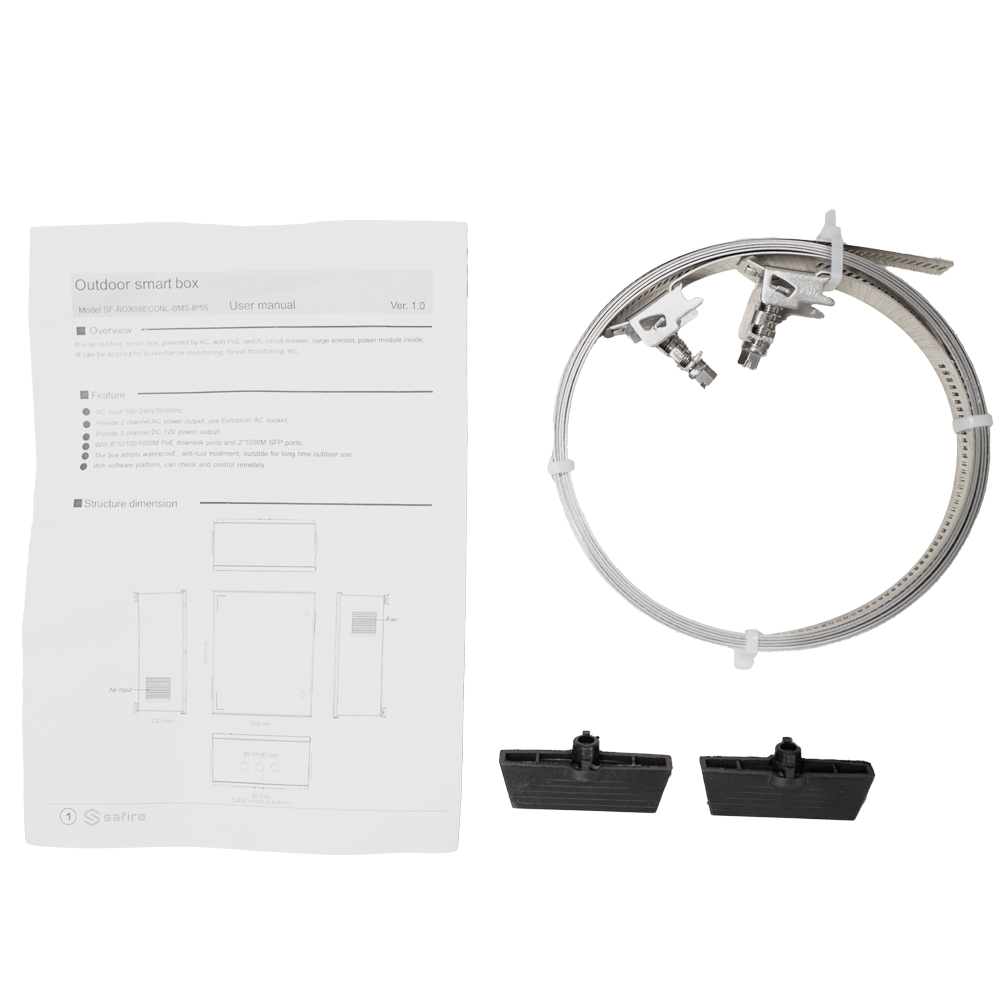

📦 INCLUDED:

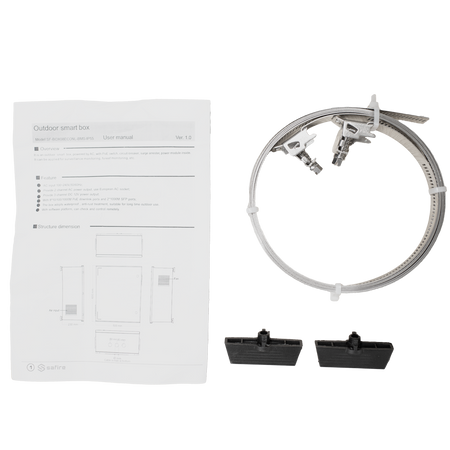

• Polyester cabinet• Installation material• DIN rail
| Type | Polyester cabinet with switch and power supply included |
|---|---|
| Security | Double key lock |
| Power input | AC 100~240V, 50/60Hz |
| Fiber fusion tray | x4 SC UPC |
| Plug | x2, European type F |
| Residual current device | RCD 1P+N, 16A |
| Transient SPD | xSPD 2P, AC380V, 20KA |
| Switch | MCB circuit breaker, 1P, DC220V, 16A, type C + 1P, DC220V, 16A, type C |
| DC output | 3x 12V DC, Max. 240W (total across 3 outputs) |
| Fan | 1x 12V DC |
| Light | Internal 12V DC LED for night maintenance. Turns on when the door is opened |
| Door sensor | Yes |
| Ethernet switch | xSwitch 8*10/100/1000M PoE (2*90W ports, 6*30W ports) + 2*1000 SFP, L2 managed |
| Serial port | RS485 / RS232 |
| Alarm input | 3 inputs, dry contact *Input 1 used by default for door contact |
| Management software | No |
| Material | SMC (fiberglass-reinforced polyester resin) |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0~90% non-condensing |
| External dimensions | 600 (W) x 500 (H) x 230 (D) mm |
| Color | White |
| Net weight | 15Kg |
| Cable tie diameter | 400mm |
| Consumption | Self-consumption <20W, PoE output 180W max. |
| Extended PoE | Available |
| Ports | Ports 1-2: 10/100/1000Base-T, 90 W, PoE RJ45 (IEEE 802.3bt, also compatible with IEEE 802.3af/at); |
| SFP | Ports 9~10, 1000Base-X SFP slots |
| Switching capacity | 20Gbps |
| Bandwidth | 14.88Mpps |
| Buffer | 1M |
| MAC address table | 8K |
| Protection | Surge: 6 kV, standard: IEC61000-4-5 ESD: 6 kV: contact/8 kV: air, standard: IEC61000-4-2 |
| System configuration | Date and time User management Security management (http, SNMP, telnet, SSH) Configuration files (export/import) Firmware System (restart, default) |
| Port configuration | Status Port speed Traffic control Storm control (broadcast, interval, unicast, multicast) Port protection MAC learning Trunk ports Mirror ports DHCP IGMP snooping VLAN LACP LLDP Loopback detection MAC VLAN VLAN mapping Voice VLAN MVR interface OAM QinQ Udld Jumbo frame DDM information |
| MAC | MAC link Auto link MAC filter Bridge |
| VLAN | Working mode (access, trunk, hybrid) Default VLAN Tagged member |
| SNMP configuration | SNMP community (community name, read, write) TRAP (SNMP version V1, V2C, V3) |
| ACL configuration | Standard IP (Groups, source IP, wildcard, mathematical data packets) Extended IP (Groups, source IP, source wildcard, destination IP, destination wildcard, protocol, source port) IP MAC MAC ARP ACL reference Time range |
| QoS configuration | QoS application QoS schedule IP address ARP Static route host |
| AAA configuration | Tacacs+ Radius 802.1X authentication |
| STP configuration | MSTP STP port |
| IGMP Snooping configuration | Available |
| GMRP configuration | Global GMRP GMRP ports GMRP registration |
| EAPS configuration | EAPS |
| RMON configuration | Statistics History Alarm Events |
| Cluster management | NDP NTDP Cluster |
| Log information | Log Syslog |
| POE power control | Type Admin status Total power POE policy PD query |
| DHCP | DHCP Snooping |
| ERPS configuration | ERPS ERPS ring 1~21 |
| LACP | LACP active links |
| Line | Vty |
| LLDP | Global Hold multiplier Timer |
| Loop detection | Detection time Protocol Response packets Response time |
| MVR | VLAN groups |
| OAM | Error frame Period Seconds |
| Redundant port | Forced Primary port |
| UDLD | Enable Schedule |
| VLAN protocol | ARP, Atalkaarp, Atalkddp, Atmmulti, Atmtransport, Dec, Deccustom, Decdiagnostics, Decnadumpload, Decdnaremoteconsole, Decnarouting, Declat, Desyscomn, G8bpqx25, IEEEaddrtrans, IEEEpup, IP, IPX, PPPdiscovery, PPPsession, Rarp, X25, Xeroxaddrtrans, Xeroxpup |
- User manual Link
