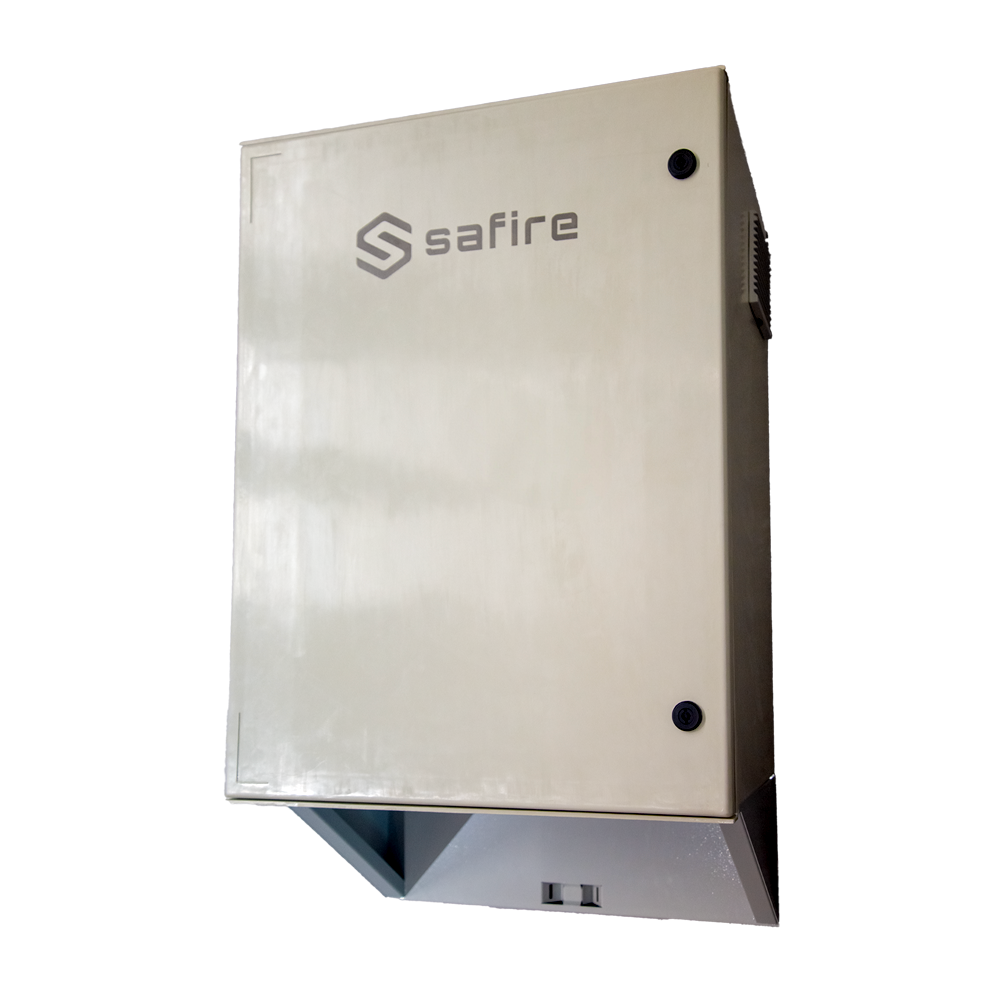

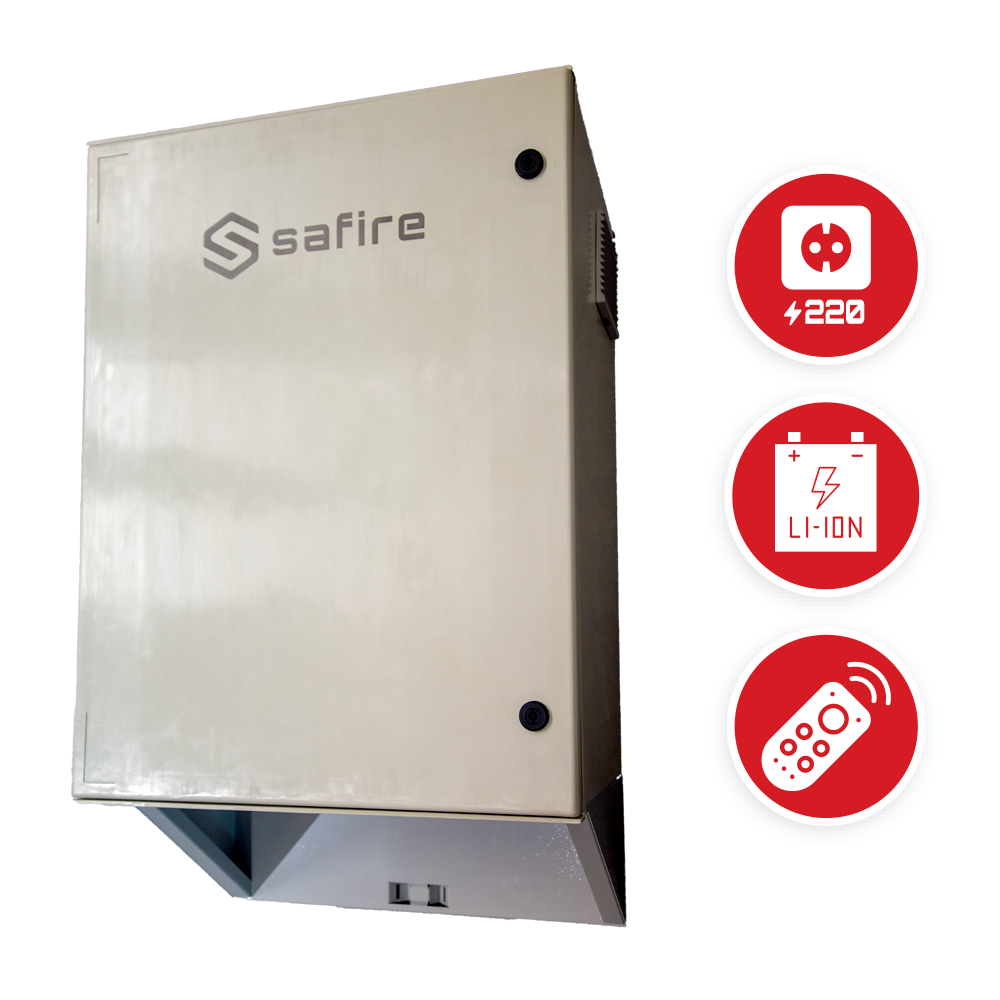

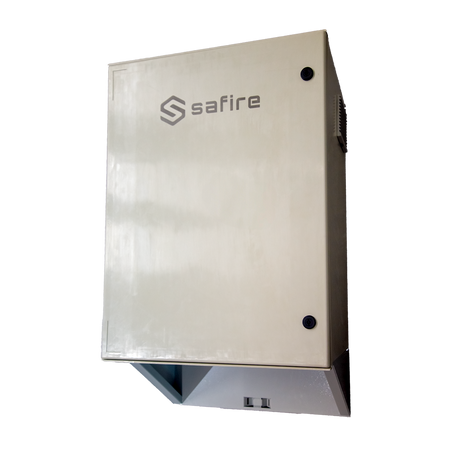

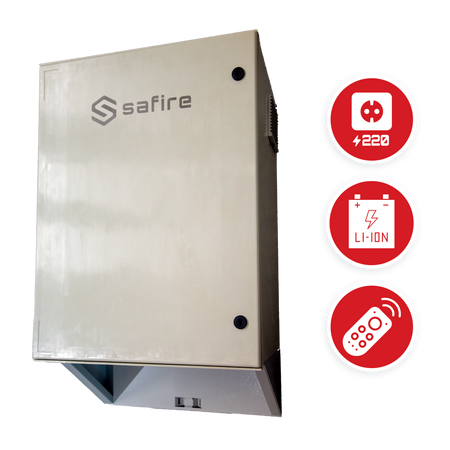

Polyester enclosure for Safire fast-charging streetlights - External dimensions 80x60x30cm - White

Polyester enclosure for fast-charging streetlights - RCD, MCB and SPD - External dimensions 80x60x30cm - 8-port PoE switch | Fiber fusion tray - IP55 protection rating / DIN rail - Fast charging 17 ampere/hour

📋 SPECIFICATIONS:
• Brand: Safire

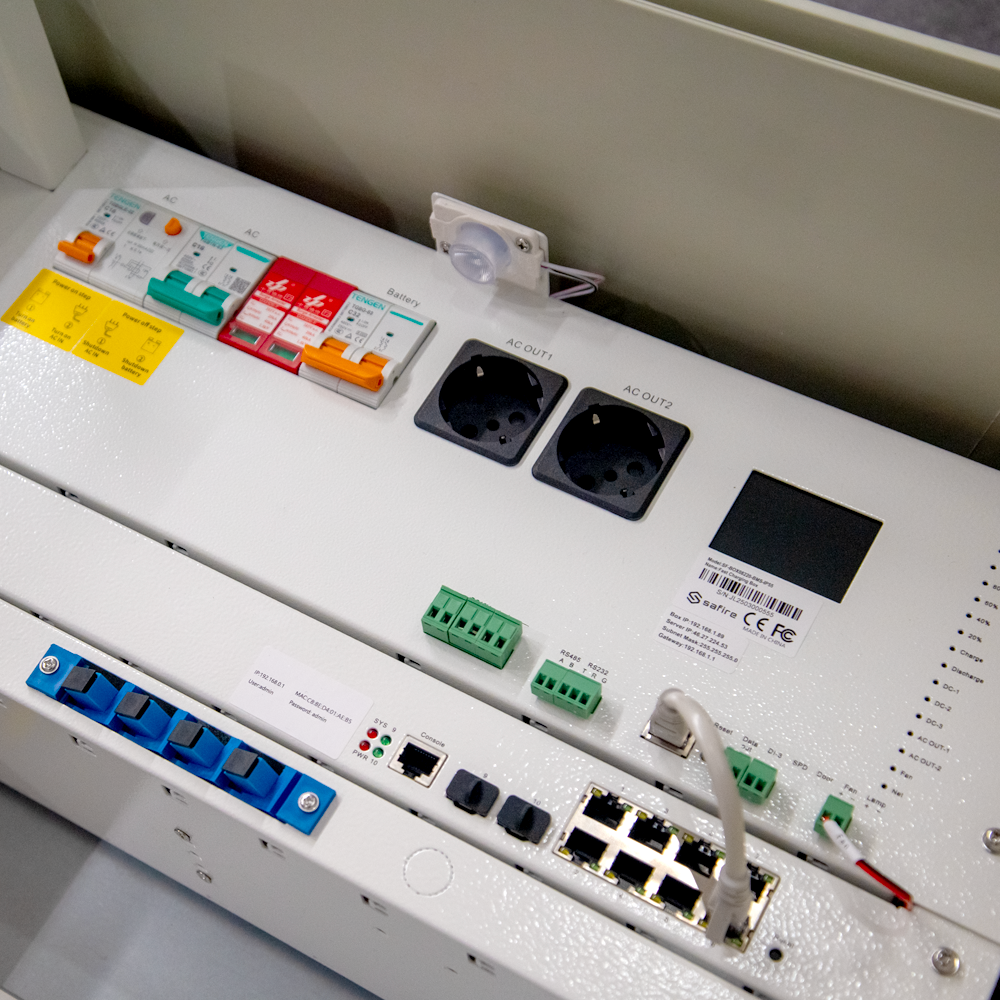

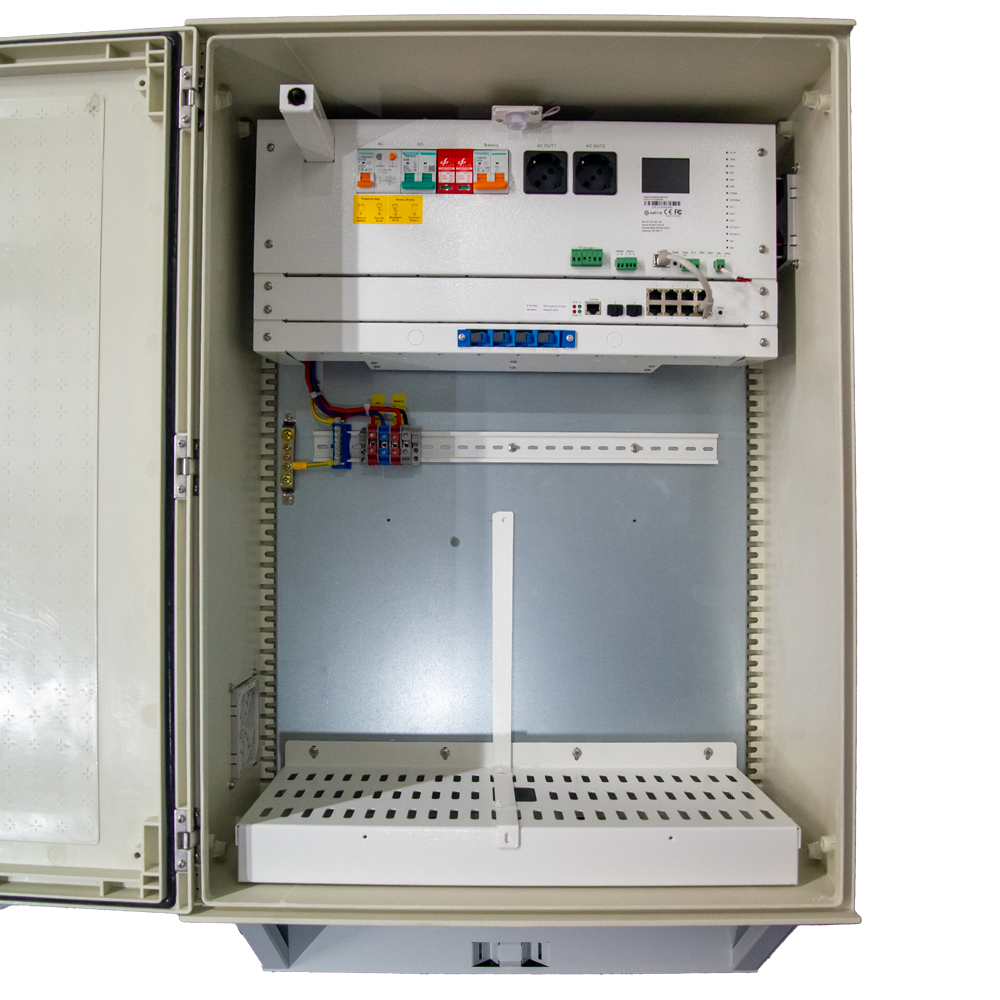

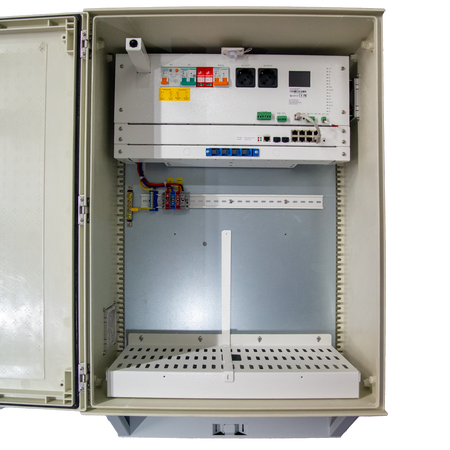

• Type: Polyester cabinet with switch and power supply included
• Security: Dual key lock
• Power input: AC input 100-240 V, DC 72 V, 320 W output
• Plug: x2, European type F
• RCD: RCD 1P+N, 16A
• Surge protection: xSPD 2P, AC380V, 20KA
• Circuit breaker: MCB switch, 1P, DC220V, 16A, type C + 1P, DC220V, 16A, type C
• DC output: 3x 12V DC, Max. 240W (shared across the 3 outputs)
• Fan: 1x 12V DC
• Light: DC 12V; internal LED for nighttime maintenance. Turns on when the door is opened
• Door sensor: Yes
• Ethernet switch: xSwitch 8*10/100/1000M PoE (2*90W ports, 6*30W ports) + 2*1000 SFP, L2 managed
• Alarm input: 3 inputs, dry contact; *Input 1 used by default for the door contact
• Smart module network port: 1 x 10/100Base-TX
• Reset button: > Hold for 5 s: Reset to factory settings
• Converter: DC 48 V to DC 12 V converter
• Charge controller: Maximum input voltage 100 V, supports DC12 V/24 V/48 V battery, 20 A charging current
• LCD screen: Size: 2.5-inch LCD display
• Fiber fusion tray: 4 x SC (connector) UPC
• Operating temperature: -20℃~70℃
• Storage temperature: -40℃~85℃
• Humidity: 0~90% non-condensing

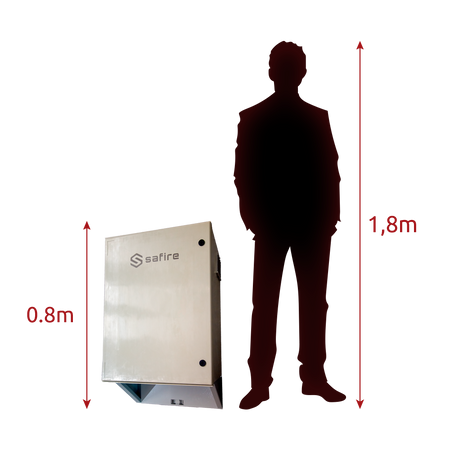

• External dimensions: 800 (W) x 600 (H) x 300 (D) mm
• Material: SMC (fiberglass reinforced polyester resin)
• Color: White
• Net weight: 22Kg
• Management software: Yes
• Pole clamp diameter: 400mm
• Consumption: Self-consumption < 20W, output < PoE180W max.
• Extended PoE: Supported
• Ports: Ports 1-2: 10/100/1000Base-T, 90 W, PoE RJ45 (IEEE 802.3bt, also compatible with IEEE802.3af/at); Ports 3-8: 10/100/1000Base-T, 30 W, PoE RJ45 (IEEE802.3af/at)
• SFP: Ports 9~10, 1000Base-X SFP slots
• Switching capacity: 20Gbps
• Bandwidth: 14.88Mpps
• Buffer: 1M
• MAC address table: 8K
• Protection: Surge: 6 kV, standard: IEC61000-4-5; ESD: 6 kV: contact/8 kV: air, standard: IEC61000-4-2
• System configuration: Date and time; User management; Security management (http, SNMP, telnet, SSH); Configuration file (export/import); Firmware; System (reboot, default)
• Port configuration: Status; Port speed; Flow control; Storm control (broadcast, range, unicast, multicast); Port protection; MAC learning; Trunk ports; Mirror ports; DHCP; IGMP snooping; VLAN; LACP; LLDP; Loopback detection; MAC VLAN; VLAN mapping; Voice VLAN; Mvr interface; OAM; QinQ; Udld; Jumbo frame; DDM information
• MAC: MAC binding; Auto binding; MAC filter; Bridge
• VLAN: Working mode (access, trunk, hybrid); Default VLAN; Tagged member
• SNMP configuration: SNMP community (community name, read, write); TRAP (SNMP version V1, V2C, V3)
• ACL configuration: Standard IP (Groups, source IP, wildcard, mathematical data packets); Extended IP (Groups, source IP, source wildcard, destination IP, destination wildcard, protocol, source port); MAC IP; ARP MAC; ACL reference; Time range
• QoS configuration: QoS application; QoS agenda; IP address; ARP; Static host path
• AAA configuration: Tacacs+; Radius; 802.1X authentication
• STP configuration: MSTP; STP port
• IGMP Snooping configuration: Available
• GMRP configuration: Global GMRP; GMRP ports; GMRP register
• EAPS configuration: EAPS
• RMON configuration: Statistics; History; Alarm; Events
• Cluster management: NDP; NTDP; Cluster
• Log information: Log; Syslog
• PoE power control: Type; Admin status; Total power; PoE policy; PD query
• DHCP: DHCP Snooping
• ERPS configuration: ERPS; ERPS Loop 1~21
• LACP: LACP active links
• Line: Vty
• LLDP: Global; Hold multiplier; Timer
• Loop detection: Detection time; Protocol; Response packets; Response time
• MVR: Groups; VLAN
• OAM: Error frame; Period; Seconds
• Redundant port: Forced; Primary port
• UDLD: Enable; Time
• VLAN protocol: ARP, Atalkaarp, Atalkddp, Atmmulti, Atmtransport, Dec, Deccustom, Decdiagnostics, Decnadumpload, Decdnaremoteconsole, Decnarouting, Declat, Desyscomn, G8bpqx25, IEEEaddrtrans, IEEEpup, IP, IPX, PPPdiscovery, PPPsession, Rarp, X25, Xeroxaddrtrans, Xeroxpup
• CFM: CC; Enable; Linktrace; MA; MD; Regola-mip; Service-instance

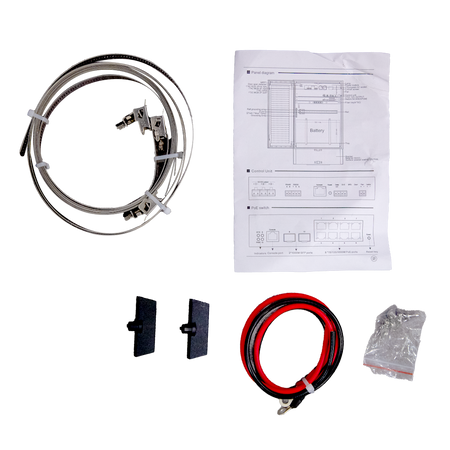

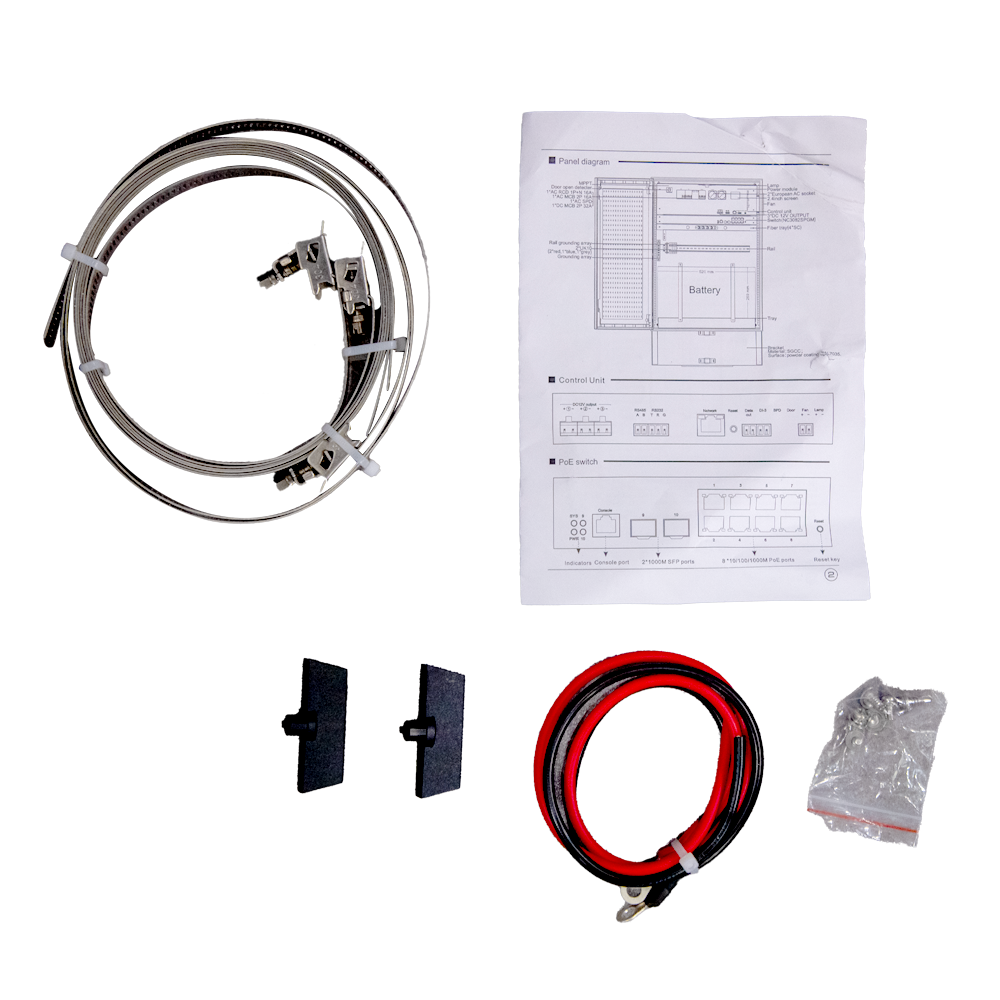

📦 INCLUDED:
• Polyester box• Installation material• DIN rail• Pole clamps• Battery connection cable• Plastic door key
