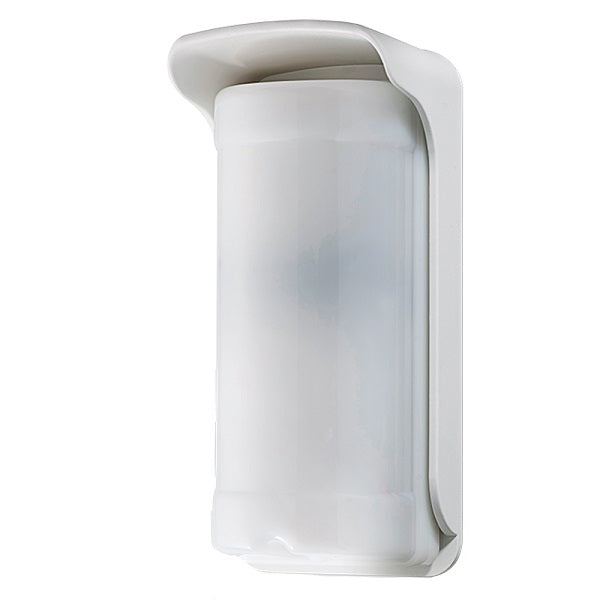

Duevi wired outdoor detector - Dual PIR on each side and dual front PIR - 180º total coverage / Anti-masking - Power supply 9.6 ~ 14.5 VDC - Compatible with wired alarm systems - Outdoor use IP54 / Anti-vandal IK10
- Duevi
- Wired outdoor detector

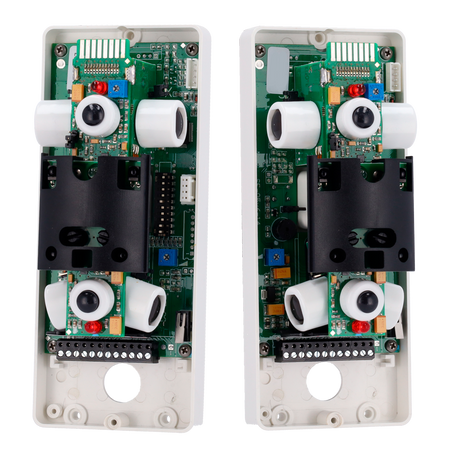

- Dual PIR on each side and dual central PIR
- Anti-masking technology
- Detection: 12 m range for each side (10º) / 5 m front (180º)
- Motion detection indicator
- Tamper switch
- Power supply 9.6~14.5 VDC
- Compatible with wired alarm systems
- Outdoor use
- Protection rating IP54 and anti-vandal IK10
Technical specifications
| Model | Moskito F |

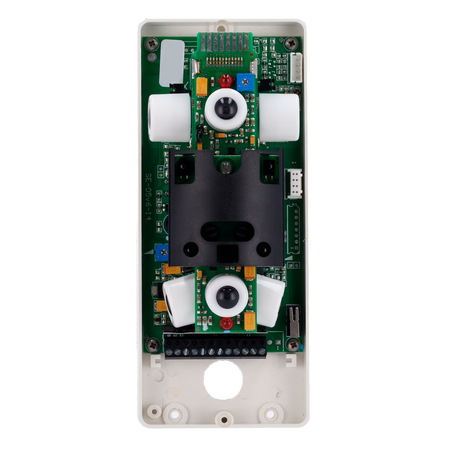

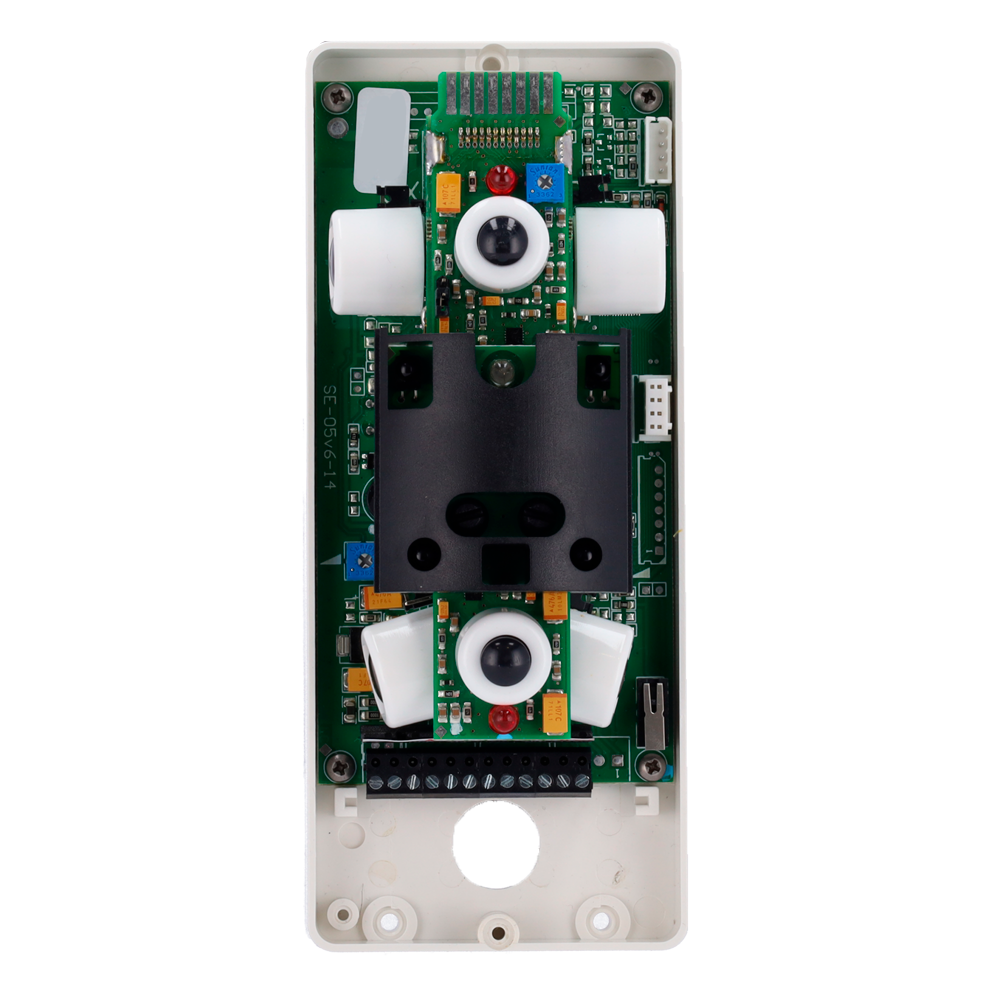

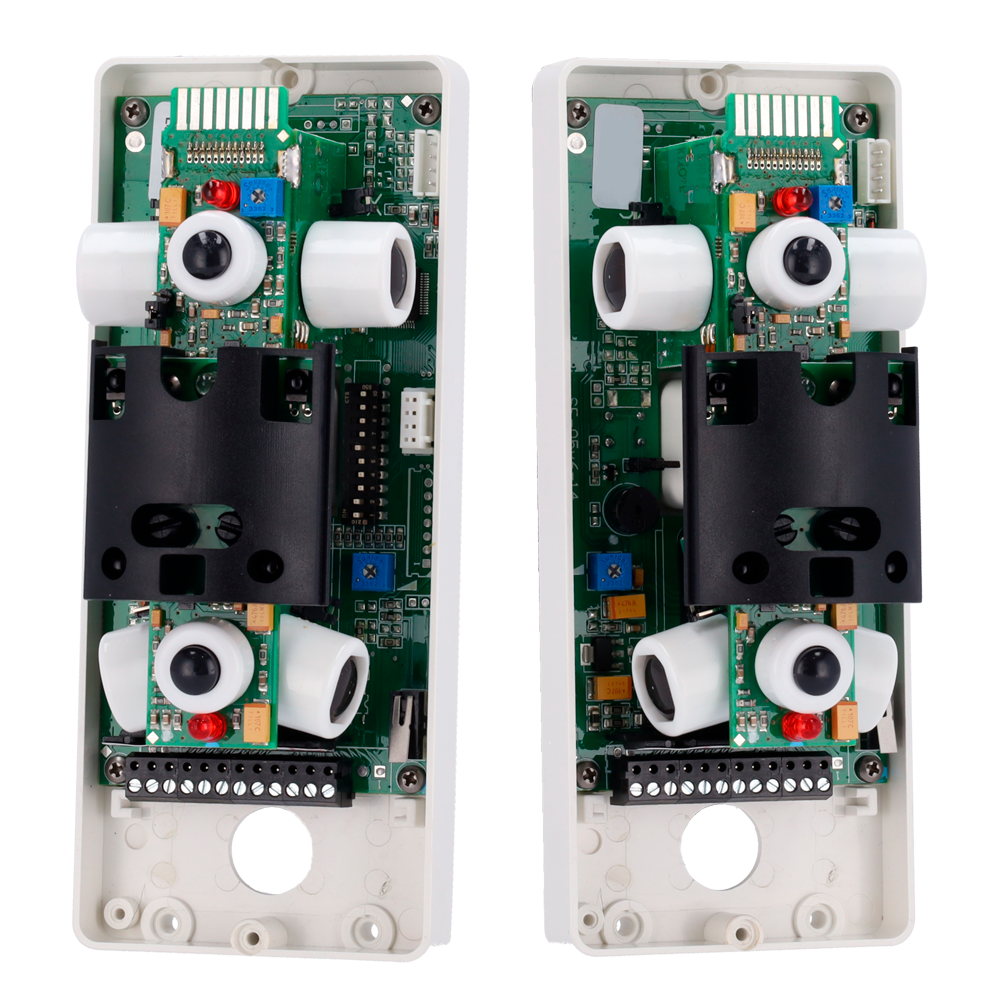

| Technology | Dual side PIR (both sides) and dual front PIR |
| PIR lens | 3-position adaptable optics |
| Side detection range | Configurable on each side: from 3 m to 12 m (in 3 levels) / 10º |
| Front detection range | Configurable: from 2 m to 5 m (in 3 levels) / 180º |
| Installation height | Recommended 2.2 m (from 1 to 1.4 meters) |
| Masking | Available: from 0ºC, always active (App) or disabled |
| Sensitivity | Adjustable on each side and at the front (potentiometer and jumper) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (motion accelerometer) |
| LED indication | Alarm (blue) and Walk test (6 red LEDs: one for each PIR / blue: alarm confirmation) |
| Audible indication | Built-in buzzer for easy installation: alarm, sabotage, anti-masking |

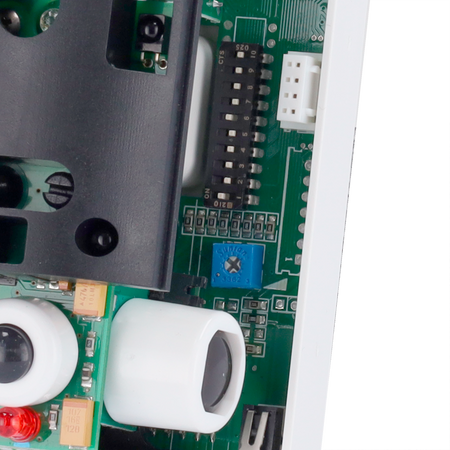

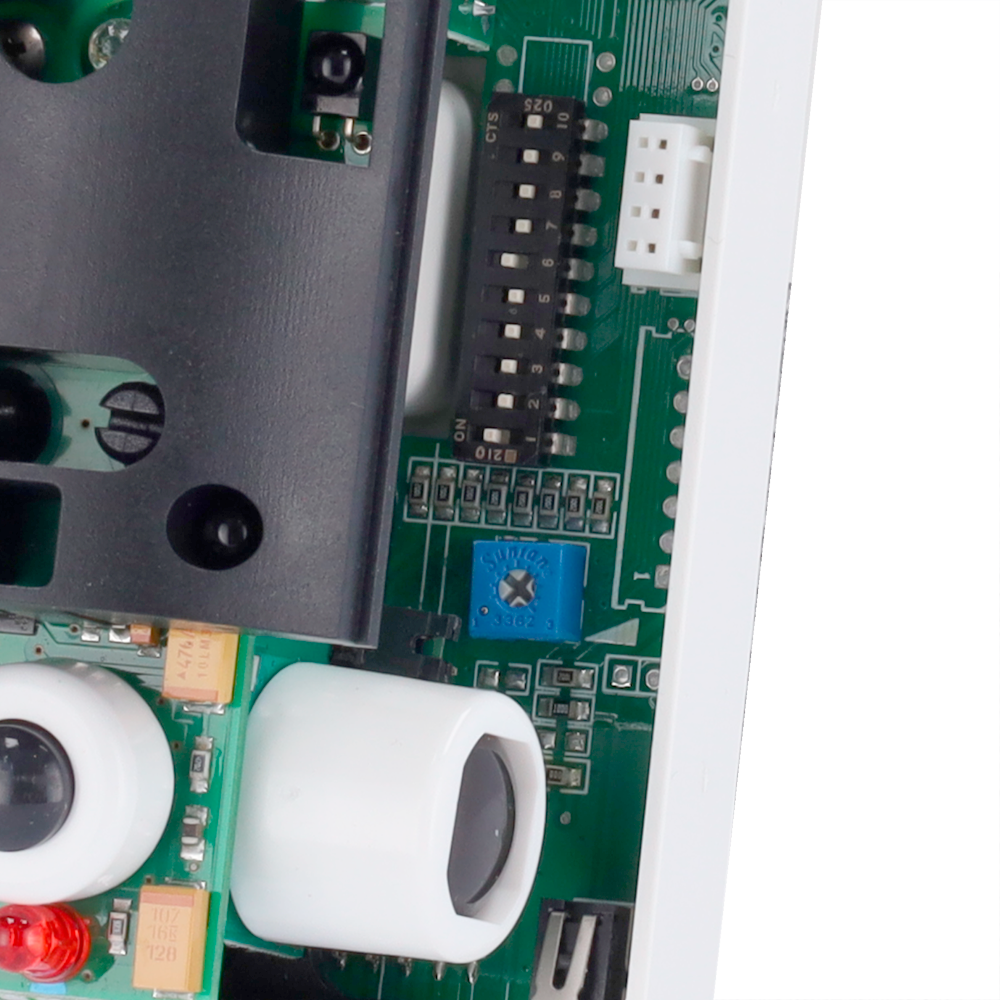

| DIP Switch configuration | 1 - Anti-masking (On/Off) 2- Front pre-alarm (On/Off) 3- Front walk-test (On/Off) 4- Right walk-test (On/Off) 5- Left walk-test (On/Off) 6- Alarm LED (On/Off) 7- Programming via App (On/Off) 8 and 9 - Side configuration (all sides active / left, right or front excluded) 10- Alarm unification on one output (On/Off) |
| Additional App configuration | Anti-masking (from 0ºC, always active or disabled) / Independent sensitivity adjustment for each side |
| Configuration via App | DV-BTLINK module required and download the View Sensor App (Android) |

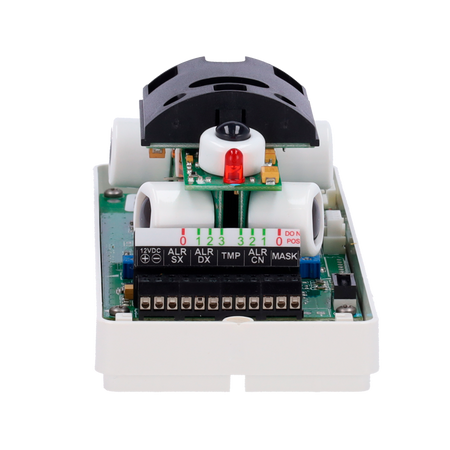

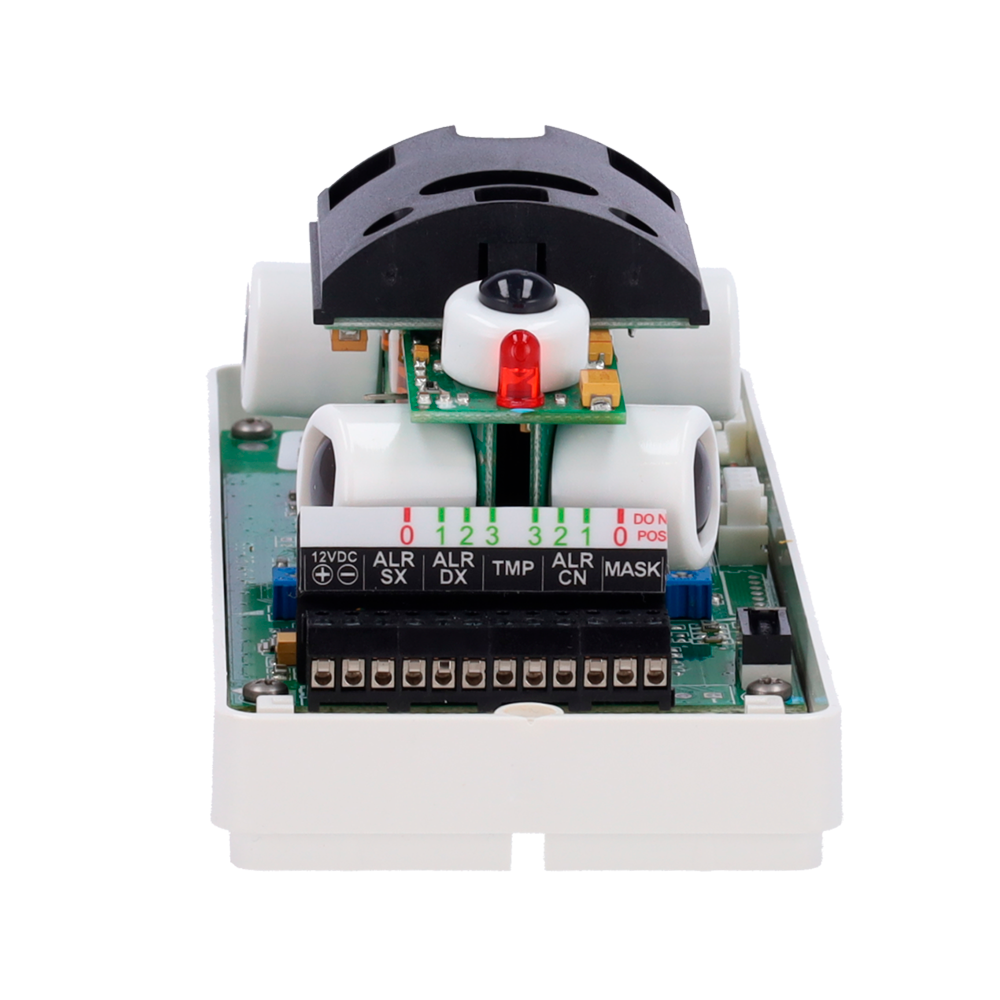

| Wired outputs | Left side alarm, right side alarm, front alarm, tamper, and anti-masking |
| Power supply | From 9.6 to 14.5 VDC |
| Operating temp. | -40 ºC ~ +70 ºC |
| Protection rating | IP54, Anti-vandal IK10 |
| Dimensions | 190 (H) x 85 (W) x 75 (D) mm |
Technical features
- Duevi wired outdoor detector
- Dual PIR on each side 12+12 m and dual front PIR
- 180° total coverage / Anti-masking
- Power supply 9.6 ~ 14.5 V DC. IP54 / IK10.
| Model | Moskito F |
|---|---|
| Technology | Dual side PIR (both sides) and dual front PIR |
| PIR lens | Optics adjustable in 3 positions |
| Side detection range | Configurable on each side: from 3 m to 12 m (in 3 levels) / 10º |
| Front detection range | Configurable: from 2 m to 5 m (in 3 levels) / 180º |
| Installation height | Recommended 2.2 m (from 1 to 1.4 meters) |
| Masking | Available: from 0ºC, always active (App) or disabled |
| Sensitivity | Adjustable on each side and on the front (potentiometer and jumper) |
| Anti-opening tamper | Available |
| Anti-sabotage tamper | Available (movement accelerometer) |
| LED indication | Alarm (blue) and Walk test (6 red LEDs: one for each PIR / blue: alarm confirmation) |
| Sound indication | Integrated buzzer for easy installation: alarm, sabotage, anti-masking |
| DIP Switch configuration | 1 - Anti-masking (On/Off) 2- Front pre-alarm (On/Off) 3- Front walk-test (On/Off) 4- Right walk-test (On/Off) 5- Left walk-test (On/Off) 6- Alarm LED (On/Off) 7- Programming via App (On/Off) 8 and 9 - Side configuration (all sides active / left, right or front excluded) 10- Alarm unification on one output (On/Off) |
| Additional App configuration | Anti-masking (from 0ºC, always active or disabled) / Independent sensitivity adjustment for each side |
| Configuration via App | DV-BTLINK module required and download the View Sensor App (Android) |
| Wired outputs | Left side alarm, right side alarm, front alarm, tamper and anti-masking |
| Power supply | From 9.6 to 14.5 VDC |
| Operating temp. | -40 ºC ~ +70 ºC |
| Protection rating | IP54, Vandal-proof IK10 |
| Dimensions | 190 (H) x 85 (W) x 75 (D) mm |
- User manual Link
