Raythink PD4 series bispectral speed dome
Raythink PD4 series bispectral speed dome
Regular price
€7.987,29
Final price
Regular price
-9%
€8.750,00
Sale price
€7.987,29
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

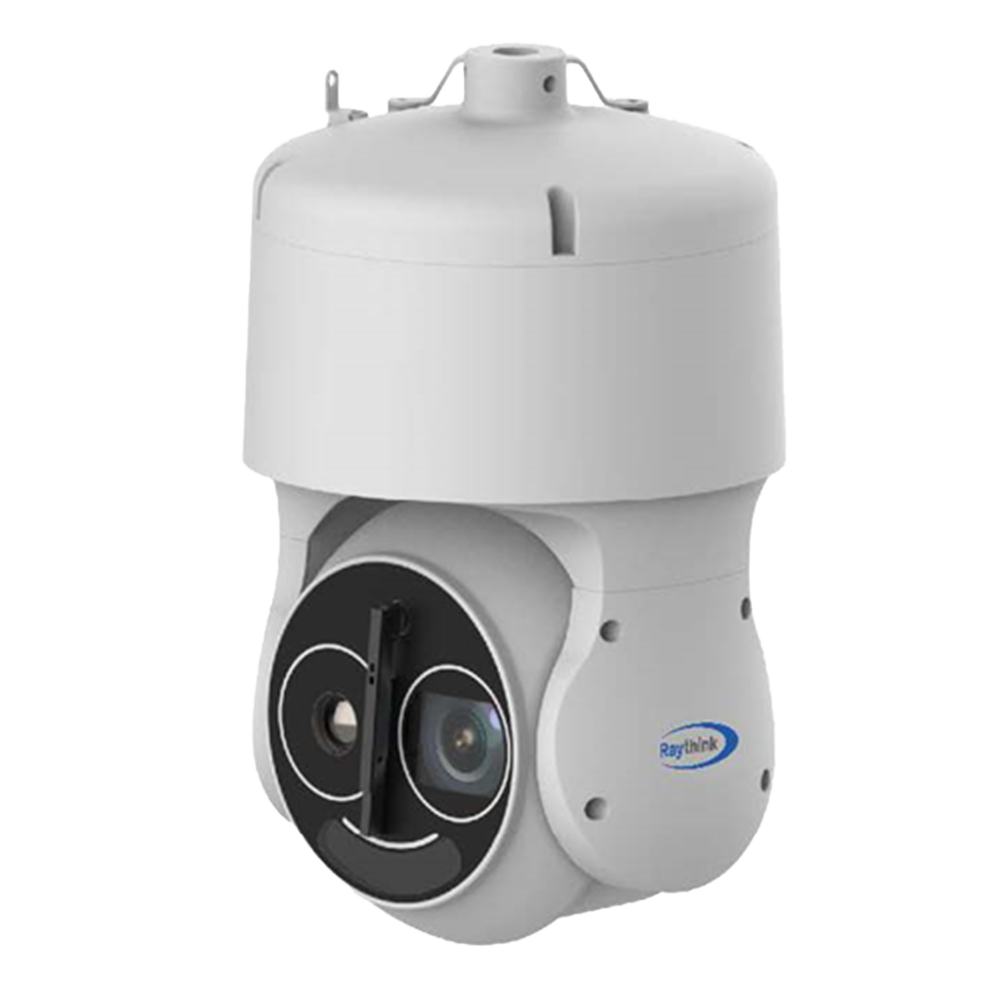

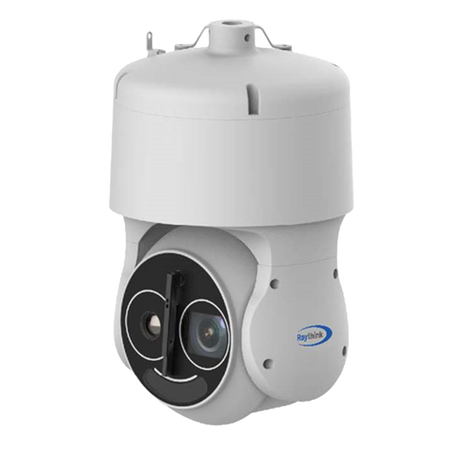

Raythink PD4 series bi-spectrum speed dome - 640x512 VOx uncooled 12μm thermal sensor - Thermal sensitivity ≤40mK (@25°C, F#1.0, 25Hz) - 1/1.8" 4Mpx CMOS visible sensor - 50mm thermal lens - 6.5~240mm visible lens (37X zoom)
📋 SPECIFICATIONS:
• Brand: Raythink
• Range: PD4
• Thermal sensor: 640x512 VOx uncooled 12μm
• Spectral range: LWIR 8 ~ 14μm
• Thermal sensitivity: ≤40mK (@25°C, F#1.0, 25Hz)
• Optical sensor: 1/1.8" 4Mpx CMOS
• Lens: 50mm (therm.) / Motorized Autofocus 6.5~240mm (opt.) 37X
• Pan/Tilt range: Horizontal: 360° continuous, Vertical: -27° ~ +90°
• Manual speed: Horizontal: 0.1°~ 200°/s, Vertical: 0.1°~ 120°/s
• Wiper: Automatic wiper
• Intelligent functions: Fire detection; Intrusion detection: line crossing, area entry; AI person/vehicle classification
• Temperature range: -20ºC~550ºC
• Temperature accuracy: ±2ºC / ±2%
• Temperature measurement: Supports up to 4 measurement rules: full screen, point, line, area
• Audio: 1 input / 1 output
• Alarm: 7 inputs / 2 outputs
• Internal memory: Micro SD card up to 256GB (not included)
• Network interface: 1x Ethernet 10/100M BaseT
• Other: RS485
• Interoperability: ONVIF, SDK
• Power supply: 24VDC / 48W
• Operating temp.: -40ºC~+70ºC
• Protection rating: Waterproof IP66
• Dimensions: Φ250 × 413 mm.
• Weight: 8.0 kg.
📦 INCLUDED:
• Raythink PD4 series thermal camera• 24V DC power supply• Installation material
| Series | PD4 |
|---|---|
| Thermal sensor | 640x512 VOx uncooled 12μm |
| Spectral range | LWIR 8 ~ 14μm |
| Thermal sensitivity | ≤40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/1.8" CMOS 4Mpx |
| Lens | 50mm (therm.) / Motorized Autofocus 6.5~240mm (opt.) 37X |
| Pan/Tilt range | Horizontal: 360° continuous, Vertical: -27° ~ +90° |
| Manual speed | Horizontal: 0.1°~ 200°/s, Vertical: 0.1°~ 120°/s |
| Wiper | Automatic wiper |
| Intelligent functions | Fire detection, Intrusion detection: line crossing, area entry, AI-based person/vehicle classification |
| Temperature range | -20ºC~550ºC |
| Temperature accuracy | ±2ºC / ±2% |
| Temperature measurement | Supports up to 4 measurement rules: full screen, point, line, area |
| Audio | 1 input / 1 output |
| Alarm | 7 inputs / 2 outputs |
| Internal memory | Micro SD card up to 256GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Power supply | 24VDC / 48W |
| Operating temp. | -40ºC~+70ºC |
| Protection rating | Waterproof IP66 |
| Dimensions | Φ250 × 413 mm. |
| Weight | 8.0 kg. |
