Raythink PD2 series bispectrum speed dome
Raythink PD2 series bispectrum speed dome
Regular price
€1.916,12
Final price
Regular price
-9%
€2.100,00
Sale price
€1.916,12
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

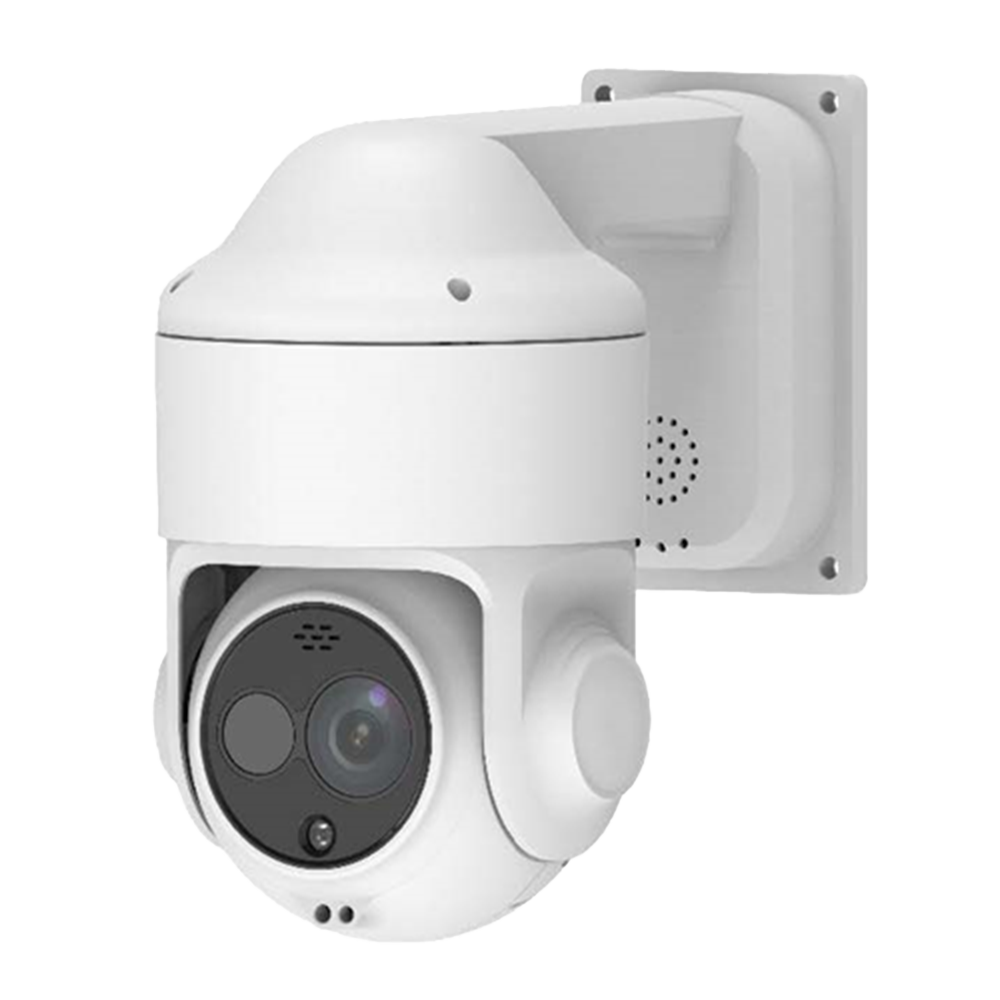

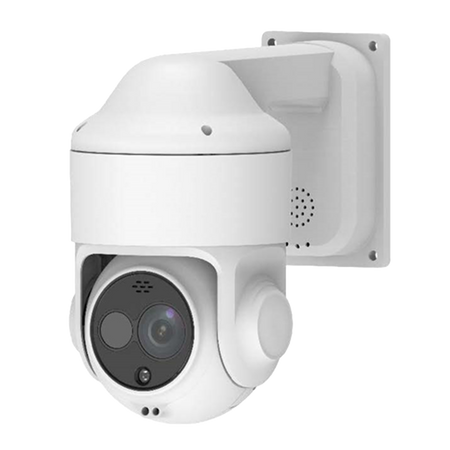

Raythink PD2 series bispectrum speed dome - 256x192 uncooled VOx 12μm thermal sensor - Thermal sensitivity ≤40mK@25°C,F#1.0,25Hz - 1/2.8" 5Mpx CMOS visible sensor - 10mm thermal lens - 5.4~108mm visible lens (20X zoom)
📋 SPECIFICATIONS:
• Brand: Raythink
• Range: PD2
• Thermal sensor: 256x192 uncooled VOx 12μm
• Spectral range: LWIR 8 ~ 14μm
• Thermal sensitivity: ≤40mK (@25°C,F#1.0,25Hz)
• Optical sensor: 1/2.8" 5Mpx CMOS
• Lens: 10mm (therm.) / 5.4~108mm motorized autofocus (opt.) 20X
• Pan/Tilt range: Horizontal: 360° continuous, Vertical: 0° ~ +90°
• Manual speed: Horizontal: 0.1°~ 120°/s, Vertical: 0.1°~ 60°/s
• Smart functions: Fire detection; Intrusion detection: line crossing, area entry; AI-based person/vehicle classification
• Temperature range: -20ºC~550ºC
• Temperature accuracy: ±2ºC / ±2%
• Temperature measurement: Supports up to 4 measurement rules: full screen, point, line, area
• Audio: 1 input / 1 output / speaker included
• Alarm: 2 inputs / 1 output
• Internal memory: Micro SD card up to 256GB (not included)
• Network interface: 1x 10/100M BaseT Ethernet
• Others: RS485
• Interoperability: ONVIF, SDK
• Power supply: 12VDC / 20W
• Operating temp.: -40ºC~+70ºC
• Protection rating: IP66 waterproof
• Dimensions: 265 × 147.5 × 248.7
• Weight: 2.5 kg.
📦 INCLUDED:
• Raythink PD2 series thermal camera• 12V DC power supply• Installation material
| Series | PD2 |
|---|---|
| Thermal sensor | 256x192 VOx uncooled 12μm |
| Spectral range | LWIR 8 ~ 14μm |
| Thermal sensitivity | ≤40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/2.8" CMOS 5Mpx |
| Lens | 10mm (therm.) / Motorized Autofocus 5.4~108mm (opt.) 20X |
| Pan/Tilt range | Horizontal: 360° continuous, Vertical: 0° ~ +90° |
| Manual speed | Horizontal: 0.1°~ 120°/s, Vertical: 0.1°~ 60°/s |
| Intelligent functions | Fire detection Intrusion detection: line crossing, area entry AI-powered person/vehicle classification |
| Temperature range | -20ºC~550ºC |
| Temperature accuracy | ±2ºC / ±2% |
| Temperature measurement | Supports up to 4 measurement rules: full screen, point, line, area |
| Audio | 1 input / 1 output / built-in speaker |
| Alarm | 2 inputs / 1 output |
| Internal storage | Micro SD card up to 256GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Other | RS485 |
| Interoperability | ONVIF, SDK |
| Power supply | 12VDC / 20W |
| Operating temp. | -40ºC~+70ºC |
| Protection rating | Waterproof IP66 |
| Dimensions | 265 × 147.5 × 248.7 |
| Weight | 2.5 kg. |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
