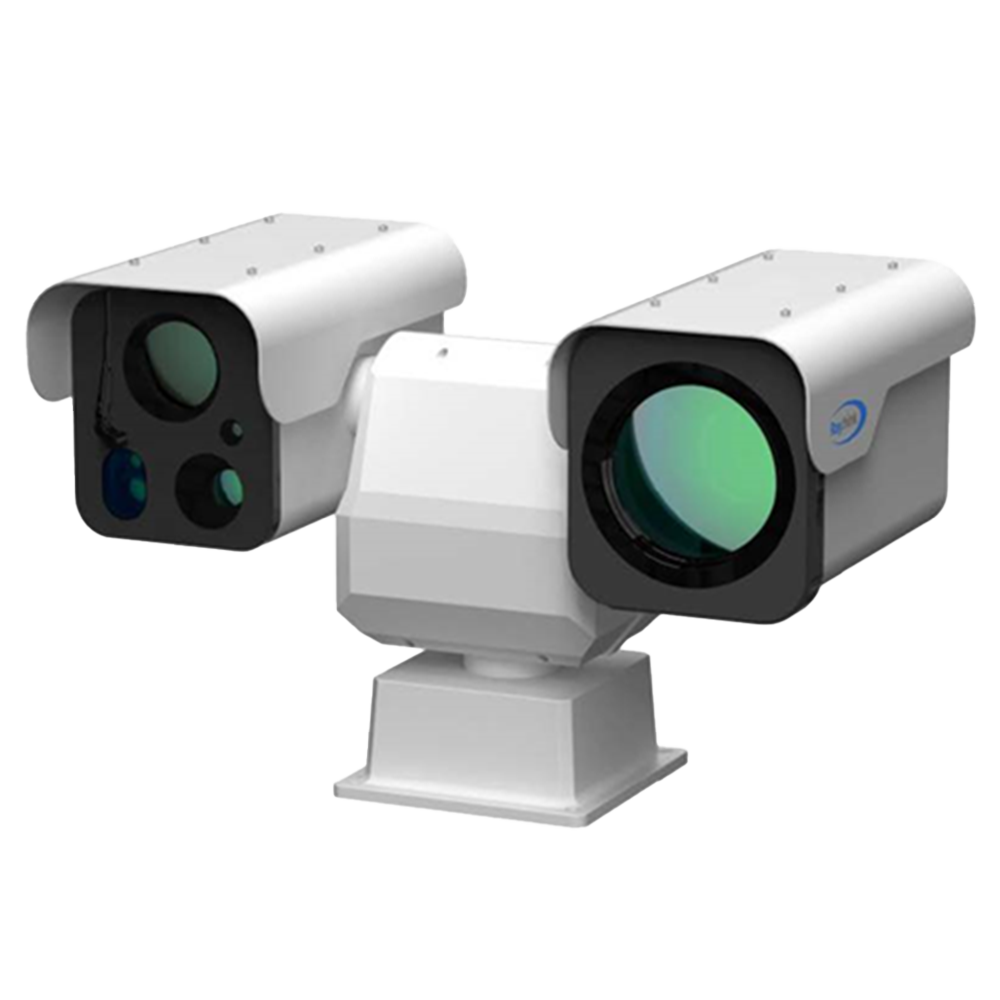

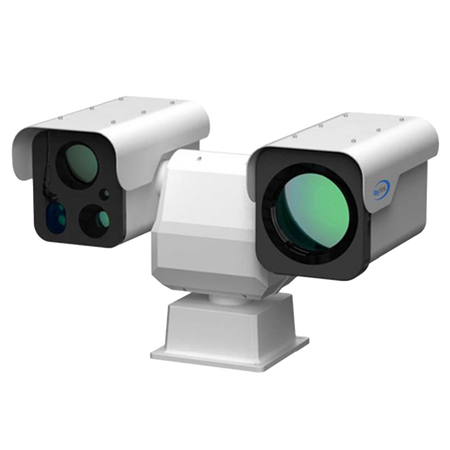

Raythink PC5 series thermal camera - 1/1.25" 4Mpx CMOS
Raythink PC5 series thermal camera - 1/1.25" 4Mpx CMOS
Regular price
€50.727,60
Final price
Regular price
-8%
€55.000,00
Sale price
€50.727,60
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Raythink PC5 series thermal camera - 1280x1024 12μm uncooled VOx thermal sensor - Thermal sensitivity ≤40mK@25°C,F#1.0,25Hz - Visible sensor 1/1.8" 4Mpx CMOS - Thermal lens 30~150mm (5X zoom) - Visible lens 10~550mm (55X zoom)
📋 SPECIFICATIONS:
• Brand: Raythink
• Range: PC5
• Thermal sensor: 1280x1024 12μm uncooled VOx
• Spectral range: LWIR 8 ~ 14μm
• Thermal sensitivity: ≤40mK (@25°C,F#1.0,25Hz)
• Optical sensor: 1/1.25" 4Mpx CMOS
• Main frame rate: 2688×1520, 1920×1080, 1280×720 (25fps) visible; 1280×1024, 1280×720, 1024×768 (25fps) thermal
• Secondary frame rate: 1920×1080, 1280×720, 704×576, 352×288 (25fps) visible; 640×512, 384×288 (25fps) thermal
• Compression: H.265 / H.264 / MJPEG
• Laser illuminator: Laser spectral range: 808nm; Illumination range: 1500m.
• Laser rangefinder: Laser spectral range: 905nm; Detection distance: 6km
• Lens: Motorized Autofocus 30~150mm (therm.) 5X / Motorized Autofocus 10~550mm (vis.) 55X
• Angle: Horizontal: 28.7º~5.9º (therm) / H: 58º~1.2º (vis.)
• Pan/Tilt range: Horizontal: 0°~360° (endless), vertical: -90°~+90°
• Manual speed: Horizontal: 0.1°~100°/s, Vertical: 0.1°~60°/s
• Detection range: Human detection (1.8x0.5 m): 6.3Km; Vehicle detection (4x1.4 m): 19.2Km; Human recognition (1.8x0.5 m): 1.6Km; Vehicle recognition (4x1.4 m): 4.8Km
• Intelligent functions: Fire and smoke detection; Intrusion detection: line crossing, area entry; Synchronized zoom
• Audio: 1 input / 1 output
• Alarm: 1 input / 1 output
• Internal memory: Micro SD card up to 512GB (not included)
• Network interface: 1x Ethernet 10/100M BaseT
• Others: RS485
• Interoperability: ONVIF, SDK
• Power supply: 48VDC ±15% / 300W
• Operating temp.: -40ºC~+70ºC
• Protection rating: Waterproof IP66; TVS 6000V lightning protection
• Certifications: CE; ROHS; CE-EMC Test Report; FIPS 140-3 Level 3
• Dimensions: 623.6mm x 398.5mm x 350mm (width x height x depth)
• Weight: 30Kg.
📦 INCLUDED:
• Raythink PC5 series thermal camera • 48V DC power supply • Installation material
| Series | PC5 |
|---|---|
| Thermal sensor | 1280x1024 VOx uncooled 12μm |
| Spectral range | LWIR 8 ~ 14μm |
| Thermal sensitivity | ≤40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/1.25" CMOS 4Mpx |
| Main frame rate | 2688×1520, 1920×1080, 1280×720 (25fps) visible; 1280×1024, 1280×720, 1024×768 (25fps) thermal |
| Secondary frame rate | 1920×1080, 1280×720, 704×576, 352×288 (25fps) visible; 640×512, 384×288 (25fps) thermal |
| Compression | H.265 / H.264 / MJPEG |
| Laser illuminator | Laser spectral range: 808nm, Illumination range: 1500m. |
| Laser rangefinder | Laser spectral range: 905nm, Detection distance: 6km |
| Lens | Motorized Autofocus 30~150mm (therm.) 5X / Motorized Autofocus 10~550mm (vis.) 55X |
| Field of view | Horizontal: 28.7º~5.9º (therm.) / H: 58º~1.2º (vis.) |
| Pan/Tilt range | Horizontal: 0°~360° (continuous), Vertical: -90°~+90° |
| Manual speed | Horizontal: 0.1°~100°/s, Vertical: 0.1°~60°/s |
| Detection range | Human detection (1.8x0.5 m): 6.3km, Vehicle detection (4x1.4 m): 19.2km, Human recognition (1.8x0.5 m): 1.6km, Vehicle recognition (4x1.4 m): 4.8km |
| Intelligent functions | Fire and smoke detection, Intrusion detection: line crossing, area entry, Synchronized zoom |
| Audio | 1 input / 1 output |
| Alarm | 1 input / 1 output |
| Internal memory | Micro SD card up to 512GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Other | RS485 |
| Interoperability | ONVIF, SDK |
| Power supply | 48VDC ±15% / 300W |
| Operating temp. | -40ºC~+70ºC |
| Protection rating | Waterproof IP66, TVS 6000V lightning protection |
| Certifications | CE, ROHS, CE-EMC Test Report, FIPS 140-3 Level 3 |
| Dimensions | 623.6mm x 398.5mm x 350mm (width x height x depth) |
| Weight | 30kg. |
