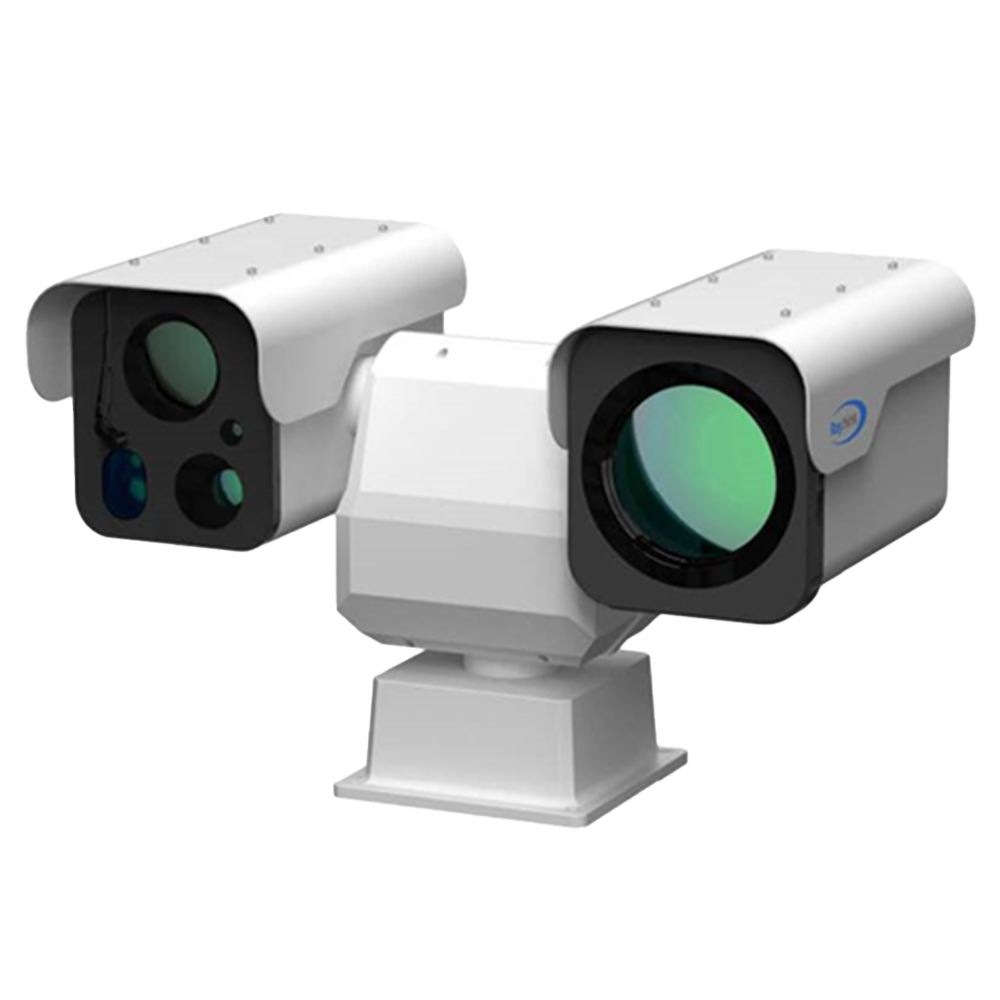

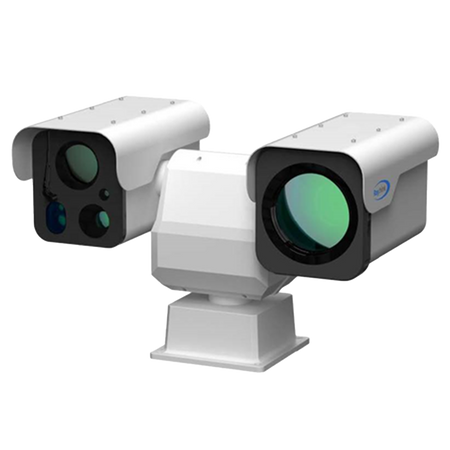

Raythink PC5 series thermal camera - 1/1.8" 4Mpx CMOS
Raythink PC5 series thermal camera - 1/1.8" 4Mpx CMOS
Regular price
€69.001,07
Final price
Regular price
-14%
€79.800,00
Sale price
€69.001,07
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Raythink PC5 series thermal camera - 1280x1024 12μm uncooled VOx thermal sensor - Thermal sensitivity ≤40mK@25°C,F#1.0,25Hz - 1/1.8" 4Mpx CMOS visible sensor - 30~150mm thermal lens (5X zoom) - 10~550mm visible lens (55X zoom)
📋 SPECIFICATIONS:
• Brand: Raythink
• Range: PC5
• Thermal sensor: 1280x1024 12μm uncooled VOx
• Spectral range: LWIR 8 ~ 14μm
• Thermal sensitivity: ≤40mK (@25°C,F#1.0,25Hz)
• Optical sensor: 1/1.8" 4Mpx CMOS
• Main Stream frame rate: 2688×1520, 1920×1080, 1280×720 (25fps) visible; 1280×1024, 1280×720, 1024×768 (25fps) thermal
• Sub Stream frame rate: 1920×1080, 1280×720, 704×576, 352×288 (25fps) visible; 640×512, 384×288 (25fps) thermal
• Compression: H.265 / H.264 / MJPEG
• Laser illuminator: Laser spectral range: 808nm; Illumination range: 800m. (1500m optional)
• Laser rangefinder: Laser spectral range: 905nm (1535nm optional); Detection distance: 2km. (3km., 6km. optional)
• Lens: Motorized Autofocus 30~150mm (therm.) 5X / Motorized Autofocus 10~550mm (vis.) 55X
• Field of view: Horizontal: 28.7º~5.9º (therm) / H: 58º~1.2º (vis.)
• Pan/Tilt range: Horizontal: 0°~360° (endless), vertical: -90°~+90°
• Manual speed: Horizontal: 0.1°~100°/s, Vertical: 0.1°~60°/s
• Detection range: Human detection (1.8x0.5 m): 6.3km; Vehicle detection (4x1.4 m): 19.2km; Human recognition (1.8x0.5 m): 1.6km; Vehicle recognition (4x1.4 m): 4.8km; Human identification (1.8x0.5 m): 0.8km; Vehicle identification (4x1.4 m): 2.4km
• Smart functions: Fire detection; Intrusion detection: line crossing, region entry; Synchronized zoom
• Audio: 1 input / 1 output
• Alarm: 1 input / 1 output
• Internal storage: Micro SD card up to 512GB (not included)
• Network interface: 1x 10/100M BaseT Ethernet
• Other: RS485
• Interoperability: ONVIF, SDK
• Power supply: 48VDC / 300W
• Operating temp.: -40ºC~+70ºC
• Protection rating: Waterproof IP66; 6000V TVS lightning protection
• Dimensions: 623.6mm x 398.5mm x 350mm (width x height x depth)
• Weight: 30kg.
📦 INCLUDED:
• Raythink PC5 series thermal camera• 48V DC power supply• Installation material
| Range | PC5 |
|---|---|
| Thermal sensor | 1280x1024 uncooled VOx 12μm |
| Spectral range | LWIR 8 ~ 14μm |
| Thermal sensitivity | ≤40mK (@25°C,F#1.0,25Hz) |
| Optical sensor | 1/1.8" 4Mpx CMOS |
| Main Stream frame rate | 2688×1520, 1920×1080, 1280×720 (25fps) visible; 1280×1024, 1280×720, 1024×768 (25fps) thermal |
| Sub Stream frame rate | 1920×1080, 1280×720, 704×576, 352×288 (25fps) visible; 640×512, 384×288 (25fps) thermal |
| Compression | H.265 / H.264 / MJPEG |
| Laser illuminator | Laser spectral range: 808nm, Illumination range: 800m (1500m optional) |
| Laser rangefinder | Laser spectral range: 905nm (1535nm optional), Detection distance: 2km (3km, 6km optional) |
| Optics | Motorized autofocus 30~150mm (therm.) 5X / Motorized autofocus 10~550mm (vis.) 55X |
| Angle | Horizontal: 28.7º~5.9º (therm) / H: 58º~1.2º (vis.) |
| Pan/Tilt range | Horizontal: 0°~360° (continuous), Vertical: -90°~+90° |
| Manual speed | Horizontal: 0.1°~100°/s, Vertical: 0.1°~60°/s |
| Detection range | Human detection (1.8x0.5m): 6.3km; Vehicle detection (4x1.4m): 19.2km; Human recognition (1.8x0.5m): 1.6km; Vehicle recognition (4x1.4m): 4.8km; Human identification (1.8x0.5m): 0.8km; Vehicle identification (4x1.4m): 2.4km |
| Intelligent functions | Fire detection; Intrusion detection: line crossing, area entry; Synchronized zoom |
| Audio | 1 input / 1 output |
| Alarm | 1 input / 1 output |
| Internal memory | Micro SD card up to 512GB (not included) |
| Network interface | 1x Ethernet 10/100M BaseT |
| Others | RS485 |
| Interoperability | ONVIF, SDK |
| Power supply | 48VDC / 300W |
| Operating temp. | -40ºC~+70ºC |
| Protection rating | Waterproof IP66, TVS 6000V lightning protection |
| Dimensions | 623.6mm x 398.5mm x 350mm (width x height x depth) |
| Weight | 30kg |
