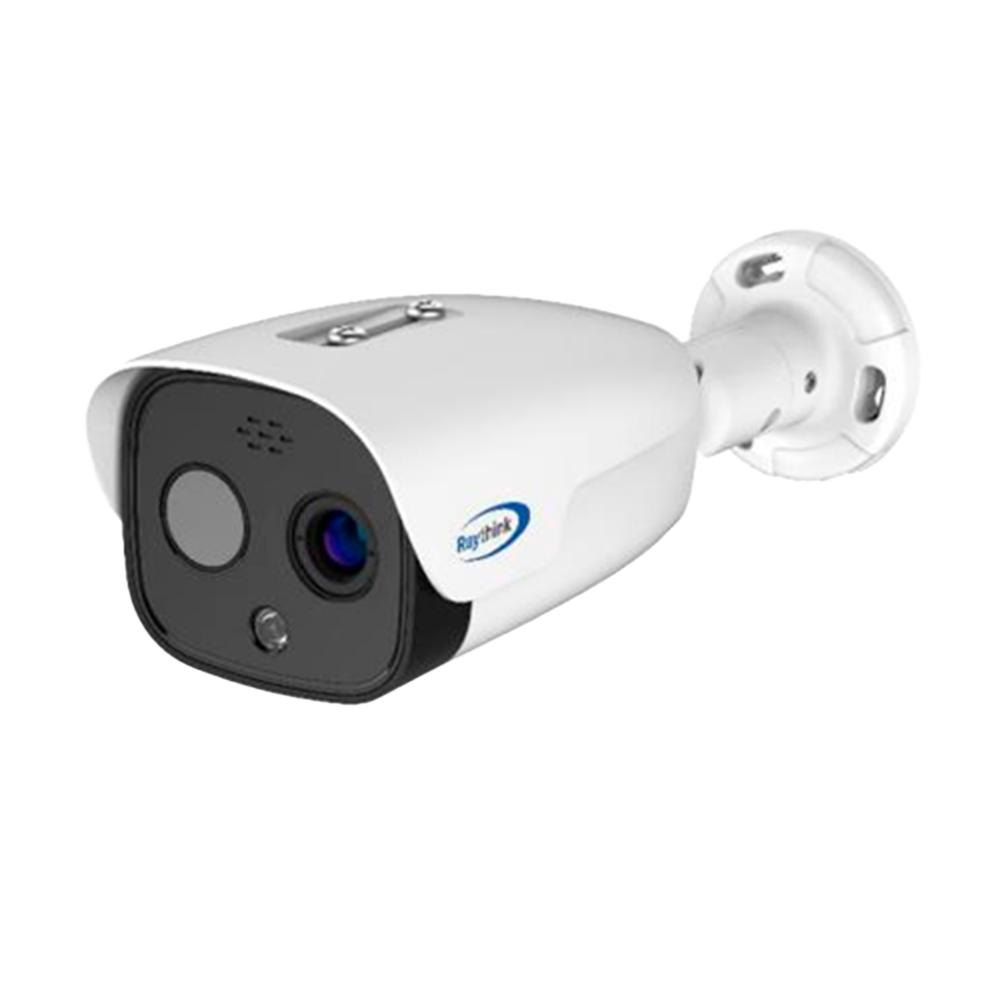

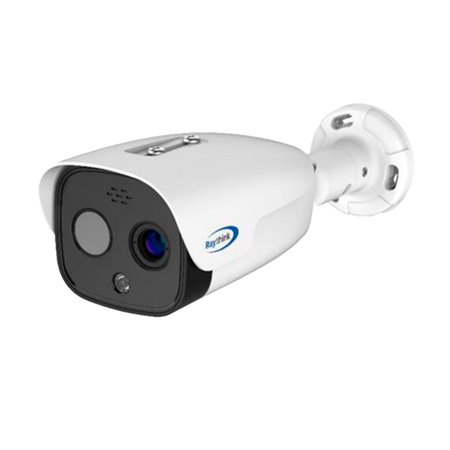

Raythink FC4 series IP thermal camera - 640x512 12μm VOx FPA thermal sensor | 13mm lens

SKU: RP-FC465T-013
(0)
In stock
Usually shipped within 24 hours
€2.374,97 Final price
-25% €3.152,00 €2.374,97 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Raythink FC4 series IP thermal camera - 640x512 12μm VOx FPA thermal sensor | 13mm lens - 1/2.8" CMOS visible sensor | 5Mpx | 6mm lens - Thermal sensitivity ≤40mK - Temperature measurement range -20~550ºC/±2ºC or ±2% - Early fire and intrusion detection

📋 SPECIFICATIONS:
• Brand: Raythink
• Range: FC4
• Thermal sensor: Uncooled VOx FPA
• Thermal sensor resolution: 640 x 512
• Pixel pitch: 12μm
• Thermal lens: 13mm
• Thermal sensitivity: ≤40mK
• Thermal measurement range: -20~550ºC / ±2ºC or ±2%
• Spectral range: LWIR 8~14μm
• Thermal field of view: 33° (H) x 26° (V)
• Visible sensor: 1/2.8" Progressive Scan CMOS
• Visible sensor resolution: 2560 x 1920 (5Mpx)
• Visible lens: 6mm
• Visible field of view: 46° (H) x 35° (V)
• Infrared illuminator: 40m max.
• Bi-spectrum viewing parameters: Fusion / PiP
• Main Stream frame rate: Visible: 25fps (2560×1920, 2560×1440, 1920×1080, 1280×720); Thermal: 25fps (1280×1024, 1024×768)
• Sub Stream Rate: Visible: 25fps (704×576, 352×288); Thermal: 25fps (640x512, 352x288)
• Compression: H.265 / H.264
• DRI: Human: 542m (D), 135m (R), 68m (I); Vehicle: 1661m (D), 415m (R), 208m (I)
• Smart analysis ranges: Human: 102m; Vehicle: 311m; Temperature measurement (2x2m object): 361m; Temperature measurement (1x1m object): 181m; Fire detection (2x2m object): 1444m; Fire detection (1x1m object): 722m
• VCA: Line crossing, intrusion, temperature measurement and fire detection
• Temperature rules: Full window, point, line and area, multiple rules simultaneously
• Alarms: 2 inputs / 2 outputs
• Audio: 1 input / 1 output
• Audio compression formats: G.711a/G.711u/AAC/PCM
• Internal memory: MicroSD card slot up to 256 GB
• Network interface: Ethernet 10/100 BaseT
• Communication: 1 x RS-485 Pelco protocol
• Remote access: Web browser, VMS PC software
• Interoperability: ONVIF, API, SDK
• Power supply: DC 12V, 8W max.; PoE IEEE802.3af
• Operating temp: -40ºC~+70ºC, <95% RH
• Protection rating: IP66 waterproof
• Dimensions: 319.5mm × 121.5mm × 103.6mm
• Weight: 1,800g

📦 INCLUDED:
• Raythink FC4 series IP dual thermal camera • Installation material • User instructions
Range FC4
Thermal sensor Uncooled VOx FPA
Thermal sensor resolution 640 x 512
Pixel pitch 12μm
Thermal lens 13mm
Thermal sensitivity ≤40mK
Thermal measurement range -20~550ºC / ±2ºC or ±2%
Spectral range LWIR 8~14μm
Thermal field of view 33° (H) x 26° (V)
Visible sensor 1/2.8" Progressive Scan CMOS
Visible sensor resolution 2560 x 1920 (5Mpx)
Visible lens 6mm
Visible field of view 46° (H) x 35° (V)
Infrared illuminator 40m maximum
Bi-spectrum vision parameters Fusion / PiP
Main Stream frame rate Visible: 25fps (2560×1920, 2560×1440,1920×1080,1280×720) Thermal: 25fps(1280×1024, 1024×768)
Sub Stream rate Visible: 25fps (704×576, 352×288) Thermal: 25fps (640x512, 352x288)
Compression H.265 / H.264
DRI Human: 542m (D), 135m (R), 68m (I) Vehicle: 1661m (D), 415m (R), 208m (I)
Smart analysis ranges Human: 102m Vehicle: 311m Temperature measurement (2x2m object): 361m Temperature measurement (1x1m object): 181m Fire detection (2x2m object): 1444m Fire detection (1x1m object): 722m
VCA Line crossing, intrusion, temperature measurement, and fire detection
Temperature rules Full window, point, line, and area, multiple rules simultaneously
Alarms 2 Input / 2 Output
Audio 1 input / 1 output
Audio compression formats G.711a/G.711u/AAC/PCM
Internal memory MicroSD card slot up to 256 GB
Network interface Ethernet 10/100 BaseT
Communication 1 x RS-485 Pelco protocol
Remote access Web browser, PC VMS software
Interoperability ONVIF, API, SDK
Power supply DC 12V, 8W max. PoE IEEE802.3af
Operating temp -40ºC~+70ºC, &lt;95% RH
Degree of protection Waterproof IP66
Dimensions 319.5mm × 121.5mm × 103.6mm
Weight 1,800g
