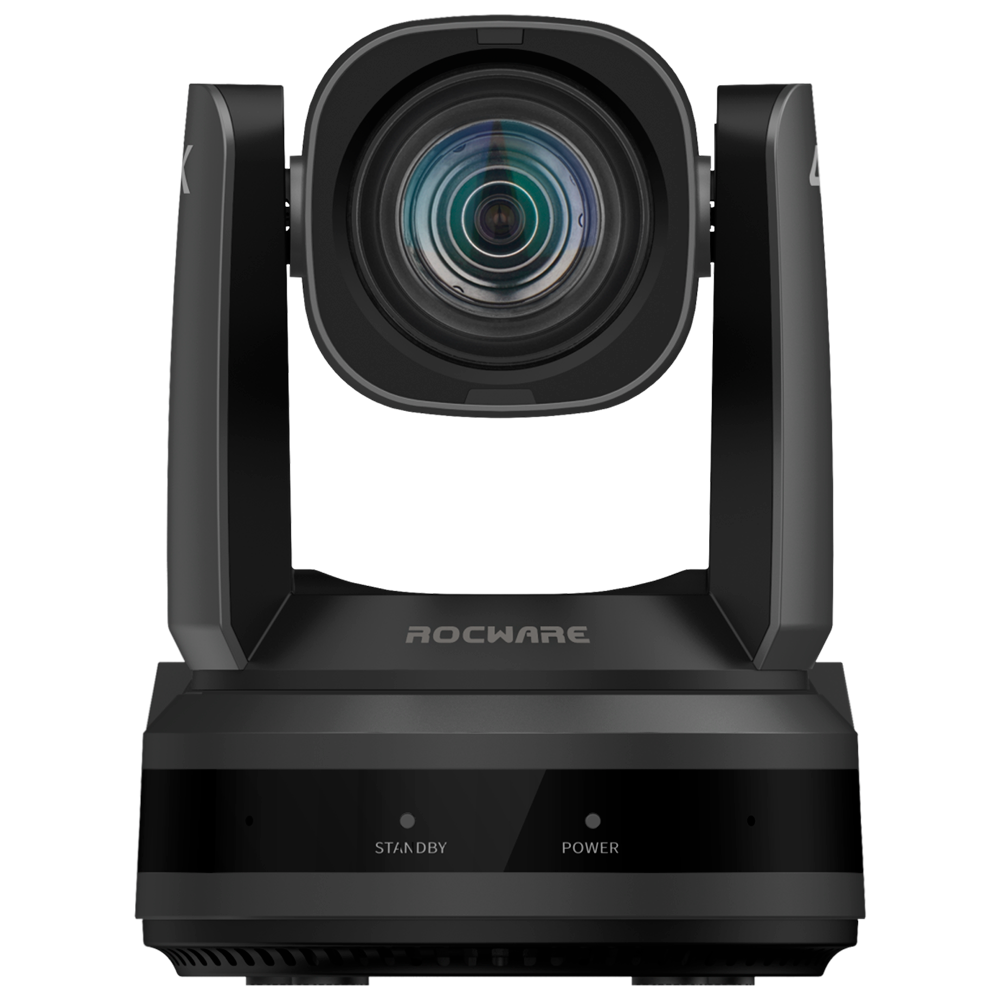

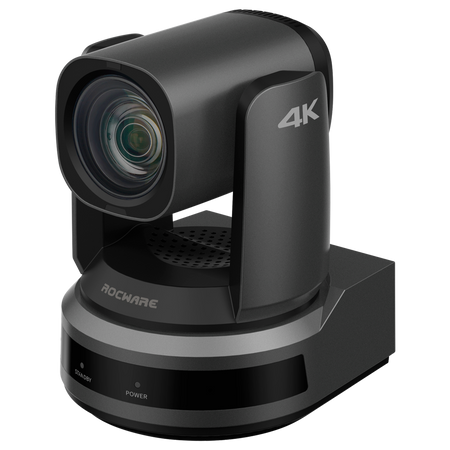

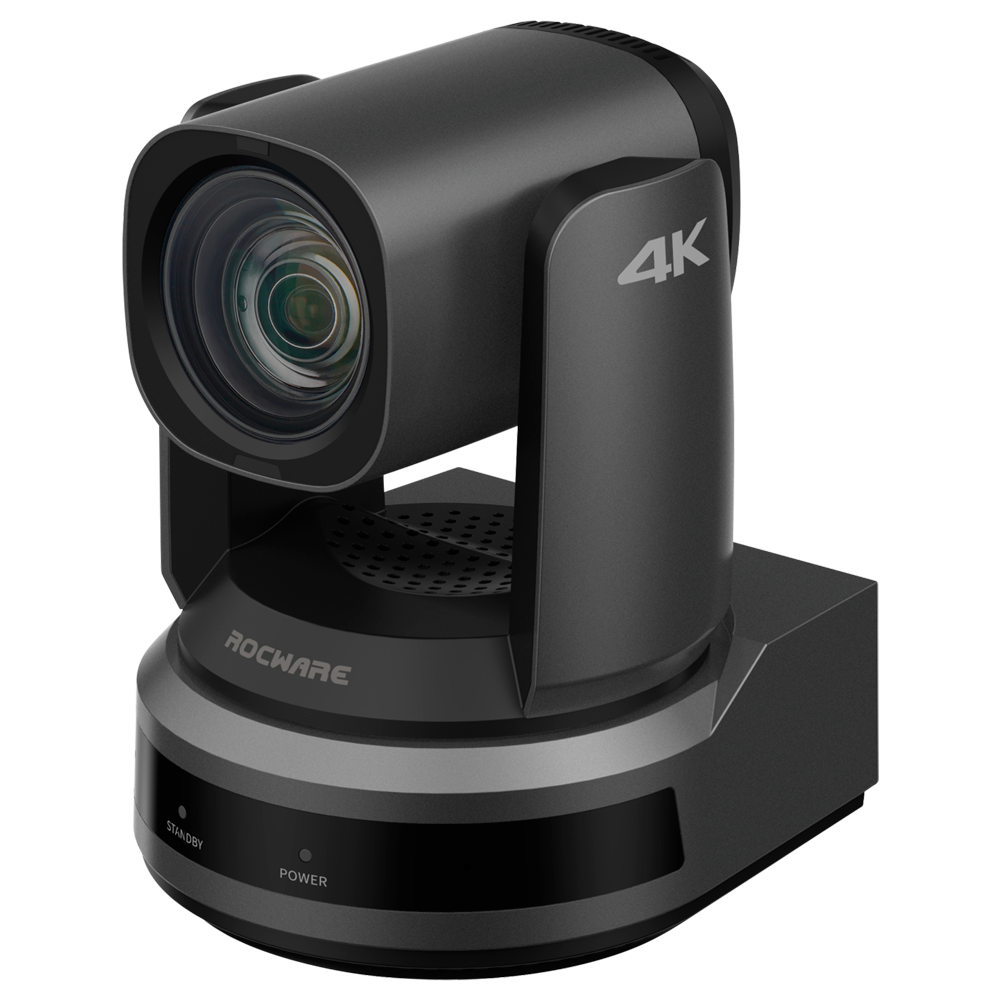

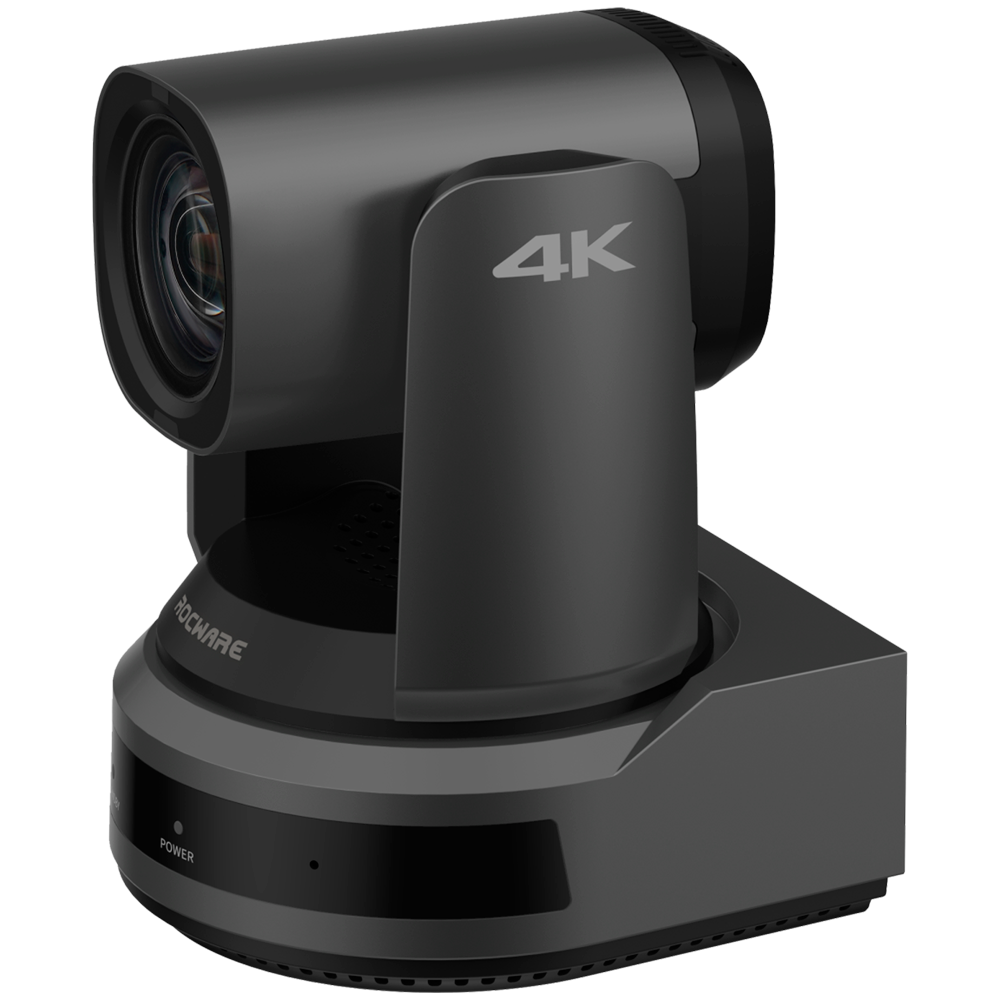

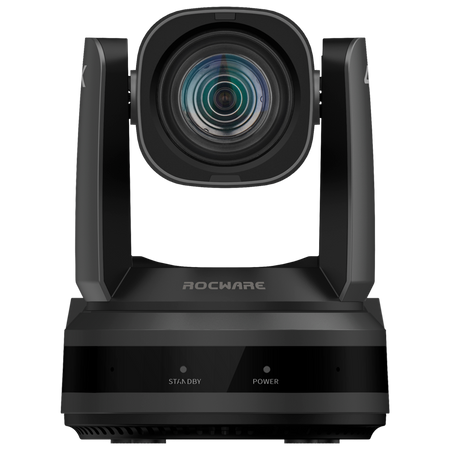

Rocware 4K PTZ Camera
Regular price
€785,24
Final price
Regular price
-2%
€801,30
Sale price
€785,24
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

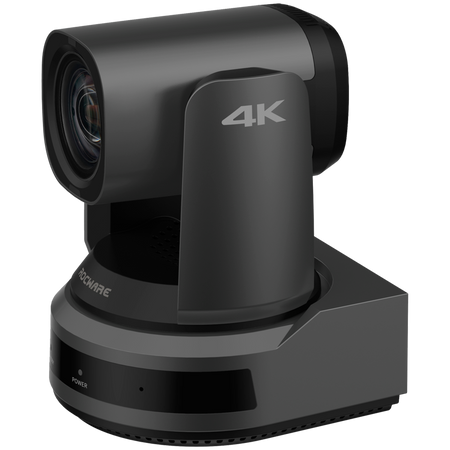

PTZ Camera - 4K Resolution - 80.8º Viewing angle - 12X Optical zoom - Auto-framing - PoE+
📋 SPECIFICATIONS:
• Video resolution (HDMI): 4K@60; 4K@59.94; 4K@50; 4K@30; 4K@29.97; 4K@25; 1080p@60; 1080p@59.94; 1080p@50; 1080p@30; 1080p@29.97; 1080i@60; 1080i@59.94; 1080i@50; 720p@60; 720p@59.94
• Sensor: 1/2.8"; CMOS; 8.46MP
• Scanning mode: Progressive
• Lens: 12X optical zoom; f3.47mm ~ 41.65mm; F1.84 ~ F3.72
• Digital zoom: 16X
• Minimum illumination: 0.5Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• White balance: Auto; Indoor; Outdoor; One push; Manual
• Backlight compensation: Yes
• Digital noise reduction: 3D
• Video S/N ratio: ≥55dB
• Viewing angle: Horizontal: 80.8º ~ 7.5º; Vertical: 49.9º ~ 4.3º
• Rotation range: Horizontal: ±170º; Vertical: -30º ~ +90º
• Rotation speed: Horizontal: 1.7º ~ 100º/s; Vertical: 1.7º ~ 69.9º/s
• Image flip: Horizontal and vertical
• Image freeze: Yes
• Presets: 255 (0.1º accuracy)
• LED indicators: Tally; Standby; Power
• Video compression: H.264 / MJEPG
• Video stream: Main; Secondary
• Main video stream resolution: 3840x2160; 1920x1080; 1280x720; 1024x576; ...
• Secondary video stream resolution: 720x480; 320x240; ...
• Audio bitrate: CBR, VBR; Main: 32Kbps ~ 51200Kbps; Secondary: 32Kbps ~ 20480Kbps
• Frame rate: 50Hz: 1fps ~ 50fps; 60Hz: 1fps ~ 60fps
• Audio compression: AAC
• Audio bitrate: 96Kbps; 128Kbps
• Supported protocols: NDI | HX2; SRT; TCP/IP; HTTP; RTSP; RTMP; Onvif; DHCP; GB/T 28181; Multicast; ...
• Compatibility: Windows 8; Windows 10; Mac OS X; Linux; Android
• Color compression: YUY2; H.264; MJPEG
• Audio: Yes
• Video format: YUYV2: Max 1080p@30; MJPEG: Max 4K@30; H.264: Max 4K@30
• Frame rate: 1fps ~ 30fps
• Video communication protocol: UVC 1.1
• Control via UVC: Yes (PTZ)

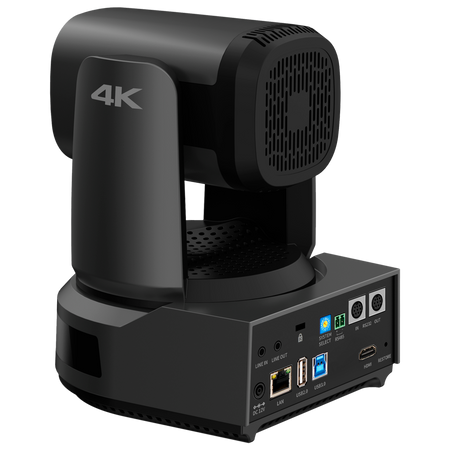

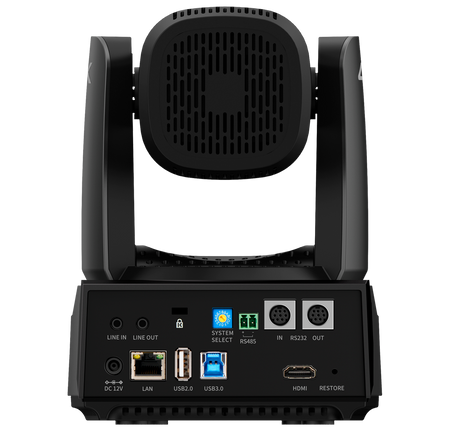

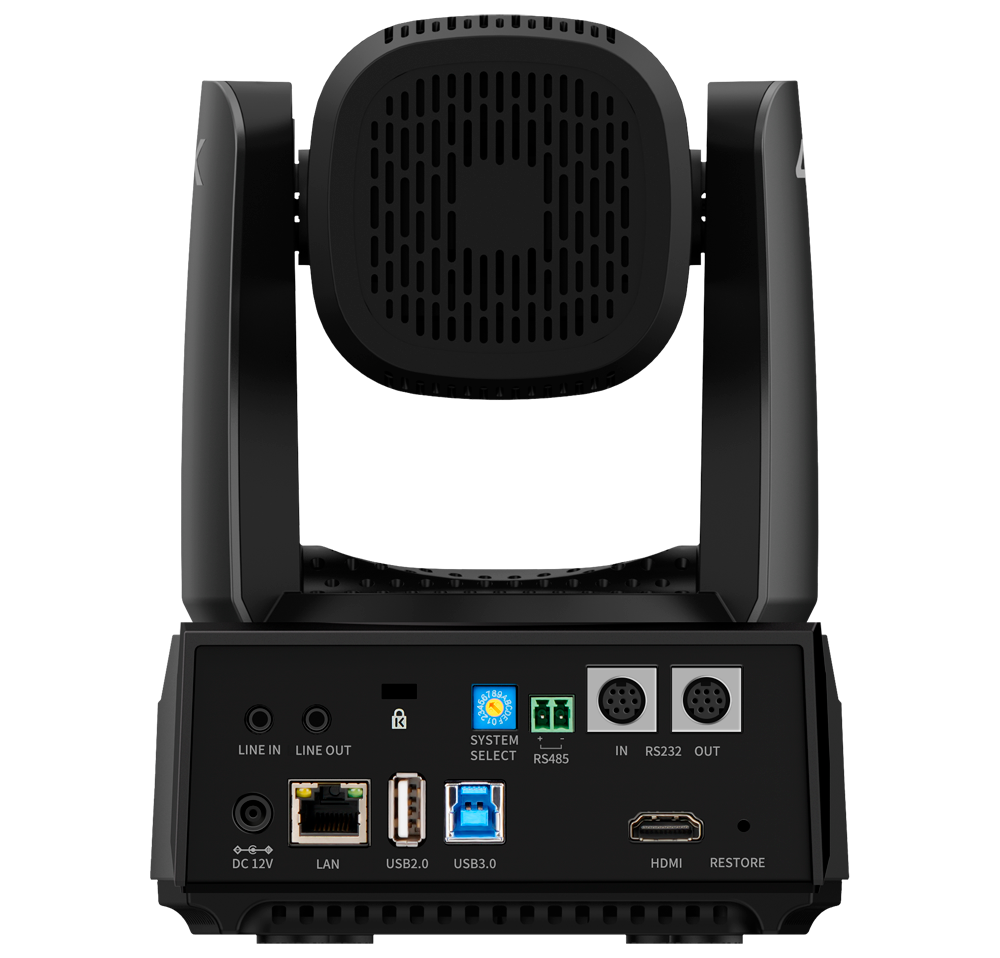

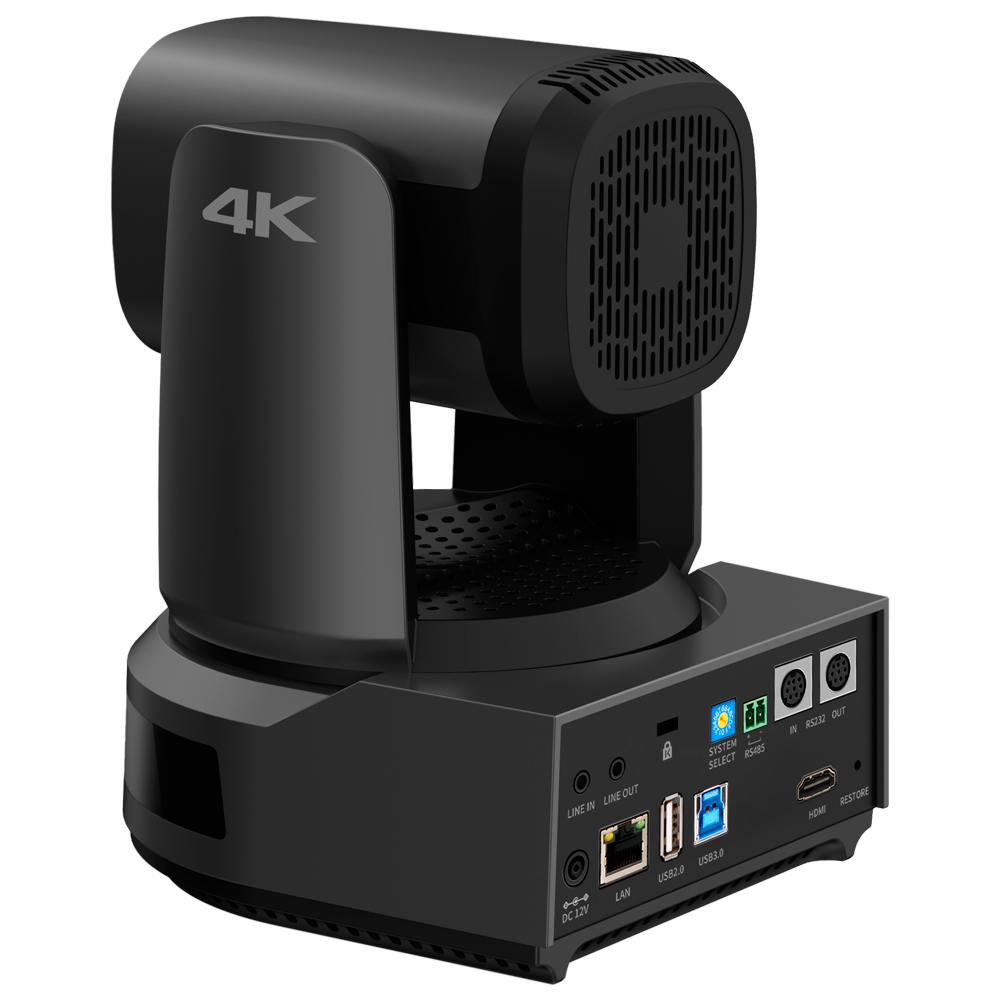

• USB: 1 x USB-B 3.0; 1 x USB-A 2.0
• HDMI output: 1 x HDMI 2.0
• Network: 1 x RJ45 (10/100/1000Mbps)
• Audio: 1 x Line IN (3.5mm Jack); 1 x Line OUT (3.5mm Jack)
• Communication: 1 x RS485 (Phoenix 2 pin, max. distance 1200m, protocols: VISCA/Pelco-D/Pelco-P); 1 x RS232 IN (8 pin Mini DIN, max. distance 30m, protocols: VISCA/Pelco-D/Pelco-P); 1 x RS232 OUT (8 pin Mini DIN, max. distance 30m, protocols: VISCA)
• Power supply: 1 x DC IN 12V
• Security lock: Yes
• System selector switch: Yes
• Reset button: Yes
• Power input: DC 12V 1.0A (Max.); PoE+ (802.3at)
• Operating temperature: 0ºC ~ 40ºC
• Storage temperature: -40ºC ~ 60ºC
• Maximum consumption: 18W
• Dimensions: 142.5mm (H) x 188.3mm (W) x 151.9mm (D)
• Weight: 1.56Kg
📦 INCLUDED:
• PTZ camera• 1 x Power adapter• 1 x USB cable• 1 x Remote control• 1 x User manual• 1 x Wall mount
| Video resolution (HDMI) | 4K@60 4K@59.94 4K@50 4K@30 4K@29.97 4K@25 1080p@60 1080p@59.94 1080p@50 1080p@30 1080p@29.97 1080i@60 1080i@59.94 1080i@50 720p@60 720p@59.94 |
|---|---|
| Sensor | 1/2.8" CMOS 8.46MP |
| Scan mode | Progressive |
| Lens | 12X optical zoom f3.47mm ~ 41.65mm F1.84 ~ F3.72 |
| Digital zoom | 16X |
| Minimum illumination | 0.5Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White balance | Auto Indoor Outdoor One-push Manual |
| Backlight compensation | Yes |
| Digital noise reduction | 3D |
| Video S/N ratio | ≥55dB |
| Field of view | - Horizontal: 80.8º ~ 7.5º - Vertical: 49.9º ~ 4.3º |
| Rotation range | - Horizontal: ±170º - Vertical: -30º ~ +90º |
| Rotation speed | - Horizontal: 1.7º ~ 100º/s - Vertical: 1.7º ~ 69.9º/s |
| Image flip | Horizontal and vertical |
| Freeze frame | Yes |
| Presets | 255 (0.1º precision) |
| LED indicators | - Tally - Standby - Power |
| Video compression | H.264 / MJEPG |
| Video stream | Main Sub |
| Main stream resolution | 3840x2160 1920x1080 1280x720 1024x576 ... |
| Sub stream resolution | 720x480 320x240 ... |
| Video bitrate | CBR, VBR - Main: 32Kbps ~ 51200Kbps - Sub: 32Kbps ~ 20480Kbps |
| Frame rate | 50Hz: 1fps ~ 50fps 60Hz: 1fps ~ 60fps |
| Audio compression | AAC |
| Audio bitrate | 96Kbps 128Kbps |
| Supported protocols | NDI | HX2 SRT TCP/IP HTTP RTSP RTMP Onvif DHCP GB/T 28181 Multicast ... |
| Compatibility | Windows 8 Windows 10 Mac OS X Linux Android |
| Color compression | YUY2 H.264 MJPEG |
| Audio | Yes |
| Video format | - YUYV2: Max 1080p@30 - MJPEG: Max 4K@30 - H.264: Max 4K@30 |
| Frame rate | 1fps ~ 30fps |
| Video communication protocol | UVC 1.1 |
| UVC control | Yes (PTZ) |
| USB | 1 x USB-B 3.0 1 x USB-A 2.0 |
| HDMI output | 1 x HDMI 2.0 |
| Network | 1 x RJ45 (10/100/1000Mbps) |
| Audio | 1 x Line IN (3.5mm Jack) 1 x Line OUT (3.5mm Jack) |
| Communication | 1 x RS485 (Phoenix 2 pin, max. distance 1200m, protocols: VISCA/Pelco-D/Pelco-P) 1 x RS232 IN (8 pin Mini DIN, max. distance 30m, protocols: VISCA/Pelco-D/Pelco-P) 1 x RS232 OUT (8 pin Mini DIN, max. distance 30m, protocols: VISCA) |
| Power supply | 1 x DC IN 12V |
| Security lock | Yes |
| System selector switch | Yes |
| Reset button | Yes |
| Power | DC 12V 1.0A (Max.) PoE+ (802.3at) |
| Operating temperature | 0ºC ~ 40ºC |
| Storage temperature | -40ºC ~ 60ºC |
| Maximum consumption | 18W |
| Dimensions | 142.5mm (H) x 188.3mm (W) x 151.9mm (D) |
| Weight | 1.56Kg |
